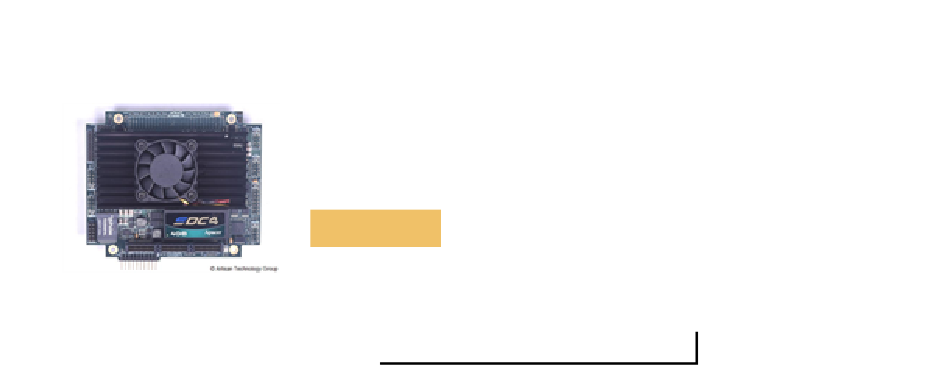

RTD Embedded Technologies CMA22MVD1860HR-2048
PC/104-Express Single Board Computer
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
In Stock
New From Surplus Stock
Open Web Page
https://www.artisantg.com/94611-1
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cpuModules CMA22M and is the answer not in the manual?

Questions and answers

Summary of Contents for rtd cpuModules CMA22M

  • Page 1 RTD Embedded Technologies CMA22MVD1860HR-2048 PC/104-Express Single Board Computer In Stock New From Surplus Stock Open Web Page https://www.artisantg.com/94611-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 CMA22M cpuModules™ User’s Manual BDM-610000069 Revision E ® www.rtd.com ISO9001 and AS9100 Certified “Accessing the Analog World” ®...
  • Page 3 Contents and specifications within this manual are given without warranty, and are subject to change without notice. RTD Embedded Technologies, Inc. shall not be liable for errors or omissions in this manual, or for any loss, damage, or injury in connection with the use of this manual.
  • Page 4 CMA22M cpuModules™ ® www.rtd.com ISO9001 and AS9100 Certified “Accessing the Analog World” ®...
  • Page 5 iv CMA22M cpuModule BDM-610000069 Rev E...

  • Page 6: Table Of Contents

    Table of Contents Chapter 1 Introduction CMA22M cpuModules................. Enhanced Intel SpeedStep (Core 2 Duo only) .
  • Page 7 Configuring the RTD Enhanced AMI BIOS ........
  • Page 8 I/O Address Map ..................Hardware Interrupts .
  • Page 9 Reducing Power Consumption ................Multi-Color LED .

  • Page 10: Chapter 1 Introduction

    Troubleshooting offers advice on debugging problems with your system Appendix C IDAN™ Dimensions and Pinout provides connector pinouts for the cpuModule installed in an RTD Intelligent Data Acquisition Node (IDAN) frame Appendix D Additional Information lists sources and websites to support the cpuModule installation and configuration...

  • Page 11: Cma22M Cpumodules

    Advanced Analog I/O (aAIO), and Advanced Digital I/O (aDIO). RTD has gone the extra mile to include additional advanced features for maximum flexibility. These include a SATA Disk Chip socket that allows flash drive with a standard SATA interface to be attached to the board, either socketed or soldered.

  • Page 12: Enhanced Intel Speedstep (Core 2 Duo Only)

    Wake-on-aDIO RTD’s exclusive aDIO™ is 12 digital bits configured as 8 bit-direction programmable and 4-bit port-direction programmable I/O, plus 2 strobe inputs giving you any combination of inputs and outputs. Match, event, and strobe interrupt modes mean no more wasting valuable processor time polling digital inputs.
  • Page 13 The aAIO also provides interrupts on threshold crossing. A high and low threshold can be set for each channel. After sampling is started, an interrupt can be generated if any of the signals cross the threshold. This removes some of the CPU load for simple monitoring tasks. A DMA engine with a scatter-gather table allows efficient, robust handling of data.

  • Page 14: Ordering Information

    CMA22MCS1200HR-1024 Celeron (Single Core) 1.20 GHz, 1GB DDR2-SDRAM Cable Kits and Accessories For maximum flexibility, RTD does not provide cables with the cpuModule. You may wish to purchase the CMA22M cpuModule cable kit (P/N XK-CM91), which contains: • Multi-function utility harness (keyboard socket, battery, reset, speaker) •...

  • Page 15: Board Features

    Board Features • Penryn Processor Part Number Speed Cores L2 Cache FSB Speed CMA22MVD1860 1.86GHZ 6 MB 1066 MHz CMA22MVD1200 1.20 GHz 3 MB 800 MHz CMA22MCS1200 1.20 GHz 1 MB 800 MHz – Intel 64 architecture for 64-bit processing. –...

  • Page 16: I/O

    – Supported power down modes: S1 (Power On Suspend), S3 (Suspend to RAM), S4 (Hibernate), and S5 (Soft-Off) – CPU Clock Throttling and Clock Stop for C0 to C6 Support – Wake events include: • aDIO Interrupt • Wake-on-LAN • Real Time Clock •...

  • Page 17: Bios

    Battery input for Real Time Clock • Power I/O – ATX Power signals BIOS • RTD Enhanced AMI BIOS During the time of this manual’s publication, 32GB was the largest available SATA Disk Chip capacity 8 CMA22M cpuModule BDM-610000069 Rev E...
  • Page 18 • User-configurable using built-in Setup program • Nonvolatile storage of CMOS settings without battery • Boot Devices – Standard Devices (floppy disk, hard disk, etc.) – SATA Disk Chip – USB Device – Network – Fail Safe Boot ROM • Surface-mount Flash chip that holds ROM-DOS™...

  • Page 19: Block Diagram

    The cpuModule uses the RTD Enhanced AMI BIOS. Drivers in the BIOS allow booting from hard disk, Disk Chip, or boot block flash, thus enabling the system to be used with traditional disk drives or nonmechanical drives.

  • Page 20: Specifications

    2. 5V Standby is used to power the board when the main supply is turned off (power down modes S3-S5). It is not required for board operation. 3. With supplied heat sink solution. Depending on the CPU usage, performance may degrade as the ambient temperature approaches the maximum. Contact RTD Tech Support for more information. BDM-610000069 Rev E...

  • Page 21: Electrical Characteristics

    Electrical Characteristics The table below lists the Electrical Characteristics of the CMA22M. Operating outside of these parameters may cause permanent damage to the cpuModule. Table 4 Electrical Characteristics Symbol Parameter Test Condition Min. Max. Output Voltage High = –0.5 mA 2.9 V 3.3 V Output Voltage Low...
  • Page 22 Table 4 Electrical Characteristics Symbol Parameter Test Condition Min. Max. Serial Ports - RS-232 Output Voltage High = 3 k 5.0 V 10.0 V Output Voltage Low = 3 k -10.0 V -5.0 V Input Voltage High — 2.4 V 25 V Input Voltage Low —...

  • Page 23: Contact Information

    Contact Information RTD Embedded Technologies, Inc. 103 Innovation Blvd. State College, PA 16803-0906 Phone: +1-814-234-8087 Fax: +1-814-234-5218 E-mail: sales@rtd.com techsupport@rtd.com Internet: http://www.rtd.com 14 CMA22M cpuModule BDM-610000069 Rev E...

  • Page 24: Chapter 2 Getting Started

    Chapter 2 Getting Started For many users, the factory configuration of the CMA22M cpuModule can be used to get a PC/104 system operational. You can get your system up and running quickly by following the simple steps described in this chapter, which are: Before connecting the cpuModule, the user must be properly grounded to prevent electrostatic discharge (ESD).

  • Page 25: Connector Locations

    Connector Locations Figure 3 shows the connectors and the SATA Disk Chip socket of the CMA22M cpuModule. SVGA PCI Bus (CN16) Video (CN18) LVDS Flat COM2&4 Panel (CN8) (CN19) COM1&3 (CN7) aAIO (CN10) Switched (CN15) USB 2.0 (CN17) aDIO (CN6) Ethernet (CN20) Multi-...
  • Page 26 WARNING If you connect power incorrectly, the module will almost certainly be damaged or destroyed. Such damage is not covered by the RTD warranty! Please verify connections to the module before applying power. Power is normally supplied to the cpuModule through the PCIe and PCI bus connectors (CN1 or CN2, and CN16).

  • Page 27: Selecting The Stack Order For The Cma22M

    10. The standard CPU has the PCI connection below the board only. This means that all boards with an active PCI bus interface must be below the CPU. Contact RTD sales if it is required to have a PCI board above the CPU.

  • Page 28: Stack Example

    Stack Example The figure below shows an example of a complete system stack. Most systems will be a subset of this example. This example stack may be further expanded with a PCI to ISA bridge, PCIe to PCIe bridges, or a PCIe to PCI bridge.

  • Page 29: Connecting To The Stack

    The PCI bus can operate at +3.3 V or +5 V signaling levels. The default PCI bus signaling level is +3.3 V. For more information, contact RTD Technical Support. WARNING You will have to ensure that all your expansion cards can operate together at a single signaling level.

  • Page 30: Connecting The Utility Cable

    Soft Power Button input To use these interfaces, you must connect to the utility port connector (CN5). The utility harness from the RTD cable kit provides a small speaker, two connectors for the keyboard and mouse, a push-button for resetting the system, a soft-power button, and a lithium battery to provide backup power for the real time clock.
  • Page 31 22 CMA22M cpuModule BDM-610000069 Rev E...

  • Page 32: Chapter 3 Connecting The Cpumodule

    Chapter 3 Connecting the cpuModule This chapter provides information on all CMA22M cpuModule connectors. Proper Grounding Techniques—page 24 Connector Locations—page 24 Auxiliary Power (CN3)—page 26 Utility Port Connector (CN5)—page 27 SVGA Video Connector (CN18)—page 30 LVDS Flat Panel Video Connector (CN19)—page 31 SATA Disk Chip Socket (U6)—page 32 Serial Port 1 (CN7) and Serial Port 2 (CN8)—page 33 Advanced Digital I/O (aDIO™) Port (CN6)—page 38...

  • Page 33: Proper Grounding Techniques

    Proper Grounding Techniques Before removing the CMA22M from its static bag, proper grounding techniques must be used to prevent electrostatic discharge (ESD) damage to the cpuModule. Common grounding procedures include an anti-static mat on a workbench, which may connect to an anti-static wrist strap (also known as an ESD wrist strap) on the wrist of the technician or engineer.
  • Page 34 Table 6 CMA22M Basic Connectors Connector Function Size and Pitch Mating Connector PCIe/104 Type 2 Bus (Top) 156-pin, 0.635mm Samtec ASP-129646-03 PCIe/104 Type 1 Bus (Bottom) 156-pin, 0.635mm Samtec ASP-129637-03 Auxiliary Power 1x10, 0.1” FCI 65039-027LF Utility Port 2x5, 0.1” 3M 89110-0001 aDIO 2x8, 0.1”...

  • Page 35: Auxiliary Power (Cn3)

    Auxiliary Power (CN3) The Auxiliary Power connector (CN3) can be used to supply power to devices that are attached to the cpuModule. These devices include hard drive, front-end boards for data acquisition systems, and other devices. Power can also be conveyed to the module through the Auxiliary Power connector (CN3). The cpuModule only requires +5 V and ground for operation.

  • Page 36: Utility Port Connector (Cn5)

    Utility Port Connector (CN5) The utility port connector implements the following functions: • PC/AT compatible keyboard port • PS/2 mouse port • Speaker port (0.1W output) • Hardware Reset input • Soft Power Button input • Battery input for Real Time Clock Table 8 provides the pinout of the multi-function connector.

  • Page 37: Keyboard

    Keyboard A PS/2 compatible keyboard can be connected to the multi-function connector. Usually PC keyboards come with a cable ending with a 5-pin male PS/2 connector. Table 9 lists the relationship between the multi-function connector pins and a standard PS/2 keyboard connector. Table 9 Keyboard Connector Pins (CN5) Signal Function...

  • Page 38: Battery

    Battery Pin 9 of the multi-function connector is the connection for an external backup battery. This battery is used by the cpuModule when system power is removed in order to preserve the date and time in the real time clock. Connecting a battery is only required to maintain time when power is completely removed from the cpuModule.

  • Page 39: Svga Video Connector (Cn18)

    SVGA Video Connector (CN18) Table 11 provides the pinout of the video connector. Table 11 SVGA Video Connector (CN18) Signal Function In/Out VSYNC Vertical Sync HSYNC Horizontal Sync DDCSCL Monitor Communications Clock Red Analog Output DDCSDA Monitor Communications Data bidirectional GREEN Green Analog Output +5 V...

  • Page 40: Lvds Flat Panel Video Connector (Cn19)

    Table 12 provides the pinout of the Flat Panel Video connector (CN19). FP_VCC is configured for +3.3V by default. Contact RTD to have FP_VCC configured for +5 V. FP_VBKLT can be either +5 V or +12 V, and can be selected with JP9.

  • Page 41: Sata Disk Chip Socket (U6)

    SATA Disk Chip Socket (U6) The SATA Disk Chip socket is an 18-pin socket in a 32-pin format that supports miniature SATA flash disk chips. The socket allows a true SATA device to be attached to the board with either a socketed or soldered connection. Such devices are supported by all major operating systems, and do not require special drivers.

  • Page 42: Serial Port 1 (Cn7) And Serial Port 2 (Cn8)

    Serial Port 1 (CN7) and Serial Port 2 (CN8) Serial Port 1 (COM1) is implemented on connector CN7, and Serial Port 2 is implemented on connector CN8. The serial ports are normally configured as PC compatible full-duplex RS-232 ports, but you may use the BIOS Setup program to reconfigure these ports as half-duplex RS-422 or full-duplex RS-422 or RS-485.

  • Page 43: Rs-422 Or Rs-485 Serial Port

    Facing the serial port’s connector pins, the pinout is: RS-422 or RS-485 Serial Port You may use Setup to configure the serial ports as RS-422 or RS-485. In this case, you must connect the serial port to an RS-422 or RS-485 compatible device. When using RS-422 or RS-485 mode, you can use the serial ports in either half-duplex (two-wire) or full-duplex (four-wire) configurations.

  • Page 44: Rs-422 And Rs-485 Mode Pinout

    RS-422 and RS-485 Mode Pinout Table 19 provides the serial port connector pinout when RS-422 or RS-485 modes are enabled. Table 19 Serial Port in RS-422/485 Mode Signal Function In/Out DB-9 — Reserved — — Reserved — RXD– Receive Data (–) TXD+ Transmit Data (+) TXD–...

  • Page 45: Dual Serial Port Modes

    Dual Serial Port Modes The serial port connectors can be configured as dual serial ports in the BIOS. The mapping between the connectors and COM port numbers is shown in Table 20. The supported combinations of serial port modes are listed in Table 21, which also includes a reference to the corresponding connector pinout.
  • Page 46 Table 23 COM A (RS-422/485) and COM B (RS-232) Signal Function In/Out DB-9 DCD1 COM A - Data Carrier Detect RXD2 COM B - Receive Data RXD1- COM A - Receive Data (–) TXD1+ COM A - Transmit Data (+) TXD1- COM A - Transmit Data (–) RXD1+...

  • Page 47: Advanced Digital I/O (Adio™) Port (Cn6)

    Advanced Digital I/O (aDIO™) Port (CN6) CN6 is configured as an aDIO port. aDIO is 12 digital bits configured as 8-bit programmable and 4-bit port programmable I/O, providing any combination of inputs and outputs. Match, event, and strobe interrupt modes mean no more wasting valuable processor time polling digital inputs.

  • Page 48: Advanced Analog I/O (Aaio™) Port (Cn10)

    Advanced Analog I/O (aAIO™) Port (CN10) The Advanced Analog I/O connector provides eight channels of analog input. When used in conjunction with the aDIO port, it allows the cpuModule to be a complete single-board data acquisition system. For more information on using the aAIO port, refer to Advanced Analog I/O (aAIO)—page 64. Table 26 aAIO Pinout CN10 Pin Function...

  • Page 49: Usb 2.0 Connector (Cn17)

    Two USB 2.0 compliant connectors are available on connector CN17. Table 27 provides the pinout of the USB connector. Note For proper operation at USB 2.0 speeds, be sure to use a cable that is rated for USB 2.0, such as the cable kit supplied by RTD. Table 27 USB Connector (CN17) Signal...

  • Page 50: Ethernet (10/100/1000Base-T And -Tx) Connector (Cn20)

    Ethernet (10/100/1000Base-T and -TX) Connector (CN20) This connector provides a 10/100/1000Base-T Ethernet connection. Table 28 provides the pinout of the Ethernet connector. For 1000Base-T, all four pairs are used for transmit and receive. To use the onboard 10/100/1000 Ethernet controller, Ethernet must be enabled in the BIOS. When enabled, the multi-color LED will blink to indicate an Ethernet connection.

  • Page 51: Pcie/104 Type 2 Bus (Cn1 - Top)

    PCIe/104 Type 2 Bus (CN1 - Top) Connector CN1 carries the signals of the PCIe/104 PCIe bus. These signals match definitions found in the PCI/104-Express & PCIe/104 Specification Version 2.01 from the PC/104 Embedded Consortium. Table 29 lists the pinouts of the PC/104-Express bus connector. WARNING Not all PCIe cards are compatible with the PCIe/104 Type 2 connector.
  • Page 52 Table 29 PCIe/104 Type 2 Bus Signal Assignments (Top View) Signal Signal STK0 STK1 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved SATA_1Tp SATA_0Tp SATA_1Tn SATA_0Tn Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved BDM-610000069 Rev E...

  • Page 53: Pcie/104 Type 2 Compatibility

    Table 29 PCIe/104 Type 2 Bus Signal Assignments (Top View) Signal Signal STK2 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved SATA_1Rp SATA_0Rp SATA_1Rn SATA_0Rn Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved 1.

  • Page 54: Pcie Link Configuration

    PCIe Link Configuration This cpuModule supports a total of eight PCIe x1 links. The chipset, however, only provides five PCIe x1 links. Four of the links on CN1 and CN2 are connected directly to the chipset. The other four are connected through a PCIe packet switch, and share the bandwidth of a single x1 link back to the chipset.

  • Page 55: Pcie/104 Type 1 Bus (Cn2-Bottom)

    PCIe/104 Type 1 Bus (CN2-Bottom) Connector CN2 carries the signals of the PCIe/104 PCIe bus. These signals match definitions found in the PCI/104-Express & PCIe/104 Specification Version 2.01 from the PC/104 Embedded Consortium. Table 31 lists the pinouts of the PCIe/104 bus connector. WARNING Not all PCIe cards are compatible with the PCIe (Type 1) connector.
  • Page 56 Table 31 PCIe/104 Type 1 Bus Signal Assignments (Top View) Signal Signal WAKE# n.c. PEx16_0T(8)p PEx16_0T(0)p PEx16_0T(8)n PEx16_0T(0)n PEx16_0T(9)p PEx16_0T(1)p PEx16_0T(9)n PEx16_0T(1)n PEx16_0T(10)p PEx16_0T(2)p PEx16_0T(10)n PEx16_0T(2)n PEx16_0T(11)p PEx16_0T(3)p PEx16_0T(11)n PEx16_0T(3)n PEx16_0T(12)p PEx16_0T(4)p PEx16_0T(12)n PEx16_0T(4)n PEx16_0T(13)p PEx16_0T(5)p PEx16_0T(13)n PEx16_0T(5)n PEx16_0T(14)p PEx16_0T(6)p PEx16_0T(14)n PEx16_0T(6)n PEx16_0T(15)p...

  • Page 57: Pci/104-Express Pcie Bus Signals

    Table 31 PCIe/104 Type 1 Bus Signal Assignments (Top View) Signal Signal SDVO_DAT/PENA SDVO_CLK PEx16_0R(8)p PEx16_0R(0)p PEx16_0R(8)n PEx16_0R(0)n PEx16_0R(9)p PEx16_0R(1)p PEx16_0R(9)n PEx16_0R(1)n PEx16_0R(10)p PEx16_0R(2)p PEx16_0R(10)n PEx16_0R(2)n PEx16_0R(11)p PEx16_0R(3)p PEx16_0R(11)n PEx16_0R(3)n PEx16_0R(12)p PEx16_0R(4)p PEx16_0R(12)n PEx16_0R(4)n PEx16_0R(13)p PEx16_0R(5)p PEx16_0R(13)n PEx16_0R(5)n PEx16_0R(14)p PEx16_0R(6)p PEx16_0R(14)n PEx16_0R(6)n PEx16_0R(15)p...

  • Page 58: Pcie/104 Type 1 Compatibility

    The signals on the x16 link can also be used for additional outputs from the Integrated Graphics Device. Contact RTD tech support for more details. PCIe/104 Type 1 Compatibility The PCIe/104 Type 1 connector is compatible with any PCI/104-Express or PCIe/104 Type 1 or Universal peripheral module.

  • Page 59: Pc/104-Plus Pci Bus (Cn16)

    PC/104-Plus PCI Bus (CN16) Connector CN16 carries the signals of the PC/104-Plus PCI bus. These signals match definitions of the PCI Local Bus specification Revision 2.1. Table 33 list the pinouts of the PC/104-Plus bus connector. Table 33 PC/104-Plus Bus Signal Assignments +5V_STDBY +5 V AD00...

  • Page 60: Pc/104-Plus Pci Bus Signals

    PC/104-Plus PCI Bus Signals The following are brief descriptions of the PC/104-Plus PCI bus signals. Address and Data AD[31:00] — Address and Data are multiplexed. A bus transaction consists of an address cycle followed by one or more data cycles. C/BE[3:0]# —...

  • Page 61: Power Supplies And Vio

    –12 V — –12 V supply connected to the PC/104 bus and Auxiliary Power Connector (CN3) –12 V supplies. +3.3 V — The +3.3 V pins on the PC/104-Plus (PCI) connector are connected to the Auxiliary Power Connector (CN3) by default. To supply +3.3V via the onboard +3.3V power supply, contact RTD Technical Support.

  • Page 62: Optional Rtc Battery Input (Cn13)

    Optional RTC Battery Input (CN13) The optional RTC battery input is the connection for an external backup battery. This battery is used by the cpuModule when system power is removed in order to preserve the date and time in the real time clock. Connecting a battery is only required to maintain time when power is completely removed from the cpuModule.
  • Page 63 54 CMA22M cpuModule BDM-610000069 Rev E...

  • Page 64: Chapter 4 Using The Cpumodule

    This chapter provides information for users who wish to develop their own applications programs for the CMA22M cpuModule. This chapter includes information on the following topics: The RTD Enhanced AMI BIOS —page 56 Memory Map—page 58 I/O Address Map—page 59 Hardware Interrupts —page 60...

  • Page 65: The Rtd Enhanced Ami Bios

    The RTD Enhanced AMI BIOS The RTD Enhanced AMI BIOS is software that interfaces hardware-specific features of the cpuModule to an operating system (OS). Physically, the BIOS software is stored in a Flash EPROM on the cpuModule. Functions of the BIOS are divided into two parts.

  • Page 66: Main Menu Setup Fields

    Main Menu Setup Fields The following is a list of Main Menu Setup fields. Table 37 Main Menu Setup Fields Field Active Keys Selections Press Enter to select Main Access system information such as BIOS version, EPLD version, and CMOS time and date settings Press Enter to select Advanced Setup advanced cpuModule features...

  • Page 67: Memory Map

    Memory Map Table 38 shows how memory in the first megabyte is allocated in the system. Table 38 First Megabyte Memory Map Address (hex) Description C0000–FFFFFh ROM 256 KB BIOS in Flash EPROM, shadowed into DRAM during runtime. C0000–EFFFFh Run time user memory space. Usually, memory between C0000h and CFFFFh is used for the BIOS of add-on VGA video cards.

  • Page 68: I/O Address Map

    I/O Address Map As with all standard PC/104 boards, the I/O total I/O space is 64k in size. However, because early processors only addressed 10 address lines (SA0–SA9), the first 1k is used for legacy I/O devices. Any ISA add-on modules you install must therefore use I/O addresses in the range of 0–1023 (decimal) or 000–3FF (hex).

  • Page 69: Hardware Interrupts

    Hardware Interrupts Note If you add any expansion modules or other peripherals to the system, you must ensure they do not use interrupts needed by the cpuModule, or malfunctions will occur. The CMA22M cpuModule supports the standard PC interrupts listed in Table 40. Interrupts not in use by hardware on the cpuModule itself are listed as available.

  • Page 70: Non-Standard Serial Port Modes

    Non-Standard Serial Port Modes It is possible to change the input clock rate for the UARTs of the cpuModule by selecting the Serial Port Baud Rates option in the Serial Port Configuration menu of the BIOS Setup. Changing the option from Normal to Non-Standard will allow the serial port to operate at higher speeds.

  • Page 71: Advanced Digital I/O Ports (Adio™)

    This board supports 12 bits of TTL/CMOS compatible digital I/O (TTL signaling). These I/O lines are grouped into two ports, Port 0 and Port 1. Port 0 is bit programmable; Port 1 is byte programmable. Port 0 supports RTD’s Advanced Digital Interrupt modes. The three modes are strobe, match and event. Strobe mode generates an interrupt and latches Port 0 when the strobe input transitions from low to high.
  • Page 72 Table 45 DIO-Control I/O Address 9C3h—Read Access Strobe 1 Status Strobe 0 Status 0 = no strobe 0 = no strobe Multi-Function 1 = strobe Digital IRQ Mode 1 = strobe Register Select 00 = Disabled 00 = clear mode 01 = strobe Mode Digital IRQ Status Port 1 Direction...

  • Page 73: Port 1 Data Register Is A Read/Write Byte Direction

    Table 48 Wake Control I/O Address 9C4h Reserved Int Mask Wake Enable 1 = Interrupt is masked 1=Interrupt triggers a Wake Event 0=Interrupt is enabled 0=Interrupt does not trigger a wake event. Port 1 Data register is a read/write byte direction Interrupts In order to use an interrupt with aDIO, the interrupt must first be selected in the BIOS setup utility under Advanced, I/O Devices, aDIO Configuration, aDIO Interrupt.

  • Page 74: Strobe Mode

    Figure 6 aDIO Match Mode Strobe Mode Another interrupt mode supported by aDIO is Strobe mode. This allows the strobe pin of the DIO connector to trigger an interrupt. A low to high transition on the strobe pin will cause an interrupt request. The request will remain high until the Clear Register is read from.

  • Page 75: Advanced Analog I/O (Aaio)

    Advanced Analog I/O (aAIO) Features • Eight single-ended or four differential analog inputs • Up to 100kHz sample rate • 16-bit resolution • 0 to +5V, +/-5V, 0 to +10V, and +/-10V input ranges – Software configurable • Per-channel digital filtering •...

  • Page 76: Analog Inputs

    Analog Inputs The input multiplexer in aAIO accepts eight single ended analog inputs. Any combination of ranges can be used for these inputs. Pairs of analog inputs can be combined to form up to four differential inputs. Channel-Gain Table A Channel-Gain table is provided to control the mode and range of each channel and the order that they are sampled in.

  • Page 77: Threshold Detect

    Figure 8 Filter Response with each ORDER Value Table 50 Filter Cutoff Frequency ORDER -3 dB Cutoff 0.114791 * f 0.045995 * f 0.021236 * f 0.010255 * f 0.005042 * f 0.002501 * f 0.001246 * f Threshold Detect Threshold detection logic is provided to generate an interrupt when a channel crosses a high or low threshold.

  • Page 78: Data Output

    Data Output Direct Read The result from the most recent A/D conversion for a specific channel is always available in the AD_RESULT register within the scan table. The value returned is a 32-bit 2’s complement value with same 76.294 microvolt resolution for all ranges.

  • Page 79: Registers

    The scatter-gather DMA method allows continuous sampling at the maximum sample rate with the least amount of operating system intervention. Because each channel has its own scatter-gather table, the data for each channel is located in a separate area in system memory. Therefore the application software doesn’t need to de-interlace the data.

  • Page 80: Control Registers

    Control Registers 0x9E0: SELECT Register Mode Default Field Rsvd Rsvd Rsvd Rsvd Rsvd CGT_Channel CGT_Channel: Selects the channel to be displayed in the Channel Gain Table Registers. See Channel Gain Table Registers on page 73 0x9E1: MODE_RESET Register Mode R/WC Default Field Rsvd...
  • Page 81 0x9E3: CH_IRQ_ENA Register Mode Default Field Chx: Writing a ‘1’ enabled generation of an interrupt when the same bit of the CH_IRQ_STAT register goes high. 0x9E4: PACER_DIVIDER Register Mode Default 0x00000000 Field PACER_DIVIDER PACER_DIVIDER: A 32-bit divider for the pacer clock. Read-only during sampling. When the pacer clock rolls over, the Channel Gain Table is scanned at a rate of 100kHz.

  • Page 82: Channel Gain Table Registers

    0x9EA: CUR_SGT_ROW Register Mode Default Field Reserved CUR_SGT_ROW CUR_SGT_ROW: The current row in the Scatter-Gather Table that will be used for the next transfer. This is the same value for every channel, i.e. the channels are always synchronized. Channel Gain Table Registers The registers described in this section are paged based on the value of SELECT[CGT_CHANNEL] in on page 71.
  • Page 83 0x9EC: NEXT_CHANNEL Register Mode Default (Channel + 1) Field Rsvd Rsvd Rsvd Rsvd Rsvd NEXT_CHANNEL NEXT_CHANNEL: The next channel to sample in the Channel Gain Table. Read-only during sampling. 0x9ED: CH_MODE Register Mode Default Field Rsvd Rsvd Rsvd Rsvd RANGE RANGE: Selects the range of this channel, and differential/single ended as show below.
  • Page 84 0x9EE: SGT_ROW Register Mode Default Field Reserved SGT_ROW SGT_ROW: The row in the Scatter-Gather Table that is visible and can be modified by the SGT_DATA register at 0x9FC. 0x9EF: FILTER_CON Register Mode Default Field Rsvd Rsvd Rsvd Rsvd Rsvd ORDER ORDER: Selects the order of the filter for this channel.
  • Page 85 0x9F4: IRQ_STAT Register Mode Default Field Rsvd Rsvd Thresh Thresh Rsvd Sample High Error A ‘1’ indicated the condition exists, regardless of IRQ_ENA. Write a ‘1’ to clear. Sample: A sample has been converted. DMA: An SGT row with the IRQ bit set has been filled. DMA Error: DMA for this channel didn’t get serviced in time (gap in data).
  • Page 86 0x9F8: THRESH_LOW Register Mode Default 0x8000 Field THRESH_LOW THRESH_LOW: This register sets the low threshold for this channel. It contains a 16-bit 2’s complement value with the same 305.175 microvolt resolution (20V / 65536) for all ranges. The high threshold must be greater than low threshold.
  • Page 87 0x9FC: SGT_DATA This register is used to view and modify the data in the Scatter-Gather Table. It is indexed both by SELECT[CGT_Channel] (to select the channel), and SGT_ROW (to select the row in the table). The Scatter-Gather Table consists of a list of up to 64 entries. Each entry contains the physical address of a buffer that is 4kB in size, and 4kB aligned.

  • Page 88: Bios Setup Register

    BIOS Setup Register This register is for the BIOS to enable aAIO and set the interrupt 0x9CE: aAIO_SETUP Register Mode Default Field Rsvd Rsvd Rsvd Rsvd ENA: Set to ‘1’ to enable aAIO. IRQ: Set the IRQ: 000 = Disabled 001 = IRQ5 010 = IRQ7 011 = IRQ10...

  • Page 89: Real Time Clock Control

    This RTD cpuModule uses onboard flash to store user BIOS settings. To preserve compatibility with traditional PCs, the RTD Enhanced BIOS also mirrors the user settings from flash in CMOS. Therefore, the contents of CMOS may be overwritten at boot time, and should be treated as “read only”.
  • Page 90 Altering the contents of any unlisted RTC register may interfere with the operation of your cpuModule. The specific uses of the unlisted RTC registers will depend on the BIOS version loaded on the cpuModule. Contact RTD's technical support for more information. BDM-610000069 Rev E...

  • Page 91: Watchdog Timer Control

    The Advanced Watchdog Timer has a Setup Register and a Runtime Register. The Setup Register is set by the BIOS, and can be adjusted by entering the BIOS Setup Utility, and going to “Advanced/Miscellaneous RTD Features”. The Setup Register may also be read by the driver to determine if the Watchdog is enabled, and the interrupt and base address that it is using.

  • Page 92: Thermal Management

    Thermal Management The cpuModule has several thermal features which can be used to monitor and control the board’s temperature when extreme operating conditions are prevalent. Thermal Monitor The Intel ® Thermal Monitor is a feature on the CMA22M that automatically throttles the CPU when the CPU exceeds its thermal limit.

  • Page 93: Power Management

    Power Management The CMA22M cpuModule supports various powering mechanisms which allow the cpuModule to monitor power consumption and temperature, and achieve minimal power consumption states. These unique features include Enhanced Intel® SpeedStep® Technology (Core 2 Duo only), thermal monitoring and thermal throttling, as well as low power modes including ACPI configurations.

  • Page 94: At Vs. Atx Power Supplies

    • Resume on RTC Alarm: The RTC Alarm allows the system to turn on at a certain time every day. AT vs. ATX Power Supplies Both AT and ATX power supplies may be used with the CMA22M cpuModule, however AT power supplies do not provide any standby power to the cpuModule.

  • Page 95: Multi-Color Led

    Multi-Color LED The CMA22M has a Multi-Color LED which can be enabled or disabled in the BIOS setup screen. The color of the LED indicates the status of the board, as shown in Table 57. Table 57 LED Colors Color Description Green Normal Operation...

  • Page 96: Reset Status Register

    Reset Status Register The cpuModule has several different signals on board which can cause a system reset. If a reset occurs, the reset status register can be used to see which reset or resets have been asserted on the cpuModule. The user has the ability to see which resets have been asserted.
  • Page 97 Table 62 Reset Status Description and Priorities I/O Address Reset Reset Description 457h Signal Priority Utility Reset Utility connector push button reset CPU Core Power CPU core powers supply System Power Power supplies that are not for standby power SIO Power Power monitored by the Super I/O.

  • Page 98: Features And Settings That Can Affect Boot Time

    ROMs. During POST, the BIOS executes the card's extension code. This extension code is third-party code, which is beyond RTD's control. The BIOS extension will most likely increase the boot time. Exactly how much it increases boot time will depend on the particular card and firmware version.

  • Page 99: System Recovery

    (i.e. pin 7 is the transmit pin). The port settings are 115kbps, 8 bits, no parity, one stop bit. When using this recovery mode, the POST codes can be logged on another computer running terminal software. Contact RTD technical support for more details. BIOS Boot Block Recovery This recovery mode allows you to re-load a BIOS that has been corrupted.

  • Page 100: Appendix A Hardware Reference

    Appendix A Hardware Reference This appendix provides information on CMA22M cpuModule hardware, including: Jumper Settings and Locations—page 92 Onboard PCI/PCIe Devices—page 94 Physical Dimensions—page 95 BDM-610000069 Rev E Appendix A: Hardware Reference 91...

  • Page 101: Jumper Settings And Locations

    Jumper Settings and Locations Many cpuModule options are configured by positioning jumpers. Jumpers are labeled on the board as JP followed by a number. Some jumpers have three pins, allowing three settings: • Pins 1 and 2 connected (indicated as “1–2”) •...
  • Page 102 (Bottom) Figure 9 CMA22M Jumper Locations (top side) Table 64 CMA22M Jumpers Jumper Pins Function Default Reserved open Used to disable the Bus Stacking Error detection. See PCIe/104 Type 1 Compatibility open on page 50and PCIe/104 Type 2 Compatibility on page 45. pins 1–2: Disable Bus Stacking Error detection open: Enable Bus Stacking Error detection (normal operation) Select power for flat panel backlight (bottom side)

  • Page 103: Onboard Pci/Pcie Devices

    Onboard PCI/PCIe Devices The CMA22M cpuModule has several onboard PCI/PCIe devices, all of which are listed in the table below. This table shows a typical configuration, and the actual devices may change based on BIOS settings. Table 65 Onboard PCI Devices Device ID Vendor ID Description...

  • Page 104: Physical Dimensions

    Physical Dimensions Figure 10 shows the mechanical dimensions of the CMA22M cpuModule. Figure 10 CMA22M Physical Dimensions (±0.005 inches) Board Spacing In order to facilitate larger heatsink solutions, the CMA22M is designed to use a 22mm standoff between it and the board above it.
  • Page 105 96 CMA22M cpuModule BDM-610000069 Rev E...

  • Page 106: Appendix B Troubleshooting

    Appendix B Troubleshooting Many problems you may encounter with operation of your CMA22M cpuModule are due to common errors. This appendix includes the following sections to help you get your system operating properly. Common Problems and Solutions —page 98 Troubleshooting a PC/104 System—page 99 How to Obtain Technical Support—page 100 BDM-610000069 Rev E Appendix B: Troubleshooting 97...

  • Page 107: Common Problems And Solutions

    Table 66 lists some of the common problems you may encounter while using your CMA22M cpuModule, and suggests possible solutions. If you are having problems with your cpuModule, review this table before contacting RTD Technical Support. Table 66 Troubleshooting Problem...

  • Page 108: Troubleshooting A Pc/104 System

    Table 66 Troubleshooting (cont’d) Problem Cause Solution • keyboard does not work keyboard interface damaged check if keyboard LEDs light by misconnection • wrong keyboard type verify keyboard is an “AT” type or switch to “AT” mode • floppy drive light always on cable misconnected check for floppy drive cable connected backwards •...

  • Page 109: How To Obtain Technical Support

    List of settings from cpuModule Setup program • Printout of autoexec.bat and config.sys files (if applicable) • Description of problem • Circumstances under which problem occurs Then contact RTD Technical Support: Phone: 814-234-8087 Fax: 814-234-5218 E-mail: techsupport@rtd.com 100 CMA22M cpuModule BDM-610000069 Rev E...

  • Page 110: Appendix Cidan™ Dimensions And Pinout

    RTD modules installed in IDAN frames are called building blocks. IDAN building blocks maintain the simple but rugged stacking concept of PC/104 and PC/104-Plus. Each RTD module is mounted in its own IDAN frame and all I/O connections are brought to the walls of each frame using standard PC connectors. No...

  • Page 111: Idan Dimensions And Connectors

    IDAN Dimensions and Connectors 6-pin mini-DIN (female) 9-pin D (male) module P/N: Adam Tech MDE006W module P/N: Adam Tech DE09PD mating P/N: Adam Tech MDP006 mating P/N: Adam Tech DE09SD 25-pin D (female) module P/N: Adam Tech DB25SD mating P/N: Adam Tech DB25PD FRONT 9-pin D (male) 20-pin mini D (female)

  • Page 112: External I/O Connections

    External I/O Connections Table 67 PS/2 Mouse — 6-Pin mini-DIN Connector (female) IDAN Pin # Signal Function MDAT Mouse Data Reserved — Ground +5 V +5 Volts MCLK Mouse Clock Reserved — Table 68 Keyboard — 6-Pin mini-DIN Connector (female) IDAN Pin # Signal Function...
  • Page 113 Table 69 COM1/COM2 (RS-232) — 9-Pin D Connector (male) IDAN Pin # Signal Function Mode Data Carrier Detect Input Receive Data Input Transmit Data Output Data Terminal Ready Output Ground — Data Set Ready Input Request To Send Output Clear To Send Input Ring Indicator Input...
  • Page 114 Table 72 COM A (RS-422/485) and COM B (RS-232) IDAN Pin # Signal Function Mode CPU Pin # DCD1 COM A - Data Carrier Detect Input RXD2 COM B - Receive Data Input RXD1- COM A - Receive Data (–) Input TXD1+ COM A - Transmit Data (+)
  • Page 115 Table 74 aDIO — 25-Pin D Connector (female) IDAN Pin # aDIO Port CPU Pin # P0-0 P0-2 P0-4 P0-6 Strobe 0 P1-0 P1-2 reserved reserved reserved reserved reserved P0-1 P0-3 P0-5 P0-7 Strobe 1 P1-1 P1-3 +5 V reserved reserved reserved reserved...
  • Page 116 Table 75 aAIO — 9-Pin D Connector (male) IDAN Pin # aAIO Port CPU Pin # Channel 1 Channel 3 Channel 5 Channel 7 Channel 2 Channel 4 Channel 6 Channel 8 Table 76 Panel — 20-Pin mini D Connector (female) IDAN Pin # Signal Name CPU Pin #...
  • Page 117 Table 77 SVGA — 15-Pin High Density D Connector (female) IDAN Pin # Signal Function CPU Pin # Red Analog Output Green Green Analog Output Blue Blue Analog Output Reserved Reserved — Ground Ground Ground Ground +5 V + 5 Volts Ground Reserved Reserved...
  • Page 118 Table 78 USB — 9-Pin D Connector (male) IDAN Pin # Signal Function Mode VCC1 +5 V to USB1 output Data USB1– USB1 Data– input/output Data USB1+ USB1 Data+ input/output Ground — Ground — VCC2 +5 V to USB2 output Data USB2–...
  • Page 119 110 CMA22M cpuModule BDM-610000069 Rev E...

  • Page 120: Appendix D Additional Information

    For the latest application notes, refer to the RTD website. Drivers and Example Programs To obtain the latest versions of drivers and example programs for this cpuModule, refer to the RTD website. Interrupt Programming For more information about interrupts and writing interrupt service routines, refer to the following book:...
  • Page 121 112 CMA22M cpuModule BDM-610000069 Rev E...

  • Page 122: Appendix E Limited Warranty

    RTD Embedded Technologies, Inc. warrants the hardware and software products it manufactures and produces to be free from defects in materials and workmanship for one year following the date of shipment from RTD Embedded Technologies, Inc. This warranty is limited to the original purchaser of product and is not transferable.
  • Page 123 114 CMA22M cpuModule BDM-610000069 Rev E...
