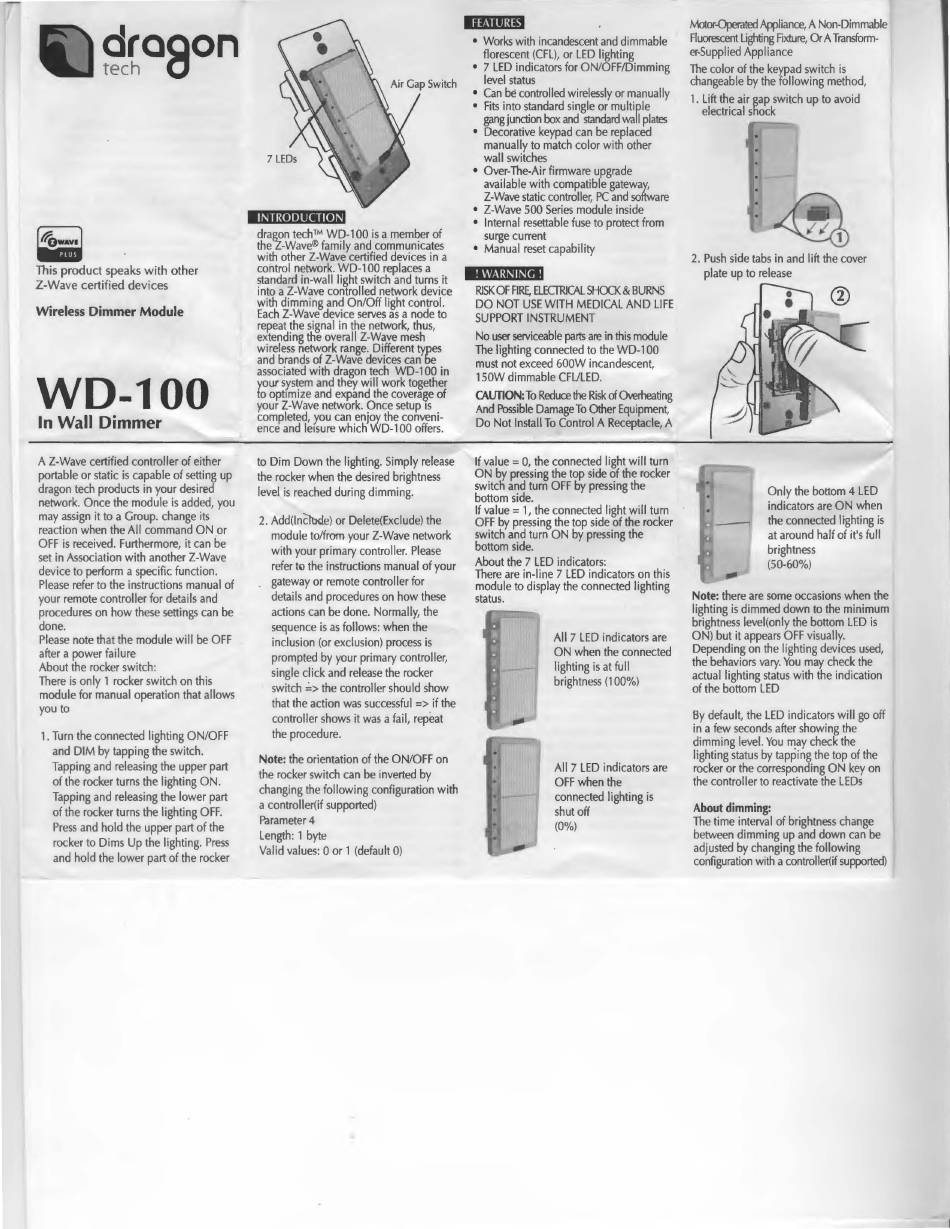

Wireless Dimmer Module
WD-100
In Wall Dimmer
AZ-Wave certified controller of either
portable or static is capable of setting up
dragon tech products in your desired
network. Once the module is added, you
may assign it to a Group. change its
reaction when the All command ON or
OFF is received. Furthermore, it can
be
set in Association with another Z-Wave
device to perform a specific function.
Please refer to the instructions manual of
your remote controller for details and
procedures on how these settings can be
done.
Please note that the module will be OFF
after a power failure
About the rocker switch:
There is only 1 rocker switch on this
module for manual operation that allows
you to
1. Turn the connected lighting ON/OFF
and DIM by tapping the switch.
Tapping and releasing the upper part
of the rocker turns the lighting ON.
Tapping and releasing the lower part
of the rocker turns the lighting OFF.
Press and hold the upper part of the
rocker to Dims Up the lighting. Press
and hold the lower part of the rocker
INTRODUCTION
dragon tech™ WD-100 is a member of
the 7.-Wave® family and communicates
with other Z-Wave certified devices in a
control network. WD-100 replaces a
standard in-wall light switch and turns it
into a Z-Wave controlled network device
with dimming and On/Off light control.
Each Z-Wave device serves as a node to
repeat the signal in the network, thus,
extending the overall Z-Wave mesh
wireless network range. Different types
and brands of Z-Wave devices can be
associated with dragon tech WD-100 in
your system and they wi
11
work together
to optimize and expand the coverage of
your Z-Wave network. Once setup 1s
completed, you can enjoy the conveni-
ence and leisure which WD-100 offers.
to Dim Down the lighting. Simply release
the rocker when the desired brightness
level is reached during dimming.
2. Add(lnCltKle) or Delete{Exclude) the
module to/from your Z-Wave network
with your primary controller. Please
refer tg the instructions manual of your
gateway or remote controller for
details and procedures on how these
actions can be done. Normally, the
sequence is as follows: when the
inclusion {or exclusion) process is
prompted by your primary controller,
single click and release the rocker
switch ,;,> the control I er shou Id show
that the action was successful => if the
controller shows it was a fail, repeat
the procedure.
Note: the orientation of the ON/OFF on
the rocker switch can be inverted by
changing the following configuration with
a controller{if supported)
Parameter4
Length: 1 byte
Valid values: 0 or 1 (default 0)
1111111;jQ
• Works with incandescent and dimmable
florescent {CFL), or LED lighting
• 7
LED indicators for ON/OFF/Dimming
level status
• Can
be
controlled wirelessly or manually
• Fits into standard single or multiple
gang junction
box and standard
wall plates
• Decorative keypad can be replaced
manually to match color with other
wall switches
• Over-The-Air firmware upgrade
available with compatible gateway,
Z-Wave static controller, PC and software
• Z-Wave 500 Series module inside
• Internal resettable fuse to protect from
surge current
• Manual reset capability
RISK OF ARE, ELECTRICAL SHOCK
&
BURNS
DO NOT USE WITH MEDICAL AND LIFE
SUPPORT INSTRUMENT
No
U5ef
serviceable
parts
are in this module
The lighting connected to the WD-100
must not exceed 600W incandescent,
150W dimmable CFULED.
CAUTION: To Reduce the Risk rJ Oveiheating
And Possible Damage To Other Equipment,
Do Not Install To Control A Receptacle, A
If value= 0, the connected light will turn
ON by pressing the top side of the rocker
switch and turn OFF by pressing the
bottom side.
If value = 1, the connected light will tum
OFF by pressing the top side of the rocker
switch and turn ON by pressing the
bottom side.
About the 7 LED indicators:
There are in-line 7 LED indicators on this
module to display the connected lighting
status.
All 7 LED indicators are
ON when the connected
lighting is at full
brightness (1 00%)
All 7 LED indicators are
OFF when the
connected lighting is
shut off
(0%)
Motor-Operated
J\wliance, A Non-Dimmable
Fluorescent Lighting Fixture, Or A Transform-
er-Supplied Appliance
The color of the keypad switch is
changeable by the following method,
1. Lift the air gap switch up to avoid
electrical snock
-~
2.
Push side tabs in and
I ift the
cover
plate up to release
Only the bottom 4 LED
indicators are ON when
~
the connected lighting is
at around half of it's full
brightness
(50-60%)
Note: there are some occasions when the
lighting is dimmed down to the minimum
brightness level{only the bottom LED is
ON) but it appears OFF visually.
Depending on the lighting devices used,
the behaviors vary. You may check the
actual lighting status with the indication
of the bottom LED
By default, the LED indicators will
go
off
in a few seconds after showing the
dimming level. You ll!ay check the
lighting status by tapping the top of the
rocker or the corresponding ON key on
the controller to reactivate the LEDs
About dimming:
The time interval of brightness change
between dimming up and down can be
adjusted by changing the following
configuration with a controller(if supported)
