ABES 121-1 Assembly Manual

BENCH 121-1 / 121-2 | Assembly guide

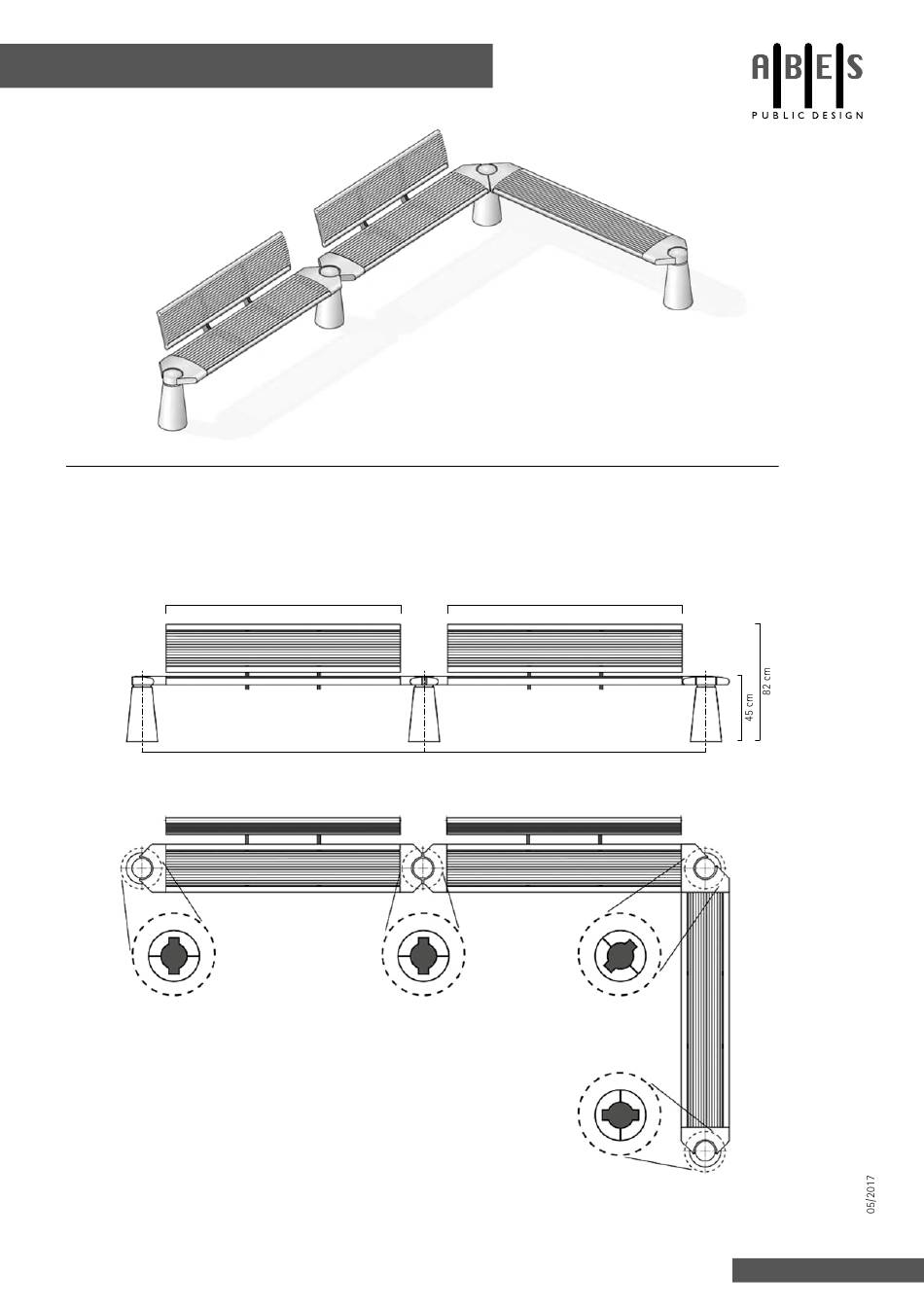

SAMPLE CONSTRUCTION
with back rest
bench bollard as endpiece
(without connection options)
SETUP INSTRUCTIONS
1. Create the foundations (-> see assembly instructions 3p-Technology)
Distance from the centre of the foundations = width bench seat + 40 cm
width bench seat + 40 cm
top view ground shell
2. Correctly orientate the ground sleeve for the respective bench-bollards
3. Once the foundation has hardened, set the bench bollards on top,
and initially just affix them loosely using clamping cones
4. Affix the backrest to the seat using connector hooks (U-notch in
the hook under the bench seat)
5. Set and align the bench seat, and fasten with the screws provided
6. Finally, screw the bench bollards in tightly using the clamping cones
ABES S. à r. l.: 48, rue Gabriel Lippmann | L-6947 Niederanven | Tel.: +352 . 28 67 65 01 | shop@abes-online.com
ABES Deutschland: Koblenzer Straße 18 | D-57072 Siegen | Tel.: +49 . (0)271 . 4059-688 / 699 | info@abes-deutschland.de
bench seats
180° series junction
width bench seat
bench seat
without back rest
90° right-angle
junction
bench bollard as endpiece
(without connection options)
width bench seat
width bench seat + 40 cm
