Summary of Contents for SILION SIM7200

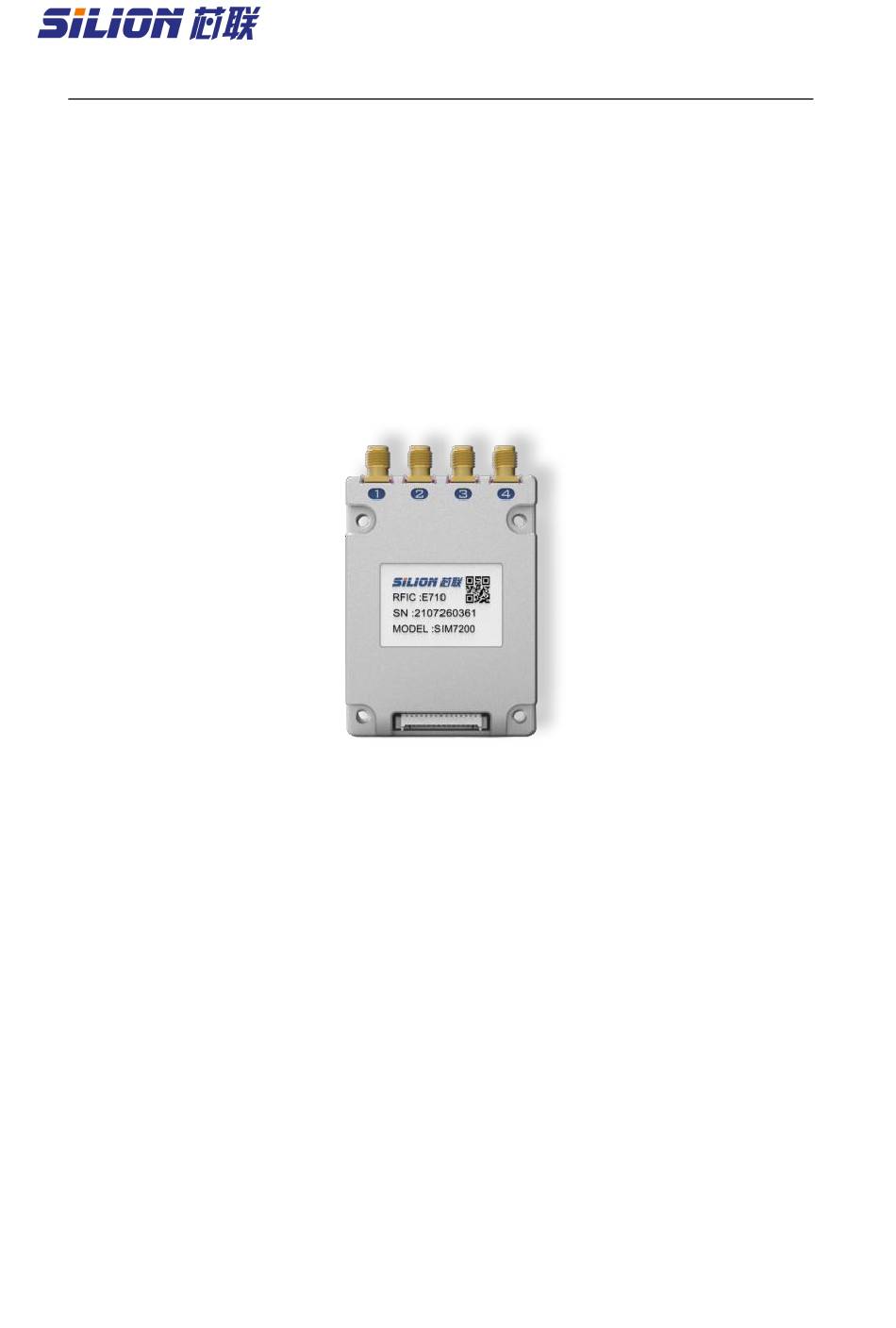

- Page 1 SIM7200 User Manual SIM7200 User Manual Rev 1 Beijing Xinlian Chuangzhan Electronic Technology Co., LTD Tel:（+86）010-62153842/62153840 http://www.silion.com.cn Page 1 of 10...
-
Page 2: Table Of Contents
SIM7200 User Manual Directory 1. A revision history ........................3 ......................... 4 Product introduction ........................4 Product features 4. Electrical characteristics ......................5 5. Pin configuration and function Description ................6 6. Application Information ......................7 7. Physical Properties ........................8... -
Page 3: A Revision History
SIM7200 User Manual 1. A revision history Artificial person / Proposed/revis Change the file Change the content version ed date reason number modifier number V1.0 2021-10-16 The initial release Page 3 of 10... -
Page 4: Product Introduction
E710. It is specially designed to meet the requirements of high-performance RFID handheld devices, mobile or portable RFID devices. The SIM7200 module provides one MMCX antenna interface, supporting up to 33 dBm RF output. This module has the characteristics of low power consumption, small size and high sensitivity. -
Page 5: Electrical Characteristics
SIM7200 User Manual 4. Electrical characteristics type unit parameter conditions Frequency Frequency range According Customization Frequency step value According Customization 250/500 output output power Output power accuracy +/- 1 Flatness of output power +/- 0.2 Channel isolation label Reception sensitivity... -
Page 6: Pin Configuration And Function Description
SIM7200 User Manual Absolute maximum rated parameter parameter rating power supply voltage Digital I/O Voltage to GND 3.3V Working temperature -20 ~ +65℃ Storage temperature -40 ~ +85℃ 5. Pin configuration and function description 5.1 Definition of FPC connector define... -
Page 7: Application Information
SIM7200 User Manual Digital Input 1 （GPIO IN1） Digital Input 2 （GPIO IN2） RXD (DATA INPUT，TTL level) TXD (DATA OUTPUT，TTL level) RST (LOW ACTIVE，Please hang in the air if not used) Digital Output 1 （GPIO OUT1） 5.2 Definition of bottom welding point... -
Page 8: Gpio Interface
SIM7200 User Manual EN is enabled, with built-in pull-up resistance (100k) to VCC. When the module is powered on at h igh level or suspended, the module will be powered off when it is connected to low level (low leve l should be less than 0.4V, high level should be greater than 0.9V and less than VCC). - Page 9 SIM7200 User Manual Page 9 of 10...
-
Page 10: Fcc Warning
SIM7200 User Manual FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
