LockMaster LM104A User Manual

Download this manual

Retro-Reflective Photocell (Item No. LM104A)

User Manual

Thank you for purchasing the Retro-Reflective Photocell (LM104A). It is designed to be

used as a reversing sensor for automatic garage door, vehicle swing gates and parking

barriers. It is very easy to install and use with reliable performance.

Specifications

Detection Method: Retro-Reflective

Angle: 1.5

approx.

Max. Sensing Range: 40 Feet (12 m)

Supply Voltage: 12-36VDC/12-24VAC

Output: Relay SPDT

Output Capacity: 1A/24VDC, 1A/120VAC

Protection Degree: IP66

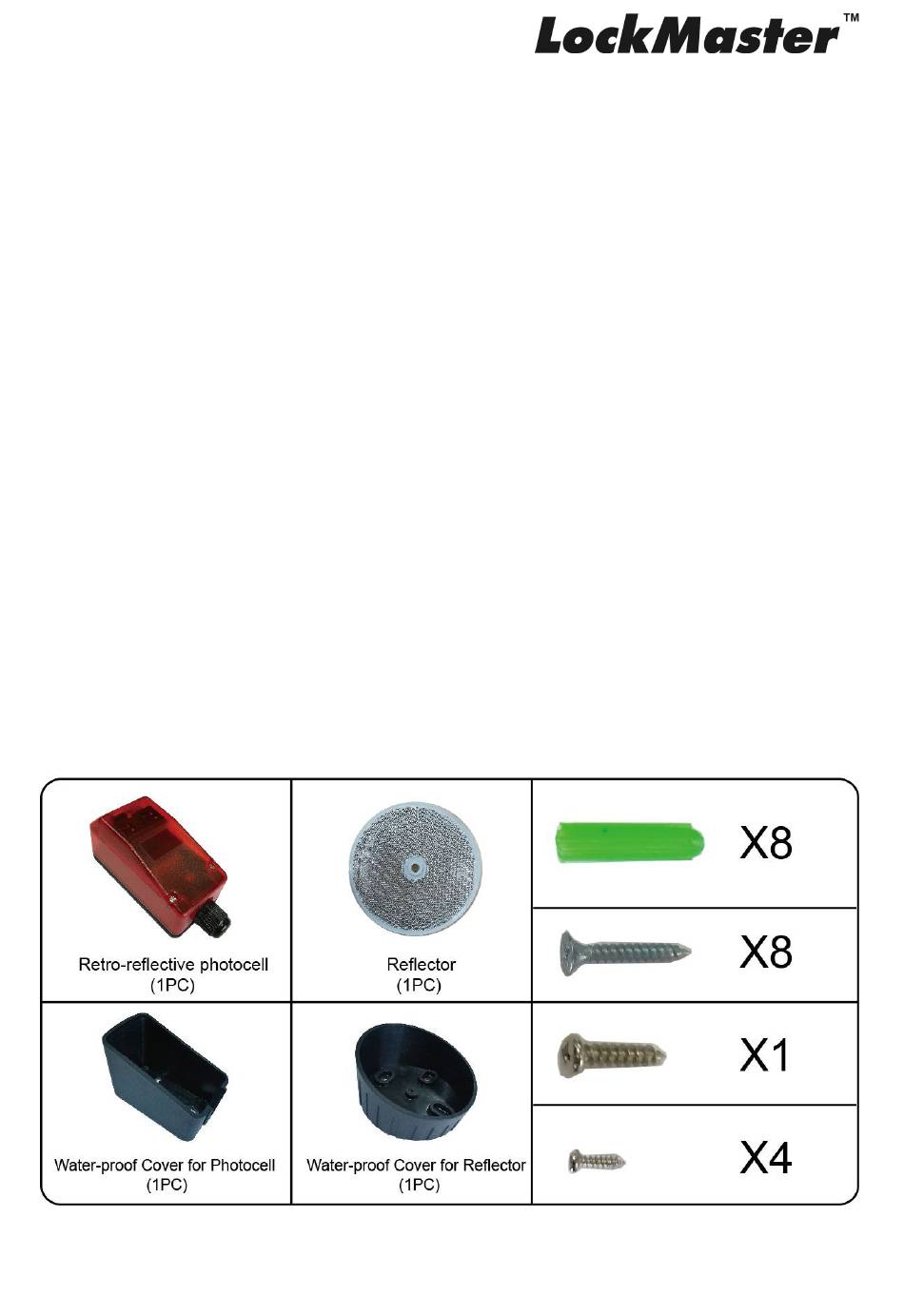

Part List

Need help?

Do you have a question about the LM104A and is the answer not in the manual?

Page 1 Retro-Reflective Photocell (Item No. LM104A) User Manual Thank you for purchasing the Retro-Reflective Photocell (LM104A). It is designed to be used as a reversing sensor for automatic garage door, vehicle swing gates and parking barriers. It is very easy to install and use with reliable performance.
Page 2 Installation WARNINGS ★ Do not touch un-insulated cables unless they are disconnected upstream. Do not install the sensor during storms with lightning. ★ If the cable is subjected to flexing, a coiled section should be used with a bending radius that prevents 90 degree bends in angle. Install the photocell over the height of 20cm.
Page 3 Wiring Connection with LM/MK series swing gate opener Wiring Connection with SCG/SFG 18/21/50H sliding gate opener Wiring Connection with DSR/DSC 600/1000 sliding gate opener...
