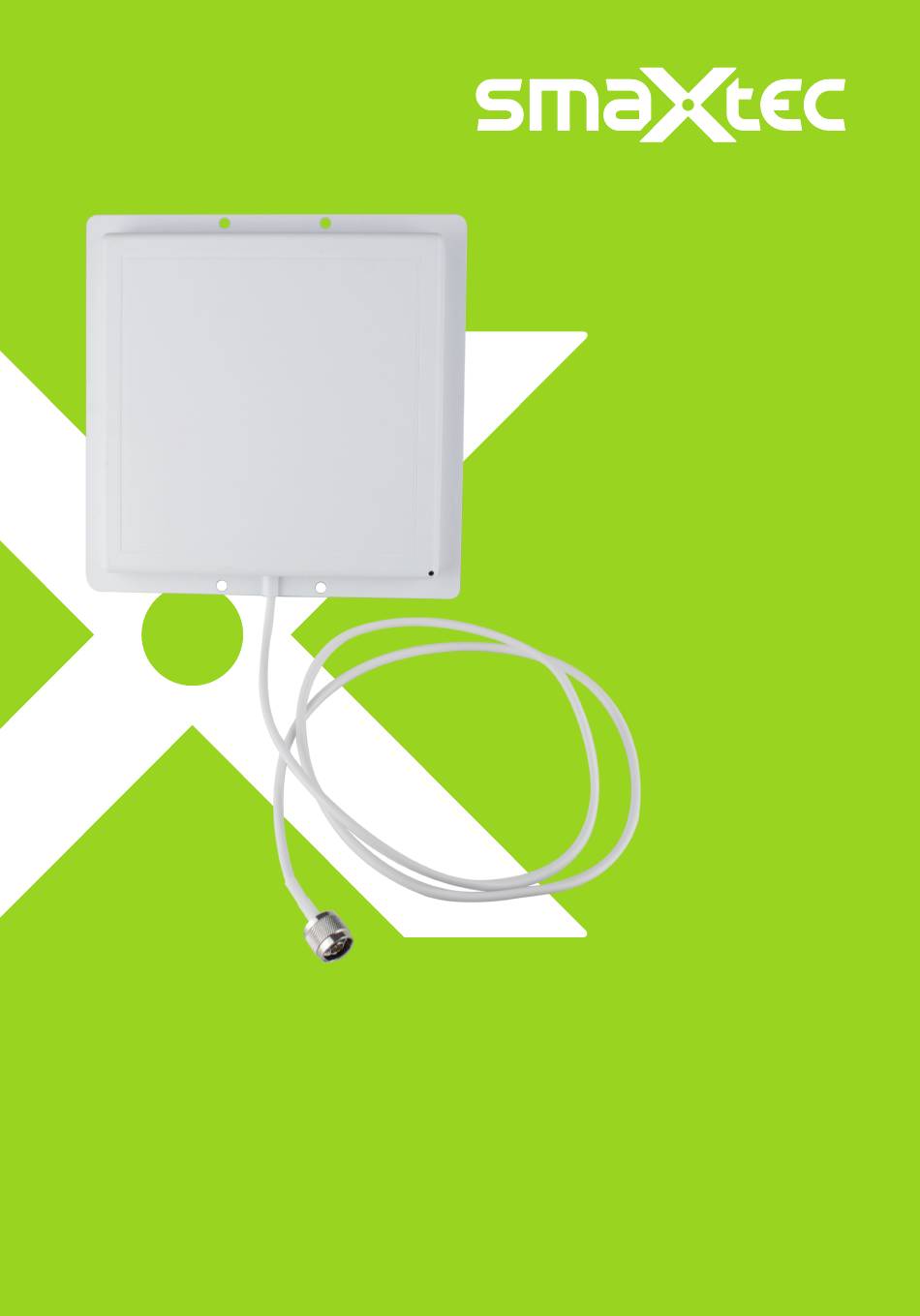

- Page 1 SMAXTEC 8dBi ANTENNA QUICKSTART - GUIDE...
- Page 2 MOUNTING For step 4 in the Quickstart Guide of the smaXtec Base Station, you can optionally use the panel antenna for targeted reading of boluses. Antenna: Adjustable mounting bracket* Can be purchased separately if tilting the antenna is required. *Not included in the scope of delivery www.smaXtec.com...
- Page 3 MOUNTING Connect the antenna to the Base Station using the cable. Maximum distance: 1 m/3.3 ft If the antenna is installed outdoors, lightning protection* must be used! * Not included in the scope of delivery...
- Page 4 MOUNTING Choose a suitable location for mounting. Wirnet TM iStation Wirnet TM iStation Wirnet TM iStation When positioning, please note that the antenna has a minimum radius from which it can receive signals: Ideal height for direct, straight installation: Up to 100 m/328 ft 30°...
- Page 5 MOUNTING To reduce the minimum radius, the antenna can optionally be mounted at an angle: 2 – 3 m 6.6 – 9.8 ft The area without signal Reading area under the antenna can be reduced In this case, use the adjustable mounting bracket: Attach the antenna to the...
