Item #1001 748 729

Model # FHTS80029

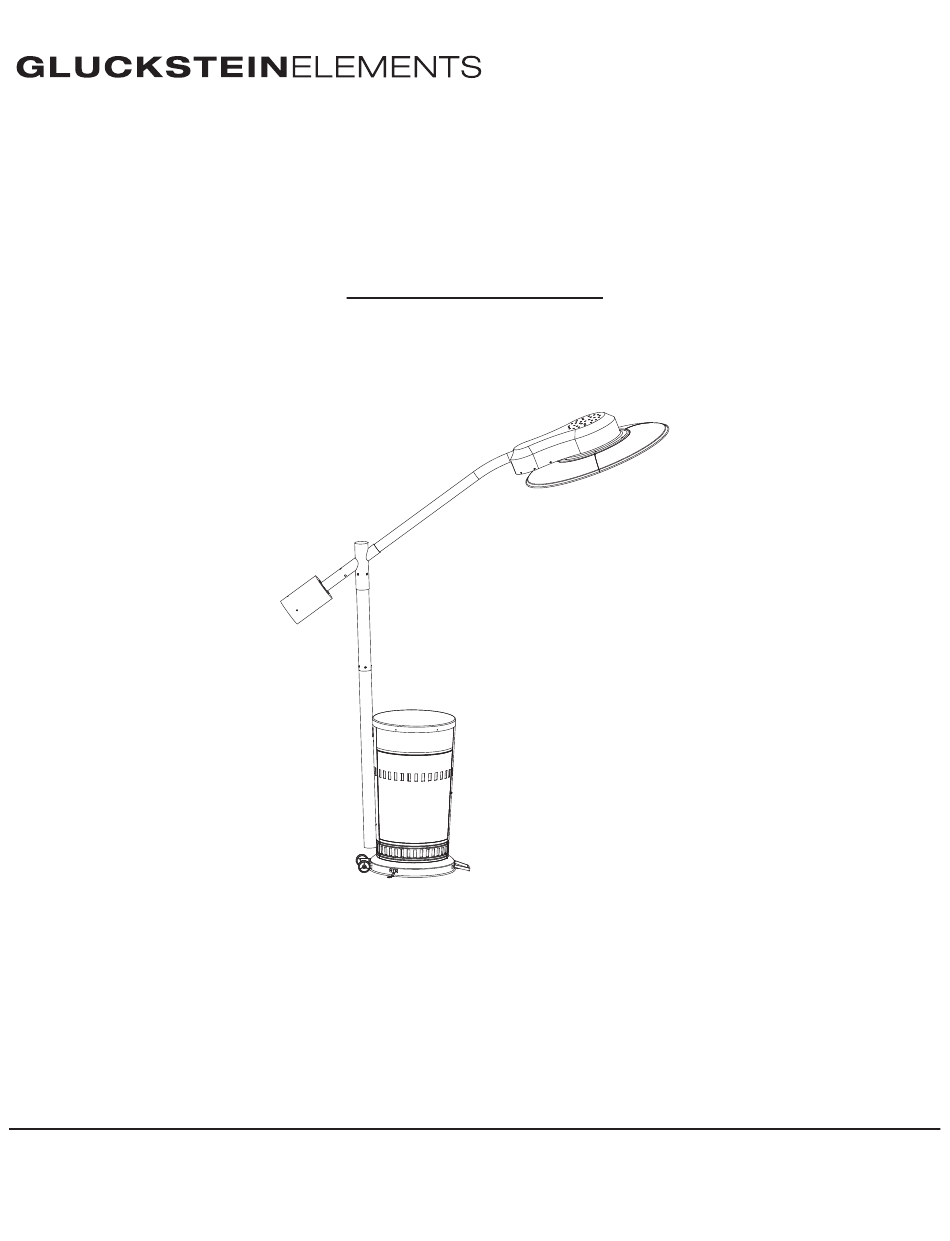

USE AND CARE GUIDE

BOCA LP OFFSET DOME HEATER

Questions, problems, missing parts? Before returning to the store,

call Gluckstein Elements Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday

888-628-1888

HOMEDEPOT.CA

GLUCKSTEINELEMENTS.COM

THANK YOU

We appreciate the trust and conﬁdence you have placed in Gluckstein Elements through the purchase of this heater. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement

needs. Thank you for choosing Gluckstein Elements!

Table of Contents

Need help?

Do you have a question about the BOCA FHTS80029 and is the answer not in the manual?

Questions and answers

Summary of Contents for GLUCKSTEIN ELEMENTS BOCA FHTS80029

Page 1 THANK YOU We appreciate the trust and conﬁdence you have placed in Gluckstein Elements through the purchase of this heater. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement...
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Package Contents .
Page 3 Safety Information (continued) DANGER: DANGER: EXPLOSION - FIRE HAZARD CARBON MONOXIDE HAZARD This heater is a combustion appliance. All Keep solid combustibles, such as building materials, combustion appliances produce carbon monoxide (CO) paper or cardboard, a safe distance away from the during the combustion process.
Page 4 Safety Information (continued) WARNING: WARNING: WARNING: FUELS USED IN LIQUEFIED PROPANE GAS This product is fueled by propane gas. Propane gas APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF is invisible, odorless, and flammable. An odorant is SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING normally added to help detect leaks and can be BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA described as a “rotten egg”...
Page 5: Warranty
Warranty 1 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.
Page 6: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Transom Assembly Gas Valve Pole & Base Assembly AAA Battery...
Page 7: Assembly
Assembly Removing the Pole & Base Assembly From the Pallet Place the pallet on a soft surface. Unscrew bolts to remove the pole & base assembly (E) from the pallet using hex wrench (FF). Opening the Door & Taking the Top Base Out HOMEDEPOT.CA GLUCKSTEINELEMENTS.COM Please contact 888-628-1888 for further assistance.
Page 8 Assembly (continued) Pouring Sand into the Bases ① ② ③ OPEN Fill sand 22 lbs CLOSE Putting the Top Base onto the Bottom Base and Closing the Door NOTE:...
Page 9 Assembly (continued) Inserting the Re ector Panel into the Transom Assembly Connecting the Re ector Panels Attach the re ector panel 2 (B) to re ector panel 1 (A). Tighten the bolts at this step using wrench (EE). HOMEDEPOT.CA GLUCKSTEINELEMENTS.COM Please contact 888-628-1888 for further assistance.
Page 10 Assembly (continued) Inserting the Hose and Regulator Insert the hose and regulator through the pole and come out through the hole on the base. Fixing the Transom Assembly Fix the transom assembly (C) to the pole & base assembly (E) using M6X15 combination bolts (AA). Tighten the bolts at this step using hex wrench (FF).
Page 11 Assembly (continued) Connecting the Gas Valve Attach the gas valve (D) to the hose as below shown. Close and latch the door. Inserting the Stakes Insert the stakes (GG) into the ground. HOMEDEPOT.CA GLUCKSTEINELEMENTS.COM Please contact 888-628-1888 for further assistance.
Page 12: Operation
Operation WARNING: This product contains one AAA battery (E). Swallowing a small battery can cause CHOKING HAZARD. Seek immediate medical attention if battery is swallowed or inhaled. Keep children away from the small battery. ARRET HIGH ELEVE FAIBLE IGNITER ALLUMEUR Connecting the Hose and Regulator to Cylinder The propane gas and cylinder are sold separately.
Page 13: Install Cylinder
Operation (continued) Figure 1 Connect the Propane Cylinder The knob on the LP cylinder muct be closed. Make sure that the knob is turned clockwise to a full stop. The cylinder supply system must be arranged for vapor withdrawal. Check that the control knob on the control unit is turned off. Hold the regulator in one hand and insert the nipple into the valve outlet.
Page 14 Operation (continued) LEAK CHECK Whenever gas connections are loosened or removed, NOTE: you must perform a complete leak test. WARNING: Perform all leak tests outdoors. NEVER leak test when smoking. Do not use the heater until all connections have been leak tested and do not leak.
Page 15: Before Turning Gas Supply On
Operation (continued) DANGER: CARBON MONOXIDE HAZARD For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. DANGER: CAUTION: Do not attempt to operate until you have read and understand all Safety Information in this manual and all assembly is complete and...
Page 16 Operation (continued) Lighting: Turn on the valve on the gas cylinder. Press and turn the control knob to HIGH (maximum) position (counter-clockwise 90°). (Figure 1) Release the control knob 10 seconds after the ignition. Turn the control knob to LOW (minimum) and leave it there for 5 minutes or more before turning the knob to the desired temperature setting.
Page 17: When Heater Is On
Operation (continued) WARNING: FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of When Heater is ON: Emitter screen will become bright red due to intense heat. The color is more visible at night.
Page 18: After Operation
Operation (continued) Heater is away from windows, air intake openings, sprinklers and other water sources. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. Heater is on a hard and level surface. There are no signs of spider or insect nests.
Page 19: Care & Maintenance
Care and Maintenance WARNING: FOR YOUR SAFETY Do NOT touch or move heater for at least 45 minutes after use. To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities every six months: Keep exterior surfaces clean.
Page 20 Care and Maintenance (continued) Storage Turn control knob OFF. Disconnect LP cylinder. Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris). If desired, cover heater to protect exterior surfaces and to help prevent buildup in air passages. Wait until heater is cool before covering.
Page 21: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action Cylinder valve is closed. Open valve. pilot tube. Burner won’t light. Open gas line and bleed it (pressing control knob in) Air in gas line. for no more than 1-2 minutes or until you smell gas. Low gas pressure with cylinder valve Turn cylinder valve OFF and replace cylinder.
Page 22 Questions, problems, missing parts? Before returning to the store, call Gluckstein Elements Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 888-628-1888 HOMEDEPOT.CA GLUCKSTEINELEMENTS.COM Retain this manual for future use.
