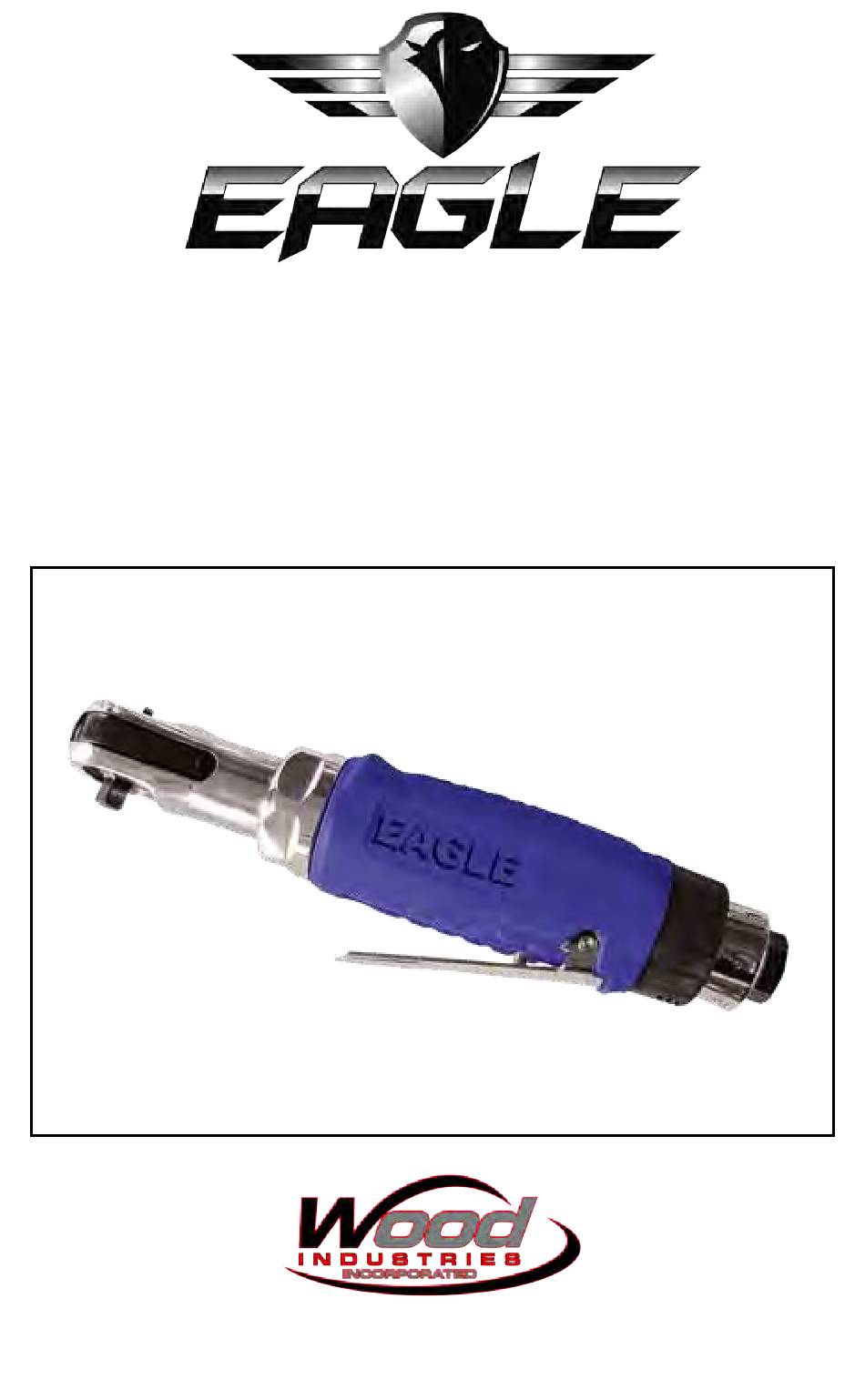

- Page 1 3/8” MINI RATCHET MODEL EGA210 OWNERS MANUAL www.eaglecompressor.com 1-800-551-2406...
- Page 2 Eagle will, at its sole discretion, repair or replace the tool or parts that have failed within the warranty period. If repairs are considered, they will be scheduled in the normal course of the workflow at its service centre.
-
Page 3: Table Of Contents
Tool Specifications ..................... 7 DESCRIPTION Eagle Air tools are manufactured in accordance with our strict specifications and designed to be used in light duty professional or serious DIY applications. When used in accordance with warnings and instructions given in this manual, and when properly applied and main- tained they should give you many years of productive and trouble free service. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Always wear protective goggles or safety glasses, hearing protection, protective gloves and footwear. Air tools can create dust when drilling, grinding, sanding or cutting. This dust can con- tain substances known to cause cancer, birth defect, etc. Also wear proper breathing protection. -
Page 5: Before Using This Air Tool
BEFORE USING THIS AIR TOOL To ensure long life be sure to oil the tool daily. Pour 4 drops of Eagle air tool (SEA 20 non detergent) oil into the air inlet, and then run the tool for a few seconds to clean. -
Page 6: Parts Breakdown
PARTS BREAKDOWN INDEX PART DESCRIPTION Housing 551-01 251-7 Valve Bushing 551-0 Valve Stem 151-07 O-Ring 151-08 Spring 150-11 O-Ring 150-09 Valve Plug 551-08 Trigger 150-05 Trigger Pin Handle Cover 551-10 Muffle Cover 551-11 220-04 O-Ring 551-1 Air Regulator 160-12 O-Ring 660-24 Inlet Connector 551-16... -
Page 7: Tool Specifications
15111- Bearing 151-12 End Plate 151-40 551-21 Cylinder 551-22 Rotor 551-2 Rotor Blade 151-16 Front Plate 151-41 151-44 O-Ring 15028- Bearing 151-19 151-18 Gear 151-20 Gear Plate 151-21 Thread Ring Gear 551-2 551- Needle Bearing 551-4 Crank Shaft 151-24 Drive Bushing Ratchet Housing 551-6 151-27... - Page 8 Wood Industries, Inc. manufactures and distributes top of the line, high quality AIR COMPRESSORS AIR COMPRESSOR PARTS AIR POWERED ACCESSORIES 1-800-551-2406 www.eaglecompressor.com...
