Kele KGD6-CO User Instructions

Carbon monoxide detector, controller and transducer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

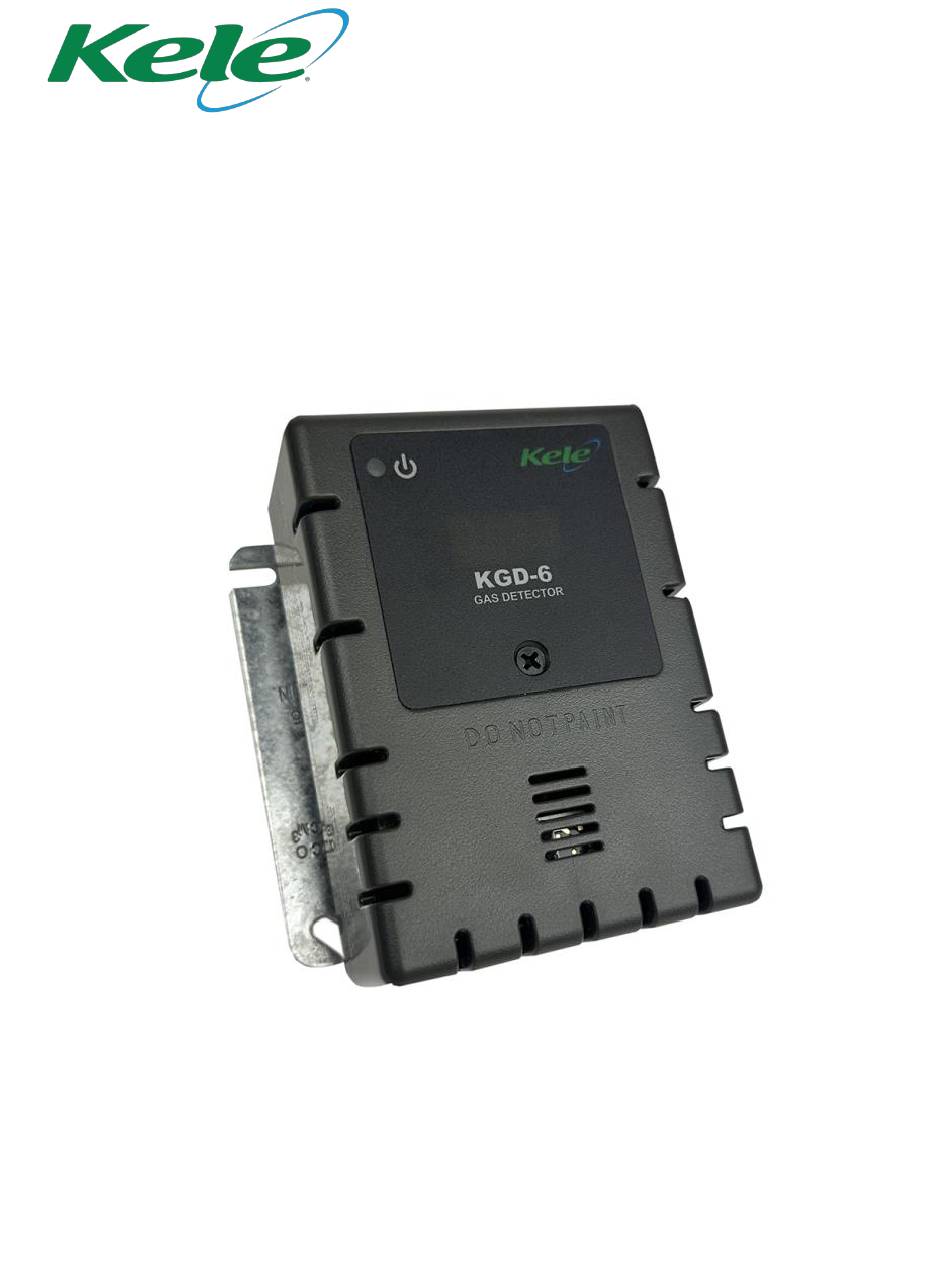

Kele KGD6-CO, KGD12-CO
Carbon Monoxide Detector, Controller and Transducer
User Instructions
IMPORTANT: Keep these user instructions for reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KGD6-CO and is the answer not in the manual?

Questions and answers

Related Manuals for Kele KGD6-CO

Summary of Contents for Kele KGD6-CO

  • Page 1 Kele KGD6-CO, KGD12-CO Carbon Monoxide Detector, Controller and Transducer User Instructions IMPORTANT: Keep these user instructions for reference.

  • Page 2: Table Of Contents

    Kele KGD-6-CO, KGD-12-CO Operation Manual Table of Contents General Safety Information ..............................4 General Description ................................ 4 List of warnings and Cautions ............................4 Use Instructions and Limitations ............................5 Use For..................................... 5 Do NOT use for ................................5 Features ................................... 6 Specifications ..................................
  • Page 3 Auto Test Menu “bUZ” ..............................33 Select Test Menu “tst” ..............................40 Calibration Menu “CAL” ............................... 41 Sensor Reset Menu “SEn” ............................42 Kele Gas Detection Product limited warranty ....................... 43 Technical Support Contact Information ..........................43 General Contact Information ..............................43 REV – 1.2.1...

  • Page 4: General Safety Information

    1 General Safety Information The following instructions are intended to serve as a guideline for the use of the Kele KGD-6 and KGD-12 Carbon Monoxide Detector. This manual will refer to these devices as KGD-xx unless content is specific to a model. This manual is not to be considered all-inclusive, nor is it intended to replace the policy and procedures for your facility.

  • Page 5: Use Instructions And Limitations

    Uniform Building Code for enclosed garages and meets OSHA standards for CO exposure. KGD-xx can be used stand alone, with the Kele KGD-120 Detection and Ventilation Control Panel, other 12 VAC or 24 VDC fire/security panels or building automation systems.

  • Page 6: Features

    Kele KGD-6-CO, KGD-12-CO Operation Manual 2.3 Features • ETL LISTED Certified to CSA C22.2 No 61010-1, Conforms to UL Std. 61010-1, UL Std. 2075 • Low-level meter capable of displaying from 0-200 ppm of CO. • The KGD-xx meets the Uniform Building Code for enclosed garages and meets OSHA standards for CO exposure.

  • Page 7: Installation Instructions

    Kele KGD-6-CO, KGD-12-CO Operation Manual 3 Installation Instructions WARNING This detector helps monitor for the presence and concentration level of a certain specified airborne gas. Misuse may produce an inaccurate reading, which means that higher levels of the gas being monitored may be present and could result in overexposure and cause serious injury or death.
  • Page 8 Kele KGD-6-CO, KGD-12-CO Operation Manual 8. The Fan Relay can be configured for latching or non-latching (default) when activated (when the gas concentration exceeds fan relay set point). Once latched in, power will need to be interrupted or the “TEST”...
  • Page 9 Kele KGD-6-CO, KGD-12-CO Operation Manual Figure 3-2 6-Series Rear View KGD-6-CO Figure 3-3 6-Series Alarm Control Panel diagram REV – 1.2.1 P a g e...
  • Page 10 Kele KGD-6-CO, KGD-12-CO Operation Manual Figure 3-4 6-Series KGC-120 Control Panel diagram KGD-6-***** KGD-6-***** KGD-6-***** KGD-6-***** KGD-6-***** KGD-6-***** Figure 3-5 6-Series Multiple Device diagram REV – 1.2.1 10 | P a g e...
  • Page 11 Kele KGD-6-CO, KGD-12-CO Operation Manual Figure 3-6 6-Series Stand Alone Diagram KGD-6-CO KGD-6-CO Figure 3-7 6-Series Alternate Alarm Panel In this application (above) the Fan or primary relay is used as a low-level alarm relay. The Alarm or secondary relay is used as a supervisory relay when utilized in the normally closed configuration.

  • Page 12: 12-Series Line Voltage

    Figure 3-8 6-Series Horn & Strobe Combo Wiring Kele External Horn/Strobe model number is 78-2900-0211-X, where X represents lens color, R for red lens cover, G for green lens cover, B for blue lens cover, O for amber lens cover, C for clear lens cover. Sound pressure for Horn/Strobe model is at least 85dB at 10 feet.
  • Page 13 Kele KGD-6-CO, KGD-12-CO Operation Manual NOTE: 22 to 12 AWG wire shall be used. Wire used shall meet the temperature range of the detector i.e. 0°F to 125° F (-18°C to 52°C). Figure 3-9 12-Series 4-20 mA Output Diagram Figure 3-10 12-Series Rear View REV –...
  • Page 14 Kele KGD-6-CO, KGD-12-CO Operation Manual Figure 3-11 12-Series Stand Alone Diagram Figure 3-12 12-Series Multiple Device Diagram REV – 1.2.1 14 | P a g e...
  • Page 15 Kele KGD-6-CO, KGD-12-CO Operation Manual Figure 3-13 12-Series Alarm Control Panel Diagram Figure 3-14 12-Series KGC-120 Control Panel Diagram REV – 1.2.1 15 | P a g e...
  • Page 16 Kele KGD-6-CO, KGD-12-CO Operation Manual Figure 3-15 12-Series Alternate Alarm Panel In this application (above) the Fan or primary relay is used as a low-level alarm relay. The Alarm or secondary relay is used as a supervisory relay when utilized in the normally closed configuration. The KGD-12 monitors all critical functions of the unit through software diagnostics that continually test and verify its operations.

  • Page 17: Terminal Connection

    Kele KGD-6-CO, KGD-12-CO Operation Manual External Horn/Strobe model number is 78-2900-0211-X, where X represents lens color, R for red lens cover, G for green lens cover, B for blue lens cover, O for amber lens cover, C for clear lens cover. Sound pressure for Horn/Strobe model is at least 85dB at 10 feet.

  • Page 18: Operations

    Mains connections should be done in accordance with National and Local Electrical Codes. Only qualified personnel should connect Mains power to any device. Kele recommends a minimum wire size of AWG18 and the wire insulator must be rated for 140°F (60°C) service. The modular connector will accept wire from 12 to 22 AWG.

  • Page 19: Display Turned "Off

    Kele KGD-6-CO, KGD-12-CO Operation Manual Fan level – When the CO concentration reaches the Fan Relay setting (35 ppm, for example) the display will flash back and forth between “FAn” and “35” or current concentration of gas. Alarm level – With the display function turned “On” and the CO concentration reaching the Alarm Relay setting, (200 ppm, for example) the display will flash back and forth between “ALr”...

  • Page 20: Default - Factory Settings

    Kele KGD-6-CO, KGD-12-CO Operation Manual 4.5 Default – Factory Settings The KGD-xx comes pre-programed with these default settings: Setting: Default: Power Up Test Display Buzzer Alarm Relay Setting 200 ppm Alarm Relay Configuration Normally Open (NO) Fan Relay Setting 35 ppm...

  • Page 21: Selecting Default Configuration - "Def

    Kele KGD-6-CO, KGD-12-CO Operation Manual 4.5.1 Selecting Default Configuration – “dEF” To select the Default Configuration, in normal mode, push the Next button to get to “Con” or the Configuration menu. Then push the Enter button to enter the Con menu. The first selection is the “dEF” or Default setting. Push Enter. If it is already in Default configuration, there will be no action.

  • Page 22: Fan Relay Delay Setting - "Frd

    Enter again to return to “420” in the Con menu. Push Next until “End” is displayed then push Enter to get back to normal operation. NOTE: KGD-XX will transmit information about calibration period to Kele Control Panel (via 4-20 mA output) only when 4-20mA output setting is set to ‘EnH’.

  • Page 23: Troubleshooting

    Kele KGD-6-CO, KGD-12-CO Operation Manual 6, 12 or 24 (flashing) then push Enter to confirm the change (solid). Then push Enter again to return to “CAL” in the Con menu. Push Next until “End” is displayed then push Enter to get back to normal operation.

  • Page 24: Sensor Poisons

    If the error mode repeats frequently, check for continuous power and proper voltage. If power is not the problem and a unit has repeating error conditions, it may need to be returned to Kele for service, per these User Instructions.

  • Page 25: Cleaning

    Kele KGD-6-CO, KGD-12-CO Operation Manual 3. Then press the Enter button to get to “rSt” - Reset Sensor Mode. 4. Press the Enter button again to see the sensor reset status. If the sensor life has already been reset, “don”...

  • Page 26: Testing

    Check that the green KGD-6 status indicator LED light is illuminated continuously. If not, do not proceed with the tests. If the unit is in error mode, contact your local representative or Kele technical service representative for information on resolving the problem.

  • Page 27: Calibration And Test Kits

    A Field Calibration Kit, Cal-Kit 1, and one bottle of calibration gas is needed to complete gas test. These are available through local distribution or from Kele. NOTE: KGD-xx must be tested or calibrated at regular intervals in accordance with the requirements of the National Fire Protection Association (NFPA) 720 or local code requirements.

  • Page 28: Gas Testing

    Kele KGD-6-CO, KGD-12-CO Operation Manual Figure 7-1 Calibration Kit Connection 7.3 Gas Testing 7.3.1 Testing the Fan Relay 1. Remove the Philips screw on the front of the KGD-6. Remove the front cover. 2. Open the Cal-Kit 1. Connect the 50-ppm gas cylinder to the regulator.

  • Page 29: Testing The 4-20Ma Loop

    Kele KGD-6-CO, KGD-12-CO Operation Manual Note: If the Alarm relay fails to operate within 2 minutes, there are four possibilities: a. The gas cylinder is empty, check the pressure gauge. Replace the gas cylinder if 25-psi or less. b. Unit needs to be re-calibrated (go through recalibration and re-test).
  • Page 30 Kele KGD-6-CO, KGD-12-CO Operation Manual months since the unit was last calibrated. ‘Spn’ sub-menu is used during field calibration procedure as described in following procedure. ‘End’ sub-menu is used to exit out of ‘CAL’ menu. Follow the procedure below for field calibration.

  • Page 31: Appendix A - Table Of Images

    Kele KGD-6-CO, KGD-12-CO Operation Manual 8 Appendix A – Table of Images Figure 3-1 6-Series 4-20 mA Output diagram ........................8 Figure 3-2 6-Series Rear View ............................9 Figure 3-3 6-Series Alarm Control Panel diagram ......................9 Figure 3-4 6-Series KGC-120 Control Panel diagram ....................10 Figure 3-5 6-Series Multiple Device diagram .........................

  • Page 32: Appendix B - Menu Structure

    Kele KGD-6-CO, KGD-12-CO Operation Manual 9 Appendix B – Menu Structure 9.1 Main Menu REV – 1.2.1 32 | P a g e...

  • Page 33: Auto Test Menu "Buz

    Kele KGD-6-CO, KGD-12-CO Operation Manual 9.2 Auto Test Menu “bUZ” REV – 1.2.1 33 | P a g e...
  • Page 34 Kele KGD-6-CO, KGD-12-CO Operation Manual Configuration Menu “CON” REV – 1.2.1 34 | P a g e...
  • Page 35 Kele KGD-6-CO, KGD-12-CO Operation Manual REV – 1.2.1 35 | P a g e...
  • Page 36 Kele KGD-6-CO, KGD-12-CO Operation Manual REV – 1.2.1 36 | P a g e...
  • Page 37 Kele KGD-6-CO, KGD-12-CO Operation Manual REV – 1.2.1 37 | P a g e...
  • Page 38 Kele KGD-6-CO, KGD-12-CO Operation Manual REV – 1.2.1 38 | P a g e...
  • Page 39 Kele KGD-6-CO, KGD-12-CO Operation Manual REV – 1.2.1 39 | P a g e...

  • Page 40: Select Test Menu "Tst

    Kele KGD-6-CO, KGD-12-CO Operation Manual 9.3 Select Test Menu “tst” REV – 1.2.1 40 | P a g e...

  • Page 41: Calibration Menu "Cal

    Kele KGD-6-CO, KGD-12-CO Operation Manual 9.4 Calibration Menu “CAL” REV – 1.2.1 41 | P a g e...

  • Page 42: Sensor Reset Menu "Sen

    Kele KGD-6-CO, KGD-12-CO Operation Manual 9.5 Sensor Reset Menu “SEn” REV – 1.2.1 42 | P a g e...

  • Page 43: Kele Gas Detection Product Limited Warranty

    11 Kele Gas Detection Product limited warranty Kele warrants the KGD-6 gas detector will be free from defective materials and workmanship for a period of two (2) years from date of manufacture (indicated on the inside cover of the KGD-6), provided it is maintained and used in accordance with Kele instructions and/or recommendations.
  • Page 44 Kele KGD-6-CO, KGD-12-CO Operation Manual...
