Caution: Read the instructions before installing, servicing and using the appliance.
These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the technical instructions for adapting the appliance to the conditions
for use in that country.
HU199_EN_A5_v1_20250115.indb 1
HU199_EN_A5_v1_20250115.indb 1

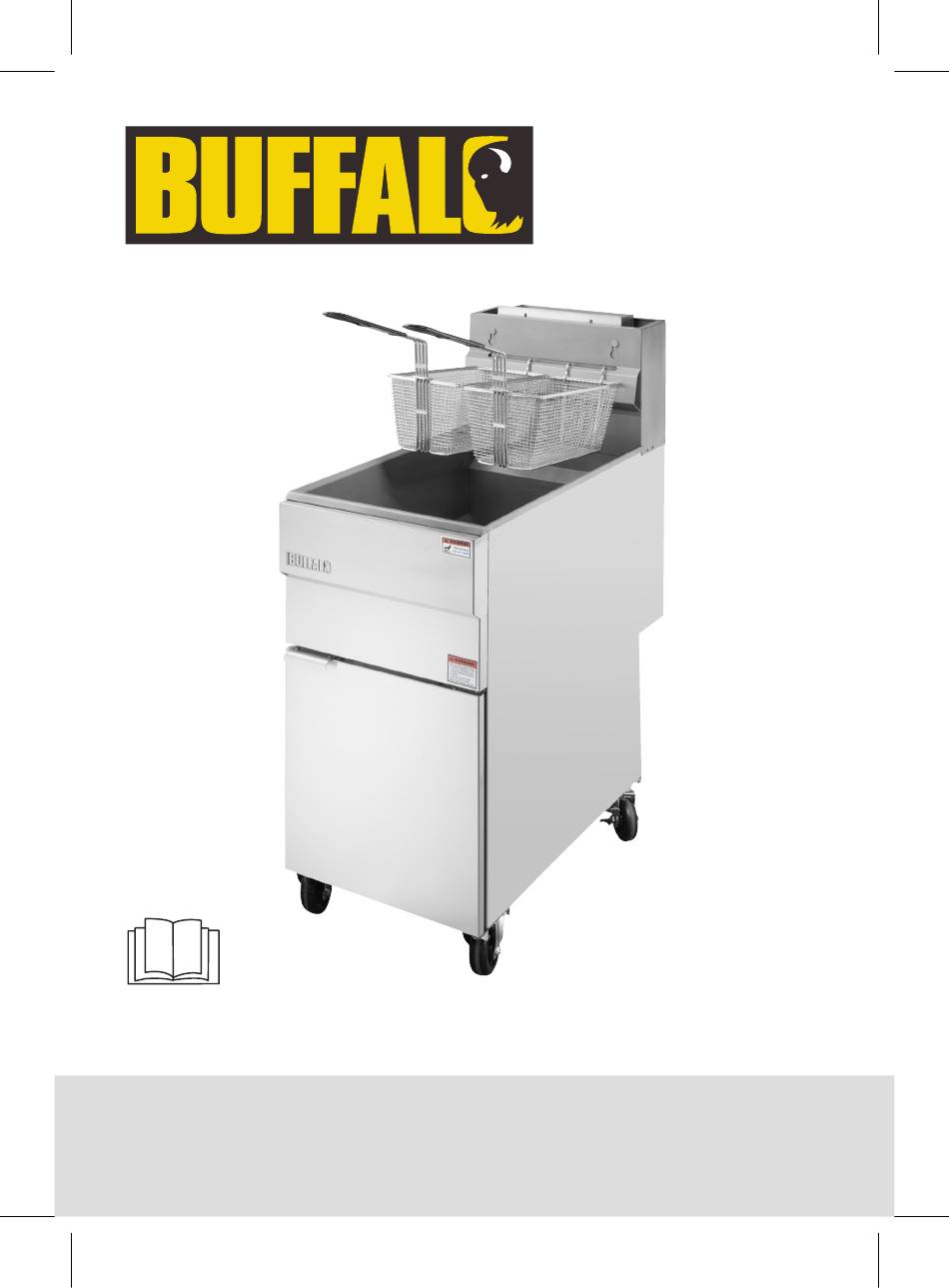

Twin Basket
Single Tank
Gas Fryer
Instruction manual
Model:
HU199
2025/1/15 10:05
2025/1/15 10:05
Advertisement
Table of Contents
Related Manuals for Buffalo HU199
Summary of Contents for Buffalo HU199
- Page 1 These instructions are only valid if the country code appears on the appliance. If the code does not appear on the appliance, refer to the technical instructions for adapting the appliance to the conditions for use in that country. Model: HU199 HU199_EN_A5_v1_20250115.indb 1 HU199_EN_A5_v1_20250115.indb 1 2025/1/15 10:05...
- Page 2 Safety Instructions Important: • Read this manual carefully and keep for reference. • Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. •...
- Page 3 • This appliance shall be installed in conformity with the current regulations and used only indoor in a well-ventilated location to prevent the occurrence of unacceptable concentrations of substances harmful to health. Consult the instructions before installation and using this appliance. •...
- Page 4 • In case of fire, never use water to extinguish. Never pour water onto hot oil or fat. Use a lid to cover the fire instead. • Shut off the gas supply to the appliance after each use. • Do not modify the appliance in any way. Any modification of the appliance, misuse, or failure to follow the instructions may be dangerous and will invalidate your warranty.
-
Page 5: Pack Contents
• Frying baskets (x2) BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately. -
Page 6: Installation
Knowing the appliance Flue Oil tank Basket Gas inlet (at the lower rear) Door (at the lower front) Extension drain tube Drain outlet: To connect the Extension drain tube here Drain valve Installation Caution: It is most important that this appliance is installed correctly and operation is correct before use. -
Page 7: Flue Connection
Location • Position the appliance in its approximate working position. • Installation must allow for a sufficient flow of fresh air for the combustion air supply to prevent dangerous build-up of combustion products. • Do not permit fans to blow directly onto the appliance, including wall-type fans, which create cross- currents within a room. - Page 8 HU199 Rating label - NG: Country of Gas and Supply Injector Pilot injector Total Nominal Category Destination Pressure Size Ø Size (mm) Heat Inputs AT, BG, CZ, DK, GB, EE, Fl, GR, HR, HU, IS, IE, IT, LV, LT, NO, G20:20mbar 2.3mm...
-
Page 9: Gas Connection
Gas connection Note: • Gas connection shall be fixed with the matched gas adaptor with seal gasket to suit for various national situation. Ensure to Use the correct connection kits according to ANNEX A of the standard EN 203-1. • All gas supply connections and any pipe joint compound must be resistant to the action of propane gases. -
Page 10: Testing The Gas Supply Piping System
Testing the gas supply piping system Note: The available gas pressure should be the same as that indicated on rating label. If incoming pressure exceeds 5kPa, an additional pressure regulator must be installed. When test pressures exceed 5kPa, the fryer and its individual shut-off valve must be disconnected from the gas supply piping system. - Page 11 1. Open the front door and remove the 3 burners. Burners 2. Remove the 2.3mm injectors and mount the 1.5mm injectors. 1.5mm injectors 3. Remove the 0.5mm pilot flame injector and mount the 0.4mm pilot flame injector. Now install back the 3 burners.
-
Page 12: Operation
Operation Caution, Danger of burns! • Hot oil and parts can cause burns. Take care when operating, cleaning and servicing the fryer. • Spilling hot frying compound can cause severe burns. Do not move the fryer before draining all frying compound from the tank. Before first time use •... - Page 13 Lighting the pilot A: Gas control knob D: Pressure adjustment screw B: Gas supply pipe E: Pilot C: Thermostat 1. Open the door. 2. Turn the thermostat (C) to ‘OFF’ position. 3. Push in and turn the gas control knob (A) to “...
- Page 14 Draining the oil tank Caution, Danger of burns! Hot oil and spilling hot frying compound can cause severe burns. NEVER attempt to move the fryer before thorough emptying and draining the oil tank. Before draining, ensure the extension drain tube is installed in place.
-
Page 15: Cleaning, Care And Maintenance
Cleaning, care & Caution, Danger of burns! Spilling and hot frying maintenance compound can cause severe burns. Do not move the fryer before draining all frying Caution: Always shut off the gas compound from the tank. supply before cleaning. This appliance is not water 1. -
Page 16: Troubleshooting
Troubleshooting A qualified technician must carry out repairs if required. Important! Should any of below abnormal situations occur, the appliance should be IMMEDIATELY service by a qualified service person and should not be used until such service is carried out. •... -
Page 17: Technical Specifications
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice. -
Page 18: Declaration Of Conformity
• Objeto de la declaración • Objeto da declaração Model • Modèle • Modell • Modello • Modelo {product code(s)} HU199 Application of Council Directives(s) Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) {relevant legislation and harmonized standards} du Conseil •... - Page 19 +44 (0)845 146 2887 Eire 040 – 2628080 01 60 34 28 80 BE-NL 0800-29129 BE-FR 0800-29229 0800 – 1860806 901-100 133 HU199_EN_A5_v1_20250115.indb 19 HU199_EN_A5_v1_20250115.indb 19 2025/1/15 10:05 2025/1/15 10:05...
- Page 20 HU199_EN_A5_v1_2025/01/15 HU199_EN_A5_v1_20250115.indb 20 HU199_EN_A5_v1_20250115.indb 20 2025/1/15 10:05 2025/1/15 10:05...
