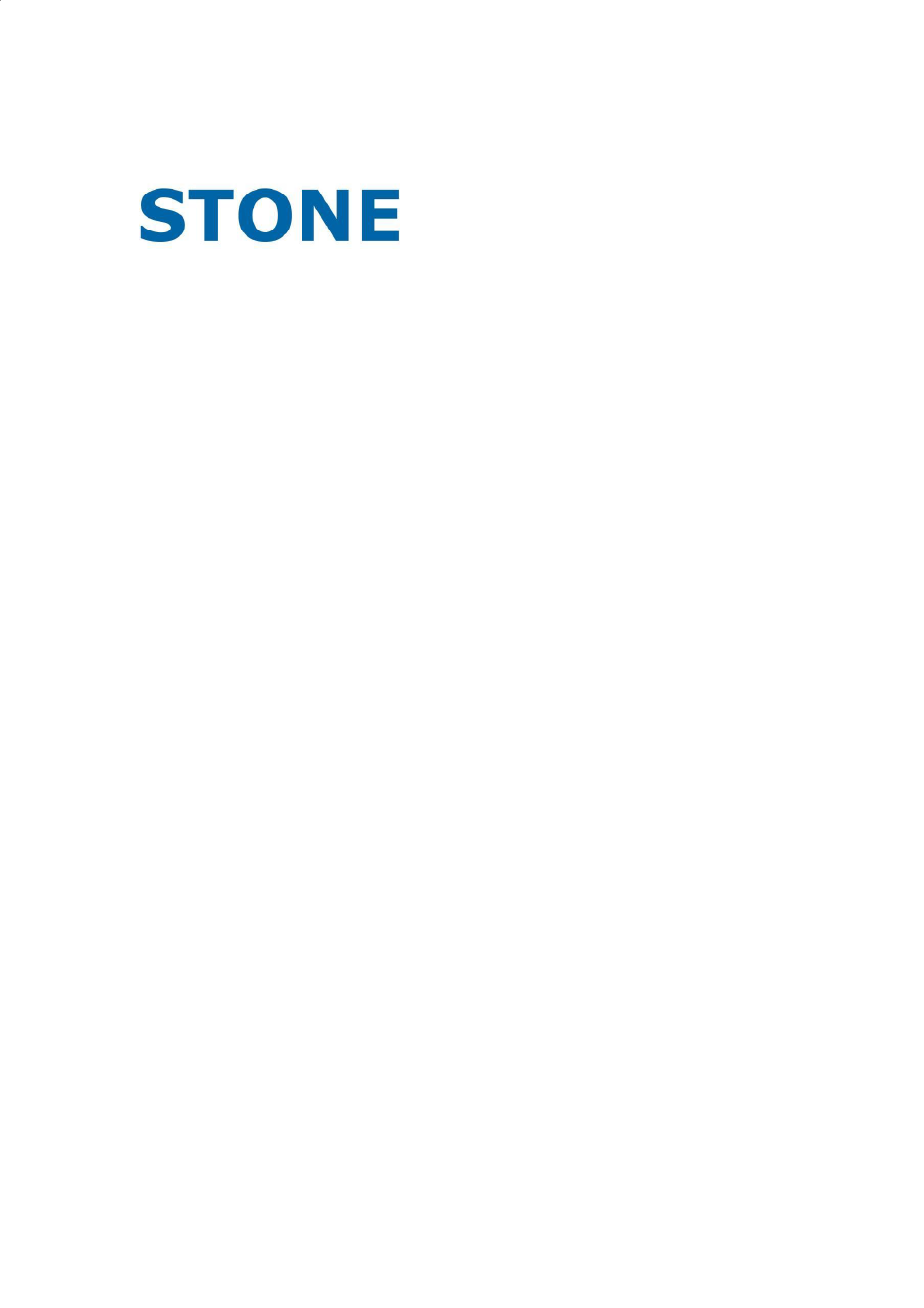

- Page 1 Intelligent TFT-LCD Module Model STWI043WT/N-01 Equipment Manual STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 2 Contents Preface ..........................3 Introduction ........................5 Technical Parameters ..................... 10 Interface Description ....................15 Accessories ........................ 16 Physical Dimensions ....................18 Electrical Components ................... 19 Naming Rule ....................... 20 International Certification ..................21 APPENDIX ........................... 22 Glossary ..........................24 STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 3 Products through its Online services as follows: - Official website: http://www.stoneitech.com/ http://www.stone-hmi.com https://forum.stoneitech.com/ - Official forum: - Telephone: 0086-10-84351669 Other support In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area. STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 4 Preface Trademarks STONE registered trademarks are as below: - STONE - STONE TECH - Intelligent HMI - Intelligent TFT - LCD Module Abbreviations The abbreviation table in this equipment manual is as below: Light Emitting Diode Central Processing Unit Electrostatic Sensitive Device...
- Page 5 Introduction This chapter contains general information of: - Brief Introduction - Warranty - Product Characteristics - Application Area - Working principle - Operation Processing - Software Operation STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 6 Introduction 1.1 Brief Introduction The STWI043WT/N-01 has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory, RS232 / RS422 / RS485 / TTL / LAN port, Wi-Fi / Bluetooth, touch screen, power supply etc., so it is a whole display system based on the powerful &...
- Page 7 Introduction 1.5 Working Principle The Intelligent TFT-LCD Module communicates with the Customer’s MCU / CPU / FPGA / PLC via Commands (JSON command and HEX Code), and then the MCU would control its connected equipment to work according to the received commands.
- Page 8 1.6 Operation Processing Only 3 steps to use our TFT-LCD Module: 1. Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files. 2. Connect with customer’s MCU through RS232,RS422,RS485,TTL directly. Plug and play. 3. Write a simple program for MCU to control the TFT-LCD Module via Command Set.
- Page 9 Introduction 1.7 Software Operation We will offer simple "Stone Desinger GUI editor" to help you to design the new project file for Intelligent TFT-LCD Module on Windows system PC or MacOS PC, or it also can Design on website version directly.
- Page 10 Technical Parameters This chapter contains technical data on: - Physical Parameters: Physical Parameters Display - Hardware Parameters: Processor Memory Interface Power Supply - Storage & Test Electrical Characteristics Ambient Conditions Noise Immunity Radio Interference - Support Device Support Device STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 11 Technical Parameters Physical Parameter Size 4.3 inch Resolution 480×RGB×272 Pixel Spacing 0.066(W) × 0.198(H) mm Color 262,144 colors (18 bit) Viewing Area 95.04(W) × 53.856(H) mm Display Dimension 97.1mm× 56mm 121.9mm×74.7 mm×13.8 mm (T) (Standard type) Overall Dimension 121.9mm×74.7 mm× 23.8mm (T) (with Ethernet port) Net Weight 155g(T)
- Page 12 Technical Parameters Interface Serial Interface RS232 / RS422 / RS485 / TTL level Ethernet interface 10M/100M (Optional) Wireless interface Wi-Fi / Bluetooth (Optional) Project file downloading USB2.0 port or U storage Disk Power Supply Rated voltage +12V DC or +5V DC Permissible voltage range +7V DC...+28V DC or +5V DC Max.
- Page 13 Technical Parameters Ambient Conditions Max. permissible ambient temperature Operation -20℃～ +70℃ Storage -30℃～ +80℃ Relative humidity 55℃,85% Operation Storage 60℃,90% Shock loading Operation 15 g/11 msec Storage 25 g/6 msec Vibration Operation 0.035 mm (10 - 58 Hz)/ 1 g (58 - 500 Hz) Storage 3.5 mm (5 - 8,5 Hz)/ 1 g (8.5 - 500 Hz) Barometric pressure...
- Page 14 Technical Parameters Support Device Support UART Port RS232 / RS422 / RS485 / TTL Support Network Port Ethernet Port / Wi-Fi / Bluetooth Support Flash Memory Standard 256MB, Extend 1GB or 2GB Buzzer Support Support Support USB port Online Download By USB Cable Support.
- Page 15 Interface Description This chapter contains the description of the interfaces: - VVC - NC - DOUT - DIN - GND Please notify the interface type before ordering. RS232/ RS422/ RS485/ TTL Interface. Communication Interface Definition： Interpret Name Type Power Ground Data Input DOUT Data Output...
- Page 16 Accessories This chapter contains the accessories: - Double 8-pin Connect Cable - 8-pin Socket - Type A USB Cable - Converter: USB ⇌ RS232 / RS422 / RS485 / TTL - Metal Bezel (optional) - IP65 Plastic Box (optional) Picture Accessory Name Model Note...
- Page 17 Picture Accessory Name Model Note PB-043 PB-050 For: 4.3”, 5”, 5.6”, 7”, IP65 Plastic Box PB-056 8”,10.4” (optional) PB-070 PB-080 PB-104 MB-035 MB-043 MB-050 Metal Bezel MB-056 For: 3.5”, 4.3”, 5”, 5.6”, (optional) MB-070 7”, 8”,10.1”,10.4” MB-080 MB-101 MB-104 STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 18 Physical Dimensions This chapter contains the information of Physical Dimensions. Figure 5-1 STWI043WT/N-01 dimension STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 19 Electrical Components This chapter contains the brands of the components: - TFT Panel - Touch Screen - CPU - LCD Controller - Flash memory - Connecter - Capacitance - IC Electrical Components STWI043WT/N-01 Equipment Manual Release 05/2021...
- Page 20 Naming Rule This chapter contains the naming rule: As sample STWI070WT-01N Code Explain Company Code The third version product I=Industrial Type ; A=Advanced Type；C=Civil Type TFT Panel Dimension: 7 inch W=Wide Voltage (+7V to +28V) L=Low Voltage (+5V) T=With Resistive Touch Screen N=Without Touch Screen C=With Capacitive Touch Screen 0=RS232...
- Page 21 International Certification This chapter contains the certification we passed: - CE Certificate - ROHS Certificate - FCC Certificate - ISO9001:2008 Quality System CE Certificate FCC Certificate RoHS Certificate ISO9001:2008 Equipment Manual STWI043WT/N-01 Release 05/2021...
- Page 22 APPENDIX APPENDIX ESD Guidelines What does ESD mean? Virtually all present-day modules incorporate highly integrated MOS devices or components. For technological reasons, these electronic components are very sensitive to overvoltages and consequently therefore to electrostatic discharge: These devices are referred to in German as Elektrostatisch Gefährdeten Bauelemente/ Baugruppen: º...
- Page 23 APPENDIX Handling ESD assemblies A general rule is that assemblies should be touched only when this cannot be avoided owing to the work that has to performed on them. Under no circumstances should you handle printed-circuit boards by touching device pins or circuitry. You should touch devices only if ●...
- Page 24 Glossary Baud rate Rate of speed at which data is downloaded. Baud rate is specified in Bit/s. Boot A loading process which downloads the operating system in the working memory of the operating unit. Command Set Hex Code, the MCU can control the TFT Module via the command set. Configuration file It can be created by the softwares.
- Page 25 Glossary Flash memory Programmable memory which can be electrically deleted and written to again segment- by-segment. Half Brightness Life The period of time after which the brightness tube only achieves 50% of the original value. Input field Enables the user to enter values which are subsequently sent to the MCU. Micro Control Unit, it is widely used in the industrial control.
- Page 26 Glossary Output field Displays current values from the MCU on the operating unit. Process screen The display of process values and process progress on the operating unit in the form of screens, which may contain graphics, texts and values. RS485 Standard interface for serial data transfer at a very high transmission rate.
