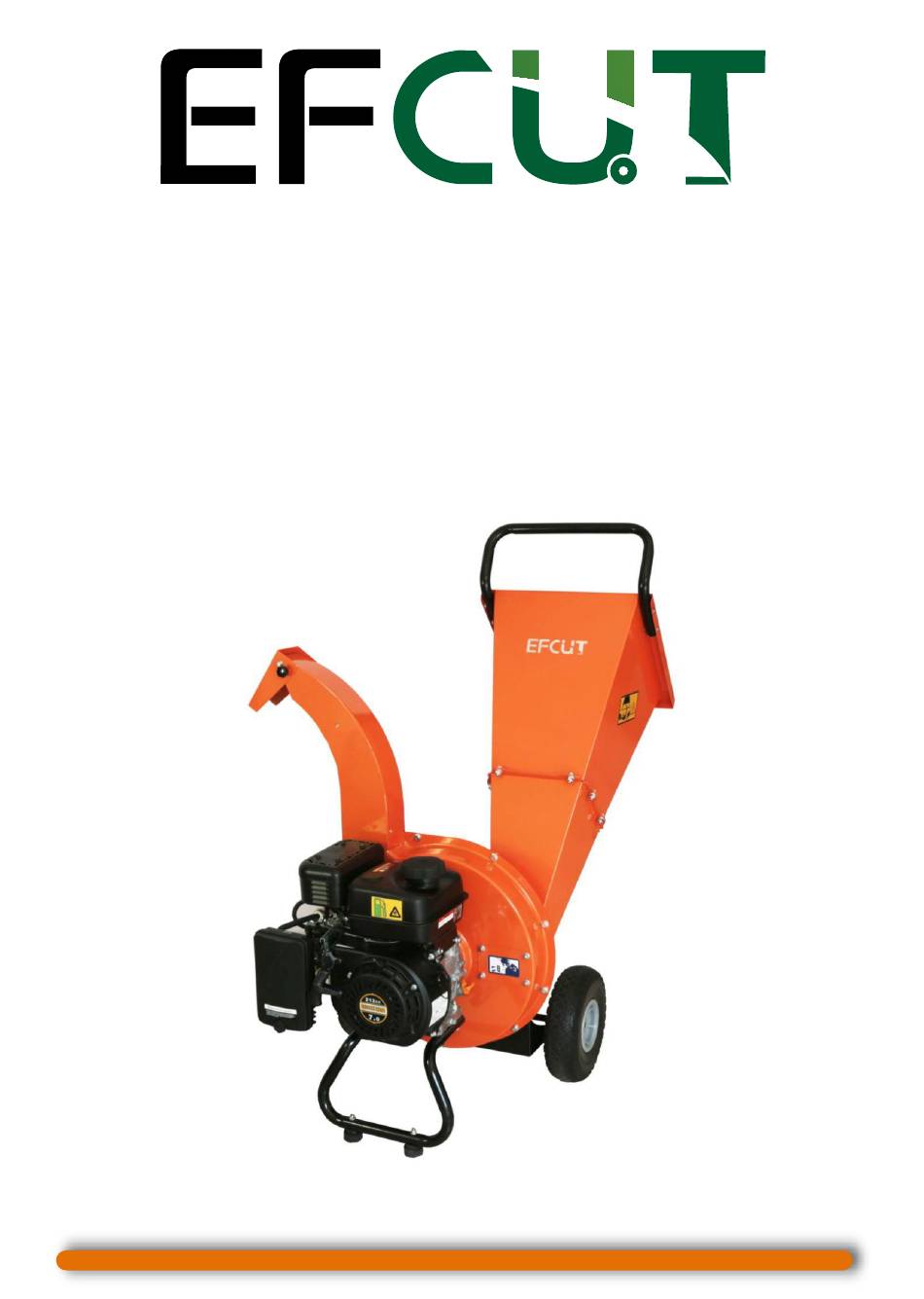

- Page 1 C30 WOOD CHIPPER I N S T R U C T I O N M A N U A L w w w . z l - i n t l . c o m...
-
Page 3: Table Of Contents
Section Page No. INTRODUCTION ………………………………………………………………………………………………………………………………… 2 PARTS LOCATOR ………………………………………………………………………………………………………………………………… 3 SAFE WORKING ………………………………………………………………………………………………………………………………… 4 Operator’s Personal Protective Equipment ………………………………………………………………………… 4 Basic Woodchipping Safety ………………………………………………………………………………………………… 4 General Safety Matters ………………………………………………………………………………………………………… 4-5 OPERATING INSTRUCTIONS ………………………………………………………………………………………………………………… 6 Recommissioning after storage …………………………………………………………………………………………… 6 Safe Transportation ……………………………………………………………………………………………………………… 6 Delivery ………………………………………………………………………………………………………………………………... -
Page 4: Introduction
INTRODUCTION 2/17 Thank you for choosing EFCUT. C30 wood chippers are designed to give safe and dependable service if operated according to the instructions. IMPORTANT HEALTH AND SAFETY INFORMATION Before using your new chipper, please take time to read this manual. Failure to do... -
Page 5: Parts Locator
PARTS LOCATOR 3/17 SPECIFICATION Code Name Quantity 702-001 Rubber Block 902-12A-04 Supports 703-003 Tire 902-12A-01 Blade System Shell 101-001D Engine Back Check 902-12A-11 Window Front Check 902-12A-12 Window 902-12A-02 Cavity Cover 902-12A-03 Rotor Housing Bottom Hopper 902-12A-05 Top Hopper 902-12A-06 902-12A-08 Discharge Bucket Handle... -
Page 6: Safe Working
SAFE WORKING 4/17 OPERATOR'S PERSONAL PROTECTIVE EQUIPMENT (PPE) • Chainsaw safety helmet (EN 397) fitted with mesh visor (EN 1731) and ear defenders (EN 352). • Work gloves with elasticated wrist. • Steel toe cap safety boots (EN 345-1). WARNING •... - Page 7 SAFE WORKING 5/17 GENERAL SAFETY MATTERS •Do not operate chipper unless available light is sufficient to see clearly. •Do not use or attempt to start the chipper without the feed hopper and guards securely in place. •Do not stand directly in front of the feed hopper when using the chipper. Stand to one side. •Do not smoke when refueling.
-
Page 8: Operating Instructions
• Turn the fuel valve OFF and keep the engine upright. DELIVERY All EFCUT C30 machines have a full pre - delivery inspection before leaving the factory and are ready to use. Read and understand this instruction manual before attempting to operate the chipper. -
Page 9: Starting The Engine
OPERATING INSTRUCTIONS 7/17 STARTING THE ENGINE • Turn the fuel valve to the ‘ON’ position. • Move the choke lever to the ‘CLOSE’ position. NOTE: Do not use the choke if the engine is warm or the air temperature is high. •... -
Page 10: Blockages
BLADE WEAR The most important part of using a wood chipper is keeping the cutter blades sharp. EFCUT chipper blades are ground to an angle of 35 degrees. When performing daily blade checks ensure blade edge is sharp and free from chips, if there is any evidence of damage, or the edge is “dull”... -
Page 11: Change Blades
OPERATING INSTRUCTIONS 9/17 WARNING WEAR RIGGERS GLOVES FOR THE BLADE CHANGING OPERATION. 1. Turn engine off as per instructions. 2. Pull the plug cap from the spark plug. 3. Use 12mm spanner supplied in tool kit to unscrew four M6 nut, remove front check window. 4. -
Page 12: Troubleshooting
This table is a troubleshooting guide to common problems. If your problem is not listed below, or is unresolved after following the guide, please contact your EFCUT service WWW. ZL-INTL.COM. Before you call, please have this operating manual and the machine serial number ready. -
Page 13: Service Instructions
SERVICE INSTRUCTIONS 11/17 SERVICE SCHEDULE WARNING ALWAYS IMMOBILISE THE MACHINE BY STOPPING THE ENGINE BEFORE UNDERTAKING ANY MAINTENANCE WORK. SERVICE SCHEDULE Daily Check Hours Hours Check engine oil - top up if necessary (10W-30). Check for engine oil leaks. Check fuel level. Check feed hopper Clean engine air intake. -
Page 14: Hazardous Materials And End Of Machine Life
• Engine oil • Petrol • Copper Ease MATERIAL SAFETY DATA SHEETS FOR HAZARDOUS MATERIALS SUPPLIED WITHIN EFCUT MACHINES ARE AVAILABLE ON REQUEST. REFER TO THESE FOR FIRST AID AND FIRE PROTECTION MEASURES. Always follow recommended procedures for safe handling, removal and disposal of hazardous materials. Safety precautions should be taken when handling hazardous materials (use of oil-resistant gloves and safety glasses are recommended - respiratory protection is not required). -
Page 15: Decals
Avoid standing directly in Do not put road sweepings in front of feed hopper to machine as grit will damage reduce exposure to noise, blade. dust and risk from ejected particles. Check window for removal of “EFCUT” LOGO obstructed debris C19-0920 ev: 1.2... -
Page 16: Warranty Service Check Record
WARRANTY SERVICE CHECK RECORD 14/17 Model number: Serial number: handover: Date of delivery/ Options/extras: Dealer pre delivery check: Inspected by: 50 HOUR WARRANTY SERVICE CHECK Authorized dealer stamp Date: Hours: Invoice number: Signature: Next service due: 11 MONTH WARRANTY SERVICE CHECK Authorized dealer stamp Date: Hours:... - Page 17 WARRANTY SERVICE CHECK RECORD 15/17 Authorized dealer stamp Date: Hours: Invoice number: Signature: Next service due: Authorized dealer stamp Date: Hours: Invoice number: Signature: Next service due: Authorized dealer stamp Date: Hours: Invoice number: Signature: Next service due: Authorized dealer stamp Date: Hours: Invoice number:...
-
Page 18: Parts Lists
PARTS LISTS 16/17 C19-0920 ev: 1.2... -
Page 19: Serial Number
SERIAL NUMBER 17/17 SN # Serial number is used to register on our site for maintenance repair and service Three (3) year warranty against machine construction (except blades etc. consumables). C19-0920 ev: 1.2... - Page 20 w w w . z l - i n t l . c o m...
