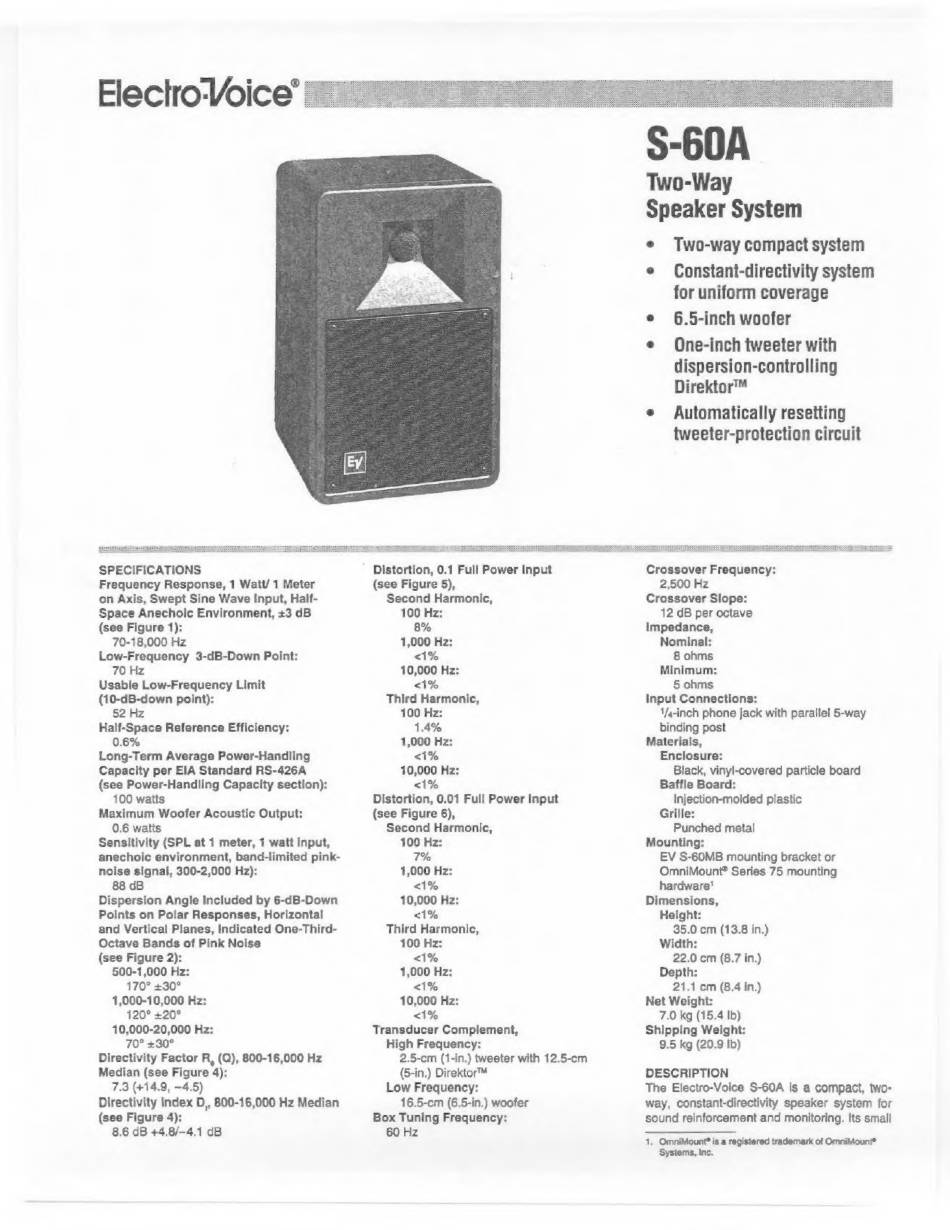

Mark IV Electro-Voice S-60A Quick Start Manual

Electro-Voice'
SPECIFICATIONS
Frequency Response, 1 Watt/ 1 Meter
on Axis, Swept Sine Wave Input, Half-
Space Anechoic Environment, +3 dB
(see Figure 1):
70-18,000 Hz
Low-Frequency 3-dB-Down Point:
70 Hz
Usable Low-Frequency Limit
(10-dB-down point):
52 Hz
Half-Space Reference Efficiency:
0.6%
Long-Term Average Power-Handling
Capacity per EIA Standard RS-426A
(see Power-Handling Capacity section):
100 watts
Maximum Woofer Acoustic Output:
0.6 watts
Sensitivity (SPL at 1 meter, 1 watt input,
anechoic environment, band-limited pink-
noise signal, 300-2,000 Hz):
88 dB
Dispersion Angle Included by 6-dB-Down
Points on Polar Responses, Horizontal
and Vertical Planes, Indicated One-Third-
Octave Bands of Pink Noise
(see Figure 2):
500-1,000 Hz:
170° +30°
1,000-10,000 Hz:
120° +20°
10,000-20,000 Hz:
70° +30°
Directivity Factor R, (Q), 800-16,000 Hz
Median (see Figure 4):
7.3 (414.9, -4.5)
Directivity Index D,, 800-16,000 Hz Median
(see Figure 4):
8.6 dB +4.8/-4.1 dB
Corno 222-222
Distortion, 0.1 Full Power Input
(see Figure 5),
Second Harmonic,
100 Hz:
8%
1,000 Hz:
<1%
10,000 Hz:
<1%
Third Harmonic,
100 Hz:
1.4%
1,000 Hz:
<1%
10,000 Hz:
<1%
Distortion, 0.01 Full Power Input
(see Figure 6),
Second Harmonic,
100 Hz:
7%
1,000 Hz:
<1%
10,000 Hz:
<1%
Third Harmonic,
100 Hz:
<1%
1,000 Hz:
<1%
10,000 Hz:
<1%
Transducer Complement,
High Frequency:
2.5-cm (1-in.) tweeter with 12.5-cm
(5-in.) Direktor™
Low Frequency:
16.5-cm (6.5-in.) woofer
Box Tuning Frequency:
60 Hz
5-60Д
Two-Way
Speaker System
e Two-way compact system
e Constant-directivity system
for uniform coverage
е 6.5-іпсһ woofer
е One-inch tweeter with
dispersion-controlling
Direktor™
е Automatically resetting
tweeter-protection circuit
Crossover Frequency:
2,500 Hz
Crossover Slope:
12 dB per octave
Impedance,
Nominal:
8 ohms
Minimum:
5 ohms
Input Connections:
1/4-inch phone jack with parallel 5-way
binding post
Materials,
Enclosure:
Black, vinyl-covered particle board
Baffle Board:
Injection-molded plastic
Grille:
Punched metal
Mounting:
EV S-60MB mounting bracket or
OmniMount® Series 75 mounting
hardware'
Dimensions,
Height:
35.0 cm (13.8 in.)
Width:
22.0 cm (8.7 in.)
Depth:
21.1 cm (8.4 in.)
Net Weight:
7.0 kg (15.4 Ib)
Shipping Weight:
9.5 kg (20.9 Ib)
DESCRIPTION
The Electro-Voice S-60A is a compact, two-
way, constant-directivity speaker system for
sound reinforcement and monitoring. Its small
1. OmniMount* is a registered trademark of OmniMount*
Systems, Inc.
