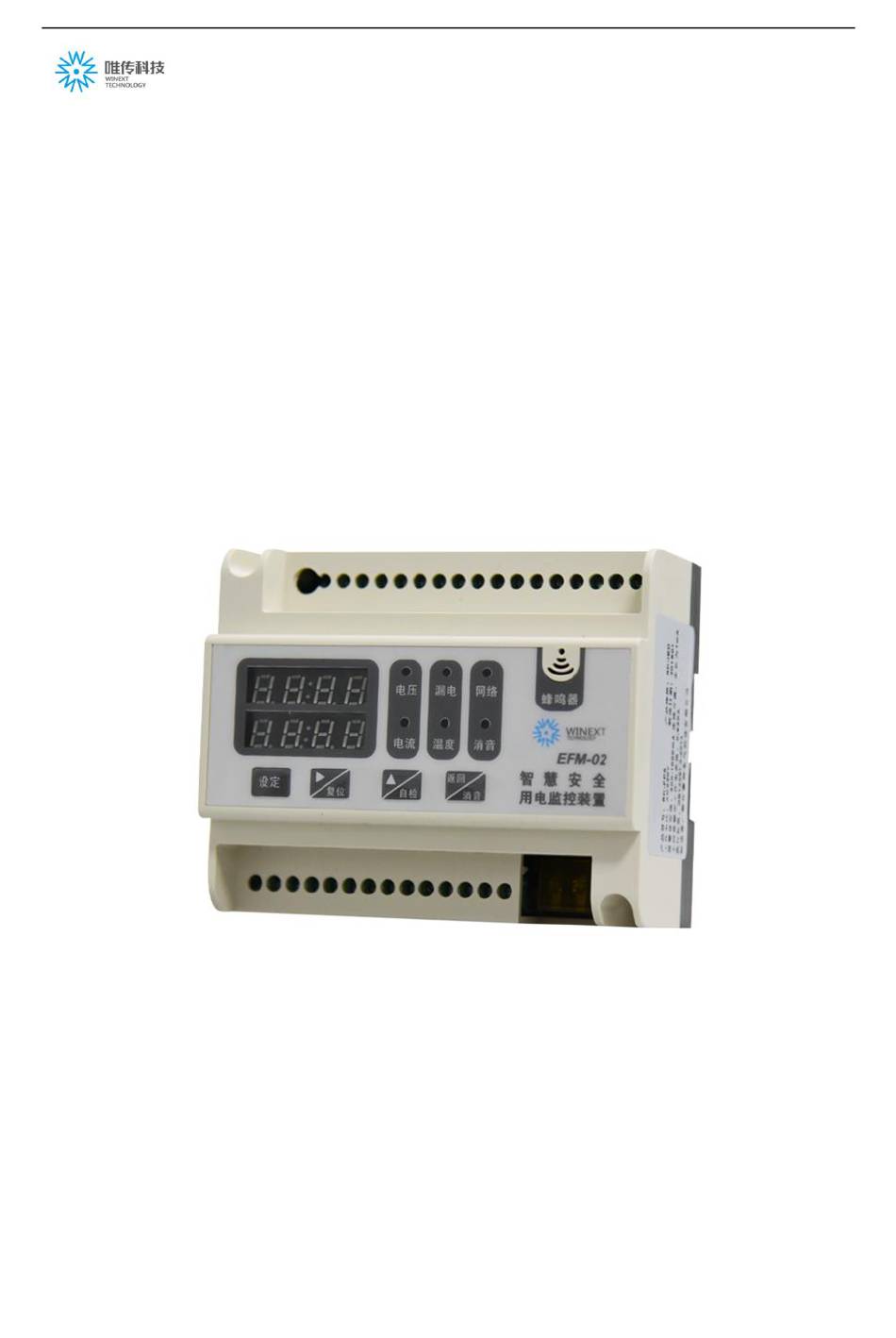

- Page 1 Winext Technology EFM-02 Smart Electricity Safety Monitor EFM-02 Smart Electricity Safety Monitor User Manual...
- Page 2 EFM-02 Smart Electricity Safety Monitor 1. Description The EFM-02 Smart Electricity Safety Monitor is an intelligent monitoring device based on LoRaWAN technology, specifically designed for remote surveillance of electrical circuits. Capable of real-time monitoring and recording of critical safety parameters of the electrical circuit, such as residual current, temperature, power,current intensity, and voltage, the device uploads this data to a cloud platform.
-
Page 3: Wiring Instruction
Effective communication range Rail Mounting or Panel Kit installation Installation -10°C~+55℃ Operating Temperature Standard GB 14287.2-2014 5.Wiring Instruction 5.1. Three-phase,three-wire voltage monitoring wiring Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916... - Page 4 Voltage alarm indicator (red); Current alarm indicator (red); Residual current alarm indicator (red); Temperature alarm indicator (red); Communication indicator (green); Silencing indicator (green). Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916...
- Page 5 Default: Off Monitoring Interface Description Three-phrase voltage display,Unit: V Three-phrase current display, Unit: A Residual current display, Unit: mA Four-Channel temperature display, Unit: ℃ Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916...
-
Page 6: Sensor Description
120-ohm matching resistor; Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916... -
Page 7: Installation Notes
A LoRa gateway can connect to more that 1000 monitoring device units,with a communication range that can reach over 500 meters. IoT Cloud Platform: Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916... -
Page 8: Data Reporting
Temperature4 ℃ Current A Current B Current C Voltage A Fixed-point decimal, one decimal place Voltage B Voltage C Trip Status 0=No trip，1=Trip Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916... - Page 9 Fixed at 0x02 0=Residual Current Alarm Alarm Type（1byte） 1=Temperature Alarm 2=Current Alarm 3=Voltage Alarm Alarm Channel Values:1～4 Alarm Value Values:0-6553.5 Alarm Threshold Values:0-65535 Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916...
- Page 10 This is a product manual as an installation, operation and use file. Specifications subject to change are without notice. For more information, please contact us. Winext Technology , Add: Room606,6th Floor, BuildingB#, Oufeiguang Headquarters R&D Center,Fenghuang Street, Guangming District, Shenzhen. Tel: 0755-23990916...
