Summary of Contents for Elan SENSE

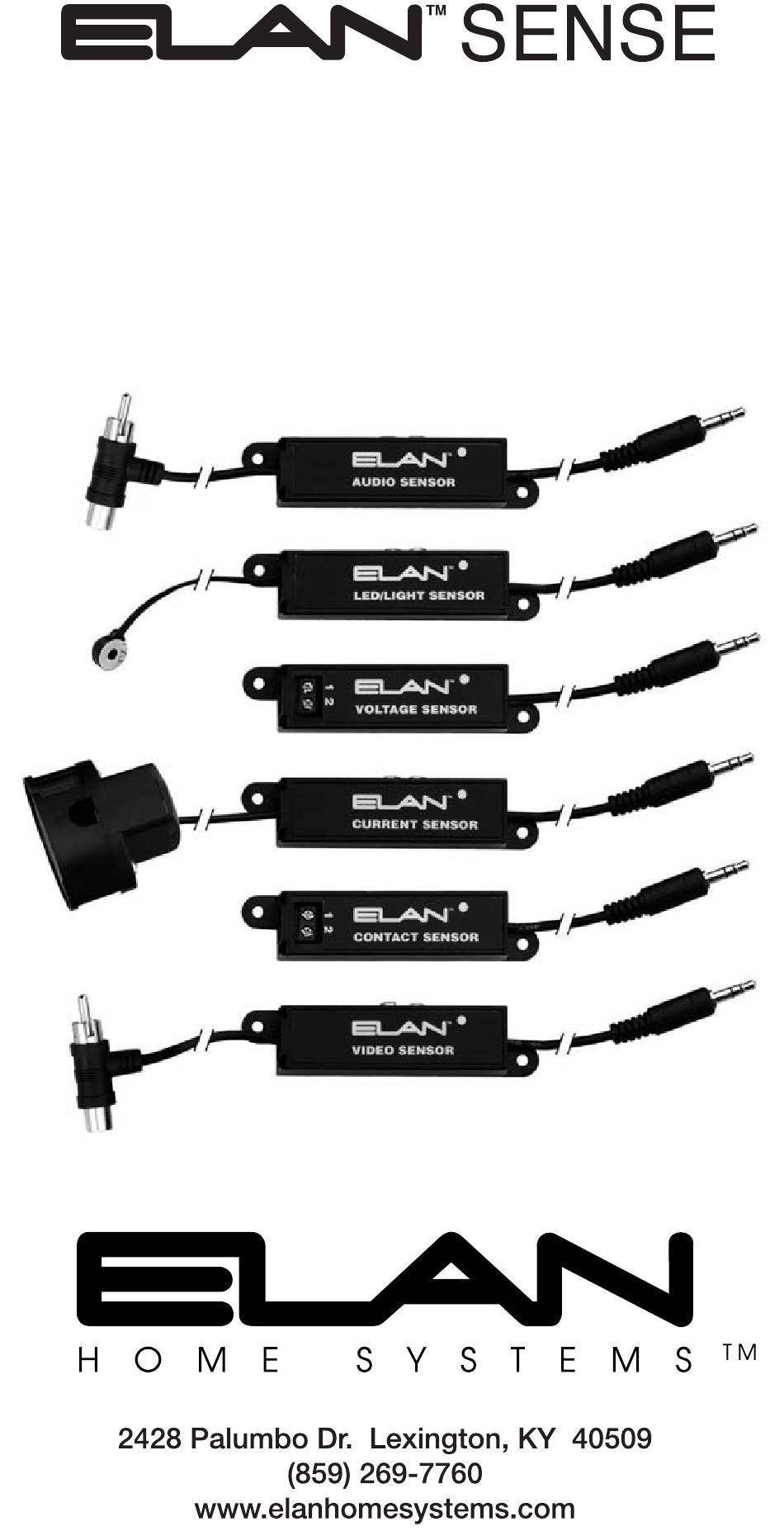

- Page 1 SENSORS Installation Manual...
-
Page 2: Specifications
ELAN in writing, ELAN shall repair or replace the items at the company’s option. This warranty shall not apply (a) to equipment not manufactured by ELAN, (b) to equipment which shall have been installed by other than an authorized ELAN installer, (c) to installed equipment which is not installed to ELAN’s specifi-... - Page 3 Audio Sensor (AUDSENSOR) The ELAN SENSE Audio Sensor is designed to reliably provide status ™ feedback in line-level audio sensing applications. This sensor is connected between a source’s line-level audio output and the input of an amplifier, receiver, or ELAN multi-zone controller. DO NOT USE IN SPEAKER-LEVEL APPLICATIONS such as amplifier outputs, volume controls, etc.!
- Page 4 This sensor has a barrier strip connector used for signal connections. The CTSENSOR will connect to leads coming from a dry-contact relay and going to a Sense Input of ELAN’s SR1, S6, S12, etc., as well as stand-alone applications.
- Page 5 LED/Light Sensor (LTSENSOR) The ELAN™SENSE LED/Light Sensor is designed to create a trigger when various types of light are present. The Light Sensor can detect daylight, room light, LEDs, various displays, etc. Red/Green color filters allow for specific ON/OFF status detection with bi-color Red/Green LEDs. Use the Red filter to detect Red LEDs.
- Page 6 Current/Magnetic Field Sensor (CRSENSOR) The ELAN SENSE Current/Magnetic Field Sensor is designed to reliably ™ detect AC current in power cords as well as AC magnetic fields generated by motors, transformers, TV’s, etc. The CRSENSOR comes with a unique and flexible clamping device that accomodates a wide variety of different sized AC power cords.
