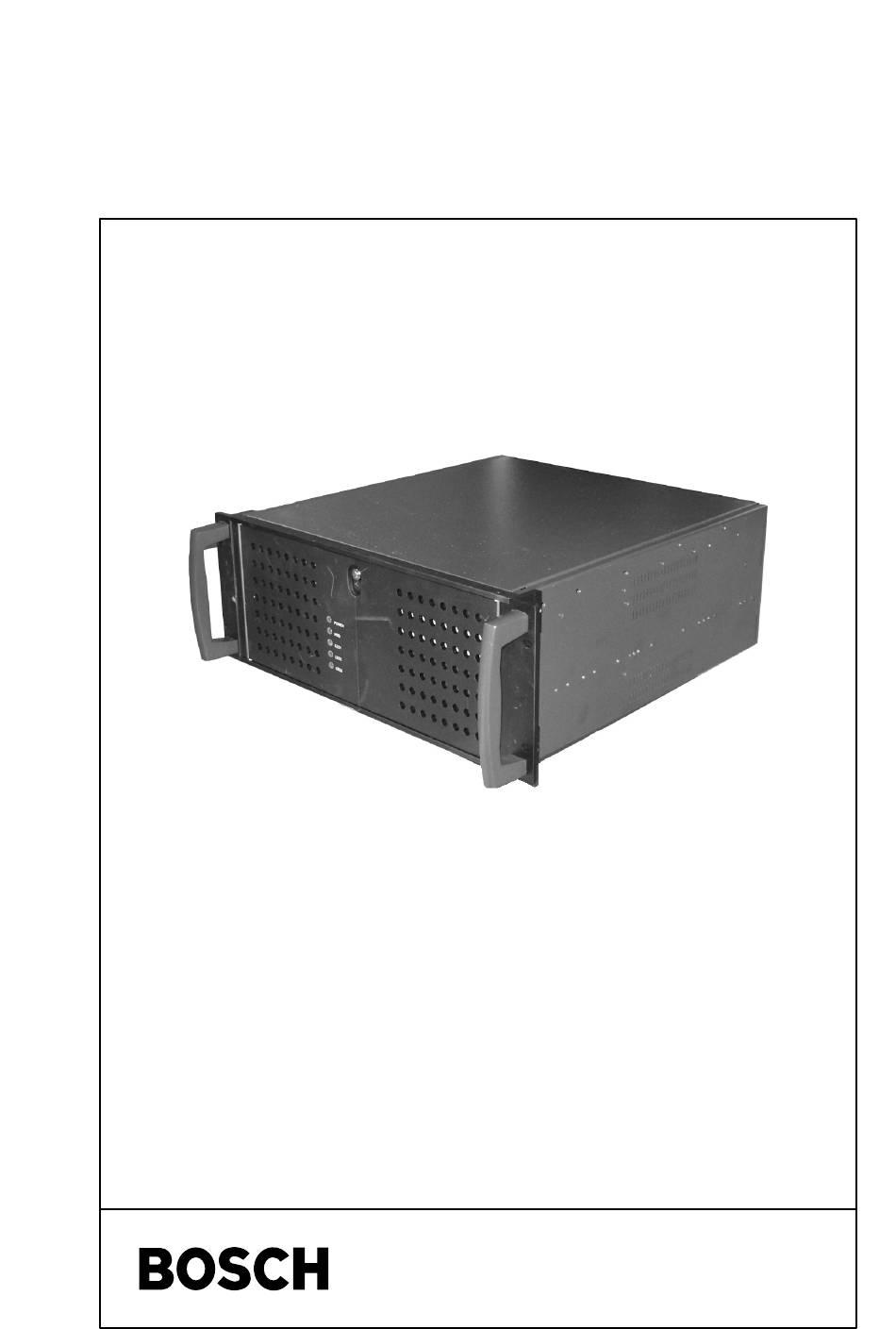

INSTALLATION MANUAL
DiBos
610–4.998.137.176
Version: A5
Date:
11–2004

Advertisement

loading
Need help?

Need help?

Do you have a question about the DiBos and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch DiBos

Summary of Contents for Bosch DiBos

  • Page 1 INSTALLATION MANUAL DiBos 610–4.998.137.176 Version: A5 Date: 11–2004...
  • Page 2 Installation Manual for DiBos Video System 610–4.998.137.176 – 2 – A5/11–2004...
  • Page 3 Installation Manual for DiBos Video System Safety instructions Important Safeguards 1. Read, Follow, and Retain Instructions – All safety and operating instructions should be read and followed before operating the unit. Retain instructions for future reference. 2. Heed Warnings – Adhere to all warnings on the unit and in the operating instructions.
  • Page 4 Installation Manual for DiBos Video System Safety instructions (continued) 12. Grounding or Polarization – This unit may be equipped with a polarized alternating current line plug (a plug with one blade wider than the other). This safety feature allows the plug to fit into the power outlet in only one way.
  • Page 5 Installation Manual for DiBos Video System Safety instructions (continued) For Indoor Product Water and Moisture – Do not use this unit near water – for example, in a wet basement, in an unprotected outdoor installation, or in any area classified as a wet location.
  • Page 6 Installation Manual for DiBos Video System Safety instructions (continued) Safety Precautions CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SER- VICE PERSONNEL.
  • Page 7 Installation Manual for DiBos Video System TABLE OF CONTENTS Section Page Introduction ..........
  • Page 8 Installation Manual for DiBos Video System Table of Contents (continued) Section Page XP Administration ......... .
  • Page 9 Mains with voltage spikes, voltage failure, and voltage drops: the use of an online UPS is recommended. For 1 DiBos, a UPS with at least 300 VA is required. If additional devices (e.g. monitors, subsystems) are also protected, the performance of the UPS must be increased accordingly.
  • Page 10 The following open ports are required: Port 80: only for Web servers Port 1147: only for network connection DiBos–DiBos Port 1148: only for network connection DiBos–DiBos and encrypted data transmission Note: always use the most current version of the firewall.
  • Page 11 Installation Manual for DiBos Video System Introduction (continued) Component Overview System board monitor Key pad Mouse 1 max. Security System (serial) 1 max. Interface processor ATM (serial) Serial interface (COM1) 4 max. Foyer card reader (serial) 1 max. Serial interface COM2...
  • Page 12 Installation Manual for DiBos Video System Introduction (continued) Laws/Norms/Guidelines Electromagnetic com- FCC Part 15, Class B patibility (EMC) EMC directive 89/336/EWG – Fault broadcast EN 61000–6–3 – Interference immunity DIN EN 50130–4 To fulfill DIN EN 50130–4, DiBos must be operated with a UPS.
  • Page 13 Installation Manual for DiBos Video System Computer Slots Installation of the internal hardware components of the computer may only be per- formed by the video system manufacturer. Any field configuration changes to the internal hardware will void the system warranty.
  • Page 14 Installation Manual for DiBos Video System Quick installation For information about the device connections, please see Chapter 2. Connect the mouse and keyboard (put ferrite on the cables). Plug the 26–pin D–sub plug of the grabber cable on the corresponding plug of the grabber card.
  • Page 15 Installation Manual for DiBos Video System Quick installation (continued) Logon as administrator Name Description Name Enter the name here. You have to logon in the video system with this name in the future to oper- ate the system. The user given here receives administrator rights, i.e.
  • Page 16 Installation Manual for DiBos Video System Quick installation (continued) Display of the existing hardware The existing video hardware is displayed in this dialog box. Name Description Grabber type: The built–in grabber type is displayed. Either MVTitan or MVSigma. Number of grabbers: The number of built–in grabbers is displayed.
  • Page 17 Installation Manual for DiBos Video System Quick installation (continued) Changing the camera name You can change the camera name in this dialog box. Name Description Click on the camera whose name you wish to change. The selection is displayed in color.
  • Page 18 Installation Manual for DiBos Video System Quick installation (continued) Select storage method You can determine the following for each camera in this dialog box: if a recording (storage of images) should take place and how many images per camera should be displayed.
  • Page 19 Installation Manual for DiBos Video System Quick installation (continued) Images per second Enter the number of images per second that are to be recorded in the Images per second box. Note: The system checks the plausibility of the config- ured recording rate here.
  • Page 20 Installation Manual for DiBos Video System Quick installation (continued) Select the drive for storage and finish Basic Configuration. In this dialog box, select the drive for storage of the image data. Name Description The List field contains all hard drives and network drives known to the system at the start of Basic Con- figuration.
  • Page 21 Installation Manual for DiBos Video System Quick installation (continued) Note: When finishing Basic Configuration, the system proceeds according to the fol- lowing convention: A ring archive is created for each camera (this can be overwritten). The size of the archives is generated according to the formula “avail- able disk space: total number of cameras”.
  • Page 22 Installation Manual for DiBos Video System Connections This section describes the following connections/installation: Grabber card MVTitan/MVSigma Ethernet/token ring ISDN controller Interface expansion card VSCom 200 H SCSI controller Monitor, keyboard, mouse External hard disks B&W, CCVS and Y/C cameras V–DOG and tamper contact...
  • Page 23 Installation Manual for DiBos Video System Connections (continued) Grabber Card MVTitan (max. 2) May only be executed by authorized trained personnel! Connector J9 Grabberkarte MVTitan Connector J11 Pin Assignment connector J9/J11 Connector J11 Connector J9 J11/J9 Assignment Setting Assignment Setting...
  • Page 24 Installation Manual for DiBos Video System Connections (continued) Relay output Video input termination J1 to J8 S1, S2 Position 1 –2 Relay contact Input not N/O contact terminated Position 2 –3 Relay contact Terminated with N/C contact 75 Ohm (deliv- ery state) Position 4 –5...
  • Page 25 Installation Manual for DiBos Video System Connections (continued) Grabber Card MVSigma May only be executed by authorized trained personnel! MVSigma grabber card Pin assignment Video input termination 26–pin connector S1–1, S1–2, S1–3, S1–4 Assignment Color +12 V DC – Input not...
  • Page 26 Installation Manual for DiBos Video System Connections (continued) Connection to a Token Ring or Ethernet Network May only be executed by authorized trained personnel! In addition to the Ethernet connection on–board, there is an optional to- ken ring card available.
  • Page 27 Installation Manual for DiBos Video System Connections (continued) Integration into a customer network with static assignment of IP ad- dresses (for Ethernet and token ring) Ask the system administrator for the IP and subnet address and proceed as follows: Log on as the Administrator.
  • Page 28 Installation Manual for DiBos Video System Connections (continued) Connecting the ISDN Controller May only be executed by authorized trained personnel! The ISDN connection is established via a supplied adapter cable (with Western connector) to the S interface of the computer.
  • Page 29 Installation Manual for DiBos Video System Connections (continued) Connecting the VSCom 200 H (Interface Expansion) May only be executed by authorized trained personnel! Note: only use the VSCom 200 H PCI card. The interface expansion card is retrofitted as follows.
  • Page 30 Installation Manual for DiBos Video System Connections (continued) Connecting the Cameras Note that one input is needed per B&W and CCVS camera and two inputs per Y/C camera. 26–pin connector 26–pin connector video system video system plug plug MVTitan MVSigma...
  • Page 31 Installation Manual for DiBos Video System Connections (continued) Connecting the V–DOG and Tamper Contact May only be executed by authorized trained personnel! The module is used to monitor the tamper contact and power supply of the power unit. For signaling, a sounder can be connected.
  • Page 32 Installation Manual for DiBos Video System Connections (continued) Connecting the Software Dongle and the Printer The programs are protected against unauthorized use by a dongle. The system cannot be operated without this dongle. The dongle must be con- nected to the PRN interface (LPT1) on the system board and remains there throughout operation.
  • Page 33 Installation Manual for DiBos Video System Connections (continued) 4.11 Connecting the ATM via the Interface Processor (Serial) A maximum of 4 automatic teller machines or three automatic teller ma- chines and 1 access control system can be connected to the video sys- tem via an interface processor.
  • Page 34 Installation Manual for DiBos Video System Connections (continued) Method 2: Problem: The automatic teller machines (ATMs) are located further away from the video system. The distance between the video system and interface processor and be- tween the interface processor and an ATM cannot be less than 15 m.
  • Page 35 Installation Manual for DiBos Video System Connections (continued) Method 3: Problem: The automatic teller machines (ATMs) are located further away from the video system. The distance between the video system and interface processor and be- tween the interface processor and an ATM cannot be less than 15 m.
  • Page 36 Installation Manual for DiBos Video System Connections (continued) 4.12 Connecting the Barcode Reader 4.12.1 Barcode Reader V3300–N Only the barcode readers listed below should be used. With other types of barcode readers, you must check whether their protocol matches that of the video system.
  • Page 37 Installation Manual for DiBos Video System Connections (continued) Selecting communication protocol Use the default protocol. → see ”Communications Protocol” Section Hide own device address The device address must not be transmitted because it is not evaluated in the video system and unnecessarily reduces the available memory capacity for the barcode reader data to be saved in live image.
  • Page 38 Installation Manual for DiBos Video System Connections (continued) 4.13 Connecting Foyer Card Reader MINITER RS 485 The foyer card reader MINITER RS 485 is connected via a serial inter- face. A maximum of four foyer card readers can be connected in series.
  • Page 39 Installation Manual for DiBos Video System Connections (continued) Programming the foyer card reader MINITER RS 485 Programming is carried out using MINITER RS 485 software. This can be installed on a service laptop or on a video system. Proceed as follows: Start the programming software and select RS 485 operation.
  • Page 40 Installation Manual for DiBos Video System Connections (continued) Set different authorization for credit cards (track 2) and EC cards (track 3), so that access can be gained to the foyer card reader if the connection between the video system and the Miniter is interrupted (see operating instructions for Miniter RS 485).
  • Page 41 Installation Manual for DiBos Video System Connections (continued) 4.14 Connecting Radio Clock DCF 77 May only be executed by authorized trained personnel! The connection must be made to a serial interface. Note: Only the radio clock NeoClock DCF 77 should be used.
  • Page 42 Installation Manual for DiBos Video System Connections (continued) 10. Make the following settings in the configuration menu: Language: ”German” Port: ”COM x” (interface in use) Synchronization: ”Automatic”. Time lag: Select ”0” (hours) and ”Daylight saving time” License: Enter serial number and activation code (Please note these entries are case sensitive) Click ”Save”.
  • Page 43 Installation Manual for DiBos Video System Connections (continued) 4.15 Web Connection for Access Via Browser May only be executed by authorized trained personnel! The master disk contains the preinstalled Web application for accessing the image archive via the browser. The Web application needs port 80 and is activated by default.
  • Page 44 Installation Manual for DiBos Video System Connections (continued) 4.16 Connecting a Modem May only be executed by authorized trained personnel! You must have administrator rights to carry out the following steps: 4.16.1 Selecting and Installing the Modem Notes for selecting the modem: Internal PCI modems, serially–connected modems, and modems...
  • Page 45 On the ”User Permissions” wizard page, click the ”Add” button and enter the following on the ”New User” dialog box: User name: ‘RasUser8B19’ Full name: leave empty Password: Enter password (can be changed later via the DiBos interface) Confirm password: Enter the password again Confirm with ”OK”.
  • Page 46 LTC 8x00 AutoDome BiPhase Console COM x Port Allegiant Console cable LTC8506/00 Hinweis: Valid CCL commands can be configured in the DiBos. Then you can send these pre–configured commands manually to the Allegiant ma- trix 610–4.998.137.176 – 46 – A5/11–2004...
  • Page 47 SAE RS 232/BiPhase converter BiPhase LTC matrix Note: Additionally a code merger LTC 8569 or LTC 8570 is needed, if a PTZ shall be controlled from the video system and a Bosch LTC ma- trix. 610–4.998.137.176 – 47 – A5/11–2004...
  • Page 48 Installation Manual for DiBos Video System Connections (continued) 4.18 Connecting a Security System 4.18.1 General remarks The video system is connected to a SecSys via an RS 232 interface at COM x, e. g. by connecting an interface converter OVS in between.
  • Page 49 Installation Manual for DiBos Video System Connections (continued) Jumper assignment for interface converter OVS Attention: Remove the OVS network plug before opening the device ! – For power supply of 12 V/24 V Connection 12 V/24 V For a power supply of 230 V OPTO V.24...
  • Page 50 Installation Manual for DiBos Video System Connections (continued) 4.18.2 Connecting to NZ 500 (20 mA) video system NZ 500 SU 500 Range max. 1000 m SDI+ SDI– COM x SDO+ SDO– OPTO Only connect shield to NZ 500. SU 500: Installation cable J–Y (St) Y 2x2x0,6...
  • Page 51 Installation Manual for DiBos Video System Connections (continued) 4.18.4 Connecting to AZ 1010/NZ 1008 V.24 Connection to AZ 1010/NZ 1008 video system AZ 1010/NZ 1008 COM x max. 25 m Connection to the AZ 1010/NZ 1008 must be programmed at the center...
  • Page 52 Installation Manual for DiBos Video System Connections (continued) 4.18.5 Connecting to NZ 1012 V.24 connection to NZ 1012 video system NZ 1012 Software versions: 18508.0 A8.1 18508.1 A8.1 COM x max. 25 m Dip–Fix switches (S) and jumpers (V) on SSM...
  • Page 53 Installation Manual for DiBos Video System Connections (continued) 4.18.6 Connecting to BZ 1012 (20 mA) video system BZ 1012 +24V Range max. 1000 m SDI– SDI+ COM x SDO+ SDO– OPTO Insert SSM jumpers at ”20 mA”. 610–4.998.137.176 – 53 –...
  • Page 54 Installation Manual for DiBos Video System Connections (continued) 4.18.7 Connecting to NZ 1060 V.24 connection to NZ 1060 video system NZ 1060 Software versions: 18033.0 A6.2 18033.2 A6.2 COM x 18033.3 A6.2 max. 25 m Note: It is preferable to use interfaces 6 through 9, but connection to interfaces 2 through 5 is also possible depending on the project.
  • Page 55 Installation Manual for DiBos Video System Connections (continued) 4.18.8 Connecting to BZ 1060 (20 mA) video system BZ 1060 +24V Range max. 1000 m SDI– SDI+ COM x SDO+ SDO– OPTO It is preferable to use interfaces 6 through 9, but connection to interfaces 2 through 5 is also possible depending on the project.
  • Page 56 Installation Manual for DiBos Video System Connections (continued) 4.18.9 Connecting to UEZ 1000 (20 mA) video system UEZ 1000 Range max. 1000 m SDI+ SDI– COM x SDO+ SDO– OPTO Only connect shield to UEZ 1000. Installation cable J–Y (St) Y 2x2x0,6 4.18.10...
  • Page 57 Installation Manual for DiBos Video System Connections (continued) 4.18.11 Connecting to UGM 2020 20 mA connection to UGM 2020 or TESP (by telephony) video system UGM 2020 TESP EPC/EPC2 from EAPS–4 Software versions: DLA0 SGKUGM EAPS–5 DLB0 COM x DLA1...
  • Page 58 3. Connection of D9133 to DiBos is accomplished using a null modem cable ”DB9F” (not included). Additional programming is required in the DiBos to use the alarm panel for job activation. Refer to the installation instructions for DiBos, under the Section for Configuration of Security System in- puts.
  • Page 59 In Windowsr XP click the ”Start → Log Off” menu. The Windows log- off dialog will appear. The system will log on automatically as DiBos user. dibosDe for the German version of the operating system dibosEn for the English version of the operating system...
  • Page 60 Installation Manual for DiBos Video System Configuration If you are starting the video system for the first time, a dialog box appears with the following configuration possibility: Basic configuration with the wizard The basic configuration is intended for inexperienced users. With the help of a setup assistant, you will create a basic configuration of the system with a few clicks of the mouse.
  • Page 61 Installation Manual for DiBos Video System Configuration (continued) Standard configuration (expert configuration) 6.2.1 Configuration Drives (Database/drives menu) This dialog box shows you an overview of the hard drives and network drives available. Name Description The list box contains all hard drives and network drives that are known to the system at the start of configuration.
  • Page 62 Installation Manual for DiBos Video System Configuration (continued) Note: Several drives can be made available for archives. In this case, the archive images are evenly distributed amongst the acti- vated drives. Note: The external SCSI drives must be activated before starting up the PC.
  • Page 63 Installation Manual for DiBos Video System Configuration (continued) 6.2.2 Configuration Archives (Database/archives menu) The archives presented in the overview box are located on the activated drives. The archives partition the drives into individual areas so that the saved images can be found more quickly during image searches. Images and search results are stored in the archives.
  • Page 64 Installation Manual for DiBos Video System Configuration (continued) Type Select an archive type. For most applications, it is advisable to set up a separate archive for each camera. This enables a fast search in the image archive later. Ring archive Ring archive: The images are saved one after the other.
  • Page 65 Installation Manual for DiBos Video System Configuration (continued) Used The available memory is indicated. If the total of all configured archives exceeds 90% of the entire avail- able memory, a message appears. A reserve of at least 10% must be remain.
  • Page 66 Grabber. Video signal PAL or NTSC IP cameras * A maximum of 16 network cameras can be con- nected. * See section 6.2.15 for additional information. Contact Bosch Security for an IP camera compatibility list. 610–4.998.137.176 – 66 – A5/11–2004...
  • Page 67 Installation Manual for DiBos Video System Configuration (continued) ISDN* When connecting to other systems of this type via ISDN Network When connecting to other systems of this type via a network Modem* For modem connections A RAS capable modem must be connected and RAS service must be installed.
  • Page 68 Installation Manual for DiBos Video System Configuration (continued) 6.2.4 Configuration of automatic teller machine (option) (Hardware/automatic teller machine menu) A maximum of 4 automatic teller machines each with 2 alarm inputs can be con- nected (must be activated under Hardware/Connections). These inputs, which have to be supported by the video system, must be configured as detectors.
  • Page 69 Installation Manual for DiBos Video System Configuration (continued) 6.2.5 Configuration of the foyer card reader inputs (option) (Hardware/foyer card reader/inputs menu) A maximum of 4 foyer card readers can be connected, with each foyer card reader supporting one alarm input (must be activated under Hardware/Connections).
  • Page 70 Installation Manual for DiBos Video System Configuration (continued) Foyer card reader time Activate Foyer card reader time controlled and controlled implement the following settings. Default setting Click on the arrow pointing downwards in the De- fault setting list box and select the default set- ting the foyer card reader should have.
  • Page 71 Installation Manual for DiBos Video System Configuration (continued) 6.2.6 Configuration of the foyer–card reader lockouts (option) (Hardware/foyer card reader/lockouts menu) In this dialog box it is possible to lockout certain bank routing codes, i.e. EC cards that correspond to the locked out entries have no access authorization.
  • Page 72 Installation Manual for DiBos Video System Configuration (continued) Deleting lockouts Name Description Locked bank reference Select the lockout you wish to delete from the list numbers box. Delete Click on Delete. The lockout is deleted. Accept Click on Accept. If you have made incorrect in- puts, click on Reject and start over.
  • Page 73 Installation Manual for DiBos Video System Configuration (continued) 6.2.7 Configuration of barcode reader (option) (Hardware/barcode reader menu) You can connect a barcode reader (must be activated under Hardware/Con- nections). The barcode reader supports the output of a scanner. This input, which is supported by the video system, needs to be configured as a detector.
  • Page 74 Configuration of security system inputs for Bosch D9000 Series (option) (Hardware/SecSys inputs menu) The serial connection of a Bosch D9000 Series SecSys allows for many Sec- Sys inputs to be assigned to each video system input. Note: Function must be activated under Hardware/Connections.
  • Page 75 Installation Manual for DiBos Video System Configuration (continued) “Assignment of ad- Select the SecSys addresses that you would like dresses” dialog box to assign to the input and click OK. The address is assigned to the input. The address is not assigned to the input.
  • Page 76 Installation Manual for DiBos Video System Configuration (continued) 6.2.9 Configuration of security system inputs for Bosch alarm systems – excluding D9000 Series (option) (Hardware/SecSys inputs menu) The serial connection of a SecSys allows up to 16 input types to be defined which, when they occur, trigger an alarm in the system.
  • Page 77 Installation Manual for DiBos Video System Configuration (continued) Line status Click on Assign, in the Line status column if you would like to change or view the standard assign- ment of the line status (only for LSN security sys- tems).
  • Page 78 Installation Manual for DiBos Video System Configuration (continued) 6.2.10 Configuration of alarm simulation (Hardware/alarm simulation menu) The video system supports 4 alarm inputs, which can be simulated for triggering test alarms. Note: Function must be activated under Hardware/Connections. Name Description Input Click on the corresponding input.
  • Page 79 Installation Manual for DiBos Video System Configuration (continued) 6.2.11 Configuration of virtual detectors (Hardware/virtual detector menu) The virtual detectors offer the same functionalities as the other detectors in the system. They provide inputs that can be used to carry out jobs in the video sys- tem.
  • Page 80 Installation Manual for DiBos Video System Configuration (continued) Note: External software can communicate with the virtual detectors via a COM interface (COM stands for Component Object Model). For a simple connection, please see a type library (VirtualInputs.tlb) in the installation directory of the video system.
  • Page 81 Installation Manual for DiBos Video System Configuration (continued) 6.2.12 Configuration of detector inputs (Hardware/Frame grabber/Detector menu With this dialog box you can activate and deactivate the contact inputs of the grabber card and select the stable state. A maximum of 8 or 16 contact inputs can be connected to each MVTitan grabber card and a maximum of 5 contact inputs can be connected to each MVSigma grabber card.
  • Page 82 Installation Manual for DiBos Video System Configuration (continued) Open contact Determine whether the alarm input should be an open or closed contact. The input is an open contact. The input is a closed contact. Accept Click on Accept. If you have made incorrect inputs, click on Reject and start over.
  • Page 83 Installation Manual for DiBos Video System Configuration (continued) 6.2.13 Configuration of cameras (Hardware/Frame grabber/camera menu) With this dialog box you can select which camera you would like to activate and which camera type it should be. A maximum of 8 or 16 cameras can be connected to each MVTitan grabber card and a maximum of 4 cameras can be connected to each MVSigma grabber card.
  • Page 84 Installation Manual for DiBos Video System Configuration (continued) Setup These settings can be set individually for each camera. They will remain saved until a change is carried out. Click on Setup to do the following: – change the image settings such as brightness, contrast, color and compression for all camera types;...
  • Page 85 Installation Manual for DiBos Video System Configuration (continued) Image settings for all camera types Implement the setting for each camera as required. Name Description Image settings Click on Image settings. Image properties Set the brightness, contrast and color. You can view the result of the setting in the camera image next to it.
  • Page 86 Installation Manual for DiBos Video System Configuration (continued) Set the monitoring area for the sensor camera (movement detection) Implement the setting for each camera as required. Name Description Motion detection Click on Motion detection. The entire image content within the blue area is sensitive at first;...
  • Page 87 Installation Manual for DiBos Video System Configuration (continued) Sensitivity Change the sensitivity if the results of the movement detection are not satisfactory. high The sensitivity is higher; i.e. smaller texture changes (outlines, brightness, movement) are necessary to trigger an alarm.
  • Page 88 Installation Manual for DiBos Video System Configuration (continued) Set dome cameras Implement the setting for each camera as required. Name Description Dome settings Click on the Dome settings tab. Creating interface settings Interface The settings for the interfaces have to be carried out first.
  • Page 89 Installation Manual for DiBos Video System Configuration (continued) Saving camera positions You can set the positions of dome cameras to which you can automatically swivel time and time again. Users can quickly select these positions in the live image, provided they are authorized to do this.
  • Page 90 Installation Manual for DiBos Video System Configuration (continued) Entering control commands via the command line Here using the command line you can specify different settings for dome cameras or matrixes that you can call up automatically again and again. For more information about which commands are possible, see the operating instructions for the camera or matrix in question.
  • Page 91 Installation Manual for DiBos Video System Configuration (continued) 6.2.14 Configuring relays (Hardware/Frame grabber/Relays menu) A maximum of 4 or 8 relay outputs can be connected to each MVTitan grabber card. With the MVSigma grabber card, no relays can be connected. A maximum of 2 MVTitan can be installed.
  • Page 92 Installation Manual for DiBos Video System Configuration (continued) 6.2.15 Configuring IP cameras (Hardware/IP cameras menu) A maximum of 16 IP cameras (network cameras) can be connected. The IP cameras can also be connected to the available cameras through Frame grabber.
  • Page 93 Installation Manual for DiBos Video System Configuration (continued) Setup Click on Setup and implement the settings for each camera. Enter the following – Address (URL) of the camera under which JPEG images can be called up. Note: If you click on Display , you can check to see whether the URL entered is correct.
  • Page 94 Installation Manual for DiBos Video System Configuration (continued) 6.2.16 Configuring time periods (Time periods menu) To ensure that jobs are activated at specific times, you can define different times for specific events, such as triggering a save job at certain times.
  • Page 95 Installation Manual for DiBos Video System Configuration (continued) Time interval The times (from ... to) for the selected weekdays, holidays and special dates can be entered here. A new time can be entered. Edit An existing time can be changed.
  • Page 96 Installation Manual for DiBos Video System Configuration (continued) 6.2.17 Configuration of the ISDN connections (option) (Connections/ISDN menu) In this menu, define your own user station (local computer) and the remote stations so that you are able to establish a connection to a remote station when continuing the configuration process and/or to allow a connection to your own user station.
  • Page 97 Installation Manual for DiBos Video System Configuration (continued) Incoming calls Activate the corresponding option .. only accept if in list –if the system should check whether the calls are of remote stations coming from a configured remote station. The connection is only made if they match.
  • Page 98 Installation Manual for DiBos Video System Configuration (continued) 6.2.18 Configuring network connections (Connections/network menu) In this dialog box you can determine the video systems to which—via the network—a two–way connection should be connected. Note: Function must be activated under Hardware/Connections.
  • Page 99 Installation Manual for DiBos Video System Configuration (continued) Incoming calls Activate the corresponding option .. only accept if in list – if the system should check whether the calls are of remote stations coming from a configured remote station. The connection is only made if they match.
  • Page 100 Installation Manual for DiBos Video System Configuration (continued) 6.2.19 Configuring modem connections (Connections/modem menu) In this dialog box you can determine the video systems to which—via the modem—a two–way connection should be connected. In order to ensure that a configuration can be performed, an RAS–capable modem* must be connected and RAS service must be installed.
  • Page 101 Installation Manual for DiBos Video System Configuration (continued) Modem Select the connected modem in the Modem list box. Password Click Password in order to change the RAS password for incoming calls. Accept Click on Accept. If you have made incorrect inputs, click on Reject and start over.
  • Page 102 Installation Manual for DiBos Video System Configuration (continued) 6.2.20 Configuring storage job macros (Job macros/save menu) Job macros, e.g. saving images automatically (so–called storage job macros), define sequences (jobs) that should either run continuously or when an alarm is triggered. These jobs, which are only defined once, can then be used for variable alarm triggers and cameras.
  • Page 103 Installation Manual for DiBos Video System Configuration (continued) Total duration Activate the corresponding option As long as input – if recording (with possible pauses) should be status unchanged repeated as long as the input status of the alarm input exists. Recording does not end until the input status is changed.
  • Page 104 Installation Manual for DiBos Video System Configuration (continued) 6.2.21 Configuring alarm transmission job macro (Job macros/alarm transmission menu) Job macros define sequences (jobs) that should either run continuously or when an alarm is triggered. These jobs, which are only defined once, can then be used for variable alarm triggers and cameras.
  • Page 105 Installation Manual for DiBos Video System Configuration (continued) Configuring an alarm transmission job macro: Name Description Creates a new transmission job macro. Click on New and enter the name in the input box. Deletes an existing transmission job macro. Delete Select a transmission job macro in the list box and click on Delete.
  • Page 106 Installation Manual for DiBos Video System Configuration (continued) Authorization level Select the authorization level. This job macro will only be available to the user with the authorization level selected. Note: The name and connection password for the authorization level (from the User...
  • Page 107 Installation Manual for DiBos Video System Configuration (continued) 6.2.22 Configuring backup job macro (Job macros/backup menu) Job macros define sequences (jobs) that should either run continuously or when an alarm is triggered. These jobs, which are only defined once, can then be used for variable alarm triggers and cameras.
  • Page 108 Installation Manual for DiBos Video System Configuration (continued) Configuring a backup job macro: Name Description Creates a new backup job macro. Click on New and enter the name in the input box. Deletes an existing backup job macro. Delete Select a backup job macro in the list box and click on Delete.
  • Page 109 Installation Manual for DiBos Video System Configuration (continued) 6.2.23 Configuration of job activations (Job activations menu) Any number of system reactions for the alarm inputs can be specified in this menu. A job activation is absolutely necessary in order to ensure that camera images are saved.
  • Page 110 Installation Manual for DiBos Video System Configuration (continued) Trigger Select the triggering criteria that are to trigger the job activation. Alarm The job is activated as soon as the alarm input is triggered. Stby The job is activated as long as the input is in standby mode.
  • Page 111 Installation Manual for DiBos Video System Configuration (continued) Priority Determine the priority of the job. Priority 1 (high) to priority 5 (low). Note: A priority can only be specified in connection with a job macro. Accept Click on Accept. If you have made incorrect inputs, click on Reject and start over.
  • Page 112 Installation Manual for DiBos Video System Configuration (continued) 6.2.24 Configuration of authorization levels (User management/authorization levels menu) You can create different authorization groups in this menu if you have adminis- trator rights. These so–called authorization levels enable you to determine what the user is allowed to do in the system.
  • Page 113 Installation Manual for DiBos Video System Configuration (continued) Outp Dome Activate the check boxes of those elements (cameras, relays) that are to be available for the person with this authorization level. In the case of dome cameras, a 2nd column with a check box is also displayed.
  • Page 114 Installation Manual for DiBos Video System Configuration (continued) 6.2.25 Configuration of the users (User management/user menu) To protect access to system components and data, operating procedures can only be carried out by logged–on users. Each user is assigned an authorization level for the work he/she needs to carry out (also see configuration of authoriza- tion levels).
  • Page 115 Installation Manual for DiBos Video System Configuration (continued) Dual authorization Activate the function when the user is only allowed to login to the system together with another user. Accept Click on Accept. If you have made incorrect in- puts, click on Reject and start over.
  • Page 116 Installation Manual for DiBos Video System Configuration (continued) 6.2.26 Configuration of options (Settings/options menu) This dialog box enables you to implement optional settings for the live image, the image archive and for an automatic disconnection. Name Description Live image window and...
  • Page 117 Installation Manual for DiBos Video System Configuration (continued) 6.2.27 Configuration of security settings (Settings/security menu) You have the option of implementing security settings in this dialog box, e.g. browser access, or encoding for network connections. Name Description All authorization levels...
  • Page 118 Installation Manual for DiBos Video System Configuration (continued) Key management for This item is only to be carried out if you want to unique key use a unique key. – Generating a unique key: Click on New and enter a name for the encod- ing.
  • Page 119 Installation Manual for DiBos Video System Configuration (continued) 6.2.28 Configuration of audio signals (Settings/audio signals menu) In this dialog box, you can allocate different audio signals to incoming mes- sages from network / modem and ISDN connections. This gives you a differenti- ation option.
  • Page 120 Installation Manual for DiBos Video System Configuration (continued) Deleting an audio signal: Name Description Incoming connections Select the connection whose audio signal you wish to delete. Reference The wav file is displayed to you in the Reference text box located there.
  • Page 121 Installation Manual for DiBos Video System Configuration (continued) 6.2.29 Configuration of the dongle (Settings/dongle menu) In this dialog field, you can see the serial and job numbers, the approved sys- tem performance features and the approved status of the hardware dongle and the hardware dongle extension file.
  • Page 122 Installation Manual for DiBos Video System Configuration (continued) 6.2.30 Administration configuration (Administration menu) This dialog box contains the following options: Name Description Configuration data Save The configuration can be saved on the network drive or data medium. Note: For security reasons, the configuration should always be saved on an external data medium.
  • Page 123 Installation Manual for DiBos Video System Configuration (continued) Upload of the holiday You have the option here to adapt the holidays for program the time program according to specific countries. The adjustment must be made in theHolidays.xml file. Upload Click on Upload and answer the warning mes- sage with Yes if the current file is to be overwrit- ten or with Cancel if you want to change the file.
  • Page 124 Installation Manual for DiBos Video System Startup Proceed as follows to start up the computer: Connecting the System Components Activating External Hard Disks Switch on the PC Check ISDN connection Check network connection Check grabber driver Change computer name (if necessary)
  • Page 125 Double–click on the entry ” AVM ISDN –Controller Fritz Card PCI V2.0”. The status of the driver is displayed in the ”Device status” field. You can restart with ”Start → All Programs → DiBos”. 610–4.998.137.176 – 125 – A5/11–2004...
  • Page 126 Installation Manual for DiBos Video System Startup (continued) Checking the Optional Network Connection Networking details The following details are required from the network operator for starting up and checking the network: IP address Subnet mask (Gateway) Notes for checking the network Use the following test programs to start up and check the network: Select ”Start →...
  • Page 127 ”MVTitan” in the list. The display ”Device sta- tus: the device is operational” shows you that the grabber driver is started. You can restart via ”Start → All Programs → DiBos”. Changing the Computer Name Change the name of the local computer if necessary: Change from the video system level to the Administrator level (see Section 5.1).
  • Page 128 Installation Manual for DiBos Video System Startup (continued) Checking the Optional ATM Connection The data telegram between the video system and ATM can be checked using the ”Hyper Terminal” program in Windowsr XP. Start the program via the ”Start → All Programs → Accessories → Communications → Hyper Terminal”...
  • Page 129 Installation Manual for DiBos Video System Startup (continued) Checking the Optional Web Connection Check whether access can be obtained after activating the web applica- tion whether access can actually occur. Proceed as follows: Start the web browser (Internet Explorer 5.x and later or Netscape Navigator 7.x and later).
  • Page 130 Installation Manual for DiBos Video System Fault Indication/Correction This section contains notes on faults that may occur when first starting up or during operation. If you cannot determine the cause of the fault, please contact ”Product Service Video” of the video system manufacturer.
  • Page 131 Installation Manual for DiBos Video System Maintenance and Service Maintenance Tasks to be Carried Out Perform the following maintenance tasks: On the video system itself: – Check all cable connections are secure – Check the fan and clean it if necessary –...
  • Page 132 Installation Manual for DiBos Video System Maintenance and Service (continued) Attention: All work carried out on the system that can interfere with recording may only be carried out after consulting the customer. With regard to UVV–re- lated equipment (UVV = German for Accident Prevention Regulation for Banks), it is best to do such work outside of opening hours.
  • Page 133 Installation Manual for DiBos Video System Maintenance and Service (continued) Error Forwarding Three methods are pre–configured and provided as examples. The ”er- ror_forwarding.cmd” file contains calls for all methods. ”error_forwarding.cmd”: With ”net send”: rem Send messages to other computers on the network rem net_send.cmd %1 %2 ”COMPUTER NAME”...
  • Page 134 Testing Error Forwarding Configuration of error forwarding can be tested using the ”test_error_for- warding.cmd” file, without the video system generating a fault message. A fault with fault number 1 and fault text ”DiBos Fault Test” is generated. 610–4.998.137.176 – 134 –...
  • Page 135 Installation Manual for DiBos Video System Maintenance and Service (continued) Troubleshooting The following faults have to be rectified if necessary: Counter light If recordings show impairment due to counter light, either block out the light source, e.g. through curtains on windows or shades on lights, or change the location of the camera.
  • Page 136 Installation Manual for DiBos Video System Technical data Video System in 19” Housing Operating system Windowsr XP Hard disk 120 GB minimum 256 MB DDR Video AGP (on–board) Network Ethernet (on–board) Sound on–board Connections (on rear) see Section 2 Expansion slots...
  • Page 137 Installation Manual for DiBos Video System Technical Data (continued) Grabber card MVTitan max. 2x Video inputs Contact inputs 16 (either N/C contact or N/O contact) Relay outputs 8 (or 7x output and 1x fault indicator for 1st grabber card) Compression rate Can be set between 10 ...
  • Page 138 Installation Manual for DiBos Video System End user license agreement (EULA) You have acquired a device (DiBos) that includes software licensed by Bosch Secu- rity Systems from Microsoft Licensing Inc. or it’s affiliates (”MS”). Those installed software products of MS origin, as well as associated media, printed materials, and ”online”...
  • Page 139 Installation Manual for DiBos Video System End user license agreement (continued) Limitations on Reverse Engineering, Decompilation, and Disassembly. You may not reverse engineer, decompile, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation.
  • Page 140 Installation Manual for DiBos Video System Notes 610–4.998.137.176 – 140 – A5/11–2004...
  • Page 141 Installation Manual for DiBos Video System Notes 610–4.998.137.176 – 141 – A5/11–2004...
  • Page 142 Eindhoven Tel: 800–326–3270 The Netherlands Fax: 1–717–735–6560 Tel: 31 40 278 1222 Fax: 31 40 278 6668 Bosch Security Systems Pte Ltd 38C, Jalan Pemimpin Singapore 577180 Republic of Singapore Tel: 65 (6) 319 3486 Fax: 65 (6) 319 3499 610–4.998.137.176...
