Summary of Contents for evian EvianC80-Wifi

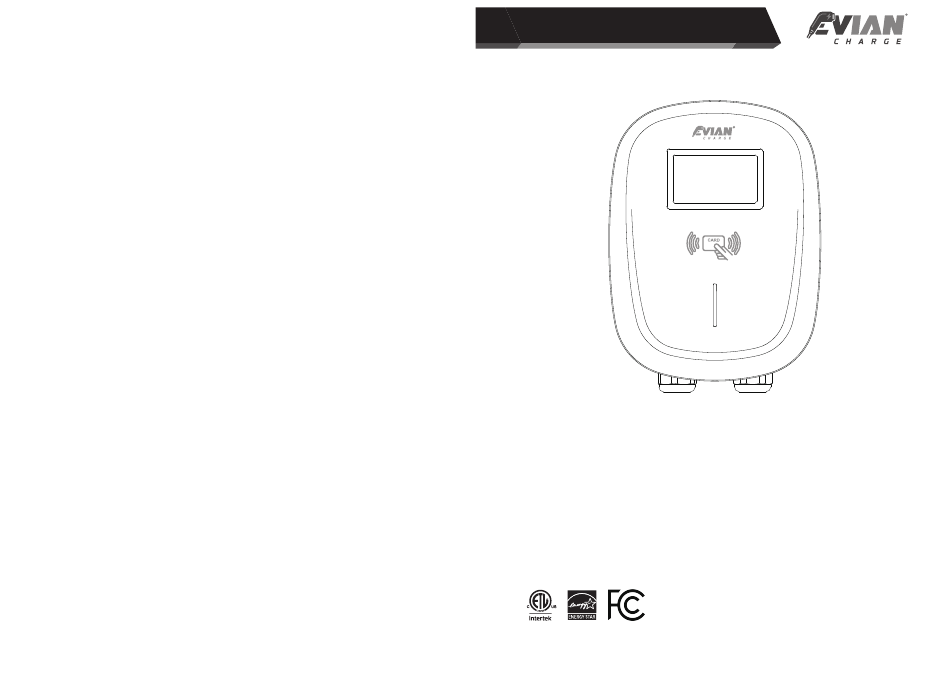

- Page 1 EV Charger INSTALLATION AND USAGE GUIDE...
-
Page 2: Table Of Contents
This product must be connected to a grounded, metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on 7.Description of the Display..................17 the product. 8.EV Charger LED Lights................18-19 Models： EvianC80-Wifi 9.Troubleshooting Tips...................20 EvianC80-4G EvianC48-Wifi 10.FCC.....................20 EvianC48-4G... -
Page 3: Safety Information
Safety Information Moving and Storage Instructions IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS Improper moving or storage of the EV Charger may result in damage to the product that could result in a risk of fire or electric shock during subsequent use. Handle charger and packaging with care and avoid dropping it. -
Page 4: Check Box Contents
Specifications Check Box Contents Your new EV Charger contains the following items. If any of these items are › Safety Rated: 80A Max missing or if you believe they’ve been damaged, call support immediately. Electrical › Single phase input: nominal voltage 208-240 VAC ~60 Hz Characteristics ›... -
Page 5: Tools Needed
Step 1: Tools Needed How is the EV Charger Powered Here are the tools you will need to install the EV Charger. Hardwired Installation See Step 8-1 EV Charger can supply a maximum charging current and corresponding selection of air switches. Please refer to the table below. -
Page 6: Step 2: Find A Place For The Ev Charger
Step 2: Step 3: Mark the Mounting Find a Place for the EV Charger Bracket Location On the plasterboard / drywall where the charger will This device shall be mounted at a sufficient height from grade such that the height of the be installed, use a bubble level to draw a horizontal storage means for the coupling device is located between 24"(600 mm) and 48"(1.2 m) from... -
Page 7: Step 5: Install The Gun Cradle Beside The Charger
Step 7-1: Step 5: Install the Gun Cradle Beside Hardwired Instructions for Electricians the Charger Use a bubble level to draw a horizontal line at least 12"away from the mounting bracket at the height you'd like the cradle beside your EV A licensed electrician or other qualified professional Charger. - Page 8 Step 7-3: Step 7-5: Hardwired Instructions for Electricians Hardwired Instructions for Electricians Using 1-1/4" conduit and proper fittings for the connections, use copper conductor only, 105 Unscrew the screws for terminals L1, L2, ℃,6 AWG for setting 32A/40A/48A/80A rating from both phases of the breaker along with a and GND, to remove the NEMA cable wires.
-
Page 9: Step 8:Complete Setup
Step 7-6: Step 8: Complete Setup Hardwired Instructions for Electricians Your EV Charger is now ready to charge your vehicle. Factory setting: Base on the maximum EV charger capacity that the car system Gently reattach the cable to the cover and will accept. -
Page 10: Description Of The Display
EV Charger LED Lights Description of the Display Power Boot Screen Charger does not have power -The screen display interface when Flowing Blue Charger has power thecharger is powered on. Charge Idle Mode Flowing Green Charging Mode Solid Green Pre-Charge Mode Charging Screen Wi-Fi -Real-time charging status;... -
Page 11: Troubleshooting Tips
Troubleshooting Tips EV Charger LED Lights My vehicle is not responding or charging. Fault Ensure that the latch on the EV charging cable handle is locked into place. If the handle is not latched securely, the vehicle will not charge. If the latch is pressed down during charging, Red light always on Reset switch failure. -
Page 12: Maintenance And Repair
Maintenance and Repair Service Address: 2750 Garfield Ave. Commerce CA 90040 susceptible d’en compromettre le fonctionnement. Contact Number: (424) 244- 3724 CAUTION: Changes or modifications not expressly approved by the party responsible for www.EVianCharge.com compliance could void the user's authority to operate the equipment. Always ensure that after charging, the charging cable is wrapped around the Wall Connector.
