QUALIFICATIONS:
• UL 555 & CAN/ULC-S112 CLASSIFIED FIRE DAMPER
1 1/2 hr. Label (File #'s R9492 & R19569).
• Meets NFPA 90A, BOCA, SBCCI, UBC, IBC, NBC (Canada)
and associated local building code requirements.
• California State Fire Marshal Listing No. 03225-0935:101.
• City of New York. MEA# 366-03-M.
The 1200 Series Dampers are ideal for applications where building codes
require a fire damper for the protection of ductwork penetrations in walls or
floors that have a fire resistance rating of up to 2 hours.
The 1200 Series is classified for use only in static "fans off" systems where
the HVAC system is automatically shut down in the event of a fire alarm.
The 1200 Series has been especially designed and tested to provide
premium performance. Airfoil blade design and elimination of blade sills,
top and bottom, provide a low pressure drop design.
The 1200 Series features the industry proven over-center knee-lock
design with high torque spring/fusible link closure.
Unique, inter-locking double skin blade design provides flame and smoke
seal under fire conditions.
The 1200 is supplied as standard with an internal locking quadrant which
holds the damper in the fully open position, but may also be used for
system balancing if required.
STANDARD SPECIFICATION:
Frame:
5" x 7/8" x 16 ga. (127 x 22 x 1.6) galvanized steel hat
channel.
Blades:
14 ga. (2.0) equivalent galvanized steel formed airfoil on
5 1/2" (140) centers. Opposed action.
Linkage:
Concealed in frame. 12 ga. (2.7) plated steel.
Bearings:
1/ 2" (13) dia. self-lubricating oilite bronze.
Axles:
1/ 2" (13) dia. plated steel double bolted to blades.
Jackshaft:
1/2" (13) dia. cadmium plated steel.
Internal locking quadrant is factory installed.
Fusible Link:
165°F (74°C) standard. 212°F (100°C) available.
Minimum Size: Vertical or Horizontal mount: 8" x 8" (203 x 203).
Maximum Size: Single Section
Vertical mount:
Horizontal mount: 32" x 48" (813 x 1219).
Multiple Section Assembly
Vertical or Horizontal mount: 144" x 96" (3658 x 2438).
Dampers with duct heights less than 8" require a Type 'B' sleeve
enclosure (Model 1202). Units less than 8" (203) in width only, or in both
width and height, require a Type 'C' enclosure (Model 1203).
BASE MODEL SELECTION:
1200 Less sleeve
1201 Standard factory sleeve 16" long x 20 ga. (406 x 1.0).
1201 Non-standard sleeve. Specify _______ length _____ ga.
Available up to 36" (914) dependent upon wall thickness
and 10 through 20 ga. (3.5 through 1.0).
SCHEDULE TYPE:
PROJECT:
ENGINEER:
CONTRACTOR:
Nailor Industries Inc. reserves the right to change any information concerning product or pricing without notice.

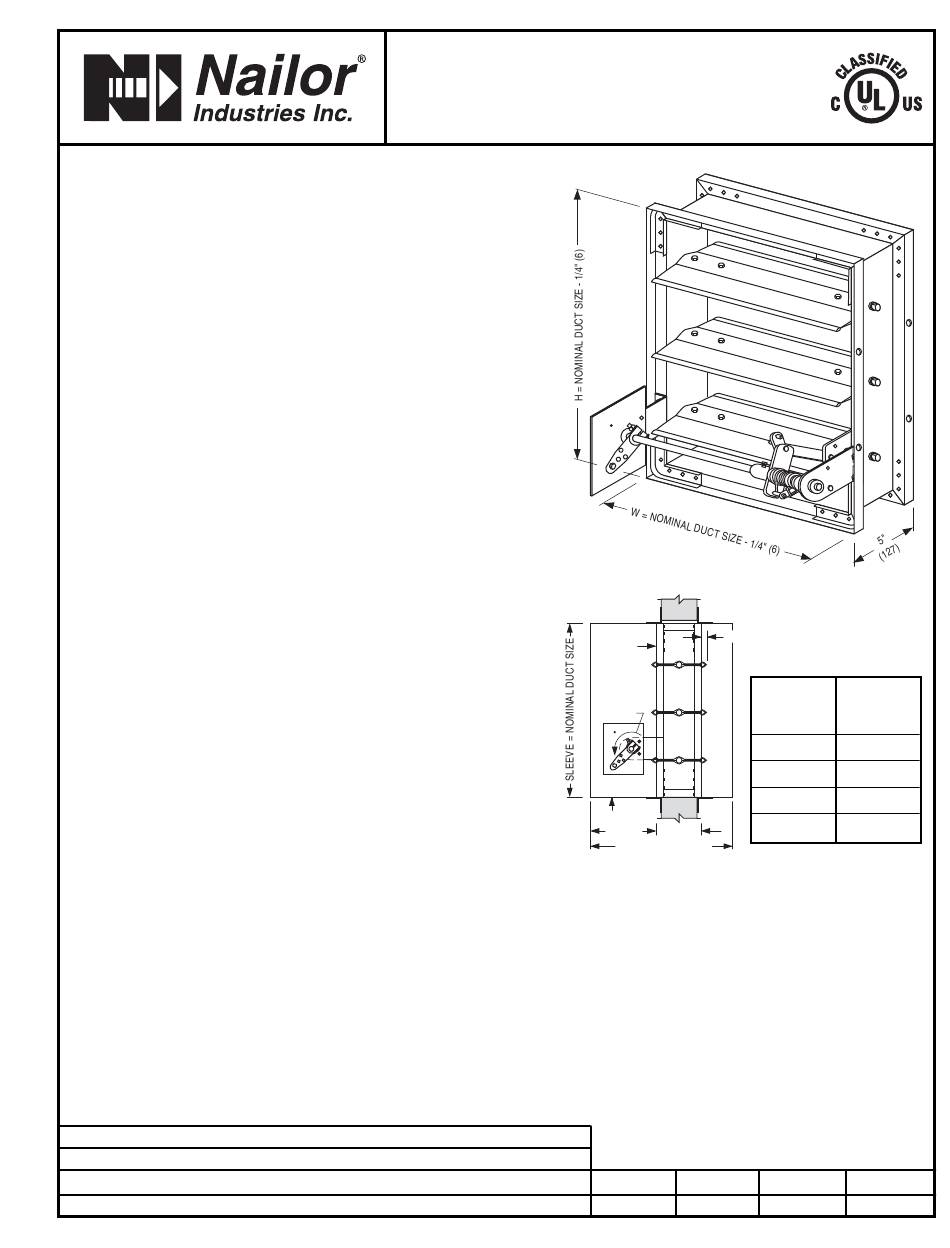

STATIC MULTI-BLADE FIRE DAMPER
FOR USE IN STATIC SYSTEMS
HIGH PERFORMANCE
1 1/2 HR. LABEL • AIRFOIL BLADE
MODELS: 1200 AND 1201 (TYPE A)
36" x 48" (914 x 1219).
1 7/8" (48) MAX.
DAMPER
CCW
TO
OPEN
SLEEVE
8" (203)
5" (127)
16" (406) STANDARD
OPTIONS:
SMP
Side mounting plate
BS
Stainless steel bearings
MLS-300
Position indicator switch pack
JSM
Flexible metal jamb seals
QS1
Quick–set retaining angle (one side)
QS2
Quick–set retaining angles (two sides)
TDF1
Flange (one end)
TDF2
Flange (both ends)
Special features
_____________________ .
For installation instructions, see IOM-MBFDINST.
Dimensions are in inches (mm).
DATE
B SERIES
1 - 1 - 12
1200
Minimum
Wall
Sleeve
Thickness
Length
4 (102)
16 (406)
8 (203)
20 (508)
12 (305)
24 (610)
16 (406)
28 (711)
SUPERSEDES DRAWING NO.
11 - 21 - 07
1200-1
