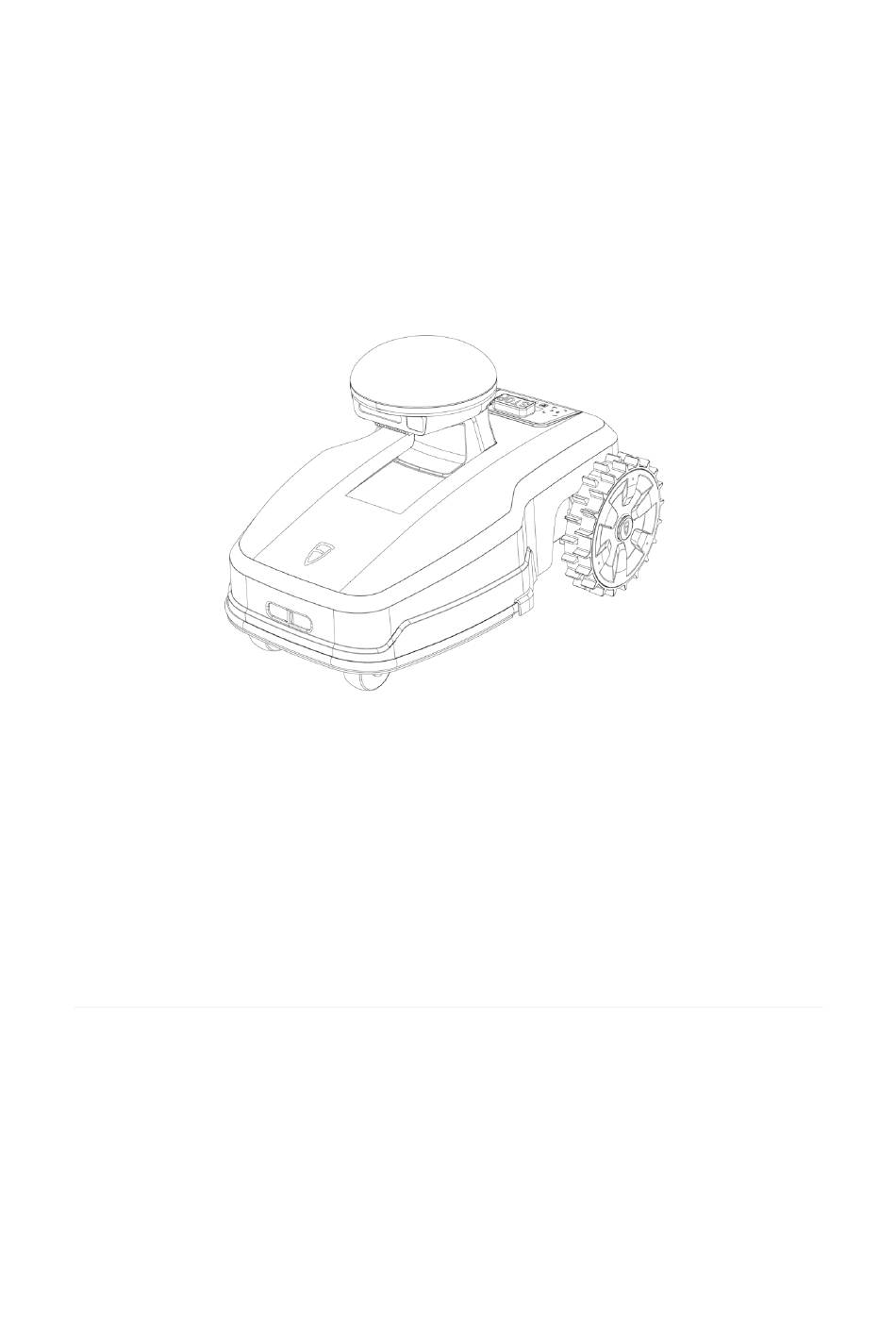

FJDynamics FR4000 User Manual

Robotic lawn mower

Advertisement

Quick Links

EN_FR4000
Robotic
Lawn
Mower_User Guide V0.4
Product: Robotic Lawn Mower
Model: FR4000
Copyright statement
FJDynamics reserves the copyright for this guide and all content herein. No part of
this guide may be reproduced, extracted, reused, and/or reprinted in any form or by
any means without the prior written permission of FJDynamics.
This guide is subject to change without notice.
Read before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FJDynamics FR4000

  • Page 1 Model: FR4000 Copyright statement FJDynamics reserves the copyright for this guide and all content herein. No part of this guide may be reproduced, extracted, reused, and/or reprinted in any form or by any means without the prior written permission of FJDynamics.
  • Page 2: Safety Tips

    V0.4 2024.07.03 Preface Thank you for using the product of FJDynamics. This manual provides you with instructions on the functional characteristics, installation, debugging, deployment, and the usage of Robotic Lawn mower, as well as matters needing attention during use. Before using this product, please read this manual carefully and use it according to the instructions.
  • Page 3: Safety Advice

    The products or services you purchase are subject to commercial contracts or terms. Some of the products or services described in this manual may not be within the scope of your purchase or use, and FJDynamics will not make any other explanations.
  • Page 4: Product Introduction

    2. Product introduction Introduction The FJD FR4000 is an advanced robotic lawn mower designed to provide efficient, autonomous lawn care. This user guide covers the setup, operation, and maintenance of the FR4000 mower. Powered by industrial RTK technology and a smart vision system, the FJD FR4000 robotic lawn mower defines virtual boundaries and ensures centimeter-level accuracy in positioning, eliminating the need for wires.
  • Page 5 (User guide- Main Components - Lawn Mower - Front View - Number Missing) Component name Emergency stop button Recharge button Mowing button Confirm button Raindrop sensor Digital display screen Indicator light area (including the following 6 indicator lights) Wi-Fi indicator light...
  • Page 6 RTK signal indicator light Bluetooth indicator light Power indicator light Lock indicator light Knife indicator light Bumper strip Charging port Monocular camera Binocular camera Light strip SIM card slot...
  • Page 7 (User guide-Main Components-Lawn Mower-Bottom View-Number Missing) Power switch Universal wheel Driving wheel Cutting disk...
  • Page 8: Charging Station

    Cutting blade Battery compartment 2.2.2 Charging Station (Charging station diagram) + (Garage diagram) Number Component name Top button Status indicator light Charging interface Charging electrode Power Supply Power Adapter(Must Be Placed Indoors) 2.2.3 RTK base station (Will Be Updated Soon) Specifications Specs 4000 ㎡...
  • Page 9 Max climbing ability 33° (65%) 4000 ㎡ (1 acre) Max mowing size Boundary type Virtual boundaries (No perimeter wire) Net weight 13.3kg Dimension 645mm×444mm×420mm 25.4in×17.5in×16.5in Max climbing ability 33° (65%) Waterproof level IPX5, IP65, IP67 (mower, charging station, RTK reference station) Positioning &...
  • Page 10: Preparation Before Use

    blades Cutting mode parallel stripes with a specific angle Product Safety Object detection & Stereo camera & RGB avoidance system camera & physical bumper Lift sensor Security System PIN access, alarm, charging station pairing, GPS theft tracking Tilt sensor Battery & Charging Dual battery capacity 190Wh Battery type...
  • Page 11 4. Deploy and install...
  • Page 12 If you have a network RTK service account based on Ntrip, you can use the network RTK positioning solution without deploying an RTK antenna. Deploy RTK antennas In order to optimize the performance of the RTK system, the RTK antenna must be located in an open area to receive satellite signals.
  • Page 13 Mark the installation position of the curved mounting rod on the wall. The mounting rod must be positioned vertically upwards.
  • Page 14 Choose the appropriate screws according to the wall material and drill holes at the marked positions. For wooden walls: Use M6 screws and screwdrivers. For concrete walls: Use M8 expansion bolts and power tools (bring your own).
  • Page 15 Install a direct hanging pole, RF antenna, and power cord (5m) on the RTK base station.
  • Page 16 Securely fasten the two mounting rods.
  • Page 17 Insert the DC to USB-C cable, adapter, and power adapter plug into the power outlet to activate the RTK base station. Deploy lawn mowers and charging stations Select a flat and level place to place the charging station. Ensure there is a clear, unobstructed horizontal area extending at least 2 meters in front of the station, devoid of hills, slopes, indentations, potholes, or obstacles.
  • Page 18 Fix the charging station and garage to the ground with bolts.
  • Page 19 Connect the power adapter, 10-meter extension cord, and power cord, and plug them into the power outlet.
  • Page 20 Docking the robotic lawn mower After the deployment of the charging station and RTK antenna is completed, take out the robotic lawn mower and dock it with the charging station as follows: • Press the button on the charging station to ensure the indicator light turns green and blinks rapidly, indicating it has entered direct charging mode.
  • Page 21: Register And Log In

    Download the robotic lawn mower App FJDynamics robotic lawn mower is designed to be used in conjunction with an app. Please download the app first. You can obtain the app by scanning the QR code below or by searching for {App Name} on Android or iOS app store.
  • Page 22 5.3.2 Log in only You can log in directly by entering your username (i.e., email) + password, or username (i.e., email) + verification code. After that, check the User Agreement and Privacy Policy, and click Log in to access the main interface of the system. To switch the language of the app, click on the upper right corner of the login page.
  • Page 23: Facility Management

    Facility Management...
  • Page 24 Connect the robotic lawn mower to the Network Note: FR4000 robotic lawn mower only supports 2.4GHz Wi-Fi networks. If you're using an iOS device, the mower can only connect to the Wi-Fi network your mobile phone is connected to. First, connect your mobile phone to Wi-Fi, then connect the mower to the same Wi-Fi network.
  • Page 25 • Enter or select the Wi-Fi network name. • Enter the Wi-Fi password. • Click Finish. 5.5.2 Deploy the RTK reference station The robotic lawn mower supports two options for RTK base station deployment: Ntrip network RTK base station or local RTK base station. 5.5.2.1 Deploy the Ntrip network RTK reference station Select Ntrip when deploying RTK.
  • Page 26 5.5.2.2 Deploy the local RTK base station Ensure that the RTK base station has been installed and powered on. Make sure that the phone is connected to the robotic lawn mower via Bluetooth. Select the base station site. After confirming that the preparation steps have been completed, click Start. Waiting for base station functionality deployment to complete.
  • Page 27 5.5.2.3 RTK Reference Station Connections • Wi-Fi Our RTK reference station supports Bluetooth connection with mobile devices. Just make sure the Bluetooth connection stability & feasibility of mobile devices for successful deploying. • Bluetooth Our RTK reference station supports Bluetooth connection with mobile devices. Just make sure the Bluetooth connection stability &...
  • Page 28: Map Management

    location and has been docked. Select the charging point. After confirming that the preparation steps have been completed, click Deploy Charging Station. Waiting for base station functionality deployment to complete. Map management (Map management interface diagram and illustration to add)
  • Page 29 5.6.1 Build maps Notes before mapping Before creating a map, there are some points that need to be aware of: • Clean up debris, piles of fallen leaves, toys, wires, stones, and other obstacles on the lawn before creating a map. Make sure there are no children or animals on the lawn.
  • Page 30 If the charging station location has not been marked, a prompt indicating no charging station will appear, asking if you wish to deploy. Click Deploy, and the app will initiate Bluetooth connection to the robotic lawn mower. After the app successfully connects to the robotic lawn mower via Bluetooth, read and confirm the requirements for charging station deployment.
  • Page 31 The robotic lawn mower will autonomously leave the station. Once the robotic lawn mower stops, you can establish the passage via the app. The passage refers to the path the robotic lawn mower takes from the charging station to the working area. This path will be followed during actual operation to ensure it is a drivable path.
  • Page 32 Click Start to use the joystick to remotely control the robotic lawn mower to the edge of the intended working area. Click Next to save the passage and proceed to establish the mowing area. After the passage is saved, the mowing area can be established through the app. Click the Start button, then use the joystick to remotely control the robotic lawn mower along the desired lawn edge to draw your lawn boundary.
  • Page 33 Solid lines indicate the boundaries you have drawn, while dashed lines will help guide you back to the starting point. The mowing area will not be created until you control the robotic lawn mower back to the starting point and click Finish. If needed, click the Erase icon, and the robotic lawn mower will retreat along the drawn path to erase the boundaries of the retraced mowing area.
  • Page 34 Control the robotic lawn mower to return to the starting point and then click the Finish button to save the working area. Name the work zone. Select the default mowing configurations for this area, including blade speed, travel speed, grass height, and path planning settings. Complete the mapping process for the mowing area.
  • Page 35 If the charging station location has not been marked, a prompt indicating no charging station will appear, asking if you wish to deploy. Click Deploy, and the app will initiate Bluetooth connection to the robotic lawn mower. After the app successfully connects to the robotic lawn mower via Bluetooth, read and confirm the requirements for charging station deployment.
  • Page 36 The lawn mower will autonomously leave the station. Once the robotic lawn mower stops, you can establish the passage via the app. • Click Start to use the joystick to remotely control the robotic lawn mower to the edge of the intended working area. •...
  • Page 37 guide you back to the starting point. • The mowing area is only created when you steer the robotic lawnmower back to the starting point and click on Finish. If needed, click the Erase icon, and the robotic lawn mower will retreat along the drawn path to erase the boundaries of the retraced mowing area.
  • Page 38 Name the work zone. Select the default mowing configurations for this area, including grass height, blade speed, travel speed, and path planning settings. Complete the mapping process for the mowing area. No-go Zone mapping No-go zones include areas such as swimming pools, flower beds, trees, tree roots, ditches, and any other obstacles on the lawn.
  • Page 39 area. • Click the Start button, then use the joystick to remotely control the robotic lawn mower to draw the boundary of the no-go zone. Solid lines indicate the boundaries you have drawn, while dashed lines will help guide you back to the starting point. The no-go zone will not be created until you control the robotic lawn mower back to the starting point.
  • Page 40: Delete Maps

    After completing the mapping 5.6.2 Delete maps • To delete a map: On the map management page, click on the desired working area, no-go zone, or charging station, then click Delete and confirm. Warning: Deleting the charging station will empty all saved maps of the current robotic lawn mower.
  • Page 41 5.6.3 The RTK antenna cannot be moved after mapping After the map is drawn, do not move the RTK antenna, otherwise, it may cause deviation between the actual working area and the mapped work zone. If there is a genuine need to relocate the RTK antenna, after relocation, delete and rebuild the base station, then redraw all plot data.
  • Page 42 Follow the prompts on the operational interface to select and set the start time, repeat frequency, and working zones for the scheduled task.
  • Page 43 You can individually configure mowing settings for each plot, including blade speed, travel speed, grass height, and path planning. The default settings are those configured during mapping.
  • Page 44 Click the Save button to save the scheduled task. 5.7.2 Modify scheduled tasks Click Mowing Schedule on the product homepage. Click on the scheduled task item you want to modify.
  • Page 46 Modify the start time, repeat frequency, work zone, mowing configuration of the plot, and other parameters of the scheduled task. Click the Confirm button to save the scheduled task. 5.7.3 Delete a scheduled task Click Mowing Schedule on the product homepage. (illustrations to add) Swipe left on the scheduled task item you want to delete.
  • Page 48: Remote Manual Mode

    Click the Delete icon that appears and confirm. Remote manual mode For your safety, please note the following before using the remote manual mode function: • Users under 18 years old should not be allowed to use this function. • Always keep an eye on your children, pets, and important items to prevent accidents.
  • Page 49 5.8.3 Exit remote manual mode Click the X icon in the top left corner to exit the remote manual mode. Mowing operations...
  • Page 50 Preparation Ensure that the robotic lawn mower is at the charging station within the working area and has sufficient battery. In case of any accidents during mowing, press the emergency stop button on the robotic lawn mower. It will prioritize the command from the emergency stop button, pause the task, and stop cutting.
  • Page 51 Note: When activated via the app, the robotic lawn mower will execute mowing operations for all mapped plots in the order they were mapped. Press and hold the Start button for 5 seconds on the homepage of the robotic lawn mower app. The robotic lawn mower will execute one-touch operation.
  • Page 53 Execute selected operations via the app Click the Device Location icon on the homepage of the robotic lawn mower app homepage. Select the desired plot for mowing. Press and hold the Start icon for 5 seconds. The robotic lawn mower will execute the mowing operation. Set scheduled tasks Set the schedule through the APP.
  • Page 54 Pause operations Press the emergency stop button on the top control panel of the lawn mower or click the pause icon on the APP...
  • Page 56 Resume operations Press the Mow button and OK button on the top control panel of the lawn mower or click the Continue icon on the APP NOTES: During the mowing process, if the battery is too low (below 20%), the robotic lawn mower will automatically stop mowing and return to recharge.
  • Page 57 5.10.1 Automatic recharge When the robotic lawn mower completes mowing tasks normally or triggers the resume mowing condition, it will attempt to return to the charging station and recharge. To trigger the recharge function, the robotic lawn mower needs to be within the established working zones and not within any no-go zones.
  • Page 59 5.11 Resume Mowing During mowing operations, if the battery level is low (below 20%), the robotic lawn mower will automatically stop mowing and return to recharge. When the battery level reaches the resume mowing threshold (default 80%), the robotic lawn mower will automatically return to the last mowing point and resume mowing operations.
  • Page 61: Device Name

    Users can enable or disable the resume mowing function (default is enabled). Users can set the battery trigger value for resuming mowing operations (default 80%). 5.12 Device message Information about device anomalies, errors, etc., will be displayed in the device message section.
  • Page 62: App Version

    5.13.4 App version You can check the current version and check for updated firmware versions. When a new version is available, upgrade the firmware here. It is recommended to keep the firmware up to date. Upgrade firmware It is recommended to upgrade when the robotic lawn mower has sufficient battery and has not been in operation for a certain period.
  • Page 63 mowing method depends on the size and shape of the area. Please consider obstacles such as trees, fences, and buildings. Before mowing, it is recommended that the grass height be within the range of 50-80 mm (1.97-3.15 inches). Do not cut more than 1/3 or 25mm (0.98 inches) above the grass height in one mowing session.
  • Page 64: Troubleshooting

    the mower body to check whether the mower disk is stuck with grass. 4. After the treatment, put down the mower and turn on the power, the cutter disc lifting and lowering will return to the initial state by itself. NOTE: Please always wear heavy duty gloves, long pants and work shoes when cleaning the cutting deck.
  • Page 65 Emergency Stops Battery Abnormality Positioning Abnormality Collision...
  • Page 66 Front-Wheels Abnormality Driving Wheels Abnormality Elevator Motor Abnormality...
  • Page 67: Warranty Policy

    Cutter Motor Abnormality 8. Warranty Policy FJDynamic warrants this product to be free from defects in material and workmanship under normal use in accordance with the product literature during the warranty period. Published product literature includes, but is not limited to, user manuals, quick start guides, maintenance, specifications, disclaimers, and in- application notices.
  • Page 68: Trademark And Legal Statement

    FJDynamics. • If the user wishes to send the product to a local service center or FJDynamics facility for further diagnostics, the user will need to arrange for shipment. If the problem is under warranty, FJDynamics will repair or replace it and return it to the user free of charge.
  • Page 69 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
