Dog it Fresh & Clear 73651 Manual

INTRODUCTION

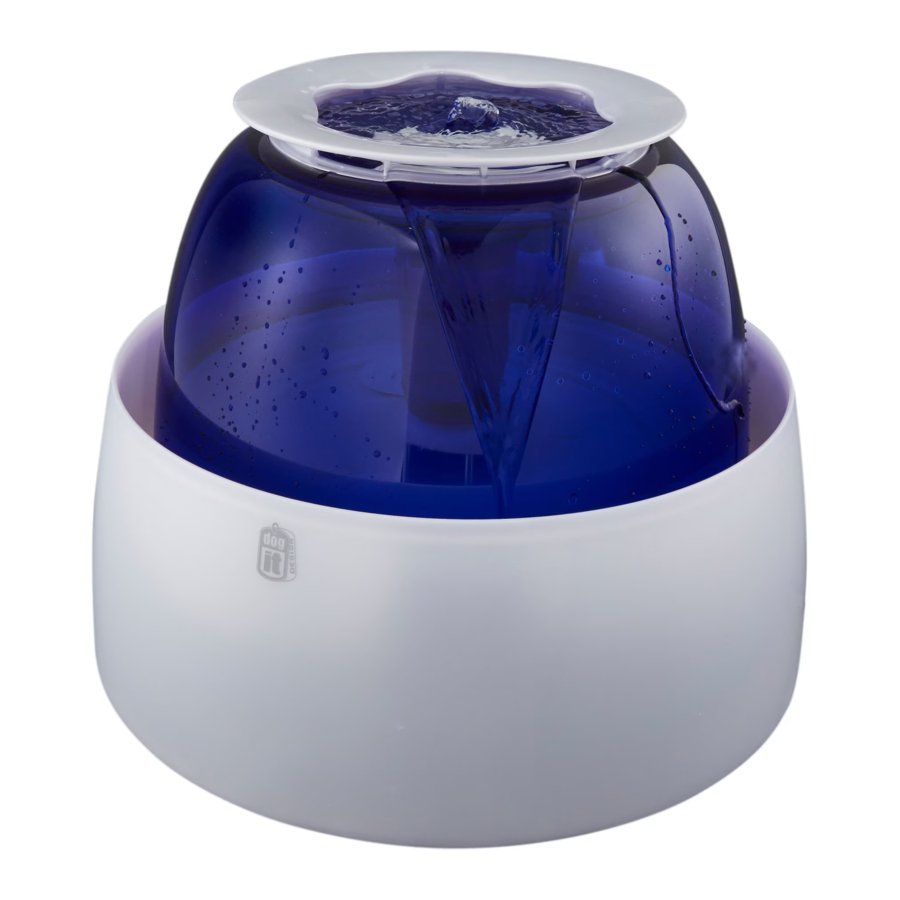

The Dogit Design Fresh & Clear Large Drinking Fountain responds to your pet's need for a continuous supply of fresh and clean drinking water. The drinking basin is elevated to provide a better ergonomic drinking position – ideal for large breeds, older dogs or dogs with arthritis, muscle and joint problems. The re-circulating water flow eliminates stale, stagnant water and provides fresh-tasting, cool filtered water with a multitude of inherent health benefits. Encouraging your pet to drink more water helps ensure proper kidney function.

CONTENTS

USAGE

2. Remove the two filters (foam and carbon) from base, set apart from unit. Ensure polybag is removed from carbon filter.

3. Wash the complete unit, including base, dome and pump (excluding the two filters) with a sponge. Do not use abrasive cleansers or materials on any part of the unit. Rinse thoroughly.

4. Rinse foam filter to remove dust, and carbon filter to remove excess carbon dust.

5. Place both filters (foam and carbon) back into base.

6. To fill: open valve (located on underside of dome) by pressing stem down and turning left or right 90° until the stem remains depressed.

7. Place valve directly beneath faucet and fill to capacity.

8. After filling: Close valve by depressing and turning stem 90° until spring releases and stem returns to original position.

9. Place dome onto base. Water will begin to drain into base.

10. Attach power cord to USB adapter. Wait approximately 30 seconds before plugging in unit to ensure water has properly drained into base.

11.
    Secure excess power cord with tie wrap and place beneath unit to avoid pet chewing and entanglement. Do not allow any objects to come in contact with unit (especially the dome) as water may spill out of unit.


CLEANING

WEEKLY MAINTENANCE

Wash and rinse dome, base, and food dish (where applicable) with a soft sponge and a non-abrasive cleanser. Rinse thoroughly, ensuring no soapy residue. Do not wash filter with soap.

THOROUGH CLEANING INSTRUCTIONS

To clean the unit thoroughly, wash with a soft sponge and a non-abrasive cleanser. Rinse thoroughly, ensuring no soapy residue. Do not wash filter with soap. (See below for complete unit disassembly for thorough cleaning).

2. Turn bottom wheel under dome in a counter-clockwise direction to separate top and bottom portions.

3. Remove valve assembly by pulling on stem. Remove spring from stem. The white disk on opposite end will also detach.

4. Unscrew cap from dome, remove o-ring and set aside.

5. Remove both filters (foam and carbon) from base and rinse. Do not wash filters with soap.

6. Remove cap holding power cord in position. Dislodge pump from base; move it aside to allow room for the blue plastic insert to be slid out, then remove pump completely from base. Remove foam insert and rinse or change if necessary.

7. Replace foam insert. Re-thread power cord into base (do not affix pump in position, keep it slack at bottom of base). Center power cord over foam inset, then slide blue plastic insert back into position. Install pump fully into correct position, and replace cap.

8. Should pump appear dirty, open pump and remove impeller cap and impeller. Remove any debris. Handle impeller with care.

9. To reassemble valve assembly, place spring on stem. Slide stem with spring through the valve opening. Attach blue rubber cap to stem. Reassemble unit and fill dome with water.


FREQUENTLY ASKED QUESTIONS

Why is the unit making gurgle sounds

The gurgle sounds are an indication that the water level is very low. Refill immediately (refer to filling instructions). Never let the unit run dry.

Why is the water not pumping properly through the unit?
There may be some foreign matter (food, hair, debris) trapped in the filter, or pump, that may be causing this problem. Examine the filter. Should it be saturated with foreign matter, it must be replaced. Should the filter appear in functioning order, check the pump carefully. You may need to open the pump and clean out the interior for it to function properly (refer to cleaning instructions).

I plugged in the unit, but there is no water flowing. What should I do?
There could be air trapped in the pump, preventing it from functioning properly. To remove air from the system, repeat the process of unplugging and plugging in the unit until the water begins to flow.

For further assistance, please call our customer service departments:
Canada: 1-800-554-2436
U.S.A.: 1-800-724-2436

ACCESSORIES

# 73610
Replacement Purifying Filters

# 73670
Replacement - Foam Filter/Foam Insert

# 73655
Place Mat

SPARE PARTS

* previously Art. #73636

IMPORTANT SAFETY INSTRUCTIONS

To guard against injury, basic safety precautions should be observed, including the following.

1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
   and all the important notices on the appliance before using the pump. Failure to do so may result in damage to this appliance.
2.
   To avoid possible electrical shock, special care should be taken since water is employed in the use of this product. For each of the following situations, do not attempt repairs yourself; return the pump to an authorized service facility for service if it is still under warranty or discard the appliance.
   1. If the pump shows any sign of abnormal water leakage, disconnect the power supply cord and remove pump from water.
   2. Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
   3. Do not operate the appliance if it has a damaged electrical cord or plug, or if it is malfunctioning or if it is dropped or damaged in any manner. The power cord of this appliance cannot be replaced: if the cord is damaged, the appliance should be discarded. Never cut the cord.
   4. The electrical outlet should always be above the level of the appliance. If the plug or outlet does get wet, DON'T unplug the electrical cord. Disconnect the fuse or circuit breaker that supplies power to the appliance, then unplug and examine for presence of water in the outlet. with significantly impaired physical or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should always be supervised to ensure that they do not play with the appliance.
3. This appliance is not intended for use by persons (including children) with significantly impaired physical or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should always be supervised to ensure that they do not play with the appliance.
4. To avoid injury, do not contact moving or hot parts.
5.
   Always unplug or disconnect the appliance from the outlet before putting on or taking off parts and while the equipment is being installed, maintained or handled. When inserting or removing the pump from the water, always pull out the main electrical plug.
   Never yank the cord to pull the plug from outlet. Grasp the plug and pull to disconnect. Always unplug an appliance from an outlet when not in use. Never lift the pump by the cord.
6.
   THIS IS A PET DRINKING FOUNTAIN PUMP.
   This pump has been evaluated for use with freshwater only. Do not use this pump for other than its intended use (i.e. don't use on swimming pools, bathrooms, etc.). The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.
   • Do not use the pump in swimming pools or other situations where people are immersed.
   • This pump is suitable for use in water temperatures up to 35º C.
   • Do not use this pump with inflammable liquids.
7. Do not install or store the appliance where it will be exposed to temperatures below freezing. Shelter the pump from direct sunlight.
8. Ensure that the appliance is placed on a flat, even surface. Monitor the appliance regularly. Do not leave appliance unattended for extended periods. Do not allow the pump to run dry. The pump must be immersed in water completely. This pump must never operate outside of water.
9. If an extension cord is necessary, ensure the connection is watertight and dust proof. A cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
10. Do not use this unit outdoors. This unit is for indoor use only.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Only the faithful observation of these installation, electrical and maintenance guidelines will ensure the safe and efficient use of this drinking fountain.
