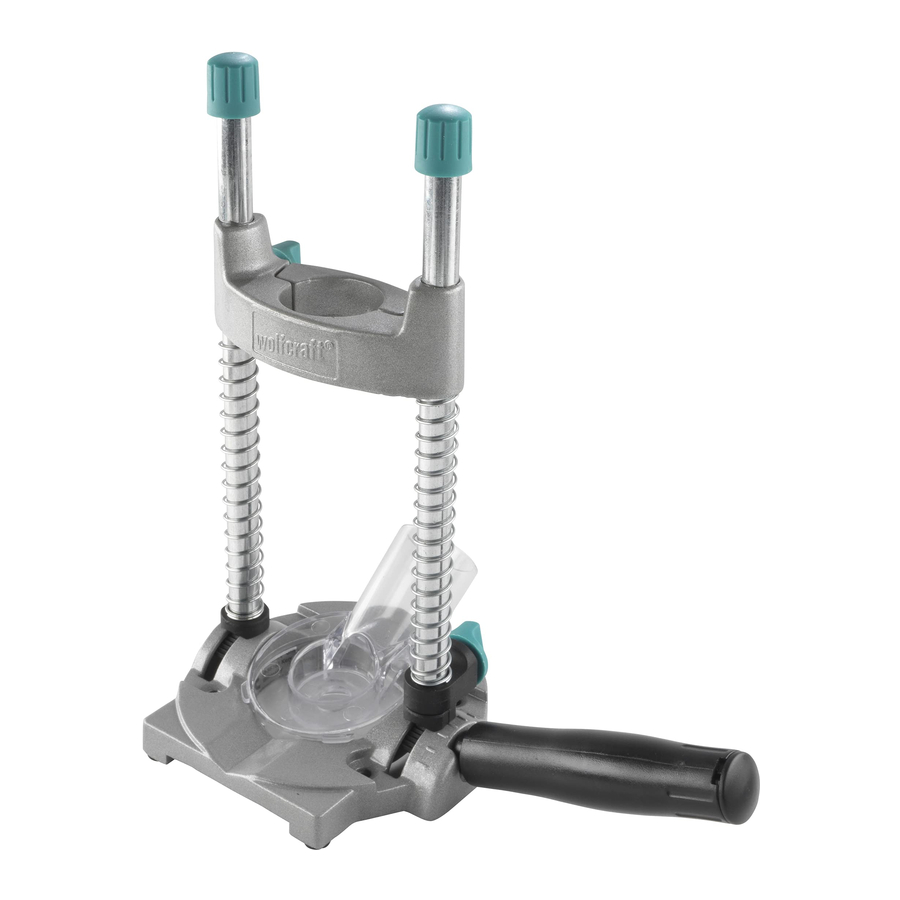

Wolfcraft tec-mobil 4522 Manual

Spare parts list

Purchase order no.

Accessory bag

Assembly Instructions

Screws not included.

Please Note:
Do not use as router. The base plate is to be firmly secured when drilling round work-pieces and when drilling holes at an angle (fig. 2).

Operating instructions

Setting the depth of hole:

1. Mount the drill.
2. Place the machine on the edge of the bench (fig. 1).

3. Press the drill down, until the desired depth of hole is reached (fig. 2)

4. Screw the drill tight, using the securing screw (A).
5. Slide the depth stop upwards and screw it tight against the machine holder, using the securing screw (B), see fig. 3.

6. Release securing screw (A). You are now ready to drill.

Drilling ceilings and walls

Drilling the holes for hinges

Drilling centrally into edges

Drilling round work-pieces.

Ensure that the work-piece cannot slip. Center the workpiece and lay it in the V-block.

Notes on Safety

• Adhere to the safety regulations of the manufacture of your drive machines under all circumstances (e.g. electric drill, right-angle grinder etc.).
• These appliances have to be in accordance with the VDE-regulations Appliances built after 1995 have to have a CE-sign.
• Disconnect the power:
  • before changing of attachments
  • before changing of work pieces
  • before maintenance jobs
  • while not in use
• Before commencing work test the operatability of the appliances and tools. Never work with damaged or blunt tools.
• Check that the mounting of the appliances used is correct (e. g. bolted joints) before commencing work.
• Ensure the work piece is tight and secure.
• The space between the worktable and the backing pad should be no more than 3 mm.
• Take care that there is always a stable support for the workpiece or clamp the component to be machined tightly.
• Take care that you and the appliances used are always standing securely.
• Adhere to the data quoted regarding minimum/speeds and direction of rotation on the product, packaging or in the operating instructions for the appliances and tools to be used.
• Use tools only for their actual intended purpose.
• Never remove existing protective devices.
• Use goggles or breathing protection for mouth/nose during all jobs, that cause dust, chips, fumes or sparks.
• Protect your hearing when doing work causing a lot of noise.
• Wear safety glasses, strong protective gloves and a mouth and nose protector for all work in which dust, shavings, fumes or sparks occur.
• Never reach into equipment which is in operation.
• Take care that all electrical equipment is protected against wet, dust and dampness.
• Keep children away from your workshop and store your equipment and tools in a safe place.
• Never allow inexperienced personnel to work with your equipment and tools without instructions or supervision.
• Always work well planned and concentrated.
• Keep your work area orderly.
• Use only original wolfcraft ^® spare parts.

We reserve the right for technical modifications
