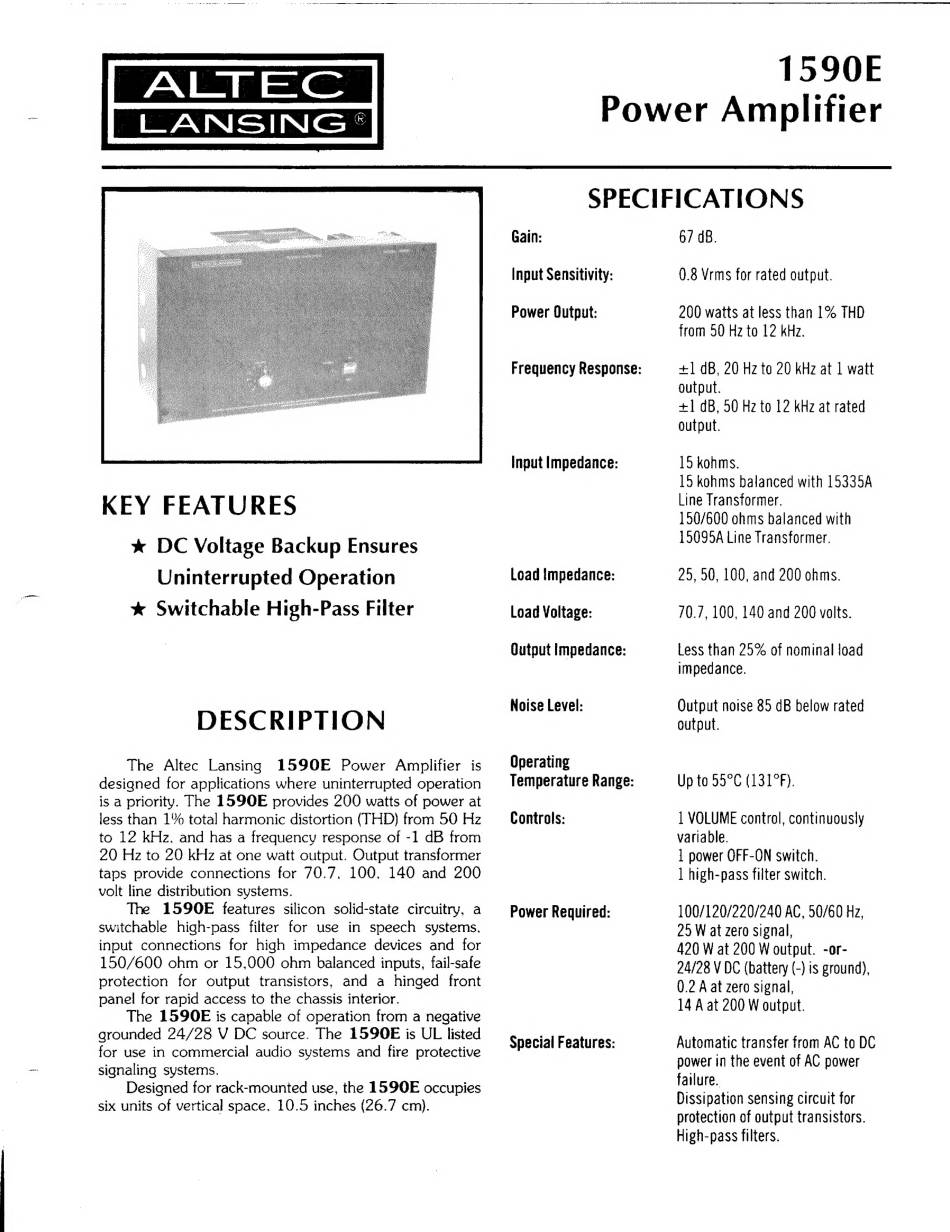

Altec Lansing 1590E User Manual

1590E
Power Amplifier
KEY FEATURES
* DC Voltage Backup Ensures
Uninterrupted Operation
* Switchable High-Pass Filter
DESCRIPTION
The Altec Lansing 1590E Power Amplifier is
designed for applications where uninterrupted operation
is a priority. The 1590E provides 200 watts of power at
less than 1% total harmonic distortion (THD) from 50 Hz
to 12 kHz. and has a frequency response of -1 dB from
20 Hz to 20 kHz at one watt output. Output transformer
taps provide connections for 70.7. 100, 140 and 200
volt line distribution systems.
The 1590E features silicon solid-state circuitry, a
switchable high-pass filter for use in speech systems.
input connections for high impedance devices and for
150/600 ohm or 15,000 ohm balanced inputs, fail-safe
protection for output transistors, and a hinged front
panel for rapid access to the chassis interior.
The 1590E is capable of operation from a negative
grounded 24/28 V DC source. The 1590E is UL listed
for use in commercial audio systems and fire protective
signaling systems.
Designed for rack-mounted use, the 1590E occupies
six units of vertical space. 10.5 inches (26.7 cm).
SPECIFICATIONS
Gain:
Input Sensitivity:
Power Output:
Frequency Response:
Input Impedance:
Load Impedance:
Load Voltage:
Output Impedance:
Noise Level:
Operating
Temperature Range:
Controls:
Power Required:
Special Features:
67 dB.
0.8 Vrms for rated output.
200 watts at less than 1% THD
from 50 Hz to 12 kHz.
+] dB, 20 Hz to 20 kHz at 1 watt
output.
+] dB, 50 Hz to 12 kHz at rated
output.
15 kohms.
15 kohms balanced with 15335A
Line Transformer.
150/600 ohms balanced with
15095A Line Transformer.
25,50, 100, and 200 ohms.
70.7, 100, 140 and 200 volts.
Less than 25% of nominal load
impedance.
Output noise 85 dB below rated
output.
Up to 55°C (131°F).
1 VOLUME control, continuously
variable.
1 power OFF-ON switch.
l high-pass filter switch.
100/120/220/240 AC, 50/60 Hz,
29 W at zero signal,
420 W at 200 W output. -or-
24/28 V DC (battery (-) is ground),
0.2 A at zero signal,
14 A at 200 W output.
Automatic transfer from AC to DC
power in the event of AC power
failure.
Dissipation sensing circuit for
protection of output transistors.
High-pass filters.
