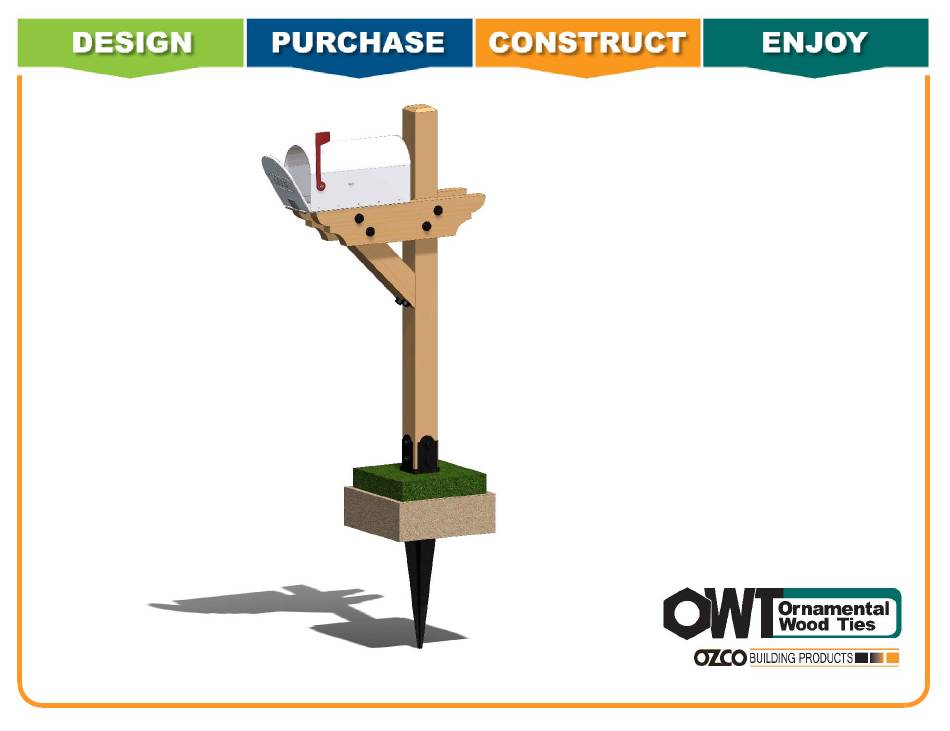

OZCO Project #111 -
Wooden Mailbox
Post Assembly
OZCO Project #111 - Wooden Mailbox Post Assembly
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically
1
and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.

Advertisement

loading
Need help?

Need help?

Do you have a question about the OZCO 111 and is the answer not in the manual?

Questions and answers

Summary of Contents for OWT OZCO 111

  • Page 1 OZCO Project #111 - Wooden Mailbox Post Assembly OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.
  • Page 3 7.50 1440 56.69 30.00 US Postal Service Mailbox Specifications note staggered fastener pattern to eliminate collision Overview OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 .

  • Page 4: Bill Of Material

    Material List PART QTY. DESCRIPTION NUMBER 56632 4x4 Post Anchor Kit (4x4-OPAK-LS) 56621 1 1/2" Hex Cap Nut (HCN) 56627 OWT Timber Screw 3-3/4" 4x4x8L 4x4x8 2x6x6L 2x6x6 mailbox ITEM PART NO. QTY. DESCRIPTION NUMBER Cedar 4x4x56.00 Post Cedar 4x4x24.00...
  • Page 5 56627 56621 56632 OZCO OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.

  • Page 6: Suggested Tools

    Suggested Tools (others may be required) OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.
  • Page 7 1829 72.00 Note: both pieces can be cut from 1 board 2x6x72 board 30.00 30.00 5.28 14.34 2.00 7.28 14.34 2.00 see Template page see Template page .125 .125 14.34 1.94 10.34 1.94 predrill predrill Cutlist OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 .
  • Page 8 2438 96.00 4x4x96 cut all pieces from from 1 post 1410 55.50 24.00 6.67 .125 .125 1.41 2.06 predrill 2.83 predrill 2X 45° 1.41 2.00 .50 X 45° 38.06 2.83 4.34 Cutlist OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 .
  • Page 9 R2.50 5.88 1.00 Template (scale 1:1) OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.
  • Page 10 flush 1067 42.00 assemble on flat non-maring surface step 1 OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.
  • Page 11 1067 42.00 step 1 note that fasteners are staggered and do not collide from opposite side V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically OZCO Project #111 - Wooden Mailbox Post Assembly and should not be relied upon after 2 years from 3/9/2018 .
  • Page 12 (HCN) soil & grass Tool Required 3/8" Driver (OWT Timber Screw) step 3 OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.
  • Page 13 install mailbox per manfacturers instructions step 4 OZCO Project #111 - Wooden Mailbox Post Assembly V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/9/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/9/2018 . Please visit OZCOBP.com to get current information.
