U S E R G U I D E

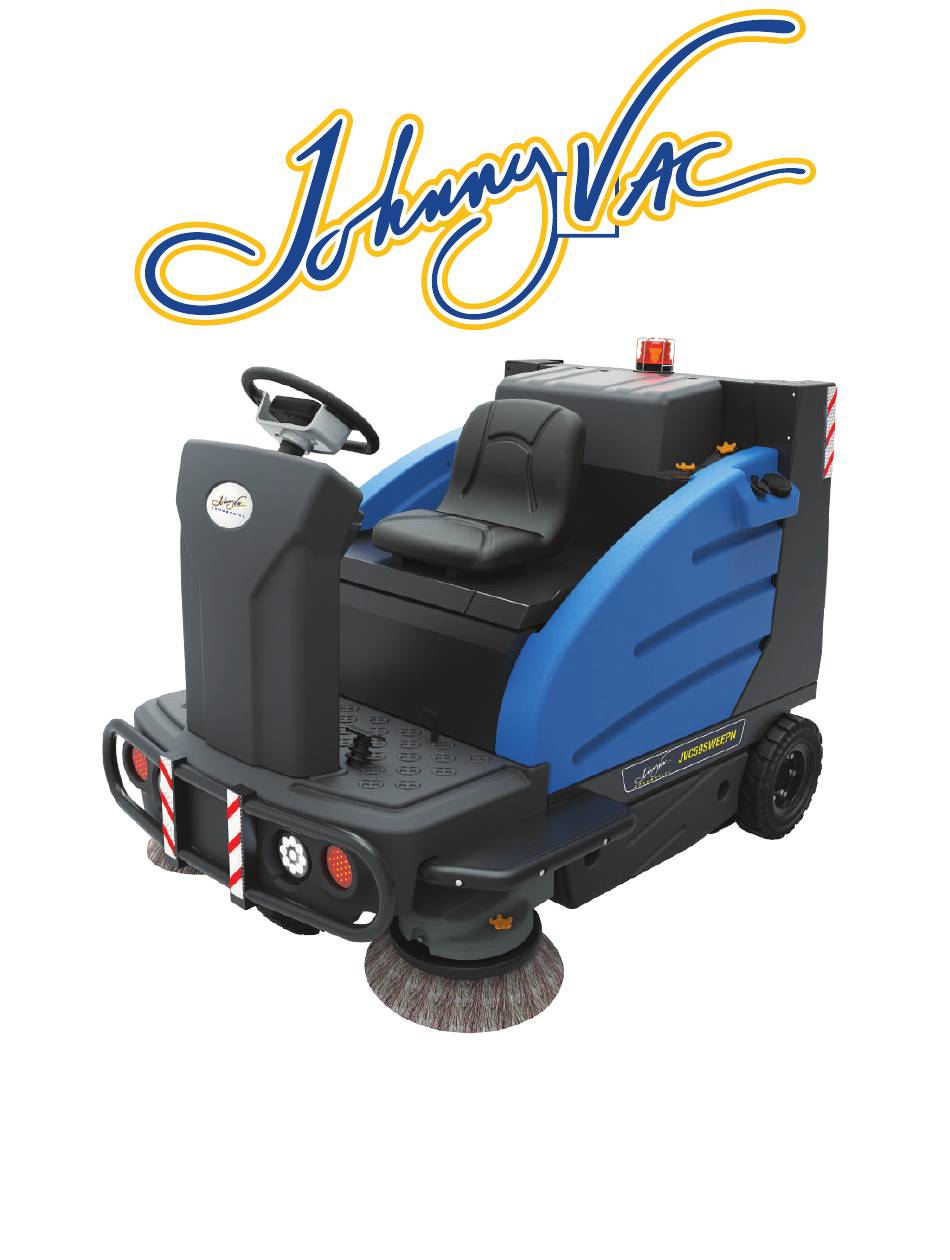

JVC59SWEEPN
Ride-On Sweeper Machine 59"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JVC59SWEEPN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnny Vac JVC59SWEEPN

Summary of Contents for Johnny Vac JVC59SWEEPN

  • Page 1 U S E R G U I D E JVC59SWEEPN Ride-On Sweeper Machine 59"...

  • Page 2: Protect The Environment

    Each new model shall be equipped with this operator manual to provide necessary instructions for operation and maintenance. Please read this manual carefully before operating or using this machine. An illustrated sourcebook of parts is provided for each new model of machine, so please follow the this sourcebook whenever replacing parts.

  • Page 3: Table Of Contents

    Content R-ZQS/R-ZQXS Content Attentions -----------------------------------------------------------------------------------------------------------4 Operation ------------------------------------------------------------------------------------------------------------6 Machine components-----------------------------------------------------------------------------------------6 Control and instrumentation--------------------------------------------------------------------------------7 Control panel symbols----------------------------------------------------------------------------------------7 Working principle of the machine--------------------------------------------------------------------------8 Accessories installation --------------------------------------------------------------------------------------14 Disposal of refuse and bins cleaning----------------------------------------------------------------------23 Machine trouble shooting-----------------------------------------------------------------------------------24 Maintenance ------------------------------------------------------------------------------------------------------25 Maintenance sheet--------------------------------------------------------------------------------------------25 Battery charging-----------------------------------------------------------------------------------------------26 Push, drag and deliver machine---------------------------------------------------------------------------27 Machine storage-----------------------------------------------------------------------------------------------28 LED light indicator of the charger -------------------------------------------------------------------------28 Specifications...
  • Page 4 Safety warning statements - - please well store these statements The following safety warning symbols are commonly used in the “for the consideration of safety” manual, according to the statements, the functions are: - - - all warning marks and plates of the device are providing important information for safety operation.

  • Page 5: Attentions

    Attentions R-ZQS/R-ZQXS The following information tags may bring dangers to the operator, please be aware of when would these conditions appear, find out all hidden dangers of the machine, report the machine damaging or faults straightaway. Warnings: the storage battery would release hydrogen, which may cause fire disaster or explosion, please keep the machine away from the spark or open fire resource.

  • Page 6: Operation

    For the consideration of safety: Before formally using the device, please read the operation instruction carefully, especially the safety information. 1.Do not operate the machine when any of the following situations appears: - When approaching flammable liquid and gas, which may cause explosion or flash fire.
  • Page 7 Attentions R-ZQS/R-ZQXS - Please use the replacement accessories which approved or provide by the manufacturer. - All repairing operation shall be accomplished by qualified repairing person. - Do not revise the original design of the machine. 6.When transporting the machine by truck or trailer: - Clean up all litters before loading and transportation.

  • Page 8: Machine Components

    Machine components 1. Seat 2. Steering wheel 3. Operating panel 4. Driving pedal 5. Automatic injection port 6. Manual injection port 7. Brake pedal 8. Front rubber pedal 9.Roller brush(main brush) 10. Side brush 11. Rear wheel 12. Battery position 13.

  • Page 9: Control And Instrumentation

    Operation R-ZQS/R-ZQXS Control and instrumentation 1. Main power switch 8. Side brush switch 2 2.Auto one-button work button 9. Water spray button 3. Main brush switch 10. Side brush switch 1 4. Light switchr 11. Forward and backward switch 5. Right turn button 12.
  • Page 10 Control and instrument R-ZQXS 9.Lift security lock button 10.Side brush switch 2 11.Water spray button 1.Main power switch 12.Side brush switch 1 2.Auto one-button work button 13.Forward and backward switch 3.Main brush switch 14.Acceleration button 4.Light switch 15.Left turn button 5.Right turn button 16.Deceleration button 6.Dust switch...
  • Page 11 Operation R-ZQS/R-ZQXS R-ZQXS Self-discharge hopper Driving direction Cumulative Battery power working time Dust-shaking prompt Front side brush Speed indicator Water level of Rear side water tank brush Speed stage Main brush Control panel symbol Left and right Main power Main brush forward and Dust switch Horn button...

  • Page 12: Working Principle Of The Machine

    Working principle of machine The sweeping parts of the machine are: a garbage can, a roller brush, and four side brushes. The button on control panel can control the sweeping / brushing function of the machine. Turn on the rolling brush switch, and then turn on the side-brush switch (with auto - one button on mode).
  • Page 13 Operation R-ZQS/R-ZQXS Installation and replacement of the accessories Adjust the back driven chain 1.Remove the screw (please refer to Figure 38), open the water tank(please refer to Figure 39). Please empty the water tank before opening, or the water tank may be damaged. Remove the 4 screws which are balanced at the left and right side(please refer to figure 40).
  • Page 14 Installation and replacement of the accessories Replace/install the front side brushes 1.Park the machine on flat surface, and ensure the brush motor at the raising position. 2.Turn off the machine. For the consideration of safety, when being away from the machine or repairing the machine, please park on horizon and shut off the machine.
  • Page 15 Operation R-ZQS/R-ZQXS Installation and replacement of the accessories Replace/install the back and side brushes 1.Park the machine on flat surface, and ensure the brush motor at the raising position. 2.Turn off the machine. For the consideration of safety, when being away from the machine or repairing the machine, please park on horizon and shut off the machine.
  • Page 16 Replace and install the rolling brush 1.Park the machine on flat surface, and ensure the brush motor at the raising position. 2.Turn off the machine. For the consideration of safety, when being away from the machine or repairing the machine, please park on horizon and shut off the machine. 3.
  • Page 17 Operation R-ZQS/R-ZQXS Replace/install the filtering net 1.Park the machine on flat surface, and ensure the brush motor at the raising position. 2.Turn off the machine. For the consideration of safety, when being away from the machine or repairing the machine, please park on horizon and shut off the machine. 3 Open the dust box cover, rotate off the rotary knobs for fixing dust filter(4pcs), open the upper fixing shelf of the dust filter( and support up by the studdle, take out the dust filter(.
  • Page 18 fig 62 Replace/install the water pipe filtering net 1.Park the machine on flat surface, and ensure the brush motor at the raising position. 2.Turn off the machine. For the consideration of safety, when being away from the machine or repairing the machine, please park on horizon and shut off the machine.

  • Page 19: Machine Operation

    Operation R-ZQS/R-ZQXS Machine operation Verification before operation □ Inquire the machine to verify that there is no situation of dust leak. □ Inquire the filtering net to verify that it’s not shaken off. □ Inquire the condition of the brushes. Tear off the chippings around the brush. □...
  • Page 20 Electromagneticbrake of the floor sweeping vehicle The machine is equipped with electromagnetic brake protection system to avoid the unexpected sliding. By ensuring safety, to causally relieve the electromagnetic brake, please open the seat, there is a hand shank to relieve electromagnetic brake.
  • Page 21 Operation R-ZQS/R-ZQXS The screw here is to adjust the height of the front-side brush, symmetric on left and right side (fig 67). Front side brush adjust knob fig 67 The screw here is to adjust the height of the rolling brush (fig 68). Roller brush adjust knob fig 68...
  • Page 22 Seat adjustable: After sitting on the seat, pull the adjustment lever at the right side to adjust the position of the seat forwardly and backwardly. When adjustment is accomplished, release the adjustment lever. Please refer to fig 69. Seat before and after adjustment fig 69 www.rongenclean.com...
  • Page 23 Operation R-ZQS/R-ZQXS Sweep the floor For the consideration of safety, do not operate the machine without reading and understanding the operation instruction. 1.Please turn on the switch. 2.Turn on the switch of main brush and side brush. 3.Please set the direction switch according to the direction where the machines need to move(forward or backward).
  • Page 24 Statement 2: when driving backwards, the forward-backward switch shall be at the “backward” position (fig 73), the warning light is on to warn. Step on to the treadle, as shown in fig 74. fig 73 fig74 www.rongenclean.com...
  • Page 25 Operation R-ZQS/R-ZQXS While Operating the Machine Drive as straight as possible. Avoid bumping into posts or scraping the sides of the machine. Overlap the scrub paths by several centimeters(a few inches). Avoid turning the steering wheel too sharply when the machine is in motion. The machine is very responsive to the movement of the steering wheel.
  • Page 26 Power of the storage battery The power of the storage battery would be displayed on LCD screen in percentage. When storage battery is fully charged, the power vol on LCD screen is 100%, icon of the storage battery is in green color. When power vol is no more than 20%, the icon of storage battery would be in red, to remind the user to charge in time.
  • Page 27 Operation R-ZQS/R-ZQXS Timer The timer would note down the sum time of the brush motor. Please judge when to perform the maintenance process and note down the maintenance history by the timer. Timer www.rongenclean.com...
  • Page 28 Dispose rubbish and clean up the hopper 1.When sweeping works accomplished, before disposing rubbish, press the dusts shaken switch on the control panel to shake off the dusts on the filtering net. 2.Press Auto button to shut off the machine by one key, open the rubbish board clip, take out the hopper and dispose rubbish.

  • Page 29: Machine Trouble Shooting

    Operation R-ZQS/R-ZQXS 2. After the dumping is completed, please check the environmental safety again, make sure that there are no people and objects within 1.5 meters at the rear and left and right of the machine, press the lift safety lock button, and control the dustbin lift and lower rocker switch at the right rear of the seat .

  • Page 30: Maintenance

    Maintenance sheet The following table appointed the person in charge of each procedure 0 = operator. T = persons who were specially trained Interval Duty Person Description Procedure Roller brush Check for roller brush height Daily Side brush Check for side brush height 100 Hours Check for damage and Filter...

  • Page 31: Battery Charging

    Maintenance R-ZQS/R-ZQXS Battery charging Important Information: When charging, make sure the charger has been setup based on the correct battery type. 1. Drive the machine to a flat, dry surface.Note: Make sure the area is well ventilated. 2. Turn the machine ON/OFF key switch off. FOR SAFETY: Before leaving or servicing fig 79 machine, stop on level surface, and turn off machine.

  • Page 32: Push,Drag And Deliver Machine

    Push,drag and deliver machine Push or drag machine If the machine is turned off and the electromagnetic brakeon the front motor is relieved, you can push it forward or backward, but you do not drag it from the front. Pushing or towing the machine If machine turn off and release the electromagnetic brake on the front drive motor, push machine to move forward or backward but do not tow machine from the front.

  • Page 33: Machine Storage

    Maintenance R-ZQS/R-ZQXS Machine Storage The following steps should be taken when storing the machine for extended periods of time. 1. Clean the filter and trash bin. Open the trash bin to promote air circulation. 2. Park the machine in a cool, dry area. Do not expose the machine to rain. Store indoors.

  • Page 34: Type

    General Machine Dimensions/Capacities Project size / capacity Length 2260mm Height 2150mm Width 1900mm Sweeping width of the rolling brush 800mm Side brush diameter 500mm×4 Sweeping width (with / without brush) 1900mm/800mm Filtration same area Bin capacity 160L Weight / including standard battery 980Kg component Water tank capacity...
  • Page 35 Specifications R-ZQS/R-ZQXS 1900MM 2150MM 2260MM 1900MM www.rongenclean.com...
  • Page 36 RONGEN Product Warranty Card (Main Card) (This warranty card is the main evidence of warranty service, please make it safekeeping) Warranty regulations: During the warranty period, the malfunction caused by the normal use according to the instruction manual shall be repaired free of charge. Please take the repair product warranty card and invoice to the seller for free repair.
  • Page 37 R-ZQS/R-ZQXS Product Warranty Card(Vice Card) 1.Product information: Product Model and Name: ______________________________________ Serial No: ___________________________________________________ 2. User Information: ___________________________________________ Final User Company: ________________ Tel: _____________________ Address: ________________________ Fax: ____________________ E-mail: __________________ Post Code:_______________________ 3. Sales Company Information: __________________________________ Sales Company Name: (Effective seal)____________________________ Address: ____________________________________________________ Contact: _____________________ Tel: _________________________ Post Code: _______________...
