Rikon Power Tools 80-980 Quick Start Manual

2" WIDE GRINDER GUARD KIT
RIKON's 2" Wide Grinder Guard Kit is designed to replace the standard 1" wide wheel guards on RIKON 8" bench
grinders. This will allow a variety of wider abrasive, CBN or Diamond wheels to be used on these grinders
Fully read and understand all of these instructions before assembling these wider guards onto your
grinder. Read the manual that came with your grinder to understand the proper use and safety of this machine.
DO NOT operate your bench grinder if you do not fully understand the limitations of this tool.
NOTE: Please reference the Manufacturer's Part Number
when calling for Replacement Parts.

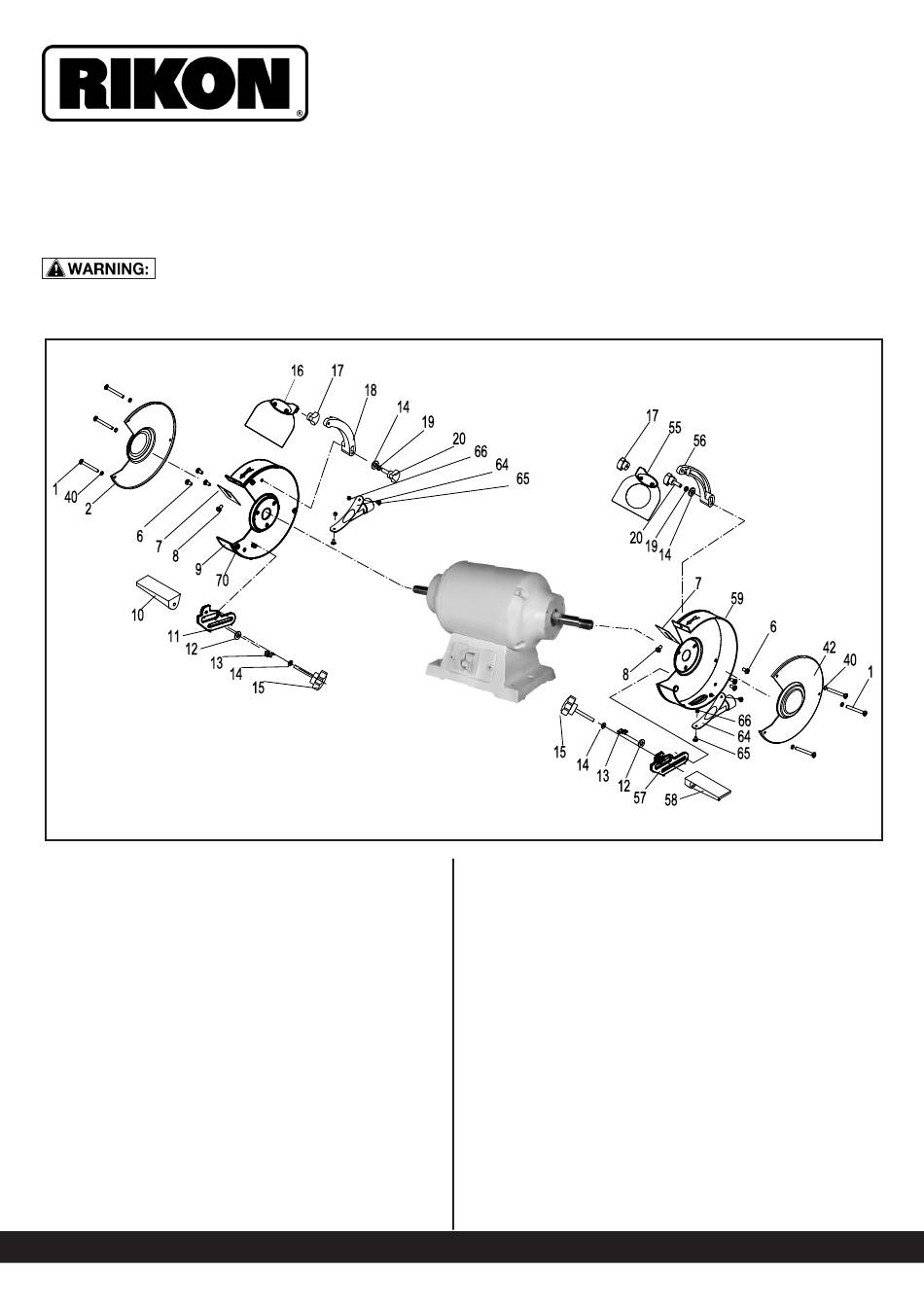

KEY NO. DESCRIPTION
1 Phillips Screw M5x62
2 Left wheel cover
6 Phillips Screw+Spring washer M6x18
6 Phillips Screw+Spring washer M5x10
7 Spark deflector
8 Phillips Screw+Spring washer+
Flat washer M5x10
9 Left inner wheel guard
10 Left movable work rest
11 Left fixed work rest
12 Flat washer D8
13 Fixed work rest locking knob M8x12
14 Flat washer D6
15 Bracket locking knob M8x12
16 Left eyeshield assembly (plain)
80-980M1
for more efficient grinding and sharpening of your tools and projects.
QTY PART NO.
6 P80-820-1
1 P80-820-2
6 P80-808-6
6 P80-805-6
2 P80-820-7
2 P80-808-8
1 P80-820-9
1 P80-820-10
1 P80-820-11
2 P80-808-12
2 P80-820-13
4 P80-808-14
2 P80-820-15
1 P80-808-16
877-884-5167
YOUR
GRINDER
MOTOR
KEY NO. DESCRIPTION
17 Eyeshield locking knob M5x14
18 Left eyeshield bracket
19 Spring washer D6
20 Eyeshield bracket locking knob M6x30
40 Spring washer D5
42 Right wheel cover
55 Right eyeshield assembly (magnify)
56 Right eyeshield support
57 Right fixed work rest
58 Right movable work rest
59 Right inner wheel guard
64 Dust exhaust port
65 Half rnd head square neck screw M5x16
66 Flange nut M5
70 Hex nut M5
(welded square nut replacement)
x Warning label
(not shown)
www.rikontools.com
80-980
QTY PART NO.
2 P80-808-17
1 P80-808-18
2 P80-808-19
2 P80-808-20
6 P80-820-40
1 P80-820-42
1 P80-808-55
1 P80-808-56
1 P80-820-57
1 P80-820-58
1 P80-820-59
2 P80-808-65
4 P80-820-65
4 P80-820-66
6
P80-808-62
P80-808-LABEL-Warning
1
RIKON Power Tools, Inc.
North Andover, MA 01845
