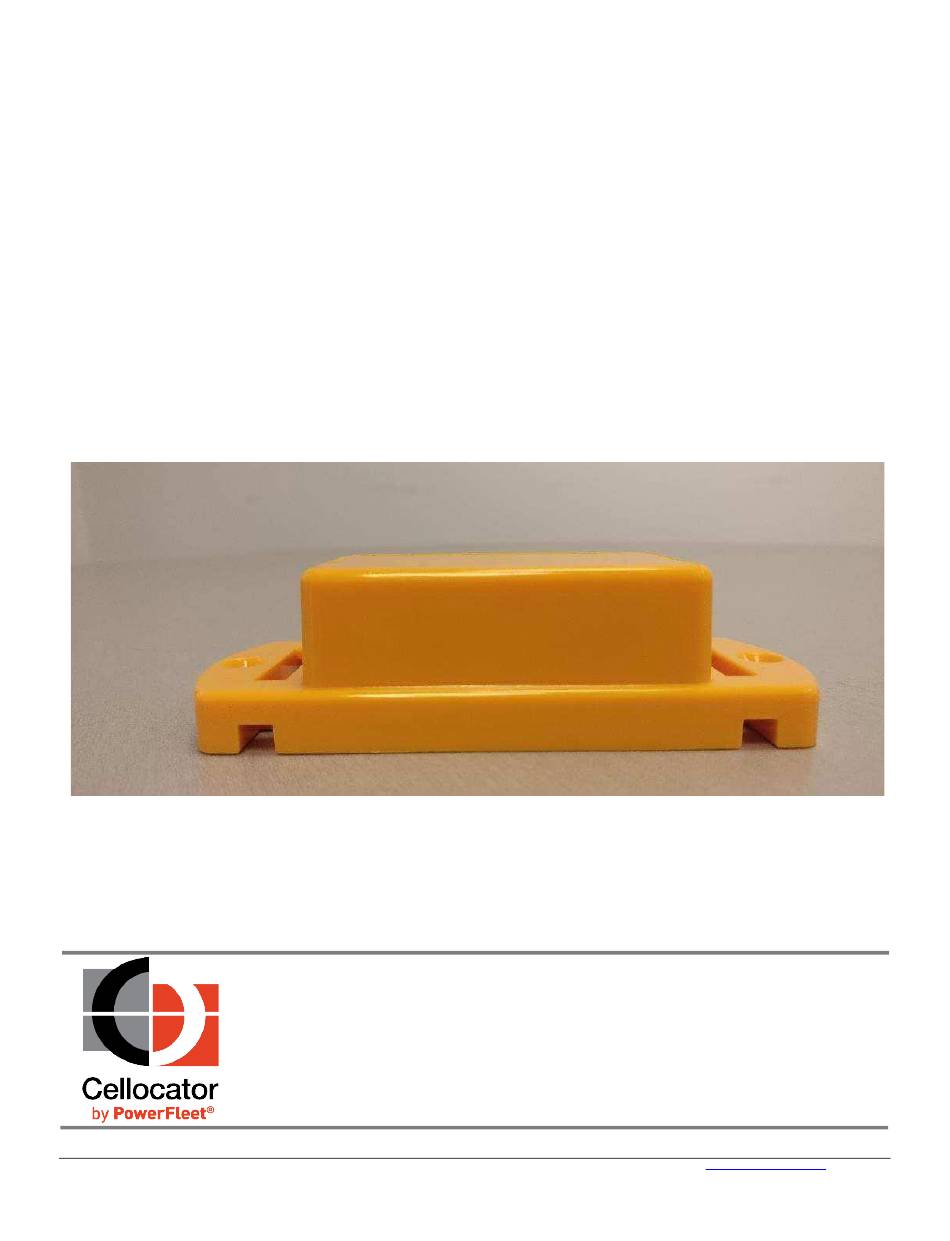

Product Overview
CelloSense\ LV-760
Proprietary and Confidential
Version 1.2
Revised and Updated: May 30, 2022
CELLOCATOR - A POWERFLEET® BRAND. 14 HAMELACHA ST. ROSH HA'AYIN 4809133, ISRAEL ● TEL: 972-3-5723111 ●
WWW.CELLOCATOR.COM
Copyright © 2022 by PowerFleet Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CELLOCATOR CelloSense LV-760 and is the answer not in the manual?

Questions and answers

Summary of Contents for PowerFleet CELLOCATOR CelloSense LV-760

  • Page 1 Product Overview CelloSense\ LV-760 Proprietary and Confidential Version 1.2 Revised and Updated: May 30, 2022 CELLOCATOR - A POWERFLEET® BRAND. 14 HAMELACHA ST. ROSH HA'AYIN 4809133, ISRAEL ● TEL: 972-3-5723111 ● WWW.CELLOCATOR.COM Copyright © 2022 by PowerFleet Inc.

  • Page 2: Legal Notices

    (i) discovered by purchaser during the warranty period but purchaser does not notify PowerFleet Inc. Until after the end of the warranty period, (ii) caused by any accident, force majeure, misuse, abuse, handling or testing, improper installation or unauthorized repair or modification of the product, (iii) caused by use of any software not supplied by PowerFleet Inc., or by use of the product other than in accordance with its documentation, or (iv) the result of...
  • Page 3 (Section 18.213) The interference potential of the device or system. • CelloSense\LV-760 Product Overview Page 3 of 19 Copyright © 2022 by PowerFleet Inc.
  • Page 4 Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC Rules. Powerfleet has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment.
  • Page 5 à autre antenne ou autre émetteur. The distance between user and products should be no less than 20cm La distance entre l'utilisateur et de produits ne devrait pas être inférieure à 20cm CelloSense\LV-760 Product Overview Page 5 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 6: Table Of Contents

    CelloSense Devices ....................17 Communication with the CelloTrack Nano 20 Hub ............17 Pairing CelloSense Devices with the Nano 20 Hub ............17 Technical Specifications ................... 18 CelloSense\LV-760 Product Overview Page 6 of 19 Copyright © 2022 by PowerFleet Inc.
  • Page 7 Table 4: BLE (CelloSense) vs. Active/Passive RFID ......................12 Table 5: Applicability Table ............................13 Table 6: HW Components ............................16 Table 7: CelloSense Specifications ..........................19 CelloSense\LV-760 Product Overview Page 7 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 8: Introduction

    Cellocator’s long-life, low maintenance sensor, industrial device Bluetooth Low Energy (BT Smart) Printed Circuit Board Over The Air FOTA Firmware Update Over The Air Table 1: Definitions, Acronyms and Abbreviations CelloSense\LV-760 Product Overview Page 8 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 9: References And Bibliography

    CelloSense Release Notes CelloSense Installation Guide Table 2: References and Bibliography List of Changes Version Change Remarks Date Approved version May 30, 2022 Table 3: List of Changes CelloSense\LV-760 Product Overview Page 9 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 10: Cellosense At A Glance

    (doors closing/opening) internal sensors. Figure 1: CelloSense Sensors CelloSense\LV-760 Product Overview Page 10 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 11: Main Features And Benefits

    Cellocator's long-standing expertise in logistics and tracking. The example vertical markets in the following sections are just a sample of the capabilities of the CelloSense. CelloSense\LV-760 Product Overview Page 11 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 12: Cold Chain Compliance

    This helps to ensure adequate shelf-life time, guarantee compliance with shipment regulations, and even enables a real-time response in exceptional cases. Figure 2: Cold Chain Solution CelloSense\LV-760 Product Overview Page 12 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 13: Real-Time Tracing & Inventory Management

    Figure 3: Real-Time Tracing & Inventory Management CelloSense\LV-760 Product Overview Page 13 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 14: Cargo Monitoring Logistics / Scheduling / Proof Of Delivery

    Internal to tag using RF from reader Battery Required signal Medium Very low Very high strength to unit Range Up to 100m Up to 3-5 meters Up to 100m CelloSense\LV-760 Product Overview Page 14 of 19 Copyright © 2022 by PowerFleet Inc.
  • Page 15 (restricted tracking (WSN) area), user identification, vending machine Frequency 2.4G Various: LF, HF, UHF, SHF Bit rate ~200 kbit/s Table 4: BLE (CelloSense) vs. Active/Passive RFID CelloSense\LV-760 Product Overview Page 15 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 16: Cellosense Features And Capabilities

    It is based on the interrupt mechanism (of the accelerometer chip) for acceleration incidents that pass a certain (configurable) threshold. When the acceleration reading crosses the configured threshold for longer than the configured time, an Impact event is generated. CelloSense\LV-760 Product Overview Page 16 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 17: Temperature Sensor

    Using Nano 20 and paired CelloSense devices as a local WSN enables you to leverage an environment, within which you can sense where different measurements are expected CelloSense\LV-760 Product Overview Page 17 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 18: Data Logger

    3.1.6 Configurable parameters The following transmission and connection parameters can be configured: CelloSense Tx power (+8 to -18 dBm) Tx duration (20-5100 ms) CelloSense\LV-760 Product Overview Page 18 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 19: Mounting

    PN: 712-00020 adhesive, Two screws CelloSense – Magnet Installed in locations to device work opposite the CelloSense (such as on a PN: 712-00010 door). Table 6: HW Components CelloSense\LV-760 Product Overview Page 19 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 20: Cellosense Devices

    Pairing is performed via the Cellocator Programmer tool (shown in the following image) by entering the CelloSense MAC address. For further information, download the CelloTrack Nano Installation Guide from the Cellocator Knowledge Base. CelloSense\LV-760 Product Overview Page 20 of 19 Copyright © 2022 by PowerFleet Inc.

  • Page 21: Technical Specifications

    Environment Temp, operation -30°C to +85°C Temp, storage -40°C to +85°C Ingress Protection IP69K Vibration, Impact Shock resistance according to EN 60068-2-27, Vibration according to EN 12830 CelloSense\LV-760 Product Overview Page 21 of 19 Copyright © 2022 by PowerFleet Inc.
  • Page 22 Unit passes all relevant IEC 60529 – IP69K regulation tests Environmental Unit passes all relevant environmental regulation tests Dimensions & Weight Dimensions 111 x 46.3 x 28.6 mm Weight 90 gr Table 7: CelloSense Specifications CelloSense\LV-760 Product Overview Page 22 of 19 Copyright © 2022 by PowerFleet Inc.
