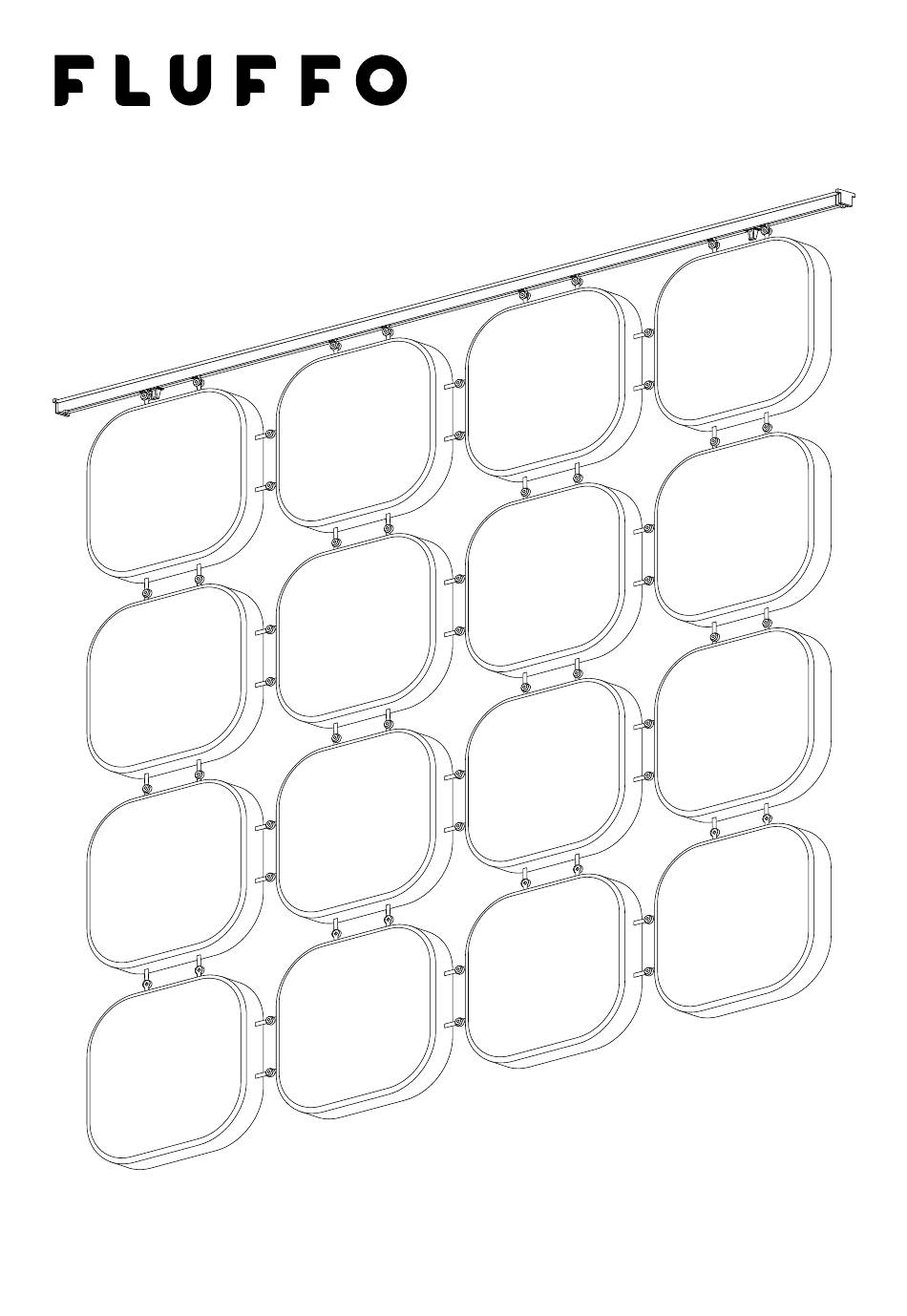

FLUFFO WEB acoustic curtain
mounting instructions
Thank you for choosing
FLUFFO WEB acoustic curtains.
Their installation is simple, fast and clean.
You can do it yourself easily, just follow these instructions.
Should you need our help
at any stage of assembly please call:
www.fluffo.pl
+48 502 552 392

Advertisement

loading
Need help?

Need help?

Do you have a question about the WEB acoustic curtain and is the answer not in the manual?

Questions and answers

Summary of Contents for FLUFFO WEB acoustic curtain

  • Page 1 FLUFFO WEB acoustic curtain mounting instructions Thank you for choosing FLUFFO WEB acoustic curtains. Their installation is simple, fast and clean. You can do it yourself easily, just follow these instructions. Should you need our help at any stage of assembly please call: www.fluffo.pl...

  • Page 2: Directions For Use

    ATTENTION: Depending on the type of ceiling and the model of FLUFFO WEB panels, the installation may be slightly different. Installation of the rail to a plasterboard or concrete ceiling, will require wall plugs and screws (not included in the FLUFFO WEB accessories).
  • Page 3 Installation of the WEB rail on a raster / system ceiling ATTENTION! Before installation, make sure the ceiling is stable and its load-bearing capacity allows for the curtain to be hung. A Choose the ceiling profile to which the WEB rail will be attached, make sure that it can bear the WEB curtain.
  • Page 4 Mounting the WEB rail A Determine the required total length of the rail and, if necessary, trim its sections to obtain the desired length (one WEB rail is 2 m long). B Make sure that the rail connector (B1) does not coincide with the ceiling brackets (B2). C Loosen the four connector screws (C1), slide the rail ends into the connector (C2) and tighten the screws (C3).
  • Page 5 Connecting WEB panels A Prepare a clean surface on which you will connect individual panels, e.g. a large table or floor. B Connect individual panels with the clips into single columns (B1 and B2) (note – use shorter clips). It is most convenient to arrange and connect two columns at a time (for Hexa and Shell models – 3 columns).
  • Page 6 (E2). Do not use the stoppers if the curtain is to remain mobile. FLUFFO. Fabryka miękkich ścian, Factory and office: ul. Poprzeczna 15a, Wierzbin, 05-083 Borzęcin Duży tel. +48 22 881 69 02 (8:00-16:00), +48 502 552 392 (24h), fluffo@fluffo.pl...
