Summary of Contents for Heaco MDI907

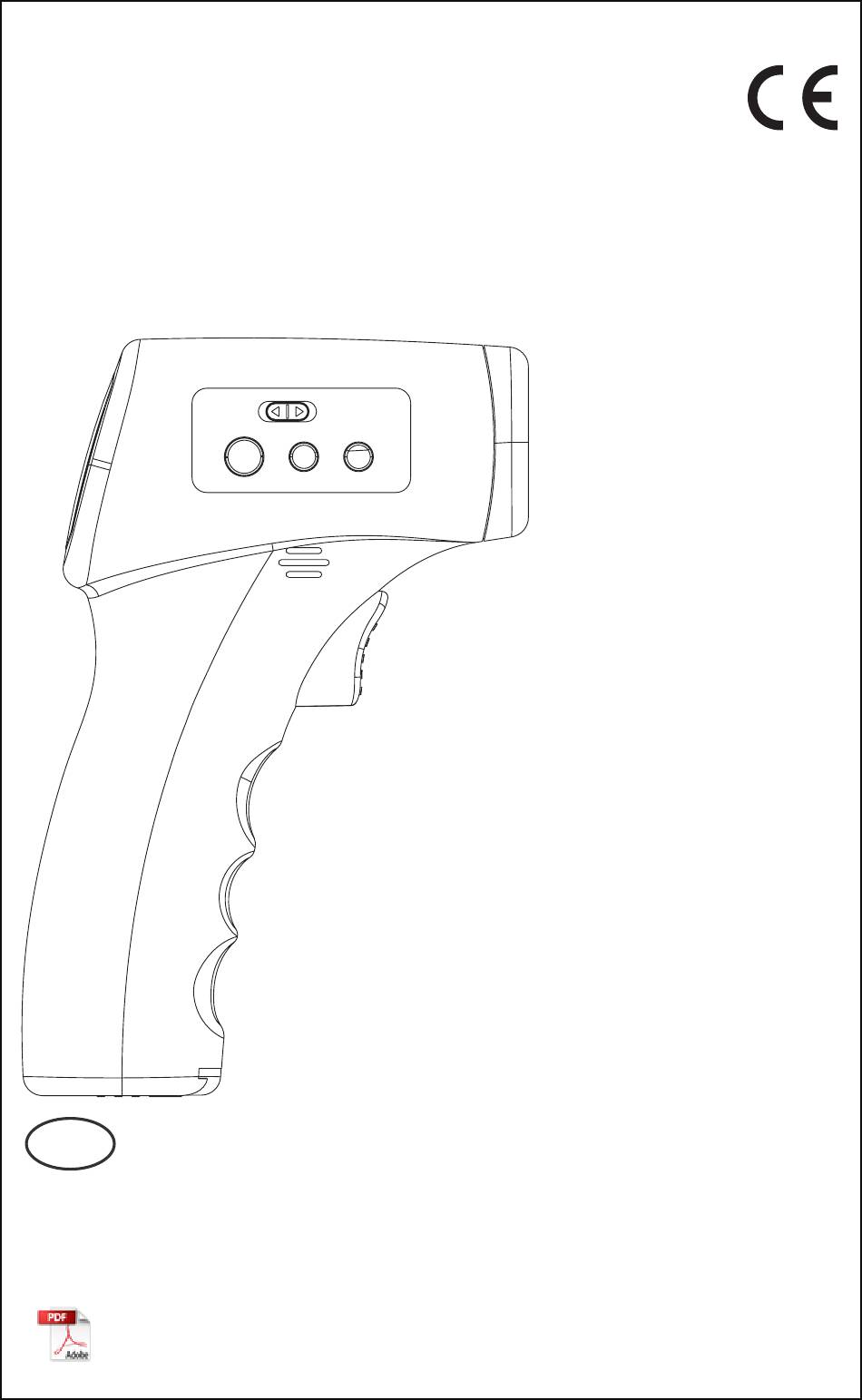

- Page 1 0123 Infrared Thermometer Instruction Manual Customer Model: MDI907 Factory Model: MDI903 Tip: A wrong operation can cause a inaccurate measurement result, the correct measured distance is 1-5 cm to forehead (between the eyebrows). July 2020 VER.1.0...
- Page 2 Introduction infrared (IR) technology to measure temperature instantly and accurately on the forehead or object. not need to contact body or object to ensure the safety and hygiene. easy to check the temperature. It only takes 1 second to take measurement and reading.
- Page 3 Safety Information This thermometer is not intended to substitute for a consultation with your physician.The forehead scan temperature Basic safety precautions should always is used on or near children and disabled persons. young. Do not touch the lens. The swallowing of small parks like on may cause the suffocation.
- Page 4 Please take off the battery if you do not intend to use within 3 months. Replace with new batteries if the unit display a low battery symbol. Do not mix the old and new batteries together. This article is not for professional usage.
-
Page 5: Safety Information
Safety Information should always be followed including the warning and the caution symbols listed in the instruction manual : Symbol descriptions The following symbols may appear in this manual, on the label, and its use. serious personal injury or death . minor personal injury, product damage, or property damage . - Page 6 Safety Information WARNING : Do not dispose of electrical appliances as unsorted municipal waste, substances can leak into the groundwater and get into the food chain, damaging your health and well-being. 1.Internally powered equipment; 2.Type BF applied part; 3.Protection against ingress of water: IPX0; 5.Mode of operation : Continuous operation ;...
-
Page 7: Product Structure
Product structure Body Display screen Mode switch Sensor probe Down (-) button Up (+) button Setting button Display Object temperature indicator Body temperature indicator Temperature unit Memory mode Low battery indicator Sound indicator Temperature reading... -
Page 8: Battery Installation
Battery Installation battery compartment as the arrow direction accordingly. batteries, and ensure each battery is in the proper direction.Close the battery Low battery and replacement During power on, the low battery symbol will display once the unit starts to work, and you should replace with new batteries, otherwise the unit can not work. - Page 9 Setting How to set Display Function Description Unit selection Toggle between Unit °C and °F With“OPEN” on the alarm sound screen means the sound is on With “CLOS” on the screen means the sound is off...
- Page 10 Use of the unit Pre-measurement forehead and temple area differs from the internal temperature, which is taken orally or rectally. Vasoconstriction, an effect which constricts non-contact thermometer may be unusually low. If the measurement therefore does not match the patients own perception or is unusually oral or rectal thermometer.
- Page 11 Use of the unit Measuring procedure As a body thermometer 1) Select body mode , the temperature unit will appear. (Picture at right) when it has been completed, you can hear 1 short beeps, at the same time, the reading will appear on the display.
- Page 12 Use of the unit Measuring procedure As a object thermometer Select Object Mode, the temperature unit will appear. (Picture at right) button to take measurement when it has been completed, you can hear 3 short beeps, at the same time, the reading will appear on the display Note : •...
-
Page 13: Troubleshoot
Trouble shoot Error indicators The following symbols will appear on the display when measurement is abnormal Symbol Correction It is shown on the LCD with red LED. In body mode. Measured temperature is below It is shown on the LCD with red LED. It is shown on the LCD with red LED. -
Page 14: Care And Maintenance
Care and maintenance Care for the main unit • Keep the unit in the storage case when not in use. • • Maintenance Do not clean the unit with Store the unit in a clean and naphtha, thinner or gasoline dry location. - Page 15 Description Non-contact Infrared Thermometer Display LCD digital display Measuring Forehead and object surface Measurement range Object mode 0.0~100.0°C(32.0°F-212.0°F); Temperature unit Display-resolution Accuracy Memory function Power source 2 pcs AAA alkaline battery Automatic power- In 30 seconds Main unit weight Approx. 93 gr (batteries not included) Battery life Could be used for 500 times for normal condition...
