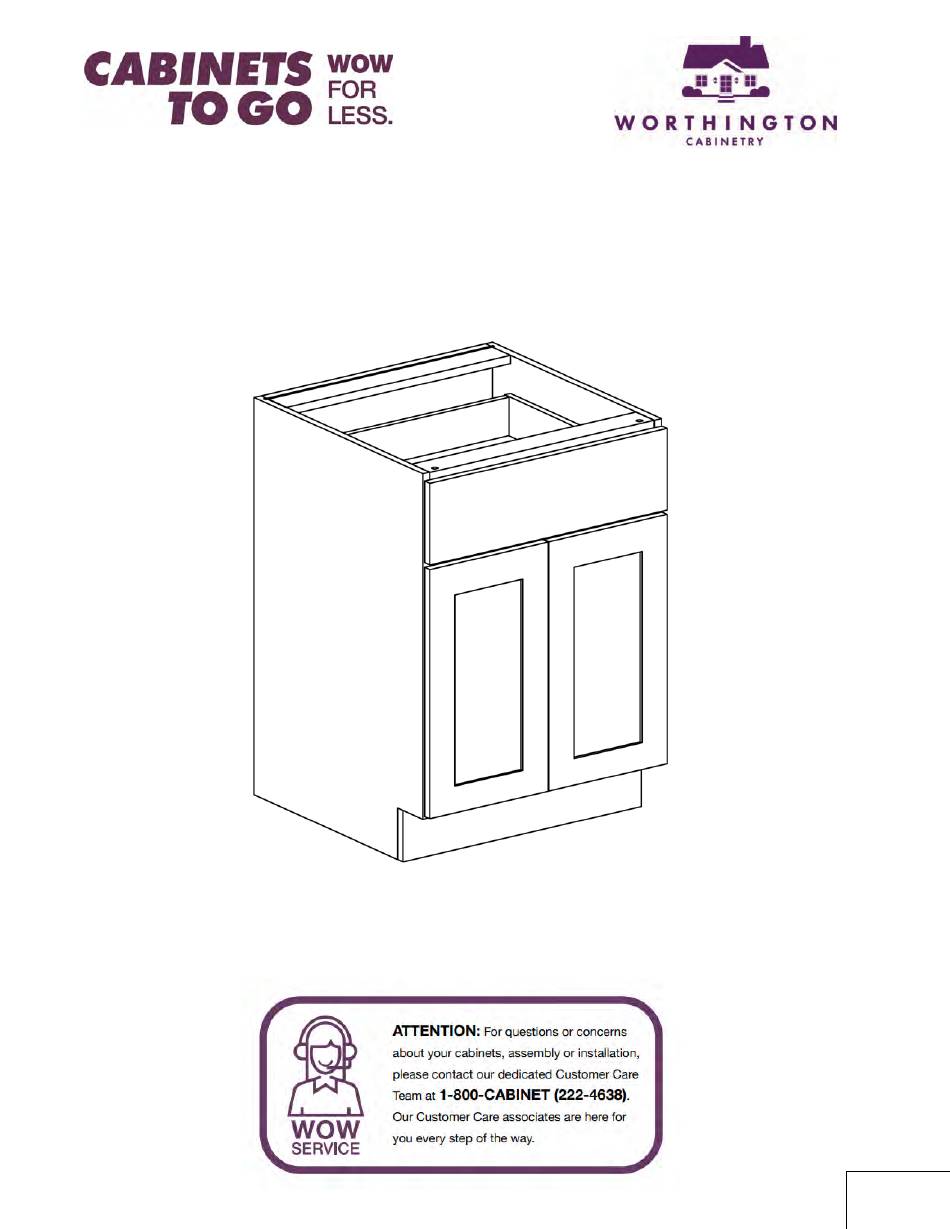

- Page 1 SOFT CLOSE DRAWER GLIDES INSTRUCTIONS These assembly instructions are only applicable For Base Cabinets with 2 doors. ITEM# BC24-BC27-BC30-BC33-BC36 Page 1...
- Page 2 ►General Instructions: Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come. Carefully read the instructions before starting the installation. During assembly, please follow all generally accepted safety procedures.
- Page 3 Step 1 After unpacking, place the panels on a soft surface. Attach dowels and hardware to the Side panels. • Right side panel (A) • Left side panel ( C) 14PCS 16PCS Step2 Insert all the cam locks into the braces and bottom panel, insuring they have the arrows pointing towards the hole. •...
- Page 4 Step 3 Step4 Insert the Right side panel, bottom panel Insert the back panel. and Top & Back Braces • Back panel (E) • Right side panel (C) • Bottom panel (D) • Top Braces (G) • Back Braces(B) Step 5 Step 6 Insert the next Left Side Panel Insert the toe kick...
- Page 5 GHDC324WH GHDC324WN GHDC330WH GHDC330WN Drawer Assembly Drawing 12PCS Sides � Page5...
- Page 6 Step 7 Attach hinges to doors and cabinets • Door(H) 4PCS Step 8 Mount Shelf clip and Shelf • Shelves (K) 4 PCS Page 6...
