Mac Mah Aurora 150 BSW User Manual

150w led bsw 3in1 moving head light
Hide thumbs

Advertisement

Table of Contents

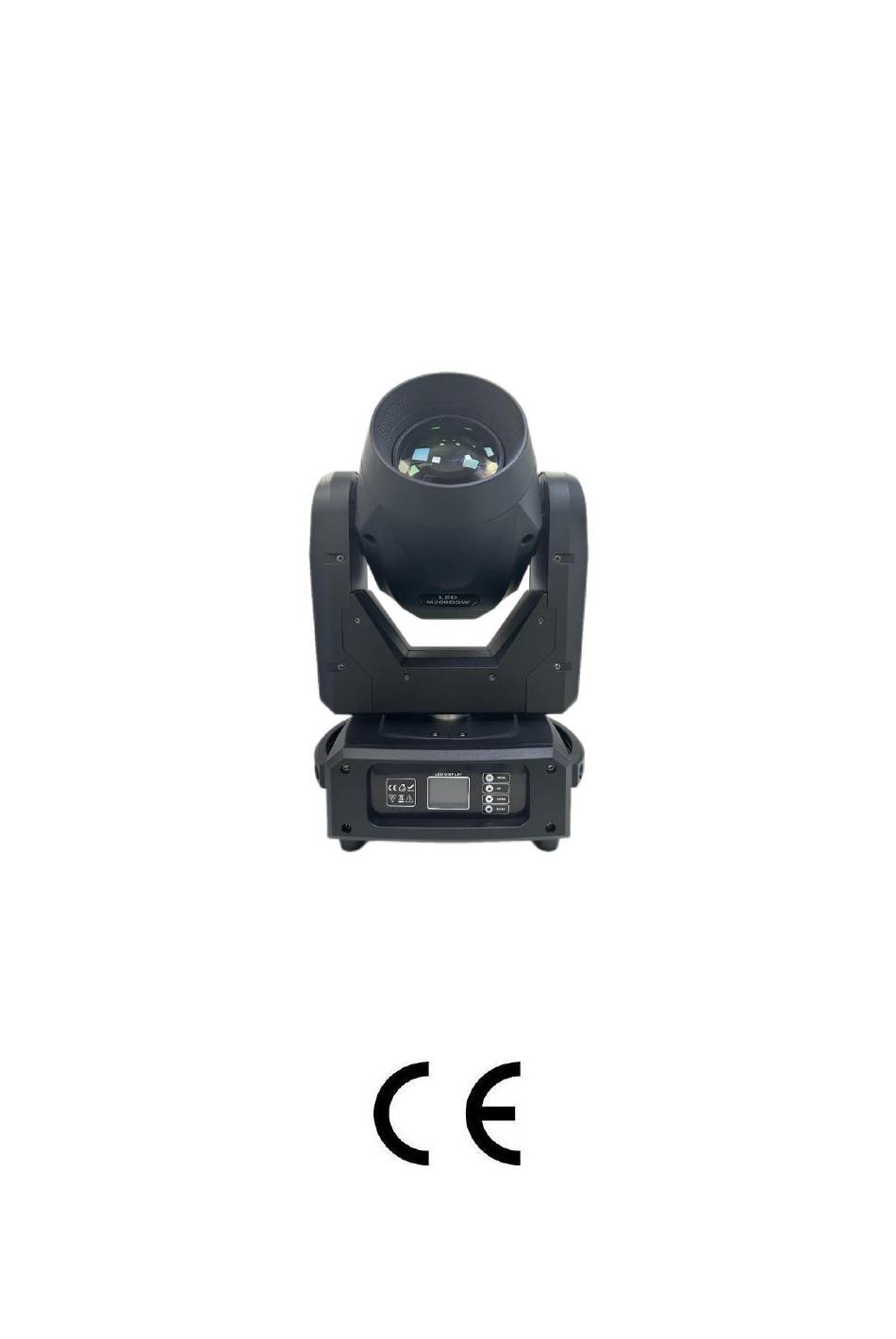

150W LED BSW 3in1 Moving
Head Light
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aurora 150 BSW and is the answer not in the manual?

Questions and answers

Related Manuals for Mac Mah Aurora 150 BSW

Summary of Contents for Mac Mah Aurora 150 BSW

  • Page 1 150W LED BSW 3in1 Moving Head Light USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: General Information

    1. General Information: Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operation. This manual included installation and using information. Please install and operate it according to this manual. Unpacking:Once receive it,please handle it carefully and check if there is some shatter because of transportation and the following fittings are OK.

  • Page 3: Installation

     Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher than this.  Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing or serving.

  • Page 4: Technical Specifications

    3. Technical Specifications Voltage: AC 100~240V, 50/60Hz Power Consumption: 250W Light Source: 1pc 200W White LED Beam Angle: 11°(on full open) 2°/4°/6°/8°/10° (with beam reducer) 3°/6°/9°/12°/15° /20°(with zoom lens) Spot Angle: Fix Gobo: 2°- 15°(with zoom lens) Rotating Gobo: 10°-17°(with zoom lens) Wash Angle: 15°-28°...
  • Page 5 1. Current DMX Address 2. To show customer’s LOGO 3. Yes DMX/NO DMX: with/without DMX Signal 4. Current DMX Channel Mode, 17ch/20ch 5. Current Master/Slave Mode 6. Current Running Mode: DMX512/Auto/User 7. System Error information. If a red "x" is displayed, it means that the self-check found an error. (Press the down key to view the error information) 8.
  • Page 6 Tilt 000-255 P/T Speed 000-255 000-255 Strobe 000-255 Color 000-255 SHOW 000-255 XY Macro 000-255 Macro Speed 000-255 Gobo 000-255 GoboWheel 000-255 Rot Gobo 000-255 Prism1 000-255 Prism1 Rot 000-255 Frost/Angle 000-255 Focus 000-255 M/S Mode Master/Slave Master/Slave set Manual Pan/Tilt On: Pan/Tilt manual move Invert Pan On: Pan invert move...
  • Page 7 S-Curve SquareRoot Square Normal Fan Mode Silent Manual Manual set the steps 01-12 Select Step: 01-12 User Program (Details see 5.2 Record Time: 000-255 part) Record Clear ALL Clear all data Middle: Pan& Tilt in Middle Power On (When Power on, position, the other values are 0 If no DMX DMX Error...

  • Page 8: Information Led

    -500-500 Prism1HalfStep: -500-500 FrostHalfStep: -500-500 Auto Lock: Display auto lock On/Off Sleep:No/30sec/2 Display sleep time: Always Display min/10min on/Off after 30s/2min/10min Flip:On/Off Display reverse English Language Chinese FactorySetting Logo:Yes/No When changed the display, it will recover the motors’ Adj Recover value to the new display DMX Monitor Show current DMX value...
  • Page 9 Description: 1. Direct editing the numbers In “OPTION”-“User Program”-“Manual”, There will show “Step01-“Step12. Set “Step01”, The first one is set the step keep time(Time), 000-255, the Time must be greater than 0, otherwise the step is ignored. Then is Chn01-Chn20, the value is 000-255, to set each Channel’s value.

  • Page 10: Dmx Channel Table

    If the error occurs, each functional motor will not be able to operate normally. please check whether the communication connection lines between the boards are in poor contact. The communication between CPU and lamp driver. If this Lamp communication go out of work, the CPU cannot determine the lamp is on or off, and some functions may be affected.
  • Page 11 37-43 SHOW4 - Color 5 + Gobo 4 44-50 SHOW5 - Color 6 + Gobo 5 51-57 SHOW6 - Color 7 + Gobo 6 58-63 SHOW7 - Color 8 + Color 9 + Gobo 7 64-73 SHOW8 - Color 2 + Color 3 + Rot Gobo 1 74-83 SHOW9 - Color 3 + Rot Gobo 2 84-93...
  • Page 12 SHOW25 - Color wheel rainbow flow rotate + 242-255 Rot Gobo 6 rotate and shake + Prism + Prism rotate 0-127 PT Macro 128-255 Macro Speed 0-255 Speed from fast to slow 000-015 White 016-018 White+Color 1 019-021 Color 1 022-024 Color 1+Color 2 025-027...
  • Page 13 193-255 Counterclockwise rotate from slow to fast 000-007 White 008-015 Gobo 1 016-023 Gobo 2 024-031 Gobo 3 032-039 Gobo 4 040-047 Gobo 5 048-055 Gobo 6 056-063 Gobo 7 64-72 Gobo 1 Shake from slow to fast Fixed Gobo 73-81 Gobo 2 Shake from slow to fast 82-90...
  • Page 14 054-063 Gobo 6 64-73 Gobo 1 Shake from slow to fast 74-83 Gobo 2 Shake from slow to fast 84-93 Gobo 3 Shake from slow to fast 94-103 Gobo 4 Shake from slow to fast 104-113 Gobo 5 Shake from slow to fast 114-127 Gobo 6 Shake from slow to fast 128-190...
  • Page 15 Focus 0-255 Focus from far to near 8-15 16-131 Strobe from slow to fast 132-139 140-181 Fast open-slow close from slow to fast Strobe 182-189 190-231 Fast close-slow open from fast to slow 232-239 240-247 Random strobe from slow to fast 248-255 Dimmer 0-255...
