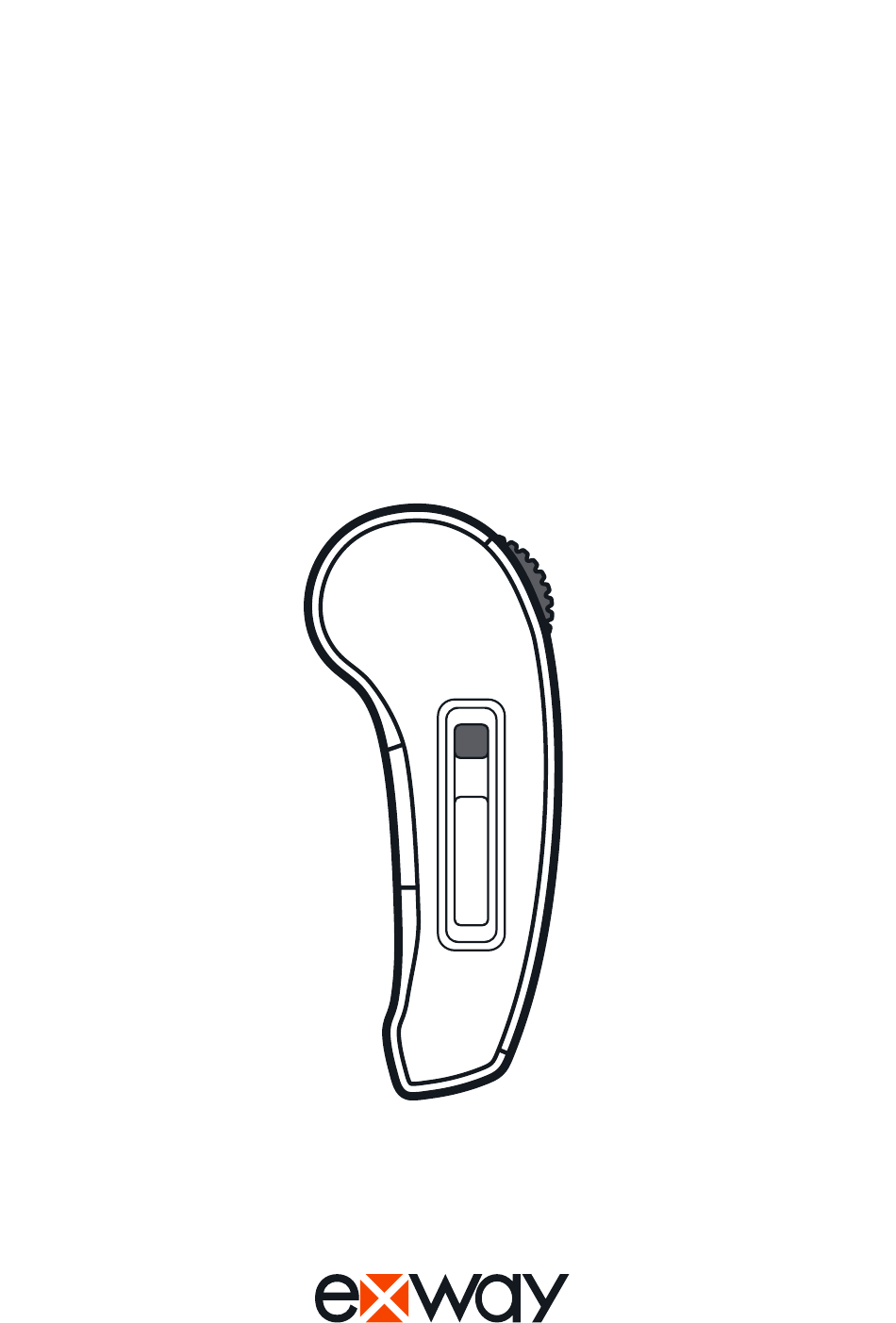

Page 1 Exway R3 Remote User Manual...
Page 2 R3 remote. Download the ExSkate app You'll need the ExSkate app to access the full range of features on the R3 remote. Download it from the App Store or Google Play Store to get the best experience with your R3 remote.
Page 3: Table Of Contents
Contents Remote Introduction User Interface Power ON/OFF Changing ride modes Cruise control mode Toggling forward/reverse Tank mode Turbo mode Speed limited mode Button feedback System Menu Rear controller pairing Front controller pairing 2WD/4WD select Throttle calibration Controller ﬁrmware Speed unit select Motor conﬁguration Other settings Advanced Settings...
Page 4: Remote Introduction
All new hardware Powering the R3 is our new MCU 3.0 chip, designed to interface with the new ESC 3.0 controller and ExSkate app. Boards with the older ESC 2.0 (X1 Max, Flex ER, Wave, Atlas Carbon, and earlier generations) are not compatible.
Page 5: Button Feedback
Remote Interface Navigation Guide Power ON/OFF System Menu Change Ride Mode Toggle Cruise Control Hold button A for 3 seconds Hold button A for 7 seconds Press button A once Press button A twice while (While remote is OFF) throttle is engaged Parking Brake Toggle Forward/Reverse Tank Mode...
Page 6: System Menu
System Menu 1/9. RE-PAIR1: Rear Controller Pairing SETTING ESC1 RE-PAIR ESC1 1/9 RE-PAIR1 2/9 RE-PAIR2 REMOTE PAIRING 3/9 WD MODE 1/9. Pair Rear Controller Esc2 Repair Pairing In Progress 2/9. RE-PAIR2: Front Controller Pairing SETTING ESC2 RE-PAIR ESC2 1/9 RE -PAIR1 2/9 RE -PAIR2 REMOTE PAIRING 3/9 WD MODE...
Page 7: Controller Firmware
5/9. F/W VERSION: View Controller(s) and Remote Firmware Versions F/W VERSION SETTING R: V1.0.00 4/9 CALIBRATION 1: V1.0.00.1015 5/9 F/W VERSION 6/9 SPEED UNIT 5/9. View Firmware Firmware Versions 6/9. SPEED UNIT: Switch Between Imperial/Metric Units SETTING SPEED UNIT SPEED UNIT 4/9 CALIBRATION 5/9 F/W VERSION KPH KM...
Page 8: Advanced Settings
Advanced Settings Menu 1/8. QUICK SETUP: Guided Drivetrain Setup and Conﬁguration ADVANCED MOTOR DETECTION 1/8 QUICK SETTING 2/8 POLE PAIRS 3/8 MOTOR GEARS 1/8. Quick Setup Auto Motor Detection *Setup and conﬁguration includes settings 2-6, and automatic motor detection. 2/8. POLE PAIRS: Conﬁgure Pole Pair Count ADVANCED POLE PAIRS 1/8 QUICK SETTING...
Page 9: Wheel Size
5/8. WHEEL SIZE: Conﬁgure Diameter in MM ADVANCED WHEEL SIZE 4/8 WHEEL GEARS 5/8 WHEEL SIZE 6/8 BRAKE LEVEL 5/7. Wheel Size Setting Select Wheel Diameter 6/8. BRAKE LEVEL: Conﬁgure Braking Strength ADVANCED BRAKE LEVEL 4/8 WHEEL GEARS 5/8 WHEEL SIZE 6/8 BRAKE LEVEL 6/8.
Page 10: Other Settings
Other Settings 1/9. TURBO MODE: Enable/Disable Quick Toggle OTHER TURBO MODE TURBO MODE 1/9 TURBO MODE 2/9 FREE MODE 3/9 CRUISE CTRL 1/9. Turbo Mode Setting Enable Turbo Disable Turbo *Enabling Turbo mode unlocks the full performance potential of the board. 2/9.
Page 11: Safe Charge
*SHIFT LOCK DISABLED: Ride mode can be changed while moving and throttle in the neutral position. SHIFT LOCK ENABLED: Ride mode can only be changed when board is stationary. 5/9. SAFE CHARGE: Toggle On-The-Fly Charging (AUXPack) OTHER SAFE CHARGE SAFE CHARGE 4/9 SHIFT LOCK 5/9 SAFE CHARGE DISABLE...
Page 12: Ota Updates
4. If an oﬃcial ﬁrmware update is available, you'll get a prompt to install it in your device menu automatically. Some updates may be essential to continue using the app with your device. ① ② R3 Remote Auto-Update Once the ﬁrmware has been downloaded, the app will automatically start uploading it to the DOWNLOADING REMODE DATA DATA .
Page 13: Ota Upgrade
Board Firmware Auto-Update A prompt will appear on the remote when downloading ﬁrmware from the app if a new version is available for your board. Selecting YES will start the board update once the remote ﬁrmware is installed and remote restarted. NEW : V 1 .
Page 14 8/9.AUTO HOLD OTHER AUTO HOLD UNPAIR PHONE 8/9 AUTO HOLD 9/9 EXIT 8/9.AUTO HOLD Conﬁrm If you're pairing your remote and phone for the ﬁrst time, navigate to the system menu on the remote to enable Bluetooth, then use the mobile app to initiate the pairing process.
