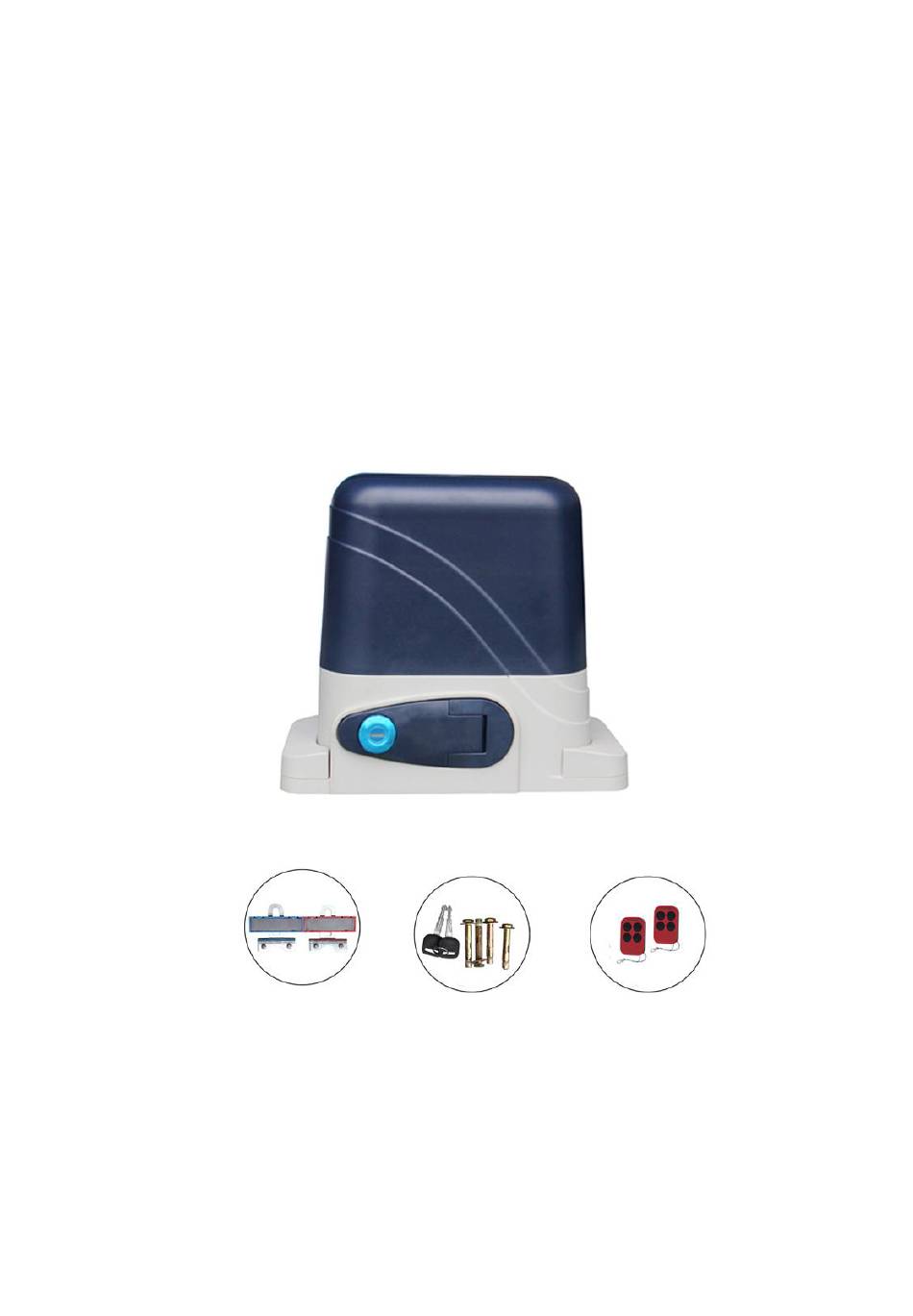

- Page 1 DC Sliding Gate Opener User’s Manual Attention The manual should be read cover to cover once prior to beginning installation...
- Page 2 1. Summary This equipment is one of the auto gate openers launched by our company which adopt new design and integrated control system. Our new sliding gate opener has many features such as: low noise, light weight, powerful starting torque, stability, reliability and is compact and stylish. The motor will still work for a short period of time using lower voltage.
- Page 3 4. Installation of mechanical parts 4.1 Installation of motor 1. Depending on the installation size of the motor and mounting height of racks, after determine the installation position of the motor base plate. Install the motor on proper position ,and then fixed in that place.so that the motor can open the gate normal and operation.
- Page 4 Diagram 4 4.6 Installation of infrared sensors(photocell) 1. Unscrew the screws on the motor and the remove the motor cover. 2. Let the signal line and power line coming in from outside ,and then connected it according to electrical wiring diagram 3.
- Page 5 Diagram 7 Connect terminal⑦ to the “COM “of photocell RX. Connect terminal ③to the “OUT “of photocell RX. Terminal ⑩ and ⑪ is supplying power for external device. So, connect terminal ⑩ to the “+ “of photocell RX and TX. Connect terminal ⑪...
- Page 6 Diagram 9 Example for wired keypad; Terminal ⑤ and ⑦ connect to wired keypad. Terminal ⑩ and ⑪ to supply power for wired keypad.. 6.START terminal :Single button control mode switch, used for controlling gate“open-close-stop-open-close” cyclically, (Note: if hold press the button for long time would effect some other function) Diagram 10 Example for push button;...
- Page 7 Terminal ⑧ and ⑨ is for flashing light . 10&11 . +24VAC terminal:.DC24V on board power supply for infrared external device 12&13. UPS terminal: A. used for connecting back up battery, which could be charged by electric supply power. Charge current is 20-50mA.
- Page 8 Diagram 14 Terminal ⑮ and ⑯ is for connecting motor wire. Please note : Our factory setting is install motor on the right of gate! When you want to install motor at the left of gate ,please exchange ⑮and ⑯motor wire . 17&18 .24V terminal:used for connection transformer AC24V Diagram 15 Connect terminal ⑰...
- Page 9 5.3.Function testing Diagram 16 Status Indicator LED After control panel power on, the status indicator LED lit up. Motor open-close Blue indicator LED lit up means gate opening. Red indicator LED lit up means instruction gate closing. Encoding format: Our own custom rolling code. Three buttons on the remote control are used to control the door open, close and stop.
- Page 10 now matching successfully. Through digital display to control single button mode, “0” means close single button mode, “1” means open single button mode. Single button control When single button mode close, the three buttons of transmitter control the ”open-stop-close” separately; mode START When single button model open, just the button 1 control the ”open-stop-close”...
- Page 11 After menu setting well, you could press [LRN] button to exit the menu setting and close the display. Number Range Factory set Board sign Soft start time 0~1s 0:Soft start disable Low speed meet 0~20 level 8 level M LOW resistance OVER LOAD High speed meet...
