06-3210 Dual Tap Transformer 200V – 230V
For All Genius 30 Series Generators

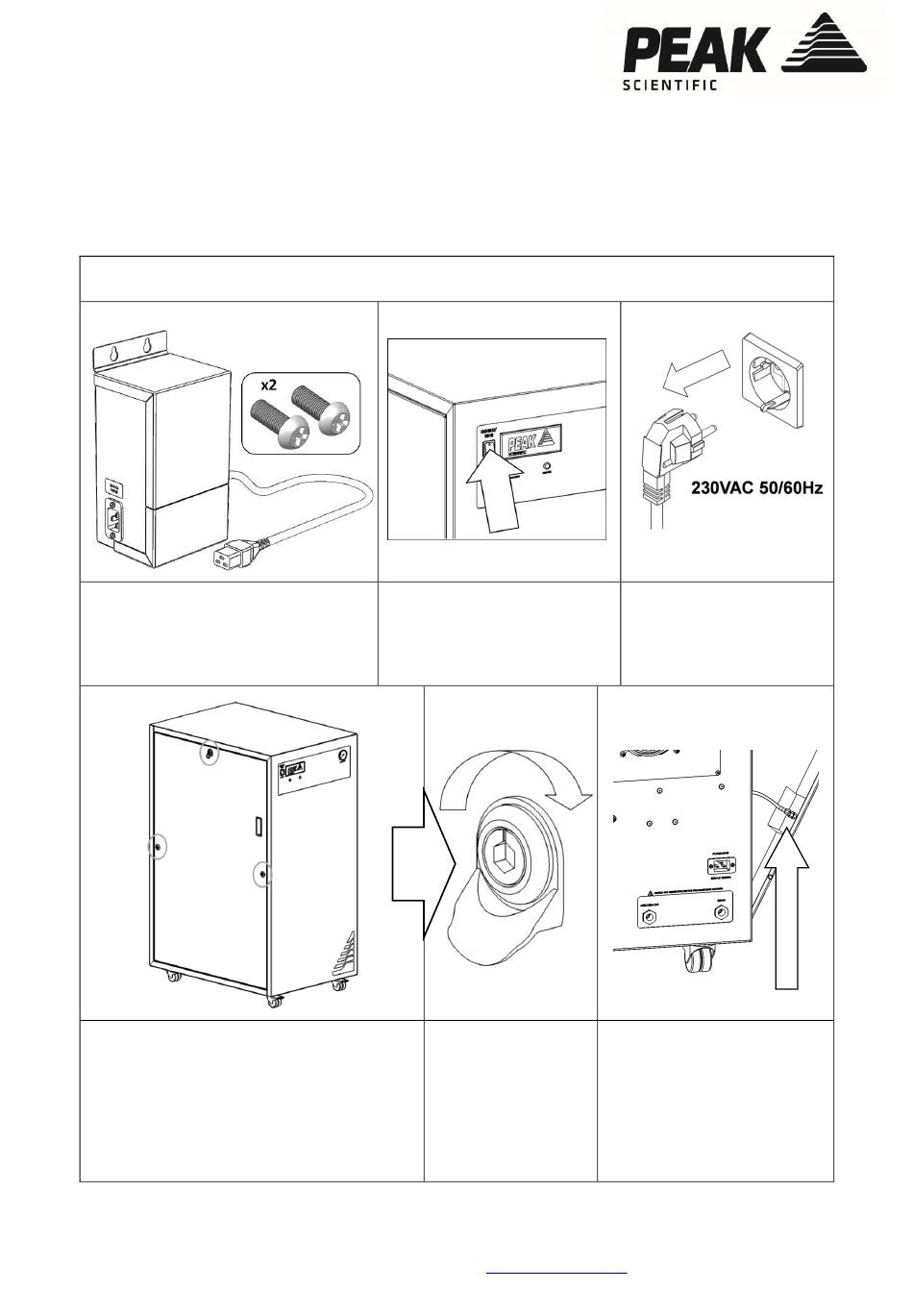

1.
Remove the transformer from all
the packaging, ensuring that the
two securing screws are retained
and not thrown away.
4.
Once safely disconnected from the
mains, remove the generator side panel.
Model Genius 30 Series
Fountain Crescent
Inchinnan Business Park
Inchinnan, PA4 9RE
Scotland, UK
Installation Guide
INSTALLATION
2.
Ensure that the generator to
which the transformer is to
be fitted is switched OFF on
the front panel.
5.
Using the Hex-Key
provided in the
fittings kit, turn the
o
lock 90
clockwise.
T: +44 (0)141 812 8100
F: +44 (0)141 812 8200
W: www.peakscientific.com
E:
info@peakscientific.com
3.
Remove the mains
cable from the mains
supply socket.
6.
Remove the panel from the
generator.
An earth lead is connected
to the inside of the panel.
This can be removed by
pulling it off the spade
connector on the door.
Part No. IG-06-3210
Rev.
2
Page
Page 1 of 5
Advertisement
Summary of Contents for Peak Scientific 06-3210
- Page 1 Installation Guide 06-3210 Dual Tap Transformer 200V – 230V For All Genius 30 Series Generators INSTALLATION Remove the transformer from all Ensure that the generator to Remove the mains the packaging, ensuring that the which the transformer is to cable from the mains...
- Page 2 If the voltmeter reads a voltage between 194V and 219V then the transformer is required. Proceed with >=194 the installation of the transformer. Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-06-3210 Inchinnan Business Park F: +44 (0)141 812 8200 Rev. Inchinnan, PA4 9RE W: www.peakscientific.com Scotland, UK info@peakscientific.com...
- Page 3 The cover can then be removed. the terminal. The ‘200V’ tap wire removed can be safely left loose in the compartment. Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-06-3210 Inchinnan Business Park F: +44 (0)141 812 8200 Rev. Inchinnan, PA4 9RE W: www.peakscientific.com...
- Page 4 ON. Fountain Crescent T: +44 (0)141 812 8100 Part No. IG-06-3210 Inchinnan Business Park F: +44 (0)141 812 8200 Rev. Inchinnan, PA4 9RE W: www.peakscientific.com Scotland, UK info@peakscientific.com...
- Page 5 ON. anticlockwise using the hex key provided. CONGRATULATIONS You have now successfully installed the transformer on your PEAK SCIENTIFIC gas generator. The generator is now operational and ready to supply gas on demand to your instrument.
