CHARGING

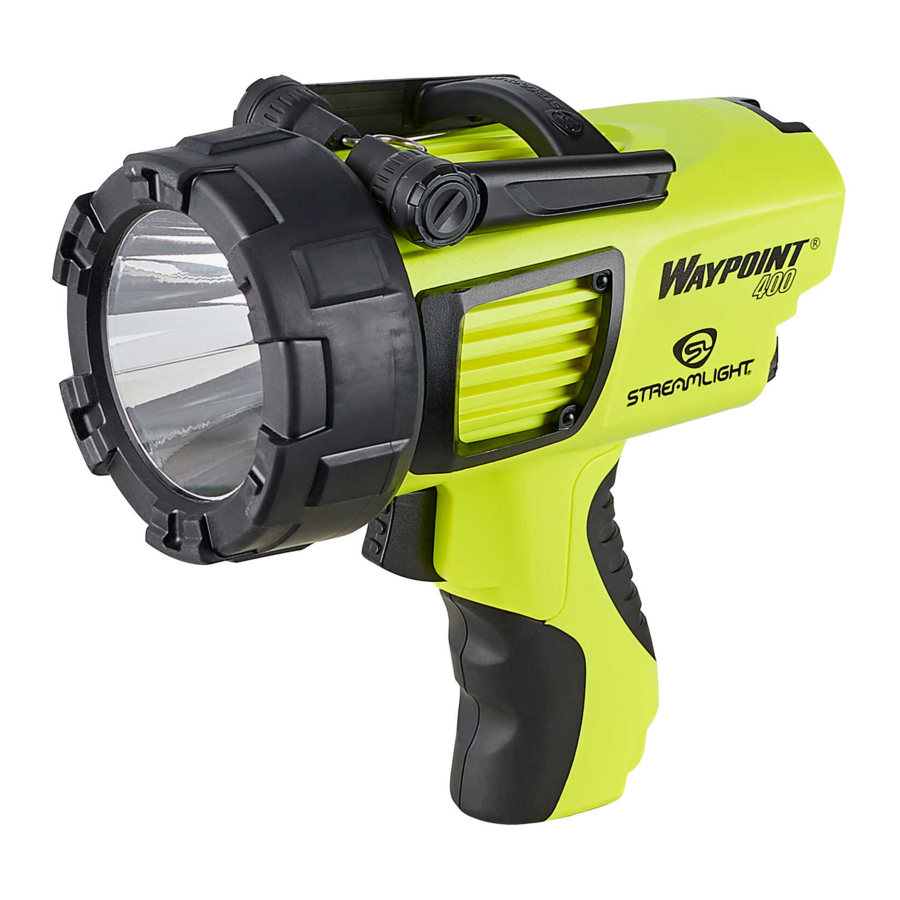

EXPLOSION RISK, BURN, AND FIRE HAZARD. Do not attempt to use the charger to recharge any other product. Likewise, do not attempt to charge the Waypoint 400 flashlight with any other charger.
Fully charge your flashlight before first use. The flashlight may be stored on charge continuously when not in use.
To charge the flashlight:
- Rotate the charge port cover on the back of the light approximately 90º, or until the cover tether is in a vertical position. Pull the cover out of the slot.
- Plug the AC charger into a wall receptacle.
- Plug the barrel connector of the charge cord into the charge port on the light.
- The battery charge indicator LED will light up in the window next to the charge port (Red = Charging; Green = Charged)
- When the battery is charged, remove the charge cord and replace the charge port cover. Align the straight sides of the cover with the slot, push the cover into the hole, press down and rotate the cover 90º to maintain a water-tight seal.
Typical charge time is four (4) hours.
USING THE PRODUCT
NOTICE
Fully charge the battery before first use.
The trigger switch is located on the pistol grip of the light. Depress the trigger slightly for momentary operation or depress the switch until it clicks to lock the light in the on position. To turn the light off, depress the switch until it clicks and release the trigger.
The mode switch is located on the rear of the light. Rotate the mode switch to select high, medium, or low.
PRODUCT USE:
Streamlight flashlights are intended for use as high intensity, heavy duty, and portable light sources. Use of Streamlight flashlights for any purpose other than as light sources is specifically discouraged by the manufacturer. Streamlight specifically disclaims liability for other than recommended use.
NOTICE
Be sure to use only genuine Streamlight replacement parts to assure product safety. Substitution may invalidate the product approval. Do not try to repair the unit yourself. Send to a qualified service facility or return it to the factory.
LED RADIATION (RG-2). DO NOT STARE INTO BEAM. MAY BE HARMFUL TO EYES. PER IEC 62471 Ed 1.0:2006-07.
SERVICE OPTIONS
The Waypoint 400 contains few user-serviceable parts.
For service options, go to www.streamlight.com/support/service and complete the Online Service Request for factory service or to find the location of an authorized Streamlight repair center near you.
To register your product, go to www.streamlight.com (Online Product Registration). Retain your receipt or any proof of purchase.
