Summary of Contents for Centrometal TB 120

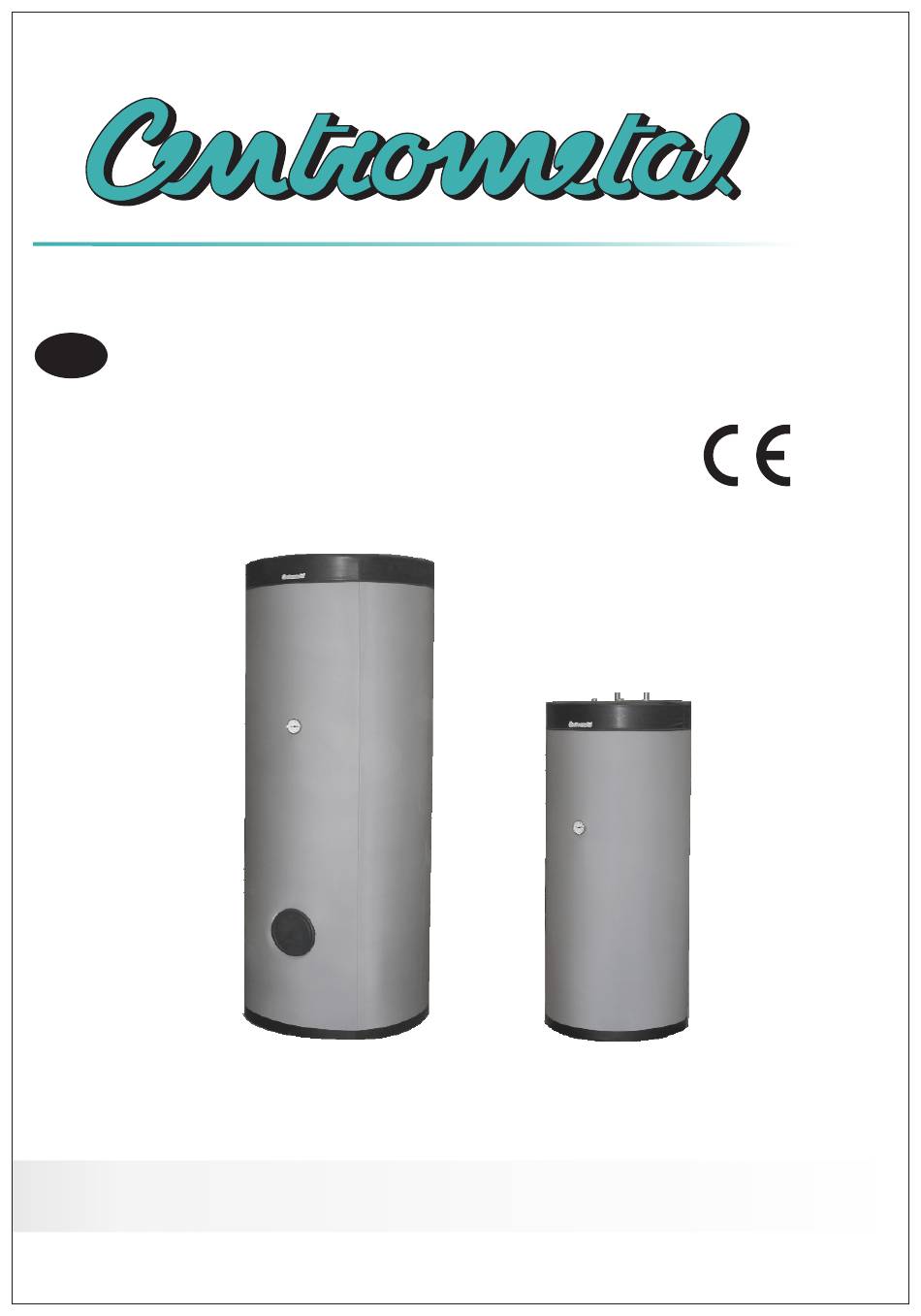

- Page 1 HEATING TECHNIQUE Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611 TECHNICAL INSTRUCTIONS Installation, use and maintenance of stainless steel water heater TB 120 - 850 TU-TB-04-2022-ENG...
- Page 2 - Recirculation - Tube heat exchanger - Boiler water connection-inlet (TB-200-850) - Place for temp. sensor - Opening for cleaning (TB 120-150) - Boiler water connection-outlet - Water draining connection - Cold water connection - Thermometer TB 200-850 TB 120-150...
- Page 3 Technical data Picture 2. Basic dimensions of the stainless steel water heater TB TB 120-150 TB 200-850 Height D (mm) Height E (mm) (mm) Height F 1100 1075 (mm) Height G 1060 1200 1375 (mm) Height H 1150 1650 1710...
- Page 4 Introduction, purpose HEAT EXCHANGER PRESSURE DROP FOR TB 120 - 850 Heating fluid pressure drop Heating fluid pressure drop 0,05 0,05 TB 120 TB 850 0,04 0,04 TB 150 TB 600 TB 200 TB 300 0,03 0,03 0,02 0,02 0,01...
- Page 5 Mounting, connection to the water supply and heating system 3.0. MOUNTING The water heater is factory insulated, with thermometer and ermeto fittings on heat exchanger connections, and it is delivered on the palette. If it cannot pass through a door, insulation can be taken off and put on in the room afterwads.
-
Page 6: Domestic Hot Water
Connection to the water supply and heating system Shema 1. - Connection stainless steel water heater to the water supply and heating system Legend 1 - Stainless steel water heater TB 2 - Expansion vessel for heating system 3 - Tap for drainage-obligatory throuht the T - piece DOMESTIC 4 - Safety valve (6 bar) - Page 7 Connection to the water supply and heating system On scheme 4, is shown an example ways of connecting the boiler to system for heating domestic hot water. Connections on the heat exchangers are marked with rosettes (red ones on the inlets and blue ones on the outlets).
-
Page 8: Energy Labels
After that is necessary tako off the cover of cleaning opening which is bottom of the stainless steel water heater TB 120-150 or front side at TB 200-850 (Picture 1). After cleaning cover must be returned to opening for cleaning (Picture 1). - Page 9 Declaration of conformity Technical instructions TB...
- Page 10 Notes Technical instructions TB...
- Page 11 Notes Technical instructions TB...
- Page 12 Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
