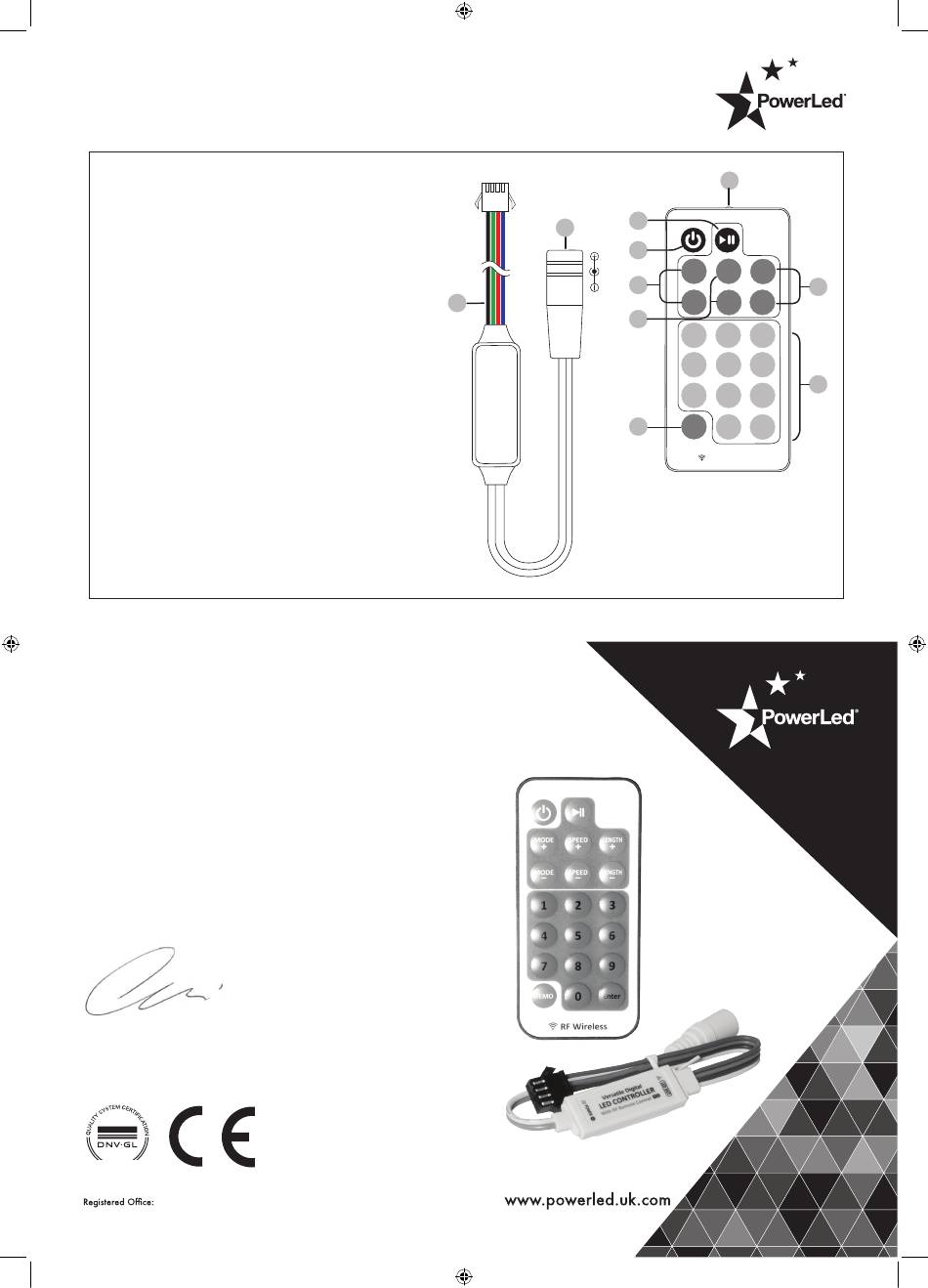

PowerLed RGBD-99C-RS Installation Instructions

Installation Instructions
1. POWER INPUT. The power supply input. and sleeve is negative. Also
please make sure the power supply voltage is same as the LED load.
2. SIGNAL OUTPUT. The control signal output connector to LED load.
3. MODE ADJUSTMENT. Adjust running mode. Jump to next mode by
press 'MODE+' or jump to previous mode by pressing 'MODE-'.
4. SPEED (BRIGHTNESS) ADJUSTMENT. Adjust the running speed of
dynamic mode or brightness of static colour. There are 10 levels for both
speed and brightness.
5. PAUSE / PLAY. Toggle between Play and Pause mode. It will quit
pause and start to play if changing the running mode.
6. TURN ON / STANDBY. Turn on or switch to standby mode. The main
unit will memorise the current setting. When power on or turn on unit, it
will automatically restore to previous status.
7. UNIT LENGTH (STATIC COLOUR) ADJUSTMENT. Adjust playing unit
length at dynamic modes or adjust colour at static colour mode. At static
colour mode, press these keys to loop change 20 colours.
8. PROGRAM DIRECT SELECTING KEYS. User can directly select
program by the number and Enter key in this area. For example, if you
want program number 58, please press number 5 and 8, then press Enter
key to confirm. The program '0' is static colour mode. At this mode, user
and adjust brightness or colour by SPEED and LENGTH keys.
9. DEMO MODE. Switch to demo mode. In demo mode, the controller
will automatically cycle play 99 dynamic programs.
10. REMOTE CONTROLLER INDICATOR. This blue indicator will light
up when remote controller works. In program direct selecting operation,
this indicator will flash slowly until Enter key pressed or no operation for
a certain time. Hints: The remote controller works at radio frequency,
the signal can pass through barrier, so it's not necessary to aim at the
controller when operate the remote.
Declaration
of Conformity
We Sunpower Group Holdings Ltd. of Orion House,
Calleva Park, Aldermaston, Berkshire, RG7 8SN,
UK. declare under our responsibility that our product
RGBD-99C-RS is here with confirmed to comply with
the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating
to Electromagnetic Compatibility Directive (2014/30/EU).
Wednesday 8th June 2016.
Mark Ellis
Quality Manager
ISO 9001:2008
Registered in England: No. 9436662
Orion House, Calleva Park, Aldermaston, Berkshire, RG7 8SN
1
2
RGBD-99C-RS
10
5
6
LENGTH
MODE SPEED
+ + +
3
LENGTH
MODE - SPEED - -
4
1 2 3
4 5 6
7 8 9
9
0
DEMO ENTER
LED WIRELESS
7
8
