GoWISE USA GW22953 Manual

Specifications

Voltage: 120V, 60Hz
Watts: 1500W
Capacity: 4 Qt
Temp. Range: 900F-4000F

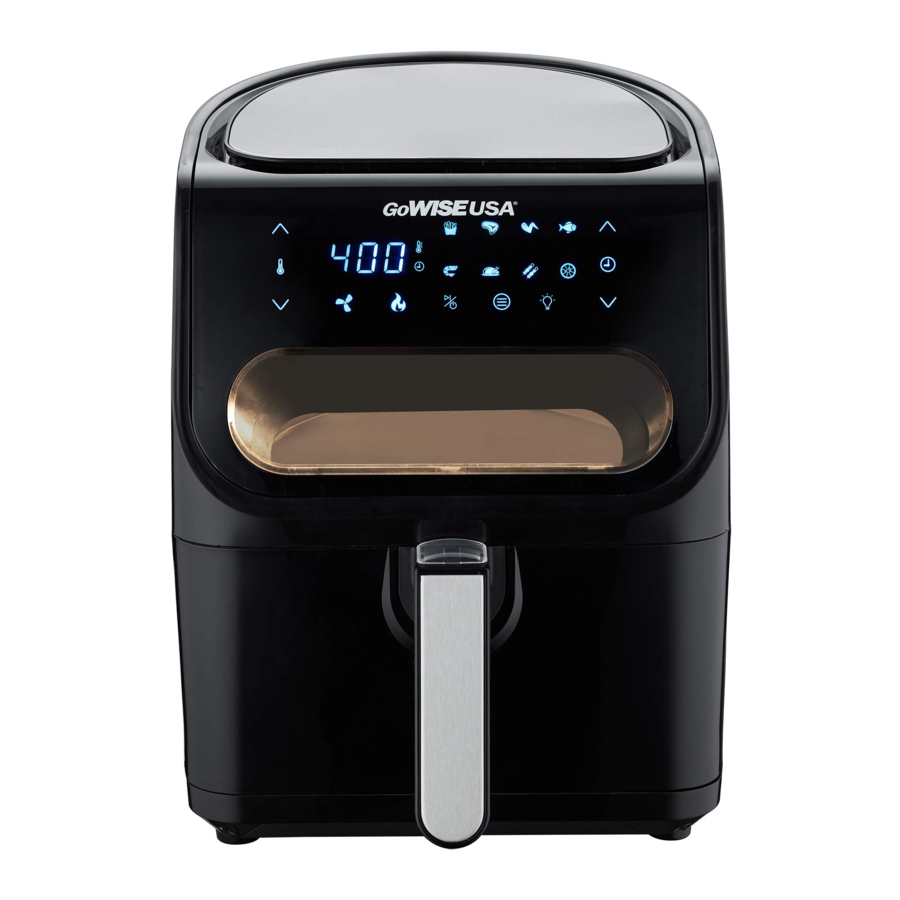

PRODUCT STRUCTURE

PARTS

1. Air Inlet
2. Touch Screen Control Panel
3. Window
4. Handle
5. Fry Basket
6. Fry Basket Release Button
7. Pan

CONTROL DISPLAY

BUTTONS

START/PAUSE/POWER: Powers the unit on and off; starts and pauses the cooking cycle
MENU: cycles through the preset options
LIGHT: Turns interior light on and off
UP & DOWN ARROWS: Increase or decrease time and temperature

PRESET DEFAULT TIME & TEMP

Fries: 15 minutes at 400°F
Steak: 20 minutes at 370°F
Wings: 20 minutes at 400°F
Fish: 20 minutes at 330°F
Shrimp: 20 minutes at 330°F
Chicken: 30 minutes at 400°F
Kebabs: 15 minutes at 400°F
Dehydrate: 4 hours at 90°F

*All functions aside from Dehydrate have adjustable time in 1-minute increments between 1-60 minutes, and adjustable temperature in 10-degree increments between 180°F – 400°F.

*Dehydrate can be adjusted in 30-minute increments between 2-24 hours, and temperature can be adjusted in 10-degree increments between 90°F – 170°F.

SET UP AND USING YOUR AIR FRYER

BEFORE FIRST USE

1. Remove all packaging materials, stickers, and labels.
2. Clean the pan and basket with hot water, soap, and a nonabrasive sponge.
3. Wipe the inside and outside of the appliance with a clean cloth.
4. Set the unit to 350°F for about 5 minutes. This process will burn off any remaining residue left from the manufacturer. There may be a slight burning smell which will dissipate after a few minutes.
5. Your new GoWISE USA Air Fryer is now ready for use!

NOTE: DO NOT fill the pan with oil or lard. The appliance uses rapid air circulation to fry.

USING YOUR AIR FRYER

1. Place the air fryer on a flat and even surface. DO NOT PLACE THE AIR FRYER ON A SURFACE THAT IS NOT HEAT RESISTANT.
2. Place the basket in the pan. DO NOT FILL THE PAN WITH OIL OR ANY OTHER LIQUID.
3. Place the ingredients in the fry basket and slide the basket back into the appliance. The button on the display should light up.
4. Press the button and adjust time and temperature by using the " " or " " arrows or select a preset by pressing the mubutton.
   • If using a preset, adjust the time and temperature as needed using the " " or " " arrows.
   • Preset time (aside from Dehydrate) can be adjusted in 1-minute increments between 1 to 60 minutes. Preset temperature (aside from Dehydrate) can be adjusted in 10-degree increments between 180°F - 400°F. Hold down the " " or " " arrows to move through the time and temperature options quicker.
     NOTE: By default, your air fryer will be set to cook at 370°F for 15 minutes when you turn on the unit. You can adjust the time and temperature from the default screen as well without selecting a cooking preset.
5. Once you have set a time and temperature or selected a preset, press the button again to start the cooking cycle. The and icons will illuminate to indicate that the air fryer is heating and the fan is circulating.
6. If you would like to make changes at any point throughout the cooking cycle, such as adding more time, increasing temperature, or changing to a new preset, press the button to pause the cooking cycle. The and icon will stay solid to indicate pause mode. Make your adjustments and tap the button again to resume.
   NOTE: The air fryer will automatically turn off after 1 minute of no activity. To turn off the air fryer, press and hold the button for at least 3 seconds or unplug the unit to turn it off completely.
7. You may need to shake the ingredients midway through the cooking cycle to ensure even cooking. Pull the basket out of the air fryer by the handle (the air fryer will automatically power down) and place the basket and pan on a pot holder or heat resistant surface. Once detached, shake the basket with ingredients.

   TO AVOID INJURY, DO NOT SHAKE THE BASKET AND PAN TOGETHER. THIS MAY COMPROMISE THE LATCHING MECHANISM AND CAUSE THE BASKET AND PAN TO DETACH UNEXPECTEDLY.
   NOTE: If you are cooking heavy ingredients, we recommend holding the bottom of the pan with an oven mitt for extra support.
8. Slide the pan and basket back into the air fryer by carefully aligning the track inside the air fryer with the rim of the pan. If you are unable to insert the pan into the air fryer, try lifting the handle as you are sliding the pan into the fryer.
9. Check for doneness at any time during the cooking cycle by pressing the button to turn on the interior light and looking through the small window located below the control panel. The interior light will stay on during the entire cooking cycle. To turn off the interior light, press the button.
10. When the cooking time has been reached, the fan will stop shortly after (approx. 20 seconds) and the timer will beep 5 times.
11. Slide the pan out of the fryer and place it on a pot holder.
    NOTE: Oil from the ingredients will gather in the bottom of the pan. Be careful when sliding the pan out of the fryer.
12. To remove the ingredients, slide the button guard back and press the release button on the handle to free the basket from the pan. Carefully pour ingredients out of basket onto plate.
    NOTE: See diagram below.
13. If using tongs, make sure to use non-abrasive, non-metal tongs to avoid scratching the non-stick coating on the basket.
14. Press and hold down the button for at least 3 to 5 seconds until the air fryer beeps and the control panel displays "OFF".
    NOTE: You must unplug the air fryer to turn it off completely.

Detaching the Basket

1. Slide back the button guard to reveal the fry basket release button.
2. Press the fry basket release button while pulling up the handle to free the basket from the pan.

TO PREVENT INJURY, DO NOT PRESS THE RELEASE BUTTON UNTIL THE PAN IS RESTING SAFELY ON A HEAT-RESISTANT MAT.

To order replacement parts please contact our Customer Care Team.

855-233-9199
support@gowiseusa.com
Live Chat at gowiseusa.com
M-F 8:30am - 4:00pm MST

COOKING GUIDE

The chart here is a guide that will help you with setting the time and temperature for certain ingredients.

INTERNAL TEMPERATURE CHART

This chart should be used to check the temperature of cooked meats.
Always review USDA Food Safety Standards.

NOTES:

• Please keep in mind that because ingredients differ in size, shape, brand, and origin, we cannot guarantee that this is the best setting for the ingredients you have.
• Rapid Air Technology reheats the air inside the fryer instantly. Therefore, removing the basket of the air fryer for a brief period of time will not interrupt the cooking process.

TIPS

• Small ingredients usually require shorter cooking time compared to larger ingredients.
• Shaking smaller ingredients midway through the cooking process will ensure the ingredients cook more evenly and have a better end result.
• Adding a very little amount of oil to fresh potatoes will give it a crispier result.
• Do not prepare extremely oily or greasy ingredients in the air fryer.
• Snacks that can be prepared in a traditional oven can also be prepared in the air fryer.
• The recommended amount of
• fries to allow for a crispy result is 17.5 oz.
• Pre-made dough requires a shorter cooking time than homemade dough.
• When making cake, quiche or ingredients with batter, use a baking pan or oven dish in the fry basket.

CLEANING YOUR AIR FRYER

1. Clean the fryer after every use.
2. Unplug the fryer. ALWAYS WAIT UNTIL THE FRYER HAS COOLED TO A SAFE TEMPERATURE BEFORE HANDLING.
3. Wipe the outside of the fryer with a damp cloth.
4. Wash the pan and basket with hot water, soap and a nonabrasive sponge. You can remove any stuck-on food by using a degreasing liquid soap. For any hard-to-remove food, soak the pan in hot water.
5. Clean the inside of the appliance with a lightly dampened, nonabrasive sponge or cloth. Be careful not to get the inside of the appliance too wet and never submerge in water.
6. Scrub the heating element with a cleaning brush to remove any food debris.

TROUBLESHOOTING

If your GoWISE USA Air Fryer displays any error codes, please contact our Customer Care Team.
855-233-9199
support@gowiseusa.com
Live Chat at gowiseusa.com
M-F 8:30am - 4:00pm MST

WARRANTY

GoWISE USA warrants all products against defects in materials and workmanship for one (1) year effective from the date of purchase.

Additional 60-Days Warranty
You can extend your 1-year warranty by an additional 60 days. Log onto www.gowiseproducts.com/apps/product-registration and register your product within the first 14 days of your purchase for the extended warranty.

DEFECTIVE PRODUCTS & RETURNS
If your product is defective within the 1-year warranty period, please email our Customer Care Team at support@gowiseusa.com.

Contact Information

Join the GoWISE Community on Facebook, Instagram, Twitter, and Pinterest for updates, tips, and great deals!

Explore recipes on our recipe App or www.gowiseproducts.com/blogs/recipes

Contact Our Customer Care Team
855-233-9199
support@gowiseusa.com

Live Chat at gowiseusa.com
M-F 8:30am - 4:00pm MST

Register Your Product
www.gowiseproducts.com/apps/product-registration
(The serial number is normally underneath the product. Please check there first.)

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY
READ ALL INSTRUCTIONS BEFORE USE

1. READ THE ENTIRE MANUAL BEFORE ATTEMPTING TO OPERATE.
2. Keep the box and packing material for storage.
3. DO NOT PLACE the appliance on stove top surfaces.
4. This appliance has a polarized plug (one prong is wider than the other). This plug is intended to fit into a polarized outlet only one way. TO AVOID ELECTRIC SHOCK, DO NOT force the plug into the outlet if it does not fit. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT ATTEMPT to modify the plug in any way.
5. DO NOT immerse the power cord, plug, or any part of the appliance in water or any other liquids to avoid electric shock.
6. DO NOT use the appliance if the plug, the power cord, or the appliance itself is damaged in any way.
7. ALWAYS keep the power cord away from hot surfaces.
8. DO NOT go to any unauthorized person to replace or fix the appliance.
9. DO NOT plug the appliance in or operate the appliance with wet hands.
10. DO NOT connect the appliance to an external timer switch or separate remote control system.
11. DO NOT PLACE the appliance against a wall or any other appliances. Leave at least five inches of free space along the back, sides, and above the appliance.
12. DO NOT PLACE anything on top of the appliance.
13. DO NOT PLACE the appliance on or near combustible materials, such as a tablecloth or curtain.
14. DO NOT USE the GoWISE USA Air Fryer for any purpose other than described in this manual.
15. NEVER OPERATE the appliance unattended.
16. This appliance is NOT INTENDED FOR USE by persons with reduced physical, sensory, or mental capabilities or persons with a lack of experience and knowledge unless they are UNDER THE SUPERVISION of a responsible person or have been given proper instruction to use the appliance. This appliance is NOT INTENDED FOR USE by children. Make sure that the appliance is out of reach of children, especially when it is operating.
17. Keep all the ingredients in the basket to prevent any contact from heating elements. DO NOT OVERFILL the basket.
18. DO NOT fill the pan with oil. Filling the pan with oil is a fire hazard.
19. DO NOT COVER OR BLOCK the air inlet and outlet while the appliance is in operation. Doing so prevents even cooking and may damage the unit or cause it to overheat.
20. DO NOT touch the inside of the appliance while it is operating.
21. While air frying, hot air is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet opening. BE CAUTIOUS of hot steam and air when you remove the pan and basket from the appliance. Any accessible surface may become hot during use.
22. IMMEDIATELY UNPLUG the appliance if you see dark smoke coming out from the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
23. ENSURE that the appliance is placed and operated on a horizontal, even, stable, and noncombustible surface.
24. This appliance is designed for HOUSEHOLD USE ONLY. It is not safe to use in environments, such as staff kitchens, farms, motels, and other non-residential environments.
25. If the Go WISE USA Air Fryer is used improperly, for professional or semi-professional purposes, or if it is not used according to the instructions in this user manual, the warranty becomes invalid, and the manufacturer will not be held liable for damages.
26. ALWAYS unplug the appliance after use.
27. ALWAYS wait 30 minutes for the appliance to cool down before handling, cleaning, or storing.
28. The base of the GoWISE USA Air Fryer vents heat during the cooking process. Artificial stone countertops are not heatresistant. It is the end user's responsibility to verify the heat capacity of their countertops. We recommend using a silicone pad or spare, non-artificial tile to protect your counters from heat damage. The care and use of countertops is the responsibility of the end user.
29. Over time, wear and tear is normal for the pan and basket and will need to be replaced from time to time. Please contact GoWISE Customer Care or visit our website gowiseproducts.com to purchase these parts.

Electromagnetic Fields (EMF)

This appliance complies with all standards regarding Electromagnetic Fields (EMF). Under proper handling, the appliance is safe to use based on available scientific evidence.

SAVE THESE INSTRUCTIONS

WWW.GOWISEUSA.COM
