INTRODUCTION

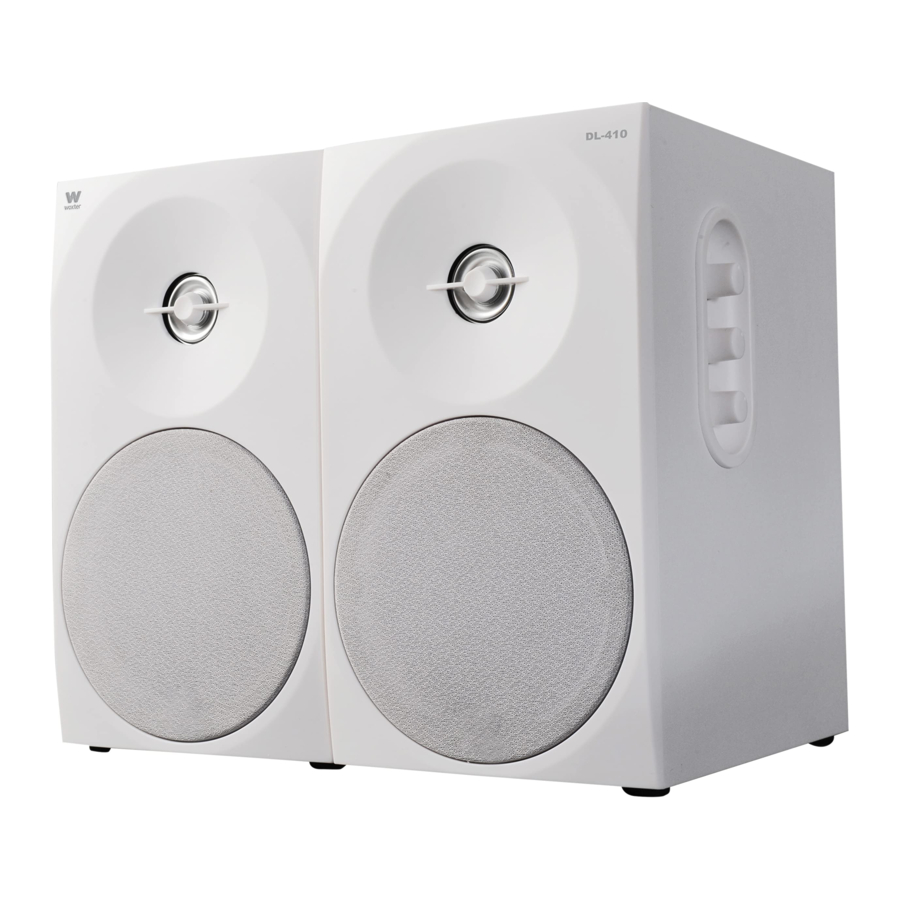

Compact stereo speaker system for general applications. It is made of wood, a feature that gives it a higher sound quality.

An excellent sound quality despite its compact size, making it the ideal speaker system for any room or office.

  1. Spare parts: if you need spare parts, check that the technical service you have used uses direct parts from the manufacturer or authorized by him. If the spare parts have not been previously authorized by the manufacturer, they may generate electric shocks, cause a fire or other damage.
  2. Main fuses: to prevent a possible fire hazard, use only fuses of the correct type. The correct fuse specifications for each voltage are indicated on the product itself.
  3. Do not turn up the volume while listening to a section with very low level inputs or without audio signals. If this is the case, the loudspeaker may be damaged when the level is suddenly raised.
  4. The only procedure to disconnect the product completely is to disconnect the cable from the network outlet or from the product itself.
  5. Try installing the product near an electrical outlet in your home or near an extension cord so that you can easily access it.
  6. The maximum ambient temperature for the proper functioning of this product is 40ºC.

The power adapter is the device's disconnect device. The socket outlet must be close to the equipment and easily accessible.

Characteristics

  • Very compact stereo speakers to enjoy the best entertainment audio.
  • Ideal to use with your TV, MP3, MP4, DVD, CD and computer.
  • 4 "Woofer and 1" * 2 Tweeter that allows to achieve the full range of the acoustic spectrum.
  • Volume, bass and treble controls on the side panel for easy access.
  • Standard 3.5 mm connection for more support with digital media players.

Specifications

Amplifier

  • Power: 150 W
  • Harmonic distortion: <0.5% 1 W 1kHZ
  • Frequency range: 40 Hz - 20 kHz
  • Signal to noise ratio: > 75 dB
  • Separation: > 45 dB.

Speakers:

1 "* 2 Tweeter 8 Ohms, 4" Woofer 4 Ohms.

Interface:

  1. Input: 3.5 mm stereo -
  2. Output: RCA.

Contents of the box: DL-410 x2 speakers, 3.5 mm-3.5 mm cable, user manual.

ILLUSTRATIONS

ILLUSTRATIONS - Part 1

ILLUSTRATIONS - Part 2

FUNCTIONING

Connections

  1. Connect the left speaker to the right speaker through the cable provided for interconnection. The right speaker is also known as the main speaker since it includes the amplifier.
  2. Place each of the speakers on the correct sides (left, right) of the listening position.
  3. Connect the playback device on the back of the main speaker, on the 3.5mm plug with the supplied cable.
  4. The main speaker (the right speaker) should be placed near a power source and near the playback device (MP3, MP4, CD,DVD, etc...).
  5. Finally, connect the power cable from the back of the main speaker (right) to the network. Check that the current matches the one written on the rear panel.

Functioning

  1. Check that the volume is at the lowest possible level. The volume buttons are located on the side of the right speaker.
  2. Turn on the system by setting the switch to ON (located on the back of the main speaker). The status indicator will light.
  3. Start playback of the device and a song.
  4. Adjust the volume to achieve the desired level.
  5. Then adjust the treble and bass levels located on the side panel to achieve the desired sound effect.
    Functioning

FREQUENT QUESTIONS

Issue Solution
Without sound Check if the audio source works well.
Check if the speaker and audio cables They are well connected.
Check if the volume is set to the level Right.
Intermittent sound Check that the 3.5mm stereo cable is firmly inserted.
A sound is heard Static when turning the button. Turn off the player first, then turn the Volume button on the speakers several times.
Then play again. The static sound is produces by dust, simply rotate several times said button to delete it.
What products supports? PC, laptops with USB, CD / DVD players, media players with 2RCA or plug
3.5mm stereo
The sound sounds distorted Check that the music file is not corrupt, play different songs to check it 196kbps bitrate is recommended for a better resolution.
If problems persist, contact your dealer or a technician specialized

Technical safety requirement

The power adapter is the device disconnect device. The socket outlet must be close to the equipment and easily accessible.

Technical support and warranty information

If you have any problems with this product, we recommend that you first read this manual in detail or go to our website www.woxter.es where you can access "Frequently asked questions about the product", "Troubleshooting", "Updates and Drivers", etc...

If still the problem persists, and before any procedure that you deem necessary, contact the distributor where you purchased the product, always presenting the original invoice of purchase of the product.

Warranty terms
Two years guarantee for our products, as long as all the steps indicated in the processing procedure for the WOXTER SAT are correctly performed at www.woxter.es
