Summary of Contents for WMH Tool Group JET DC-1900A

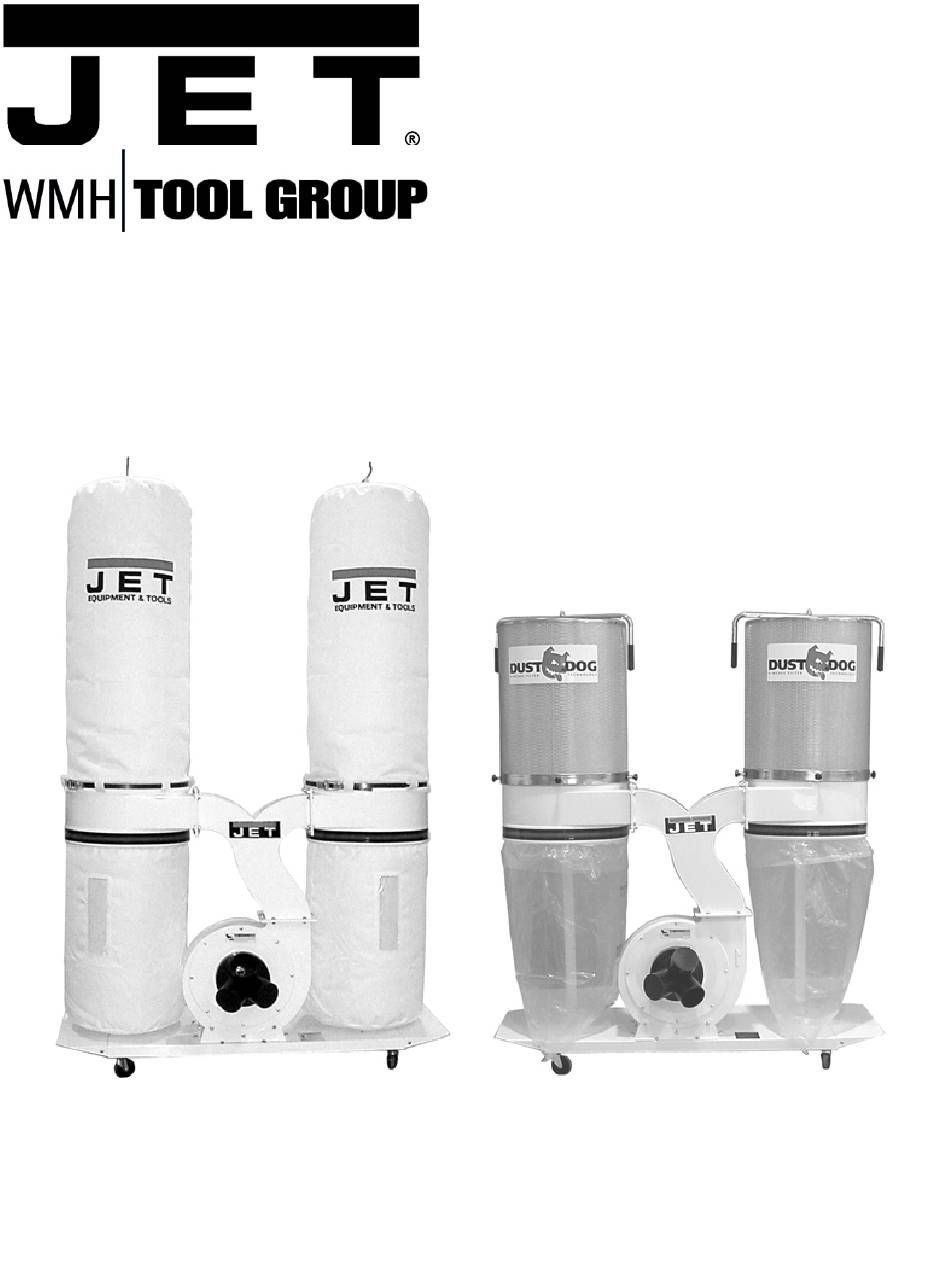

- Page 1 Operating Instructions and Parts Manual Dust Collector Model: DC-1900A/C DC-1900A DC-1900C WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Part No. M-708637 Ph.: 800-274-6848 Revision G 02/04 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty And Service
Warranty and Service WMH Tool Group warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Repair Stations located throughout the United States can provide quick service or information. -
Page 3: Table Of Contents
Table of Contents Warranty and Service ............................2 Table of Contents..............................3 Warnings ................................4 Introduction ................................6 Specifications ................................ 6 DC-1900A................................6 DC-1900C ................................. 6 Unpacking ................................7 DC-1900A Dust Collector ..........................7 DC-1900C Dust Collector..........................8 Assembly................................9 Base .................................. -
Page 4: Warnings
5. Do not use this dust collector for other than its intended use. If used for other purposes, WMH Tool Group disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. - Page 5 blahblahblah 20. Make your workshop child proof with padlocks, master switches or by removing starter keys. 21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury. 22. Do not use the dust collector for anything except wood dust. Materials such as liquids, metal shavings, metal dust, screws, glass, plastic or rock can cause sparks and/or damage when coming into contact with any part of the dust collector.
-
Page 6: Introduction
If there are any questions or comments, please contact either your local supplier or WMH Tool Group. WMH Tool Group can also be reached at our web site: www.wmhtoolgroup.com. Specifications DC-1900A Model ................. -
Page 7: Unpacking
Unpacking DC-1900A Dust Collector 1. Remove all contents from the shipping carton. 2. Report any damage to your distributor. 3. Do not discard any shipping material until after the dust collector has been assembled and is running properly. Contents of the Shipping Carton 2 –... -
Page 8: Dc-1900C Dust Collector
Unpacking Tools Required for Assembly DC-1900C Dust Collector 13mm Wrenches or Sockets 14mm Wrench or Socket 1. Remove all contents from the shipping carton. #2 Cross Point Screw Driver 2. Report any damage to your distributor. 3. Do not discard any shipping material until after the dust collector has been assembled and is running properly. -
Page 9: Assembly
Assembly The dust collector must not be connected to the power source during assembly. Failure to comply may result in serious injury! Base Refer to Figure 1 for Steps 1 and 2: 1. Attach the base extensions (B) to the base (C) by inserting M8x20 hex head screws (1) through the mounting holes of the extension (B) and base (C). -
Page 10: Motor And Fan Assembly
Motor and Fan Assembly 1. Place the base with casters down on the ground. Attach the motor and fan assembly (C, Fig. 3) to the base using six M8 x 20 hex cap screws, six M10 flat washers (D, Fig. 3), and a 13mm wrench. 2. -
Page 11: Collector Housing
Collector Housing Refer to Figures 6 – 8 for this section. Figure 6 shows the locations of the components described in this section. Required parts: 2 – upper gaskets 16 – M8 x 20 hex cap screws, 32 – M8 flat washers 16 –... -
Page 12: Support Bracket
Support Bracket Referring to Figure 9: 1. Attach support bracket (C) to base using two M8 x 20 hex cap screws and two M8 flat washers, (D). Do not tighten at this time. Note: If you are assembling the DC-1900A Dust Collector, skip step 19 and proceed to step 20. -
Page 13: Collector Bag Installation - Dc-1900A
Collector Bag Installation – DC-1900A 1. Insert the ring (A, Fig. 10) of the collector bag into the bottom of the housing at an angle. Pull down on the bag to make sure it “seats” in the housing. 2. Position the plastic window in front so that you can easily see when the collector bag is full. -
Page 14: Collector Bag Installation - Dc-1900C
Collector Bag Installation – DC-1900C 1. Place the ring over the top of the plastic bag and fold over the bag approximately three inches, Figure 12. Figure 12 2. Insert the snap ring (A, Fig. 13) of the collector bag into the bottom of the housing at an angle. -
Page 15: Electrical Connections
5. Turn the bag outside in and re-attach to the housing using the retainer strap to secure. Electrical Connections Removing the Collector Bag – DC-1900A All electrical connections must done qualified 1. Disconnect the machine from the power source, electrician. All adjustments or repairs must be unplug. -
Page 16: Connecting The Dust Collector To A Machine
Connecting the Dust Collector to a use to connect the tool to the dust collector must also Machine be grounded. To assist in grounding your system you can purchase the JET “Dust Collector Grounding Use the proper type hose to connect the dust Kit”... -
Page 17: Parts List For Dc-1900A Dust Collector
Parts List for DC-1900A Dust Collector Index No. Part No. Description Size 1 ....431018W ....Impeller Housing.....................1 2 ....431019W ....Impeller Housing Bracket ..................1 3 ....431020W ....Motor Bracket ......................1 4 ....450038..... Bracket Cap......................1 5 ....DC1900-20W... Motor..............3HP, 1Ph 230V Only ....1 .... - Page 18 Parts List for DC-1900A Dust Collector Index No. Part No. Description Size 49 ..... TS-1490031..... Hex Cap Screw.............M8x20........4 50 ..... TS-1550061..... Flat Washer ............M8 ..........4 51 ..... TS-2361081..... Lock Washer............M8 ..........4 52 ..... TS-1540061..... Hex Nut..............M8 ..........4 ....DC1900-30 ....Grounding Label (not shown) .................1 ....
-
Page 20: Parts List For The Dc-1900C Canister Filter
Parts List for the DC-1900C Canister Filter Index No. Part No. Description Size 1 ....708739..... Filter........................2 2 ....331052..... Shaft ........................2 3 ....331012..... Scraper ........................4 4 ....331015..... Plate........................4 5 ....331009..... Support ........................2 6 ....ST049200 ....Tapping Screw............M4x8.........8 7 .... - Page 21 Parts List for the DC-1900C Canister Filter Index No. Part No. Description Size 55 ..... TS-0561031..... Hex Nut..............3/8” – 16UNC ......4 56 ..... TS-0561072..... Hex Nut..............5/8” – 18UNF......1 57 ..... TS-1490011..... Hex Cap Screw.............M8x12........10 58 ..... TS-1490031..... Hex Cap Screw.............M8x20........36 59 .....
-
Page 23: Wiring Diagrams
Wiring Diagrams Wiring Diagram For 3 Phase 230V/460V Dust Collector Wiring Diagram For Single Phase 230V Only Dust Collector... - Page 24 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60123 Phone: 800-274-6848 www.wmhtoolgroup.com...
