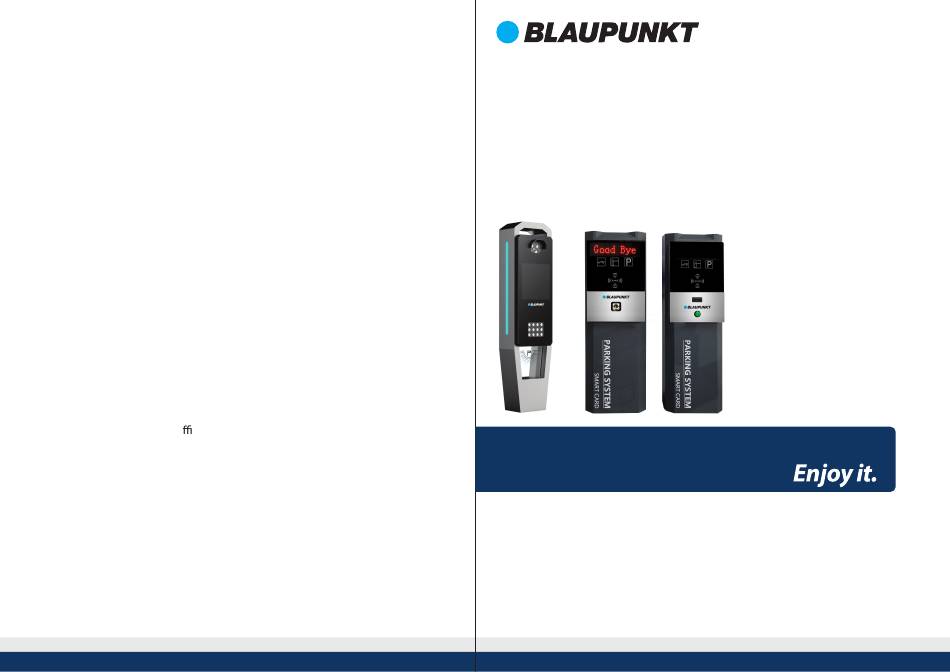

User Manual
ALPR Parking
For Inquiries, Please contact:
Security Shop
Vladimira Popovica 6/6/A606
11070 Novi Beograd, Serbia
Tell: +381 11 318 68 68
o ce@securityshop.rs
Imported/Distributed by Security Shop doo
Licensed by Blaupunkt, 31785 Hameln/ Deutschland
Delivery and After Service shall only be covered within Serbia
www.blaupunkt.com
Made in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Blaupunkt ALPR Parking
- Page 1 Vladimira Popovica 6/6/A606 11070 Novi Beograd, Serbia Tell: +381 11 318 68 68 o ce@securityshop.rs Imported/Distributed by Security Shop doo Licensed by Blaupunkt, 31785 Hameln/ Deutschland Delivery and After Service shall only be covered within Serbia www.blaupunkt.com Made in China...
-
Page 2: Installation Preparation
Page 01 Page 02 Contents Installation Preparation Installation Hardware Installation Preparation Software Installation Debugging... -
Page 3: Installation Site
Installation preparation Installation site Page 04 Page 03 • Number of each entrances and exits Considering the number of entrance and exits, and con gure the corresponding hardware to ensure that the equipment runs e ciently. • Distance between each entrances and exit The wiring distance between any two entrances and exitsshould not be too long, as more than 120 meters, the network communication requires optical ber to ensure network operation e ciency. - Page 4 Standard installation site Special installation site-turn Page 05 Page 06 • There is no turn of the lane, the recognition distance shall be 4-5 meters from the camera horizontal line, and the vertical angle should not exceed 30 degree, the horizontal angle not exceed 55 degree.
- Page 5 Special installation site-others Page 07 Special installation site-slope Page 08 • If there is a distance of 4-5 meters before entering the slope, it is recommended that the entrance and exit be installed before entering the slope. Please be careful to avoid backlighting.
-
Page 6: Hardware Preparation
Page 10 Page 09 Hardware preparation Tools preparation Wire stripper Exchanger LPR Equipment Ports Camera, Display, 8-16 ports POE Filling light Exchanger all in one. Network pliers Barrier Boom Autopayment 0.8S-6S with Device 1-6 meters Optional for options Allen wrench Cash box Vehicle Hardware... - Page 7 Construction preparation- security booth foundation and guard booth Standard security booth foundation diagram Page 12 1. Before construction of the safety booth, the design and construction drawings need to be determined according to the actual situation on the site, the size of the equipment and the requirements of the constructor.
- Page 8 Construction preparation-Coil Loop Page 14 Page 13 Coil Loop Installation 1. Before construction of the coil loop, the position, size and number of turns shall be con rmed according to the overall wiring arrangement of the project. The number of turns does determine the inductance of the entire coil between 100-200 (UHF), and 150-180 (UHF) is recommended to ensure the perfect working range of the vehicle detector.
- Page 9 System Diagram Working Proces Page 16 Page 15...
-
Page 10: Hardware Installation
Page 17 Equipment Diagram Page 18 Hardware Installation... -
Page 11: Equipment Diagram
Page 19 Page 20 Equipment Diagram Camera Debugging The license plate recognition integrated camera's top-down angle to the recognition area cannot be greater than 40 degrees. The angle between the vehicle license plate recognition integrated camera and the vehicle traveling in a straight direction cannot be greater than 45 degrees, and the parallel angle between the license plate and the recognition area of thevehicle license plate recognition integrated machine within the recognition area cannot be greater than 15 degrees. - Page 12 Page 21 Others Debugging Page 22 Camera tool • Checking the position of the boom: Use controller switch to lift and lower Search camera IP automatically, ll in camera username and password the gate. Carefully observe whether the boom is accurate in the horizontal automatically and vertical limit stop positions.
-
Page 13: Software Installation
Page 23 Software installation preparation Page 24 Computer Database Software Dongle Software Installation Normal PC Requirment win7 win10 X64 bit operating system, cpu above i3 supports AVX instruction set, memory 4-8G... - Page 14 Page 25 Installation steps Software Solution Page 26 Software Dongle FAQ 1. Database Software The dongle Algrithom Dongle is not start Drive detected failure 2. Software Dongle Drive Database FAQ 1. Turn o the reframe before installation. 1.Install VC 2015 1.Dongle is not plugged then 2017.
- Page 15 Page 27 Device networking test Page 28 1. Before debugging the device, please turn o the computer rewall. 2. The camera IP is a xed to the camera case, and the camera IP is input to the setting of the software. After he connection is normal, you can see the camera dynamic screen in survilliance.
