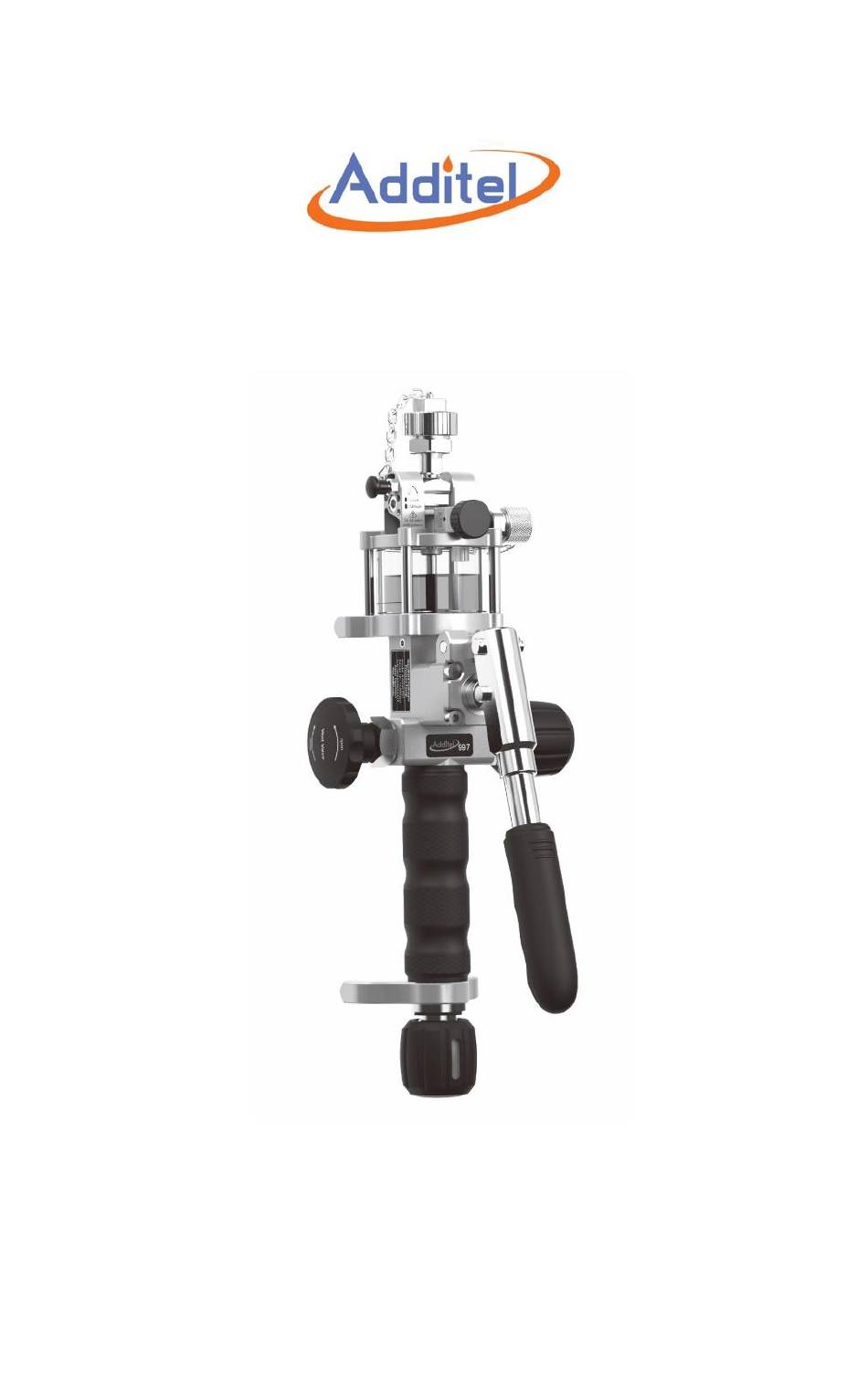

- Page 1 ADT997 Handheld Hydraulic Pressure Pump Quick Start Guide [Version No.: 2503V01]...
- Page 2 > The thread surface should be kept clean and lubricated. If there are any comtaminants, please properly clean them. > Additel is not responsible for personal injuries or damage to the instrument resulting from improper use or operation of the equipment.
- Page 3 Technical Specification Items Specifications Pressure range 0 to 10,000 psi (700 bar) (-10～50) ℃ Operating temperature (-15～55) ℃ Storage temperature Humidity range ＜85% Adjustment resolution 0.1kPa Safety pressure ＜13,000 psi (900 bar) Mineral oil compatible with copper, 304SS, UPVC Medium and NBR Dimensions 15.2'' (385mm) x 6.5'' (166mm) x 5'' (128mm)
- Page 4 FAQs Phenomenon Reason Solution Open the isolation valve Difficulty in pressing or Isolation valve is not when pressurizing or lifting the handle opened vacuumizing with the handle The vent valve should be 1. The vent valve is not closed when pressurizing or closed vacuumizing with the handle After stopping...
- Page 5 valve 2. The tightness of the rotatable parts of the new It is normal, needs long term pump might be slightly different Apply appropriate amount of 3. The threads have no grease to the threaded part lubrication after long-term use...
- Page 6 Basic Structure & Pipeline Diagram Basic structure Pipeline diagram Name Description High pressure/ High pressure and fine adjustment fine adjust handle Vent valve Clockwise close/Counter-Clockwise open Reservoir Medium storage During transportation: Rotate to the end to keep it closed; During Reservoir release use: Rotate out 3 to 4 turns to keep it vented;...
- Page 7 Typical Operating Position...
- Page 8 Quick Connector Adjustment Note: The quick connector adjustment must be performed under zero pressure.
- Page 9 Basic Operation The following operations are illustrated in handheld mode.
- Page 10 Fluid Injection/Refill...
- Page 11 Metrology Made Simple Statement The product technical specifications, accessories and other related information in this manual are subject to change without prior notice. Please contact Additel Corporation if you have any questions. Additel Corporation Website: www.additel.com Telephone: 714-998-6899 Download User Manual...
