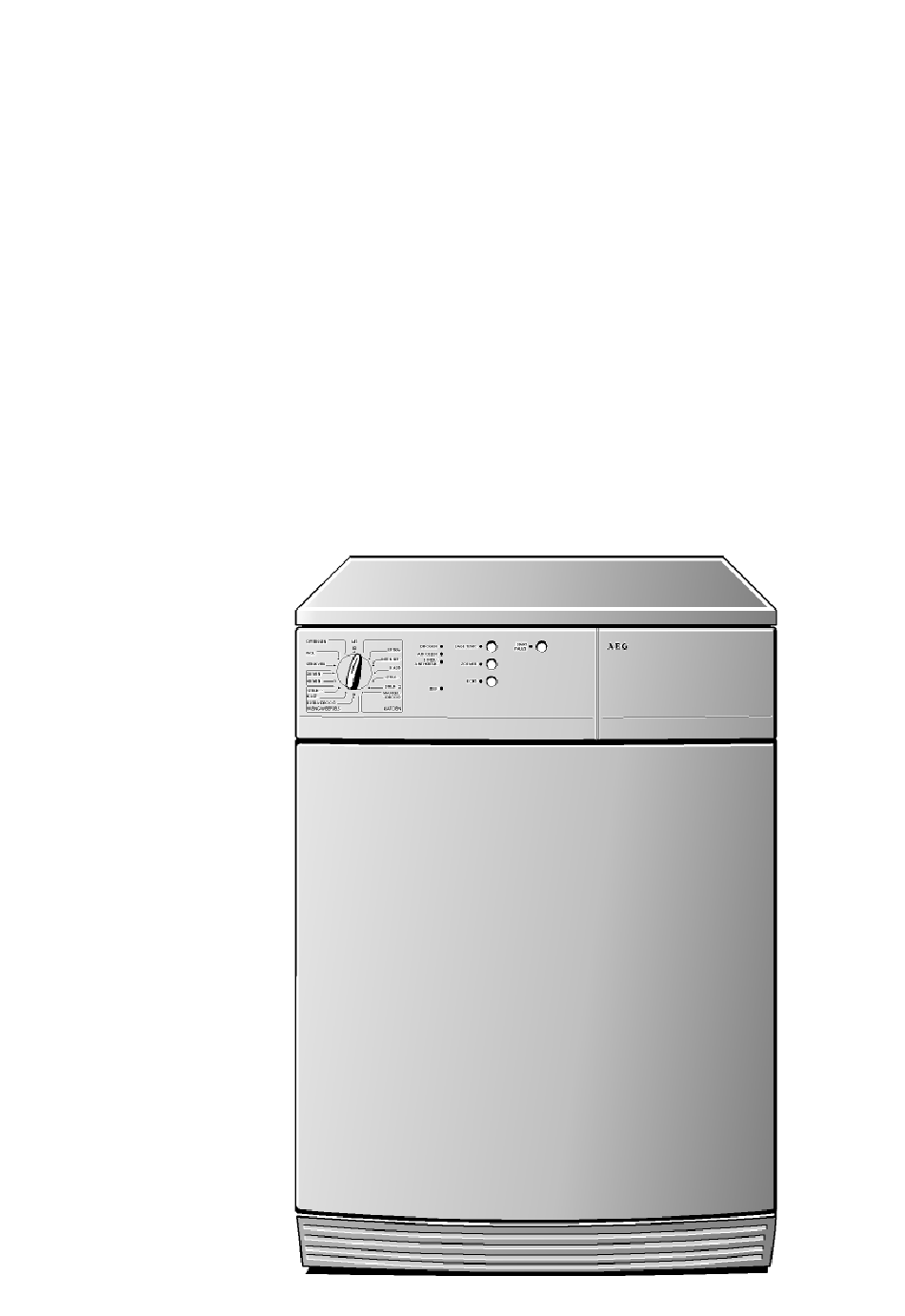

- Page 1 LAVATHERM 37320 electronic 37320 electronic Vented Tumble Dryer Operating Instructions...
-
Page 2: Dear Customer
Dear customer, Please read these operating instructions through carefully. Please make sure you read the safety instructions on the first pages of these operating instructions! Keep the operating instructions for future reference. Pass them on to any future owners. With the warning triangle and/or by means of key words (Danger!, Caution!, Attention!), information is emphasized which is important for your safety or the correct functioning of the appliance. -
Page 3: Table Of Contents
Content Important Safety Information ........General Information ......... . . Disposal . - Page 4 Content Something not working? ........25 Door Reversal Instructions .
-
Page 5: Important Safety Information
Important Safety Information 1 Important Safety Information The safety of AEG electrical appliances complies with the established technical principles and statutory equipment safety regulations. Never- theless, as manufacturer we have to draw your attention to the follow- ing safety instructions. -
Page 6: Safety Of Children
Important Safety Information Safety of children • Children are often not aware of the dangers involved when handling electrical equipment. Therefore provide the necessary supervision of children when operating the appliance and do not let children play with the dryer – there is a danger that children could become trapped inside the appliance. -
Page 7: Installation And Connection
Important Safety Information Installation and connection • Please follow the separate Installation and connection instructions. If necessary get some advice from your local chimney sweep or building authorities. • Check the dryer for Transportation damage. Never connect-up a dam- aged appliance! Contact your supplier if the appliance is damaged. •... -
Page 8: General Information
General Information 3 General Information • Starched washing leaves traces of starch on the drum and therefore should not be placed in the tumble dryer. • If you exceed the maximum load stipulated in the program table your washing is more likely to get creased! For very delicate fabrics you should only fill in 1.5kg washing at the most. -
Page 9: Environmental Protection Tips
Environmental protection tips 2 Environmental protection tips • Your laundry will become light and soft in the tumble dryer even with- out a fabric softening agent. • Loosen your laundry before loading it into the dryer. This helps to pre- vent lengthy running times and creasing. - Page 10 Environmental protection tips • Select the appropriate drying program for the type and quantity of laundry. The dryer will then operate as economically as possible. Some typical consumption values: Power Fill weight Duration in Drying program consumption in kg Minutes in kWh COTTONS CUPBOARD DRY (KATOEN KAST-DROOG)
-
Page 11: The Key Features Of Your Appliance
The key features of your appliance The key features of your appliance • Program or time setting via the program selector • SPECIAL CARE (LAGE TEMP.) button for gentle drying of sensitive fabrics • AUDIBLE SIGNAL (ZOEMER) can be selected in addition; an intermittent audible signal is sounded after the end of the program. -
Page 12: Description Of The Appliance
Description of the appliance Description of the appliance Front view Fluff filter Control panel Rating plate Feet Removable Plinth Reversible door (all height-adjustable) -
Page 13: Control Panel
Description of the appliance Control panel A Program selector: for setting the drying program B Program run display: The currently running phase of the drying process is indicated. C Buttons and display block – SPECIAL CARE (LAGE TEMP.) button: For sensitive fabrics –... -
Page 14: The Program Selector
Before using the appliance for the first time The program selector • OFF (UIT): The tumble dryer is switched off. • Program group COTTON (KATOEN): Programs for drying cotton and linen fabrics; maximum load 5 kg. • Program group DELICATES (MENGWEEFSELS): Programs for drying mixed fabrics and synthetics;... -
Page 15: Brief Instructions
Brief instructions Brief instructions • Ensure the laundry is well spun before tumble drying. • Prepare the laundry. • Open the door and insert washing. • Shut the door. Attention! Do not catch washing in the door. • Select the drying program –... -
Page 16: Drying
Drying Drying Prepare the laundry • To prevent tangled bundles of laundry: Close zip fasteners; button-up bed linen and pillow cases; tie-together loose tapes, e.g. aprons. • Empty all pockets. • Remove all metal objects (paper clips, pins, etc.). • Turn clothing consisting of double-layer fabric inside out (such as cotton-lined anoraks with the cotton layer facing outwards). - Page 17 Drying 0 If required, select the button SPECIAL CARE (LAGE TEMPERATUUR), AUDIBLE SIGNAL (ZOEMER), QUICK DRY (KORT). • SPECIAL CARE (LAGE TEMPERATUUR) button This program operates with reduced heat. Press the SPECIAL CARE (LAGE TEMPERATUUR) button for fabrics bearing the care symbol S. Gentle drying is advisable for heat-sensitive fabrics (such as acrylic and viscose).
-
Page 18: Start The Drying Program
Drying Start the drying program 0 Press the button START/PAUSE (START/PAUZE ). The drying programme begins. You can check the progress of the drying procedure in the pro- gramme progress display. Removing laundry or loading laundry when necessary You can interrupt the drying process at any time to remove some of the laundry or to add more laundry. -
Page 19: Clean The Fluff Filter
Drying Clean the fluff filter To ensure efficient operation of the tumble dryer, clean the fluff filter after each drying program. Also check whether there are any remnants or fluff from the washing in the drum; remove immediately. 0 Press the catch of the filter lid down- wards. -
Page 20: Program Tables
Program tables Program tables Program group COTTONS (KATOEN) care symbols R, Q; maximum load 5 kg Program Laundry Type Examples for EXTRA DRY Heavy weight or mult-layered Towelling material, bath robes (EXTRA DROOG) fabrics VERY DRY thick textiles that are to be Towelling, terry towels (INTENSIEFDROOG) thoroughly dried. - Page 21 Program tables TIME programs care symbols R, S , Q; loads less than 1kg You can select 20 and 40 minutes program duration for additional drying of individual pieces of laundry or to dry small quantities. 1) Press the SPECIAL CARE (LAGE TEMPERATUUR) button! Program EASY IRON (STRIJKVRIJ) care symbols R, S , Q;...
-
Page 22: A Small Glossary Of Textile Information
A small glossary of textile information A small glossary of textile information Care symbols Ensure articles to be dried are suitable for tumble drying. If they are one of the following symbols should be present on the care label: This fabric can be tumble dried. The fabric manufacturer does not stip- ulate if the piece of laundry should be dried on a normal or gentle pro- gram. -
Page 23: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance Cleaning the filter area Important! A small amount of fluff may reach the area around the fil- ter in spite of the fluff filter. Therefore you should clean the entire filter area from time to time, or at least every three months. 0 Remove the fluff filter. -
Page 24: Cleaning The Drum
Cleaning and maintenance Cleaning the drum Warning! Do not clean the stainless steel drum with abrasive deter- gents or steel wool! Fabric softeners or lime in the water can cause a scarcely visible deposit to form on the drum. The dryer is then no longer reliably able to recognise how dry the washing is. -
Page 25: Something Not Working
Something not working? Something not working? If the tumble dryer is not working correctly please carry out the follow- ing checks before calling an engineer. Symptom Possible cause Solution The appliance is not Plug in the appliance plugged in The fuse has blown Check the fuse The START/PAUSE (START/ Press the START/PAUSE... - Page 26 - discontinuation of the filled-in laundry filled-in drying process - Program run display is flash- Pre-dry the laundry more Laundry too damp thoroughly If after these checks, the tumble dryer still does not work, contact your local AEG Service Force Centre.
-
Page 27: Door Reversal Instructions
Door Reversal Instructions Door Reversal Instructions The door opening direction can be changed if required. Warning! Before reversing the door, isolate the appliance from the mains supply. Proceed as follows to reverse the door opening direction: A C B A C B 0 Un-screw the screws A on the front panel of the appliance. -
Page 28: Special Accessories
Vent hose To conduct exhaust fumes, a flexible spiral conduit with a diameter of 105 mm can be obtained through your AEG Service Force Centre or at a specialised electrical shop. This spiral conduit is easy to fit and is easily attached to the vented tumble dryer using the adapter that comes with the appliance (see enclosed booklet „Installation Instructions for... -
Page 29: Technical Data
Technical data Technical data Height x Width x Depth 85x60x60cm Depth with the door open 117cm Height adjustable from 1.0/–0.4cm Empty weight approx. 40 kg Load (depending on the program) max. 5kg (Different loads in some countries are due to different measuring methods) Power consumption in acc. -
Page 30: Content
Acrylic ......22 AEG Service Force Centre ....26 Packaging . -
Page 31: Service
Service In the chapter "Something not working" some disturbances have been summarised, which you can solve yourself. If you do not find any helpful information there, please contact your local customer service centre. It is nearby and if necessary can reach you quickly. (Addresses and phone numbers can be found in the Warranty Conditions/Service Departments) Be well prepared before you phone. - Page 32 AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 822 944 127–00- 0102/PRO Subject to change without notice...
