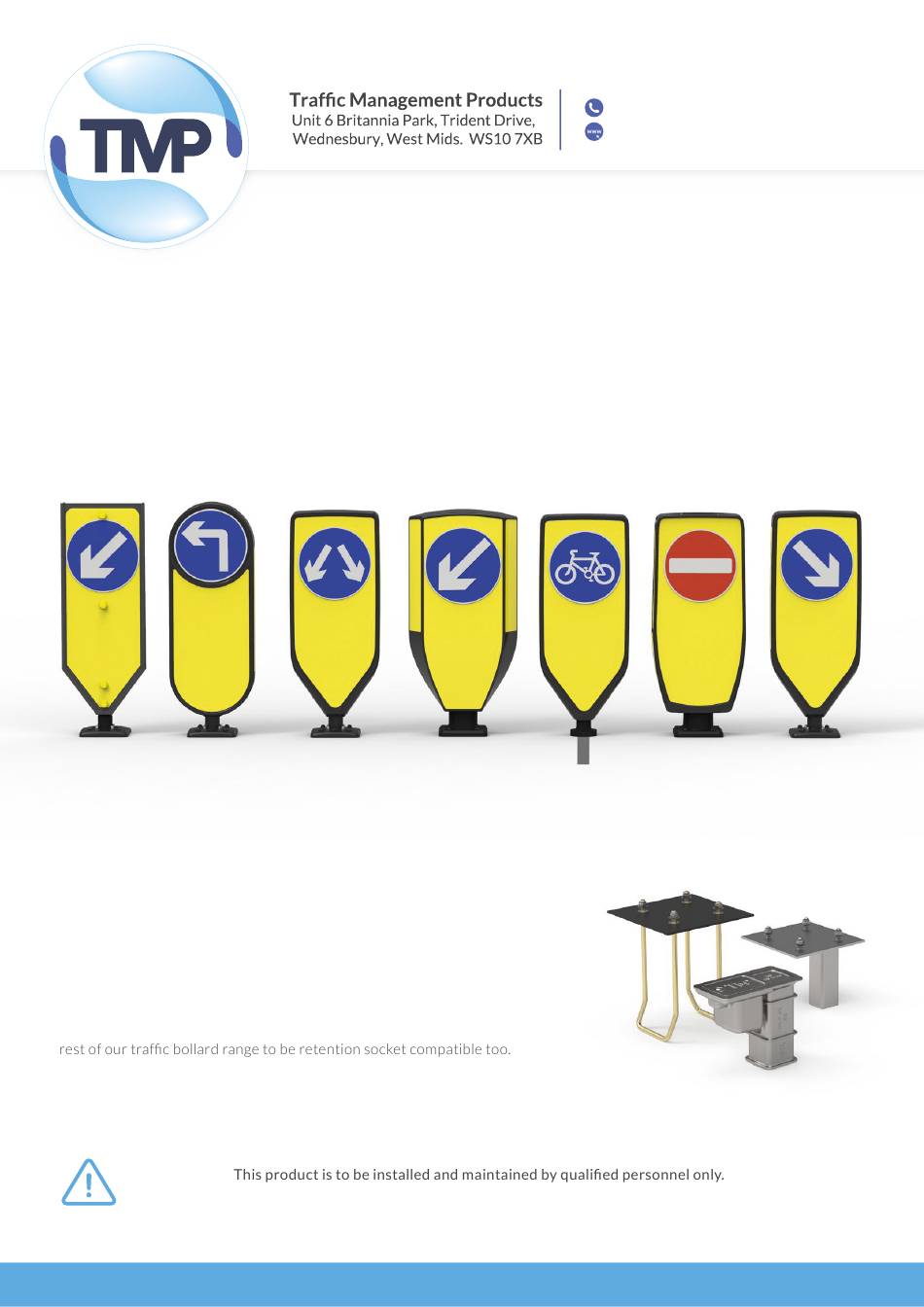

Flecta
Metro
2.0
lnstallation options
For all new standard installations we recommend using our Cast-in Cage, and
for high-risk areas, we recommend our Retention Socket. Both solutions give
enhance protection in the event of an impact, but using our retention socket
will make removing and replacing the bollard in the future easier.
The Evo-N-RS is compatible with both the TMP or NAL 50x50 Retention
Socket right out of the box, plus we also make an adaptor plate that allows the
IMPORTANT :
TMP Solutions take no responsibility for damage or injury incurred during the installation or maintenance.
These instructions must remain with the product to ensure correct installation.
Unit 6 Trident Drive, Wednesbury,
West Midlands. WS10 7XB
RSRB Bollard
Installation Guide
Evo-N
Evo-MAX
0208 744 8201
www.trafficmanagementproducts.co.uk
Evo-S
(Solar LED)
Evo-N-RS
(Retention Socket)
0208 744 8201
www.tmp.solutions
Evo- Heritage
1 of 4
Advertisement
Summary of Contents for TMP RSRB Flecta
- Page 1 Socket right out of the box, plus we also make an adaptor plate that allows the IMPORTANT : TMP Solutions take no responsibility for damage or injury incurred during the installation or maintenance. These instructions must remain with the product to ensure correct installation.
- Page 2 Cast-in Cage Installation Tools Required 17mm Socket & Ratchet Excavation Equipment Spirit Level Concrete Mix How to install the the cage designed to rebound on impact. (NB If placed in close proximity to posts this could affect the performance of the product.) Assemble the Cast-In Cage by placing the plate over the threads and securing with nuts and washers.
- Page 3 Retention Socket Installation Tools Required 19mm Spanner Size 6 Hex Key Excavation Equipment Spirit Level Concrete Mix Type 1 Sub Base Note: If the existing ground is loose or uncompacted, How to install the retention socket use a wider/deeper base of concrete. Excavate the site to a minimum of 300mm x 400mm wide by 225mm deep.
- Page 4 All our RSRB bollards are compatible with our retention socket when installed with the optional adaptor plate. How to secure the bollard Remove both cover plates from the retention socket using the size 6 hex key. You will now see an access chamber housing the head of an M12 bolt, and a 50x50mm socket. Loosen the M12 bolt using a 19mm spanner so that the 50x50 socket is clear of obstruction.
-
Page 5: Installation
Drill into the surface to a minimum depth of 80mm and ensure all debris is removed from the installation site. Tap in the rawl plug and replace the TMP bollard, ensuring the holes line up. Place washer on to M12 screw and insert through the bollard base and tighten. -
Page 6: Maintenance
Replace the door and tighten the screws. Maintenance Battery and solar panel replacements may become necessary to maintain the Evo-S bollard. Should the product fail to illuminate contact us on 0208 744 8201 or email info@tmp.solutions and we’ll help you purchase replacement parts. Need help? 0208 744 8201 We operate a policy of continuous product development and reserve the right to change or improve specification without prior notice.
