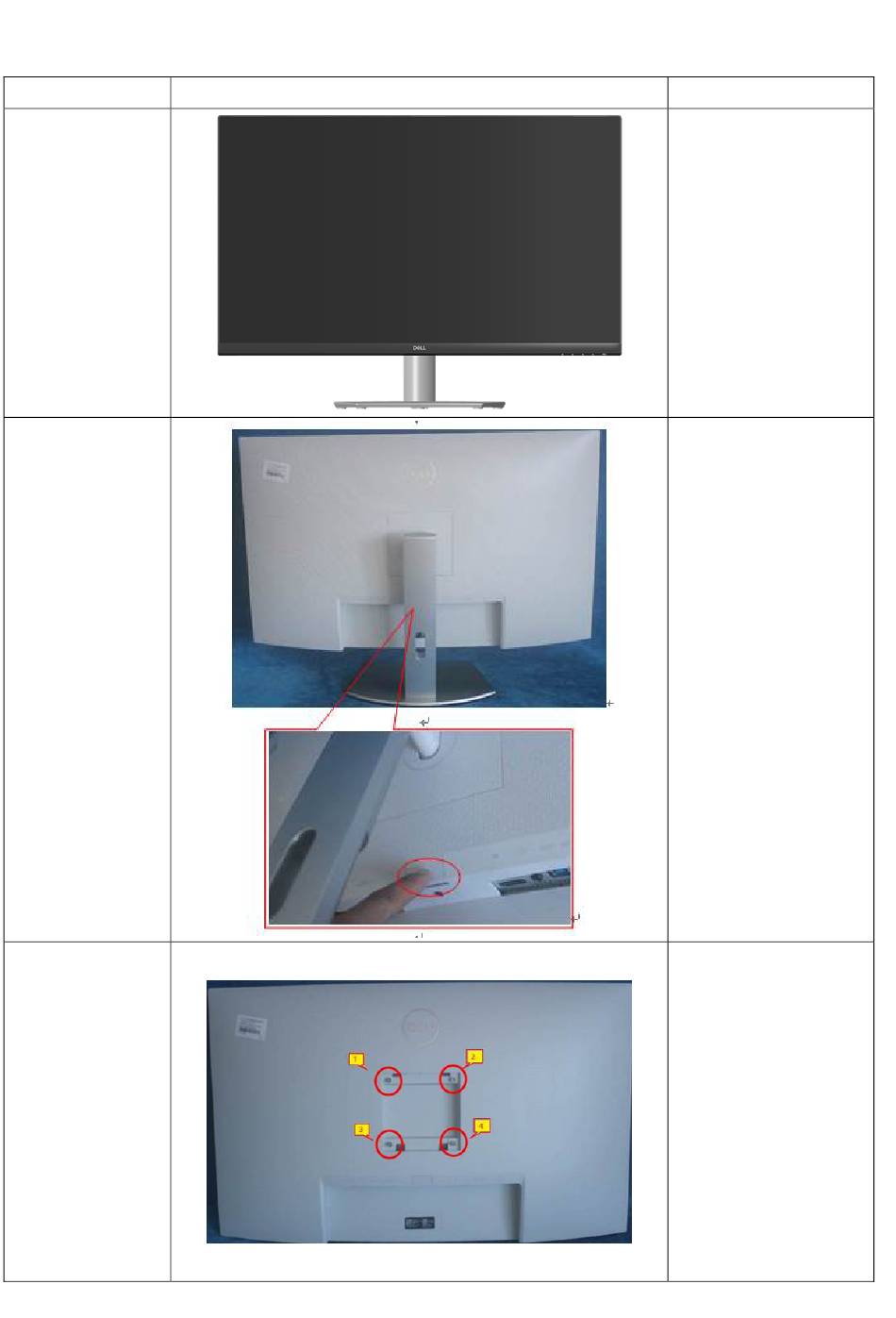

Mechanical Instruction
Disassembly Procedures:
Step
S1.Before
disassemble
S2.Remove the
STAND-BASE
ASS'Y
S3.Remove the
REAR COVER
Figure
Remark
Turn off power,
Unplug external
cables from product
Push the button to
remove the stand-base
assy.
Use a Philips-head
screwdriver to
remove 4 screws for
unlocking
.
mechanisms
(No.1~4 screw
size=M4x10; Torque:
12±2kgf.cm)
