M

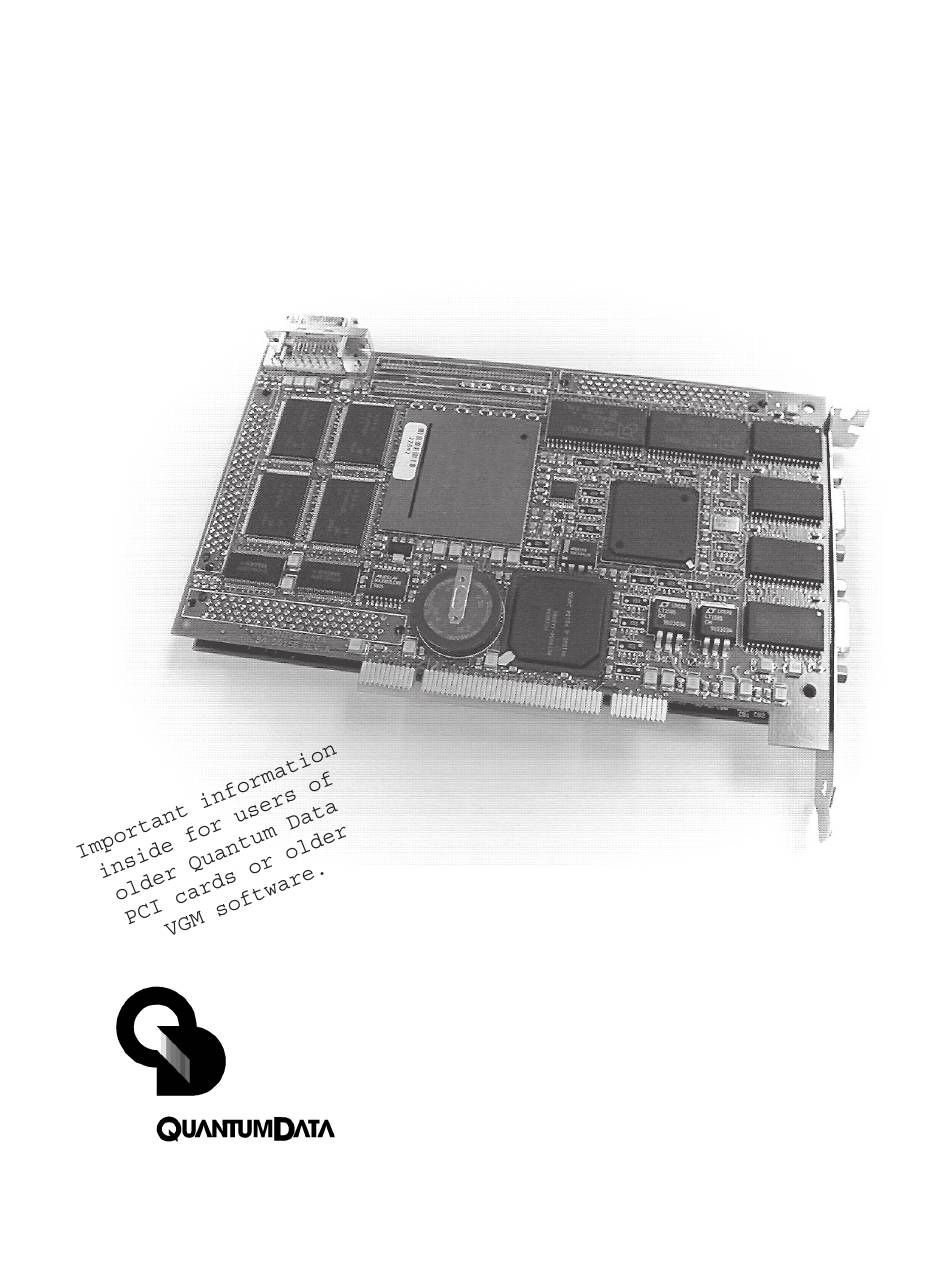

802F-PCI, 802G-PCI
ODEL
Programmable Vi d e o G e n e r a t o r s
Quick Start
Guide
®
This Quick Start Guide is designed to help you get up and running quickly
with your video generator and Video Generator manager (VGM) software.
Detailed information on programming and operating the generator can be
68-00190 Rev. A
Quantum Data, Inc.
Page 1
found in the VGM help file.
68-00nnn Rev. In Development
Quantum Data, Inc.
Page 1
Advertisement
Summary of Contents for Quantum Data 802F-PCI
- Page 1 802F-PCI, 802G-PCI ODEL Programmable Vi d e o G e n e r a t o r s Quick Start Guide ® This Quick Start Guide is designed to help you get up and running quickly with your video generator and Video Generator manager (VGM) software.
- Page 2 Please see the back page of this guide if you are developing DOS based applications. Because of these changes, it is not possible to operate a mix of Quantum Data PCI Card Generators with old and new firmware on the same PCI bus. Revision D of the Quantum Data “Software Utilities and Documentation” CD- ROM (Quantum Data Part # 68-00192) contains an updated installer of the Quantum Data VGM 3.0 application as...
- Page 3 Make sure you have no other open applications on the Windows desktop before starting the installation. ■ Insert Disk #1 of the Quantum Data Video Generator Manager disk set in the disk drive. ■ Locate and run SETUP.EXE on the floppy disk.
- Page 4 DOS Library An updated (ver. 2.10) DOS Library is available from Quantum Data if you are developing your own DOS based software applications to control and program your Quantum Data video test generators. The updated library is compatible with the newer firmware found in the Model 802F-PCI and 802G-PCI cards. The library contains example C source code and header files that can be incorporated into your own source code.
