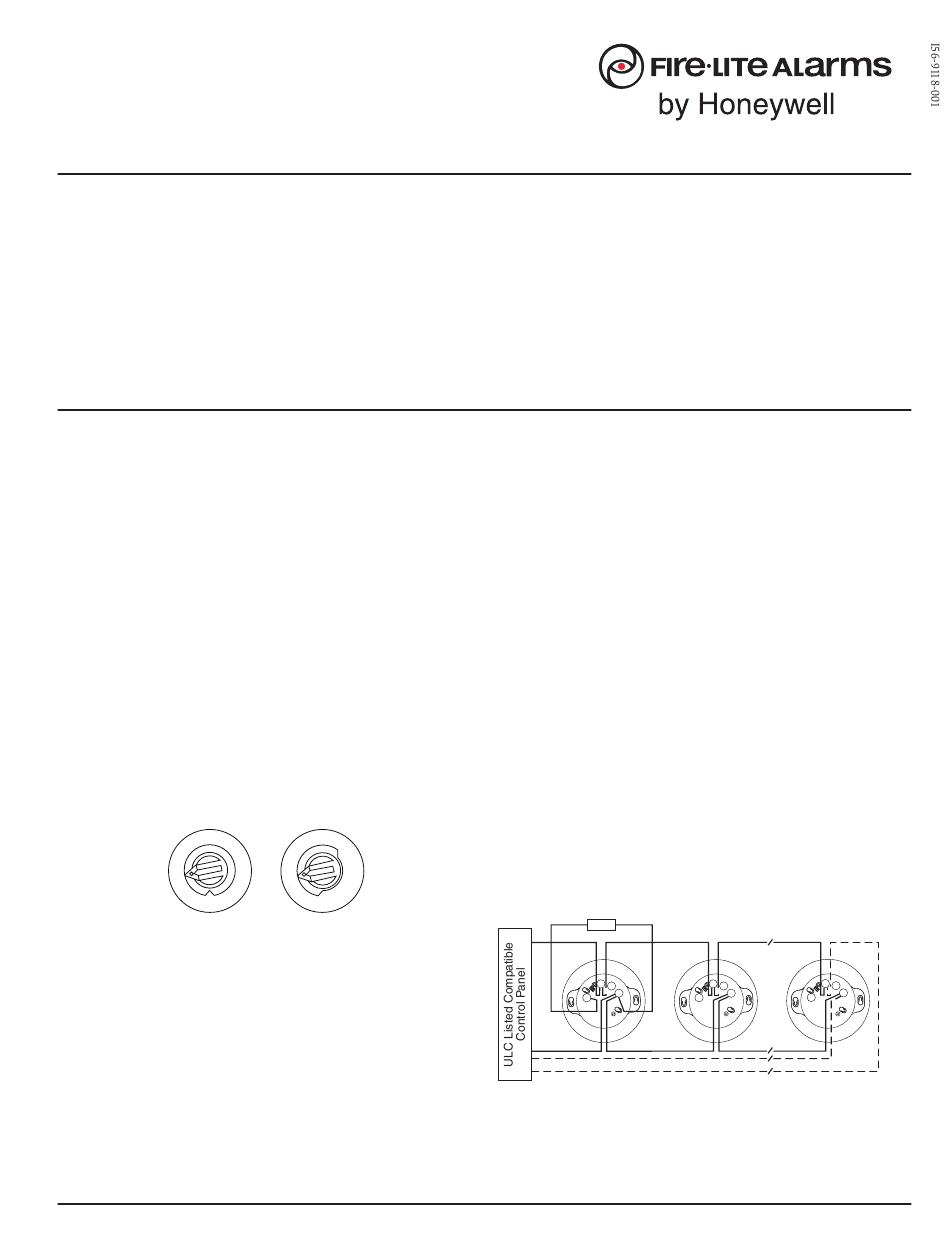

INSTALLATION AND MAINTENANCE INSTRUCTIONS
H365A, H365A-IV, H365RA,
H365RA-IV, H365HTA, and H365HTA-IV
Intelligent Programmable Temperature Sensors
SPECIFICATIONS
Operating Voltage Range:
Operating Current @ 24 VDC:
Maximum Alarm Current:
Maximum Current:
Operating Humidity Range:
Installation Temperature:
Fixed Temperature Rating:
High Heat Temperature Rating:
Rate-of Rise Detection:
Height:
Diameter:
Weight:
CAN/ULC S530 listed for Heat Detectors
This sensor must be installed in compliance with the control panel system
installation manual. The installation must meet the requirements of the Au-
thority Having Jurisdiction (AHJ). Sensors offer maximum performance when
installed in compliance with CAN/ULC S524.
Before installing sensors, please read the system wiring and installation man-
ual thoroughly. This manual provides detailed information on sensor spac-
ing, placement, zoning, and special applications. Copies of these manuals are
available from FireLite.
GENERAL DESCRIPTION
Models H365A, H365A-IV, H365RA, H365RA-IV, H365HTA, and H365HTA-IV
are field programmable intelligent sensors that utilize a state-of-the-art therm-
istor sensing circuit for fast response. These sensors are designed to provide
open area protection with 50-foot spacing capability as approved by CAN/
ULC S530. The intelligent temperature sensor can be programmed as either
a 135°F fixed temperature sensor, a rate of rise and 135°F fixed temperature
sensor or a 190°F high temperature sensor through the Fire Alarm Control
Panel (FACP).
Two LEDs on each sensor light to provide a local, visible sensor indication.
Remote LED annunciator capability is available as an optional accessory
(Part No. RA100ZA). Rotary dial switches are provided for setting the sensor's
address. (See Figure 1.)
FIGURE 1: ROTARY ADDRESS SWITCHES
7 8
6 9
5 10
11
4
12
3
13
2
14
1 0
15
TENS
FireLite panels offer different feature sets across different models. As a result,
certain features of the Intelligent Programmable Temperature Sensors may be
available on some control panels, but not on others. H365A, H365RA, and
H365HTA will support only LiteSpeed® protocol mode. H365A-IV, H365RA-IV,
and H365HTA-IV will support either LiteSpeed or CLIP (Classic Loop Interface
Protocol) mode.
The possible features available if supported by the control panel are:
1. The sensor's LEDs can operate in three ways—on, off, and blinking–and
they can be set to red, green, or amber. This is controlled by the panel.
2. The remote output may be synchronized to the LED operation or con-
trolled independent of the LEDs. Please refer to the operation manual for
the UL listed control unit for specific operation of these models
3. Devices are point addressable up to 159 addresses.
15 to 32 Volts DC Peak
200 uA (one communication every 5 seconds with green LED blink on communication)
2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on)
4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on)
10% to 93% Relative Humidity, Non-condensing
Set for fixed-temperature or rate-of-rise (ROR): –4°F to 100°F (–20°C to 38°C)
Set for high-heat: –4°F to 150°F (–20°C to 66°C)
135°F (57°C)
190°F (88°C)
Responds to greater than 15°F/minute or 135°F (8.3°C/minute or 57°C)
2.0˝ (51 mm) installed in B300A-6 Base
6.2˝ (156 mm) installed in B300A-6 Base
3.4 oz. (95 g)
7 8
6 9
5
4
3
2
1 0
ONES
C0162-00
4. The heat sensor operates as a programmable heat detector.
NOTE: In panels where this feature is not available, the H365A and
H365A-IV will default to a 135°F fixed heat detector. H365RA and
H365RA-IV will default to a 135°F fixed heat detector and rate-of-rise.
H365HTA and H365HTA-IV will default to a 190°F high temperature heat
detector.
Intelligent programmable temperature sensors require compatible addressable
communications to function properly. Connect these sensors to listed-compat-
ible control panels only.
WIRING GUIDE
All wiring must be installed in compliance with the Canadian Electrical Code,
applicable local codes and the Authority Having Jurisdiction. Proper wire
gauges should be used. The installation wires should be color coded to limit
wiring mistakes and ease system troubleshooting. Improper connections will
prevent a system from responding properly in the event of a fire.
Remove power from the communication line before installing sensors.
1. Wire the sensor base (supplied separately) as shown in the wiring
diagram. (See Figure 2.)
2. Set the desired address on the rotary dial switches. (See Figure 1.)
3. Install the sensor into the sensor base. Push the sensor into the base
while turning it clockwise to secure it in place.
4. After all sensors have been installed, apply power to the control unit and
activate the communication line.
5. Test the sensor(s) as described in the TESTING section of this manual.
FIGURE 2. WIRING DIAGRAM:
Remote
Annunciator
+ -
(+)
+
+
2 –
RA
1
3
(–)
(–) CLASS A OPTIONAL WIRING
(+)
1
10 Whitmore Road
Woodbridge, Ontario L4L-7Z4
Phone: 1-800-778-9958
CAUTION: Do not loop wire under
terminal 1 or 2. Break wire run to
supervise connections.
+
+
+ +
2 – 2 –
RA RA
1 1
3
3
I56-9118-001
08/08/2018
C0129-11
