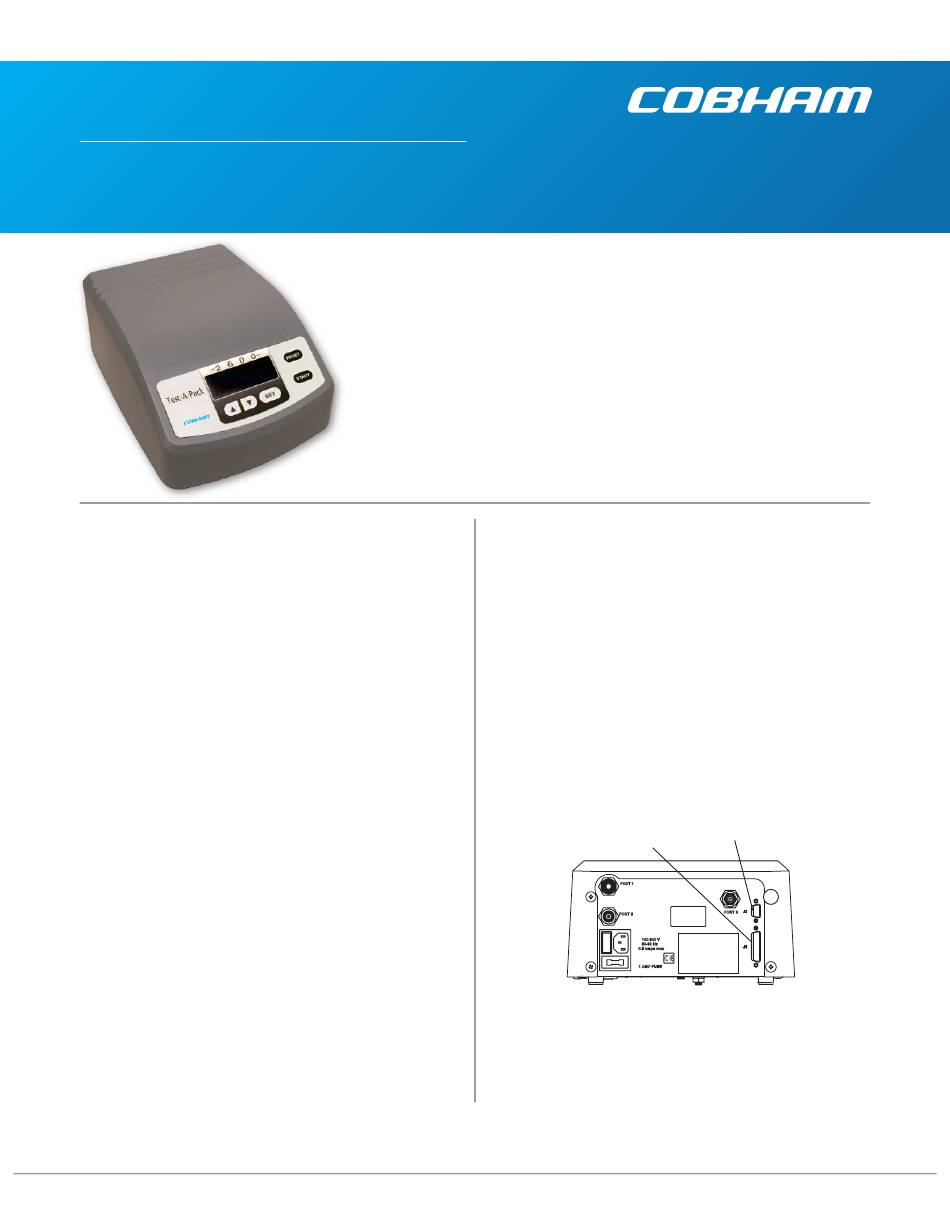

COBHAM Test-A-Pack 2600 Operator's Manual

Test-A-Pack 2600
Seal Strength Tester
P/N: F100-2600-3
The most important thing we build is trust
Key Features
Test-A-Pack quality and reliability
•
Automatic control
•
• Burst and creep capability
• 0.2% pressure accuracy
• 0.3 in H 2 O resolution
• Serial data output
Specifications
Source 70 to 100 psi clean, dry air
Electrical Power 100 to 240 VAC @ 50 to 60 Hz
Input/Output DB25 female parallel printer port,
DB9 female serial port
Operating Environment
Temperature
Operating 40 to 110 deg F
Non-operating 0 to 126 deg F
Humidity Up to 90% relative humidity
Performance
Pressure Accuracy 0.2% full scale
Pressure Resolution 0.3 in H 2 0
Sensitivity Adjustment Nine programmable settings
Flow Adjustment Nine programmable settings
800-046-108 Rev B
Carleton Technologies Inc. is doing business as Cobham Life Support. The information contained in this brochure is given in good faith
and is intended for guidance only. It should not be used for specifications and no warranty is given or is implied with respect to such information.
The Cobham Test-A-Pack Model F100-2600-3
Seal Strength Tester is the heart of the world's
most advanced package testing system.
It automatically regulates air pressure to
determine the seal strength of a wide variety
of porous and non-porous packages used
in the medical, food and pharmaceutical
industries. The tester is ideal for performing
burst and creep tests in accordance with
ASTM F1140-2000 and is a valuable tool for
users seeking ISO 11607 compliance.
This tester is a highly accurate, multifunctional
pressure control and monitoring device.
Testing Range
Min Burst
Max Burst
Min Creep
Max Creep
Ordering Information
Part Number
Description
Relevant Dim
Weight
(4 to 43 deg C)
(-18 to 52 deg C)
(50 PSI) (3.45 bar)
(.7 mbar)
The burst test function automatically inflates
the test sample until seal failure occurs. The
creep test feature checks package seals under
sustained pressure. The creep-to-burst feature
sequentially checks minimum required seal
strength and maximum pressure at burst.
The operator sets test variables using easy
to follow menu screens, and then initiates
the test sequence by simply pressing the
start button. Test results are displayed on the
screen and are held in memory.
The tester includes a parallel printer port and
a serial output port for easy interface with a PC.
In H 2 O PSI KPa
5 0.2 1.2
1,384 50 344
5 1 3
1,384 50 344
F100-2600-3
Seal Strength Tester
11.4" W x 15.0" L x 6.0" H
(29 cm, x 38 cm, x 15 cm)
13 lbs (5.9 kg)
SERIAL PORT
PARALLEL PORT
FEMALE DB9 CONNECTOR
FEMALE DB25 CONNECTOR
For further information please contact:
Cobham Life Support
10 Cobham Drive
Orchard Park, NY 14127 USA
Tel: +1 (716) 662 0006
Fax: +1 (716) 662 0747
www.cobham.com/lifesupport
CM H 2 O
13
3,519
13
3,514
© Cobham plc, 2009
