DEAD FLY ZONE AMS-A System Assembly Instructions

Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
AMS-A System Assembly Instructions
Once you receive your shipment, carefully unpack its contents.
The System is packaged into two boxes for its protection during shipment:

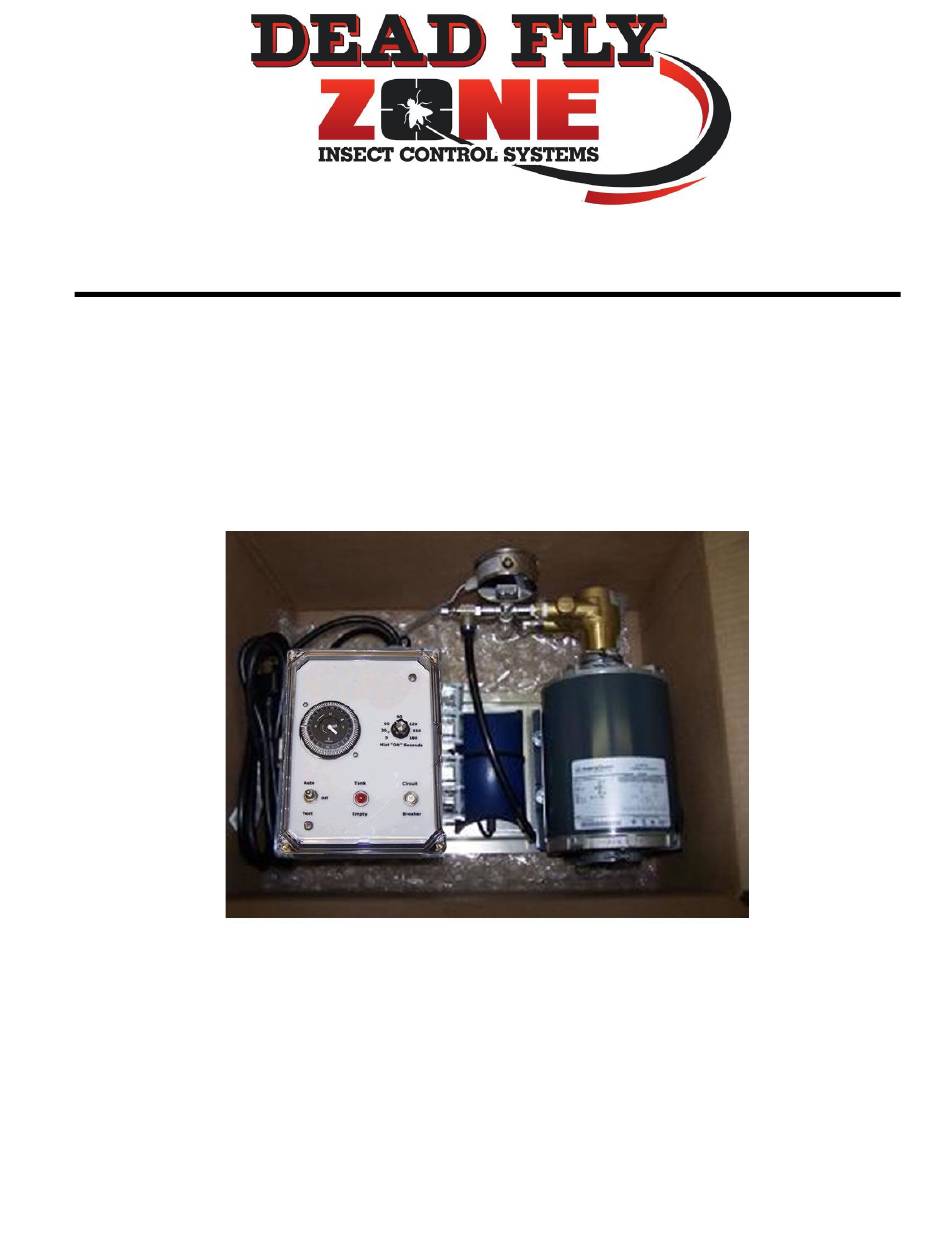

1) The Above-Drum Assembly (pictured below) and,
2) The In-Drum Assembly
You received or will receive your tubing, nozzles, fittings and insecticide directly from Dead Fly Zone.
Your system was shipped directly from our manufacturer's warehouse.
The Above-Drum Assembly consists of the Control Box, Motor, Pump and associated fittings. These are
bolted to an Aluminum mounting plate and are pre-wired for ease of installation. These will be mounted
on the lid of the drum.
The In-Drum Assembly consists of the float switch ball, 3/8" intake tube, intake filter, mounted in 3/4"
white PVC tubing. These will be mounted inside the drum. See image below.
