Summary of Contents for Simplified MFG SP18S-8K

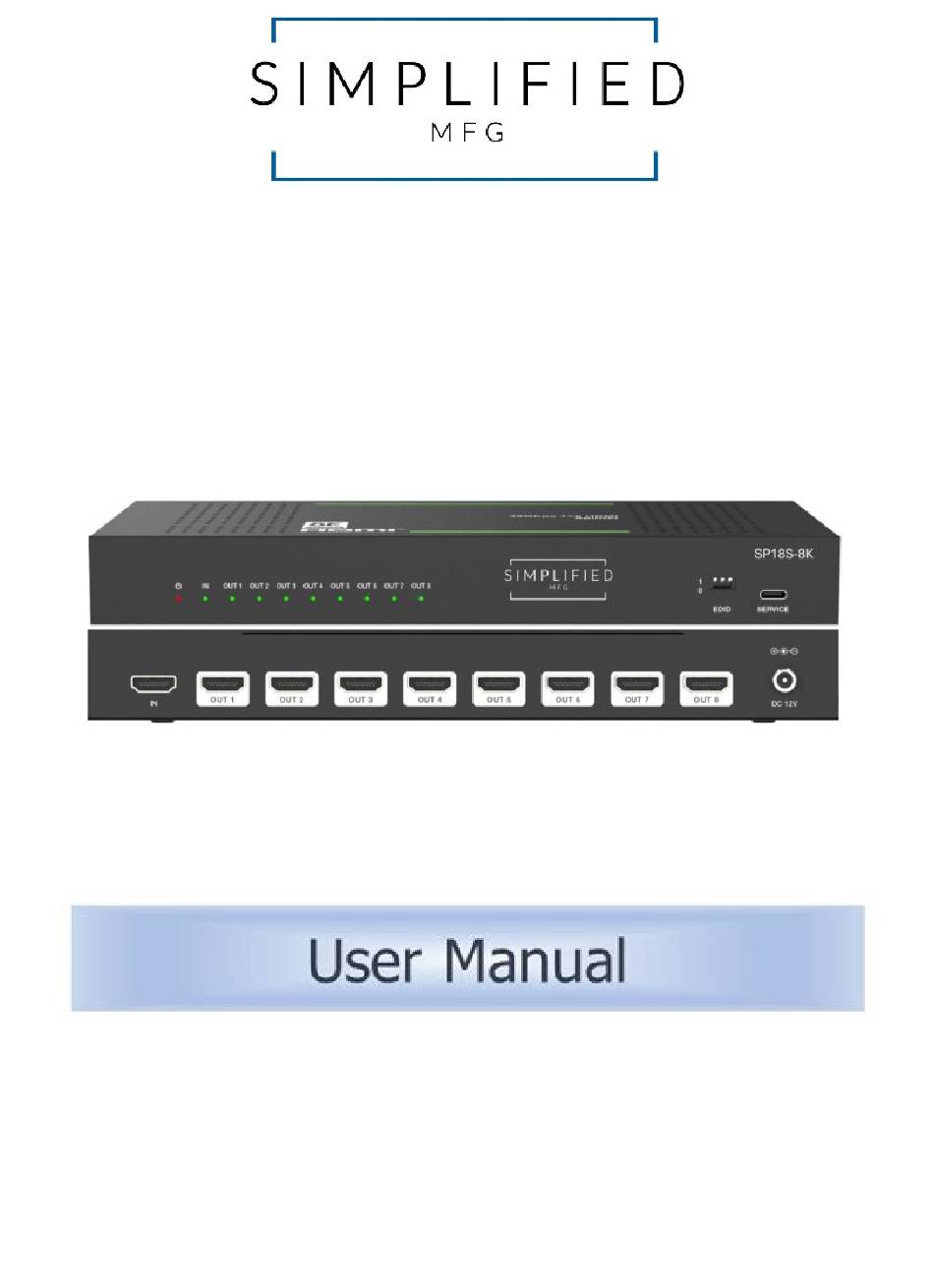

- Page 1 SP18S-8K VER 1.1...
- Page 2 Thank you for purchasing this product The Simplified MFG SP18S-8K is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 2. Features ................3 3. Package Contents ............. 4 4. Specifications ..............4 5.Operation Controls and Functions ........6 5.1 Front Panel .............. 6 5.2 Rear Panel…………………………………………………..7 6. HDMI Cable recommendations………………………………..7 7. Downscaling and Conversion Function ......8 8. -
Page 4: Introduction
1. Introduction The SP18S-8K is an 48Gbps HDMI2.1 splitter with scaling, and EDID management. It supports resolutions up to 8K4K@60Hz (4:4:4) and below. The SP18S-8K also supports HDCP 2.3/2.2/1.4. The EDID can be managed via DIP witch. Each output can automatically scale (8K/4/1080p). -
Page 5: Package Contents
Supports all HDMI audio formats including LPCM, Dolby • Digital+, Dolby True HD, Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, & DTS-X Package Contents 1× HDMI 2.1 8K scaling splitter • 1 x 12/2.5A Multi volatage power supply •... - Page 6 HDR10+, DolbyVision™, HLG HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, Atmos, DTS, DTS-EX, DTS- 96/24, DTS High Res, DTS-HD Master Audio, DSD & DTS-X ESD Protection Human-body Model： ±8kV (Air-gap discharge), ±4kV (Contact discharge) Connections Input ports 1×HDMI Type A [19-pin female] Output ports 8×HDMI Type A [19-pin female] Communication...
-
Page 7: Operation Controls And Functions
5.Operation Controls and Functions 5.1 Front Panel ❶❷ ❸ ❹ ❺ Name Function description This LED will illuminate when the unit has POWER LED connected power supply. This LED will illuminate when the HDMI HDMI INPUT IN has connected an active HDMI source device with a HDMI cable. -
Page 8: Rear Panel
5.2 Rear Panel …. ❶ ❷ ❸ Name Function description HDMI Connect to HDMI source INPUT HDMI Connects to displays OUTPUT Plug the 12V/2.5A DC power supply into DC 12V the unit and connected the adapter to an AC outlet. 6. -
Page 9: Downscaling And Conversion Function
2 resolutions that are 1 step away from each other. Examples would be 8K to 4K or 4K to 1080p. The SP18S-8K cannot support 3 different resolutions or 8K to 1080p conversion. The HDR to SDR function operates in a... - Page 10 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
-
Page 11: Glossary Of Terms
8. Glossary of terms HLG – Hybrid Log Gamma allows content to be broadcast in HDR and SDR simultaneaously VRR – Variable Refresh Rate allows the source to match the refresh rate of the display ALLM – Auto Low Latency Mode (sometimes referred to as “game mode”) This is a request by the source for the display to adapt to a low latency mode. -
Page 12: Warranty
(starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. -
Page 13: Contact
10. Contact Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2024...
