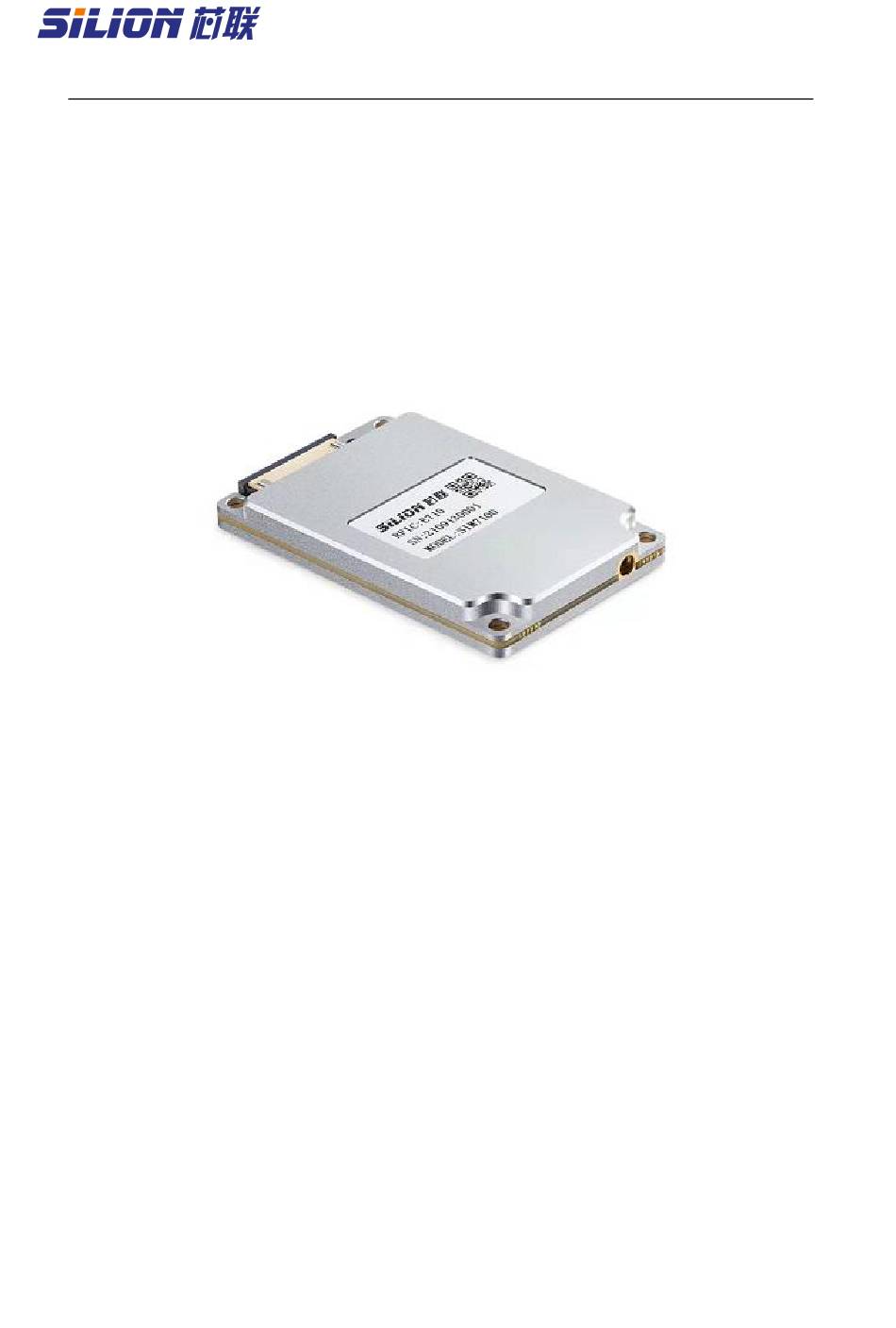

- Page 1 SIM7100E User Manual SIM7100E User Manual Rev 1 Beijing Xinlian Chuangzhan Electronic Technology Co., LTD Tel:（+86）010-62153842/62153840 http://www.silion.com.cn Page 1 of 11...
-
Page 2: Table Of Contents
SIM7100E User Manual Directory 1. A revision history ........................3 Product introduction ......................... 4 Product features ........................4 4. Electrical characteristics ......................5 5. Pin configuration and function Description ................6 6. Application Information ......................7 7. Physical Properties ........................8... -
Page 3: A Revision History
SIM7100E User Manual 1. A revision history Artificial person / file Proposed/revis Change the version Change the content number ed date reason number modifier The initial release V1.0 2021-10-16 Page 3 of 11... -
Page 4: Product Introduction
E710. It is specially designed to meet the requirements of high-performance RFID handheld devices, mobile or portable RFID devices. The SIM7100E module provides one MMCX antenna interface, supporting up to 30 dBm RF output. This module has the characteristics of low power consumption, small size and high sensitivity. -
Page 5: Electrical Characteristics
SIM7100E User Manual 4. Electrical characteristics type unit parameter conditions Frequency Frequency range According Customization Frequency step value According Customization 250/500 output output power +/- 1 Output power accuracy +/- 0.2 Flatness of output power Channel isolation label Profile1 Reception sensitivity... -
Page 6: Pin Configuration And Function Description
SIM7100E User Manual Absolute maximum rated parameter parameter rating power supply voltage Digital I/O Voltage to GND 3.3V Working temperature -20 ~ +65℃ Storage temperature -40 ~ +85℃ 5. Pin configuration and function description 5.1 Definition of FPC connector The serial... -
Page 7: Application Information
SIM7100E User Manual Digital Output 2 （GPIO OUT2） Digital Input 1 （GPIO IN1） Digital Input 2 （GPIO IN2） RXD (DATA INPUT，TTL level) TXD (DATA OUTPUT，TTL level) RST (LOW ACTIVE，Please hang in the air if not used) Digital Output 1 （GPIO OUT1）... -
Page 8: Gpio Interface
SIM7100E User Manual Enable or reset EN is enabled, with built-in pull-up resistance (100k) to VCC. When the module is powered on at h igh level or suspended, the module will be powered off when it is connected to low level (low leve l should be less than 0.4V, high level should be greater than 0.9V and less than VCC). - Page 9 SIM7100E User Manual 8 Peripheral Design Requirement 8.1 List of applicable FCC rules： FCC Part15 Subpart C, Section 15.247 FCC regulatory information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
- Page 10 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7Antenna Type:External Antenna Antenna Gain(Peak): 3.04dbi The final end product must be labeled in a visible area with the following: “2AQ9M-SIM7100E” Operation Frequency: 902.75~927.25MHz Number of Channel: 50 Channels Modulation: ASK Host manufacturer must perfom test of radiated &...
- Page 11 SIM7100E User Manual Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
